ZTRFM U-Channel Drywall Roll Forming Machine High-Speed Steel Framing Profile Machine

The ZTRFM U-Channel Drywall Roll Forming Machine is designed to manufacture high-quality U-channel profiles used in drywall framing and structural bracing systems. These U-channels play an important role in modern construction because they provide lateral support, prevent minor axis bending of vertical studs, and enhance the stability of partition wall structures.As construction projects demand stronger and more efficient framing systems, manufacturers increasingly require automated equipment capable of producing consistent and accurate profiles. Therefore, ZTRFM developed this advanced roll forming machine to ensure fast production, high precision, and flexible profile adjustment.

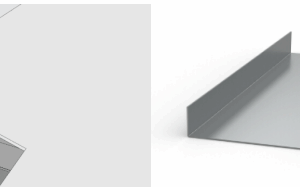

U-Channel Product Specifications

The roll forming machine can produce U-channels that meet international construction standards. These profiles are widely used in drywall framing systems.

Available Specifications

• Material thickness: 16 gauge (54 mils)
• Standard sizes: 3/4″, 1-1/2″, and 2″
• Surface treatment: galvanized zinc coating
• Material standard: ASTM A653 and ASTM A1003 compliant

Because the galvanized coating provides excellent corrosion resistance, these profiles can maintain long service life even in demanding environments.

Integration with Other Drywall Profiles

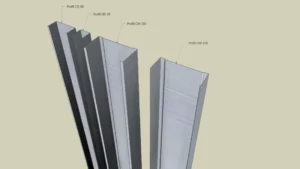

Besides U-channels, the same production line can be configured to manufacture additional drywall framing components. For example:

• CD ceiling channel profiles
• UD perimeter profiles
• UW wall track profiles
• CW supporting studs
• UA reinforced structural profiles

This flexibility allows manufacturers to expand their product range without investing in multiple independent machines.

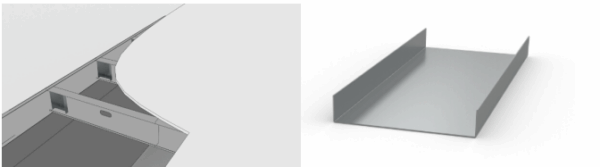

What is a U-Channel in Drywall Framing?

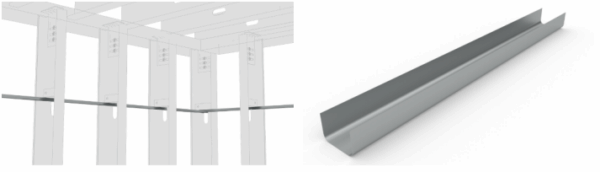

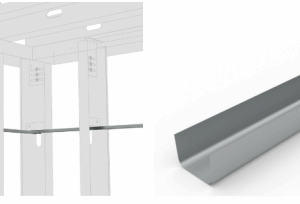

U-channels serve as general-purpose framing components in drywall systems. Builders commonly use them where bridging is required between studs. Once installed, the U-channel improves structural performance by preventing vertical studs from bending under axial loads or wind pressure.

In addition, contractors often use U-channels as lateral bracing members. In this application, installers typically position them at a maximum spacing of 48 inches on center (48″ O.C.) to maintain structural stability.

Furthermore, U-channels can also be integrated into suspended ceiling systems. When combined with furring hat channels, they create a reliable support framework for ceiling panels. Workers usually suspend the system from overhead structures using hanger wires, which ensures proper alignment and load distribution.

To meet the increasing demand for drywall framing components, the ZTRFM U-Channel Roll Forming Machine integrates advanced automation with robust mechanical design.

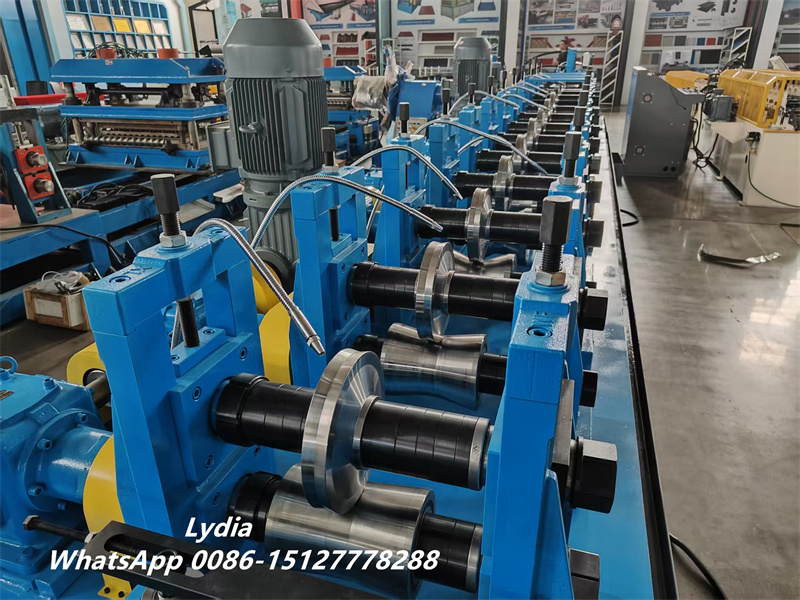

First, the machine uses continuous cold roll forming technology to shape steel coils into precise U-channel profiles. As the material passes through multiple forming stations, the rollers gradually form the profile without damaging the coating or material strength.

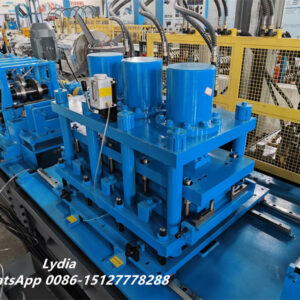

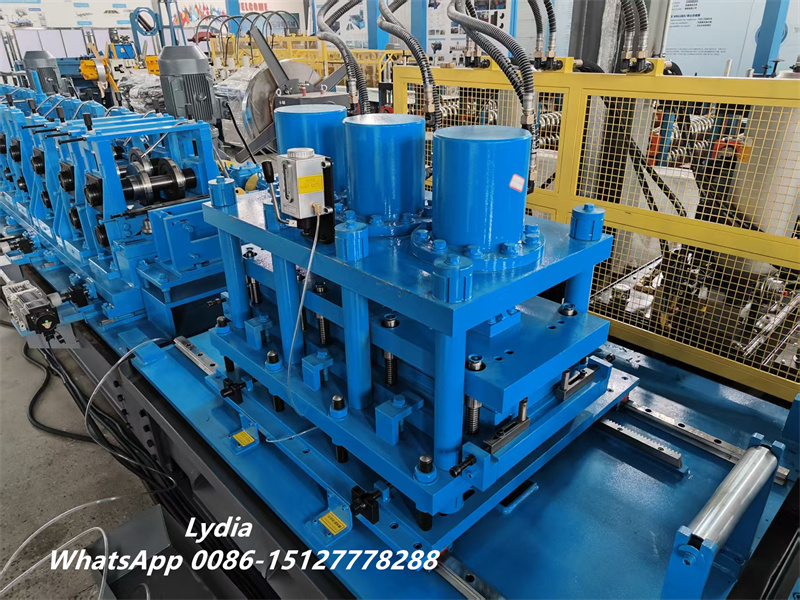

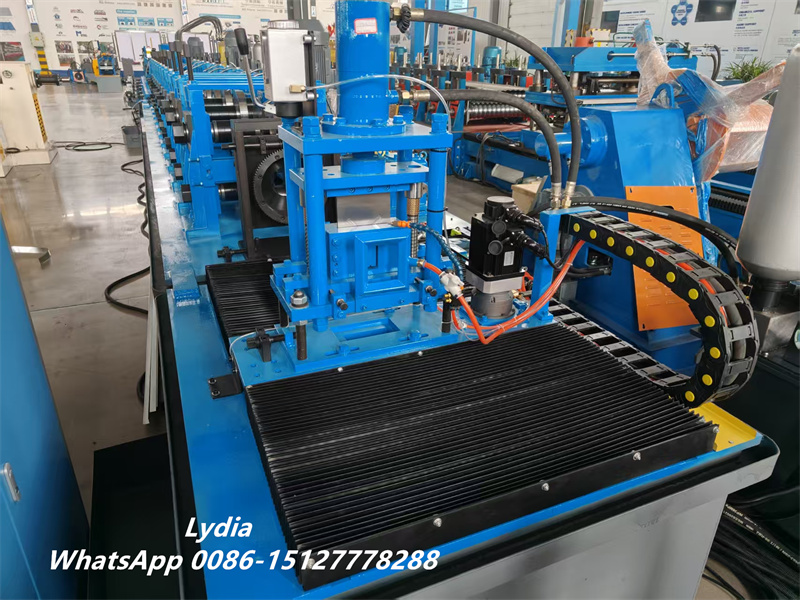

Next, the system uses servo-controlled punching and hydraulic fly cutting, allowing the machine to perform punching and cutting while the material continues moving. Consequently, this technology greatly increases production speed and eliminates unnecessary stopping.

Moreover, the intelligent PLC control system enables operators to set profile length, hole positions, and production quantity directly through the touchscreen interface. As a result, manufacturers can achieve consistent quality across large production batches.

1. Continuous and Stable Feeding

The machine uses a double-head decoiler, which allows operators to prepare the next coil while the machine continues running. This design reduces downtime and improves production efficiency.

2. High-Speed Production

Because the machine integrates fly punching and fly cutting technology, it can reach forming speeds of up to 120 meters per minute, significantly increasing productivity for large-scale manufacturing.

3. Precision Roll Forming

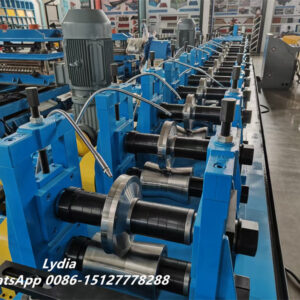

ZTRFM uses Cr12MoV vacuum heat-treated forming rollers to ensure high wear resistance and dimensional accuracy. These rollers maintain consistent profile shape even during long production cycles.

4. Flexible Profile Adjustment

The machine supports both servo motor adjustment and manual hand-wheel adjustment for profile width and height. Therefore, manufacturers can quickly switch between different profile specifications.

5. Durable Mechanical Structure

Heavy-duty No.45 steel shafts with 60 mm diameter provide excellent rigidity during high-speed operation. This structure minimizes vibration and ensures long-term equipment stability.

Technical Specifications

Why Choose ZTRFM U-Channel Roll Forming Machine?

Many drywall profile manufacturers choose ZTRFM equipment because it delivers both reliability and efficiency.

First, the machine maintains excellent dimensional accuracy, which ensures that every U-channel fits perfectly within drywall framing systems. Second, the high production speed significantly reduces manufacturing costs per unit. Finally, the robust mechanical design guarantees long-term operation with minimal maintenance.

Consequently, the ZTRFM U-Channel Drywall Roll Forming Machine becomes an ideal solution for companies looking to increase production capacity while maintaining superior product quality.

Applications in Construction Projects

U-channel profiles produced by this machine are widely used in:

• Drywall partition wall systems
• Suspended ceiling structures
• Steel framing systems
• Acoustic insulation assemblies
• Structural bracing for stud walls

Because these profiles enhance structural stability and installation efficiency, contractors frequently use them in residential, commercial, and industrial buildings.

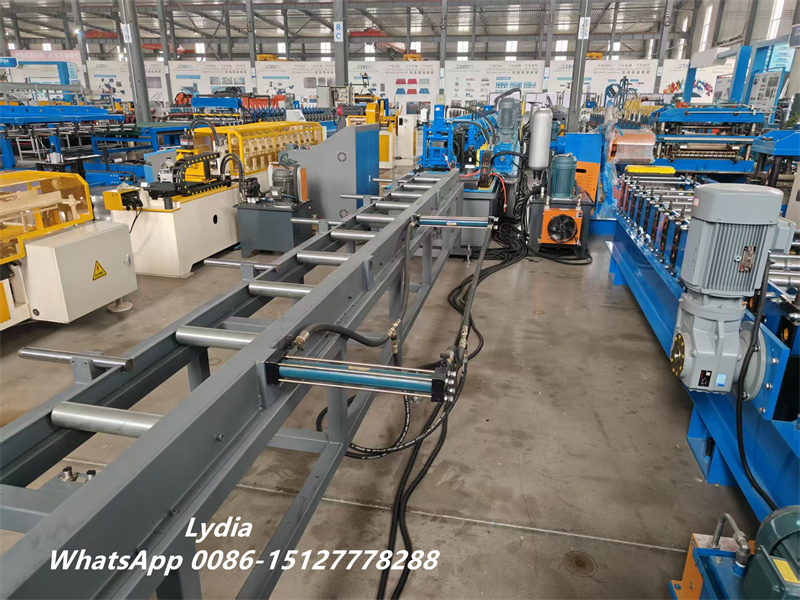

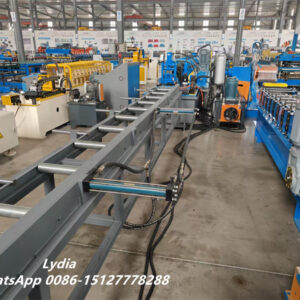

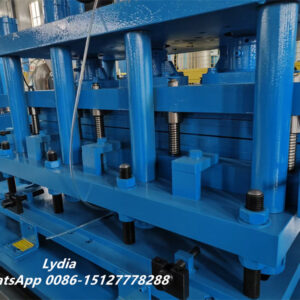

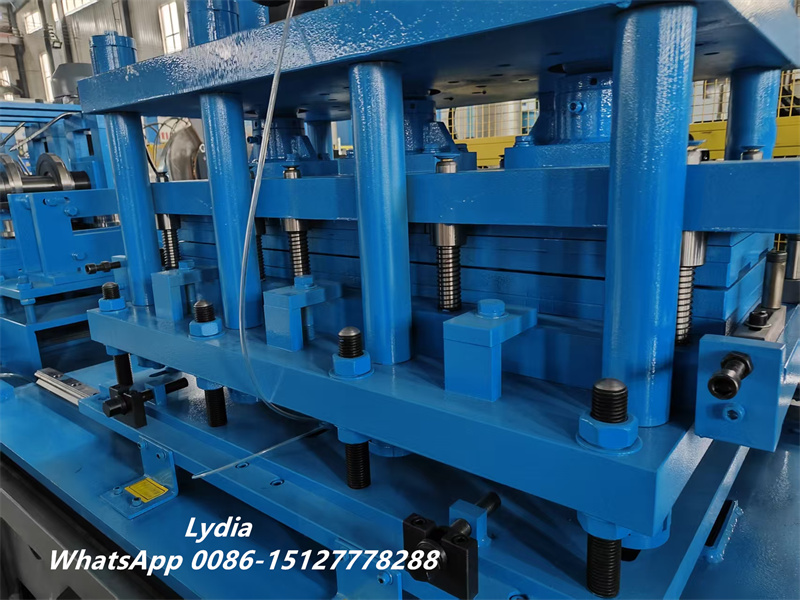

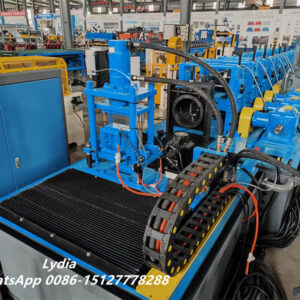

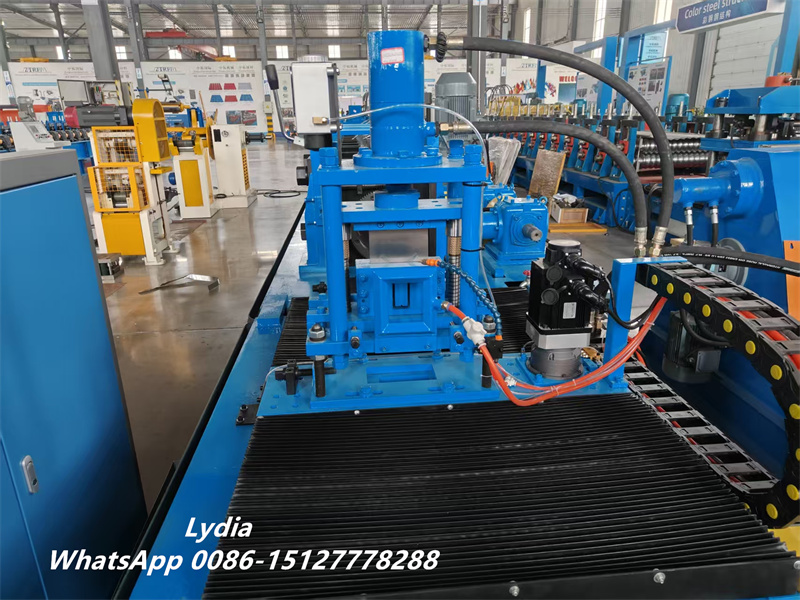

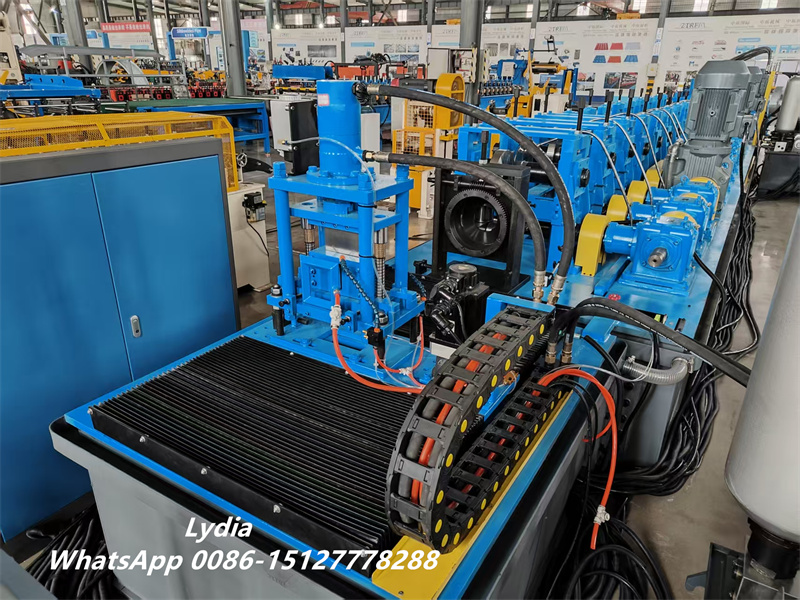

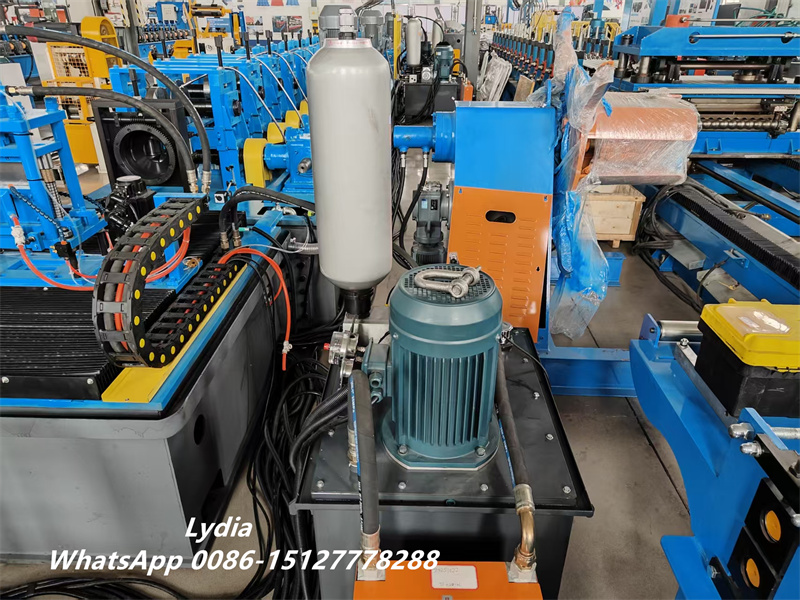

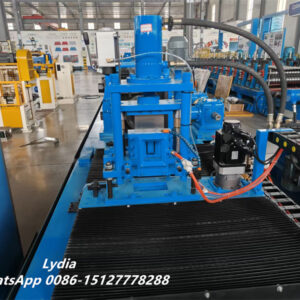

More pictures of the machine
