Zhongtuo Container Corner Post Roll Forming Machine High Strength Steel Profile Forming Equipment

Container corner posts are essential structural components used in shipping containers, modular buildings, and container houses. They connect the upper and lower corner castings and provide the main vertical support for the container frame. A high-quality Container Corner Post Roll Forming Machine produces precise steel corner columns with excellent strength, dimensional accuracy, and long service life.

The machine processes galvanized steel coils or weathering steel strips into finished corner posts through continuous roll forming technology. It integrates unwinding, leveling, forming, straightening, hydraulic cutting, and discharging into one production line, helping manufacturers improve efficiency and reduce manual labor costs.

Strong and Durable Container Corner Post Structure

A container corner post usually consists of front corner columns and rear corner columns, including inner and outer sections. These components use high-strength weathering steel as the primary material because it provides excellent corrosion resistance and structural stability under harsh outdoor conditions.

The front corner column is generally manufactured from 6mm thick steel plate, offering high yield strength while maintaining a lightweight structure. It is installed opposite the container door and positioned on both sides of the end frame, connecting the upper and lower corner castings to form a strong vertical support system.

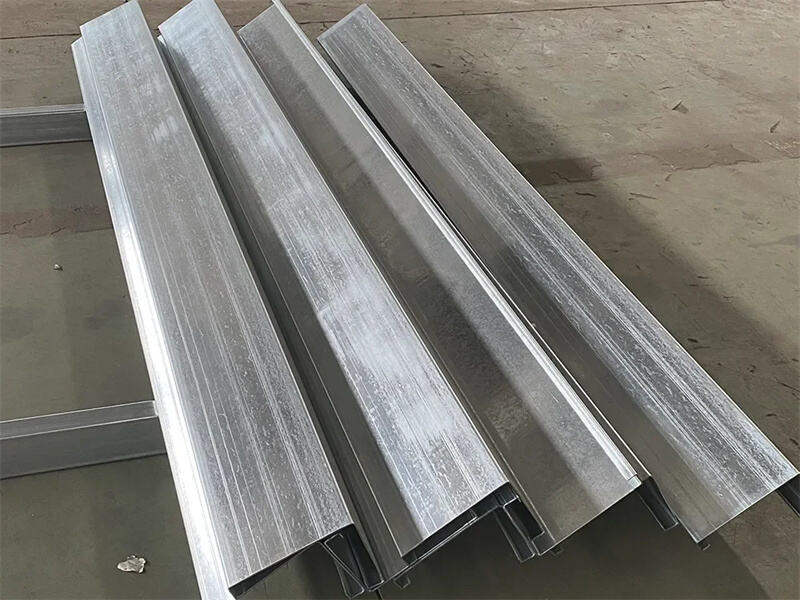

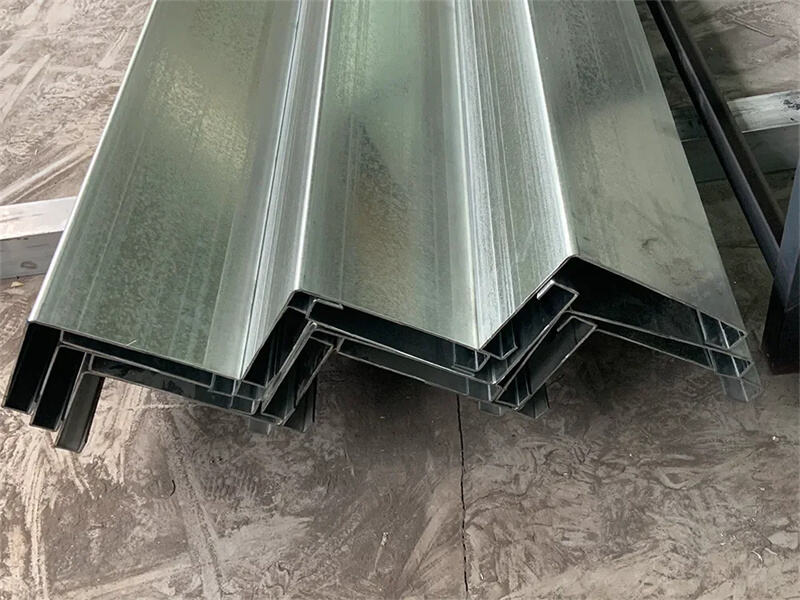

The finished corner posts receive surface treatment with shop primer, which improves corrosion resistance and extends service life. These steel profiles are widely used in container fabrication, repair projects, transportation equipment, and modular construction systems.

Efficient Production Process of Container Corner Post Roll Forming Machine

The Steel Profile Corner Post Roll Forming Machine uses advanced cold roll forming technology to continuously shape metal coils into accurate container corner profiles. The production process includes several automated steps:

Uncoiling → Feeding & Leveling → Roll Forming → Straightening → Hydraulic Cutting → Discharging

During production, the leveling unit removes coil deformation, while the forming stations gradually shape the steel profile without damaging the material structure. After forming, the straightening system ensures the final product maintains accurate dimensions and a smooth appearance.

Compared with traditional welding or pressing methods, roll forming provides higher production efficiency, consistent quality, and lower material waste. Therefore, it has become an ideal solution for container manufacturers requiring large-volume corner post production.

Main Features of Container Corner Post Roll Forming Equipment

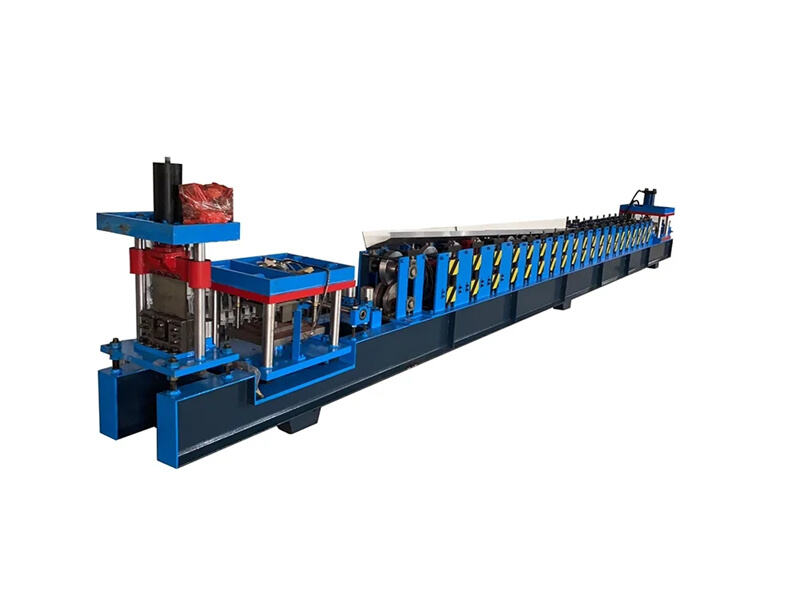

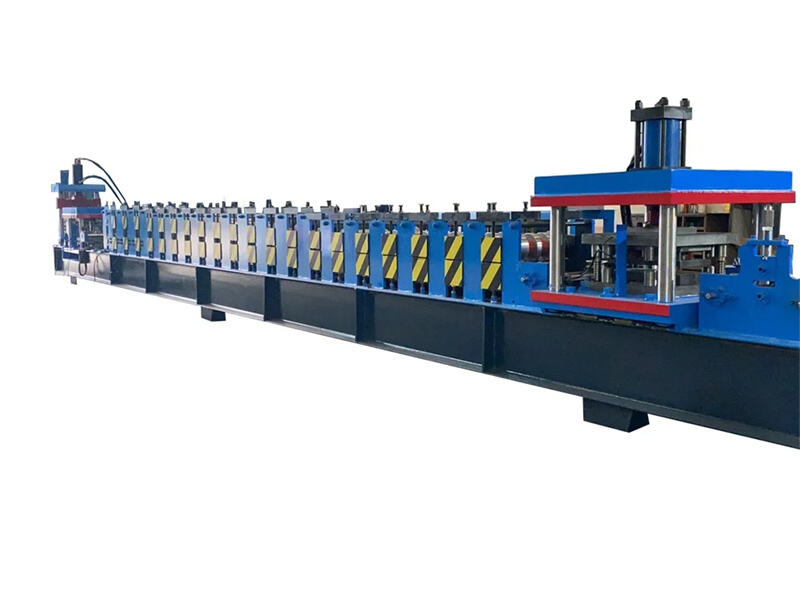

This container corner post forming machine adopts a heavy-duty welded frame and reliable transmission system to ensure stable operation. The forming rollers use high-strength bearing steel with heat treatment and chrome plating, which improves wear resistance and extends machine service life.

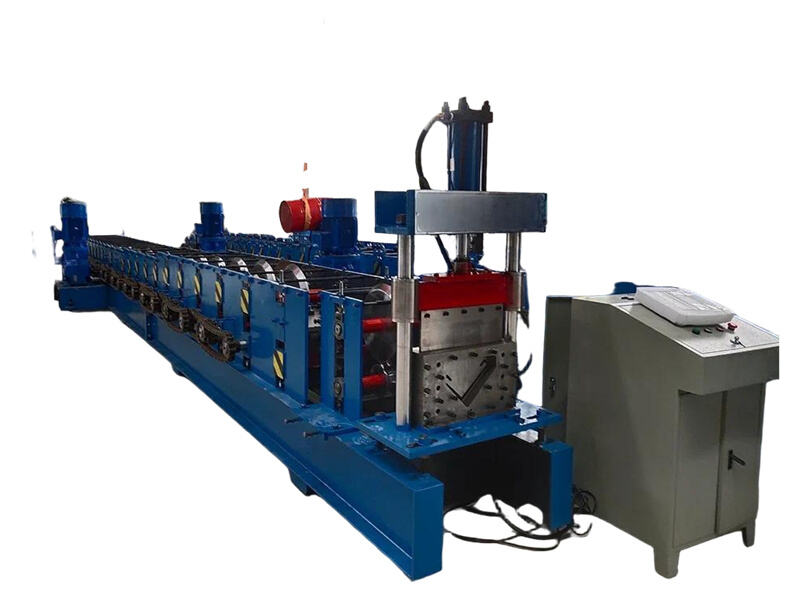

The machine uses hydraulic cutting technology to achieve clean and accurate cutting without stopping the production line. In addition, the PLC control system allows operators to easily adjust production parameters, monitor operation status, and improve overall automation.

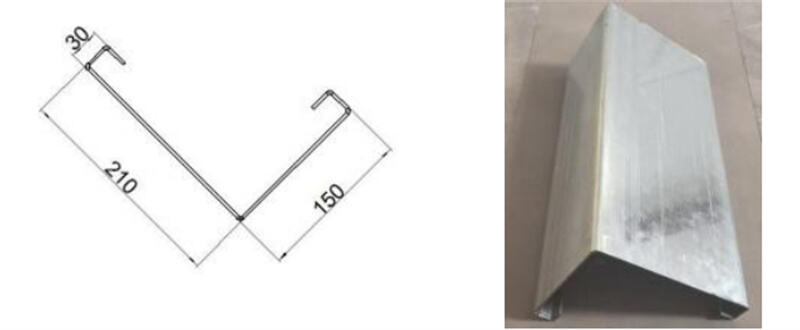

Technical Parameters of 150-210 Type Column Forming Equipment

The 150-210 type container corner post roll forming machine is specially designed for producing steel profiles used in container structures. It combines a strong mechanical structure with precision forming technology to meet demanding industrial production requirements.

Applications of Container Corner Post Roll Forming Machine

Container corner posts play a critical role in maintaining container strength and safety. Each container requires four corner posts, which provide lifting points and connection positions for transportation systems.

These steel profiles are widely applied in:

• Shipping container manufacturing
• Container house production
• Modular building structures
• Steel frame construction
• Container repair and maintenance
• Transportation equipment manufacturing

Because corner posts must withstand lifting forces, stacking pressure, and transportation impact, manufacturers need reliable forming equipment to ensure every profile meets strict quality requirements.

Advantages of Choosing Our Corner Post Roll Forming Solution

Our Container Corner Post Roll Forming Machine helps customers achieve stable production with reduced operating costs. The equipment uses carefully selected components from reliable suppliers, including Delta, Schneider, Omron, and Koyo electrical systems, ensuring long-term performance.

With a forming speed of approximately 13-14m/min and automatic production functions, the machine significantly improves manufacturing efficiency compared with traditional manual fabrication methods. Meanwhile, precise roller design and correction systems guarantee consistent profile quality.

For container manufacturers looking to expand production capacity, this roll forming solution provides a practical, economical, and durable choice for producing high-strength steel corner posts.
