Zhongtuo Customizable C Stud Diagonal Brace Roll Forming Machine for Warehouse & Supermarket Racks

In modern warehouse construction, structural stability is no longer optional — it is essential. Just as ANSI/UL 2079 sets strict performance benchmarks for movement and fire-rated systems in building structures, storage rack components must also meet high standards of strength and reliability.

Therefore, investing in a Steel Supermarket Shelves Storage C Stud Diagonal Brace Roll Forming Machine ensures that every diagonal brace produced contributes to a safer and more durable rack system.

Why Diagonal Braces Matter in Rack Systems

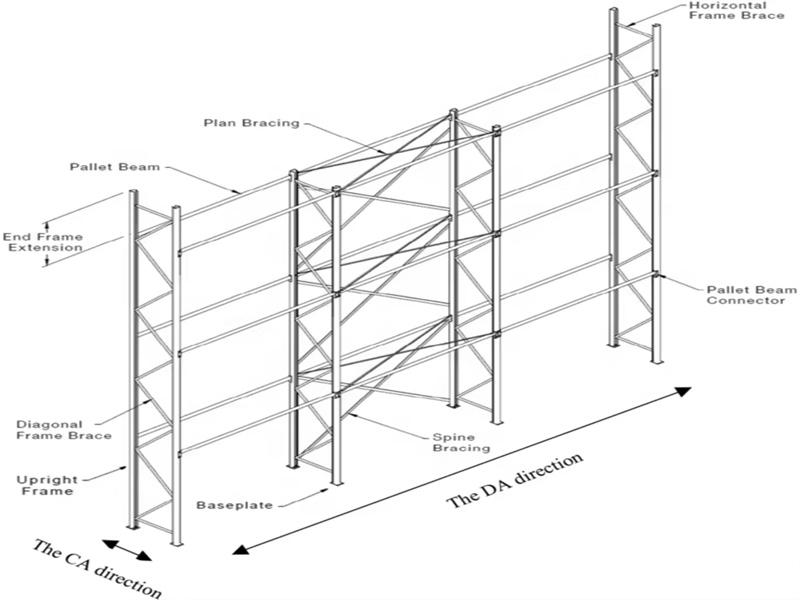

First of all, diagonal braces connect vertical columns and horizontal beams to create a stable triangular structure. As a result, the entire rack system gains enhanced load-bearing capacity and torsional resistance.

Moreover, in busy warehouses where forklifts operate continuously and goods are stacked at height, rack stability directly impacts operational safety. Without reliable diagonal bracing, long-term loads and vibration may cause deformation or structural fatigue.

Consequently, producing high-precision C stud diagonal braces becomes a critical step in rack system manufacturing.

Advanced C Stud Diagonal Brace Roll Forming Machine

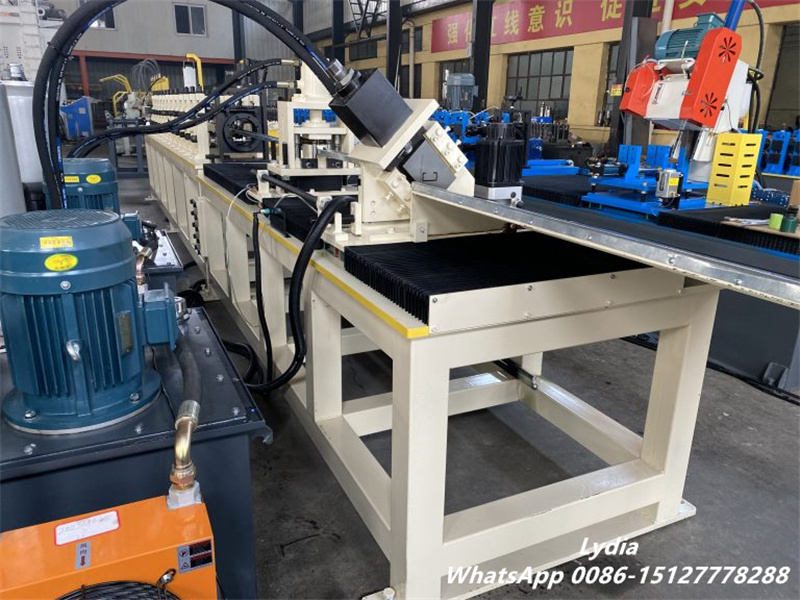

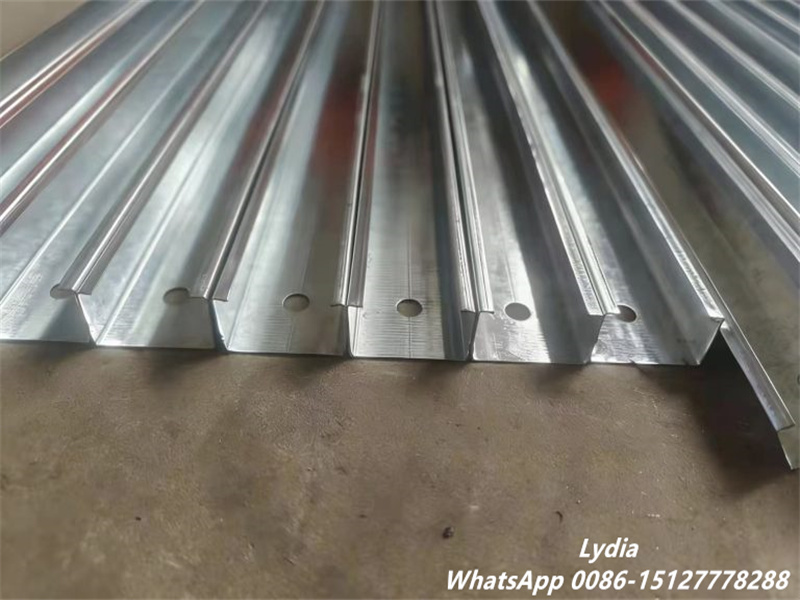

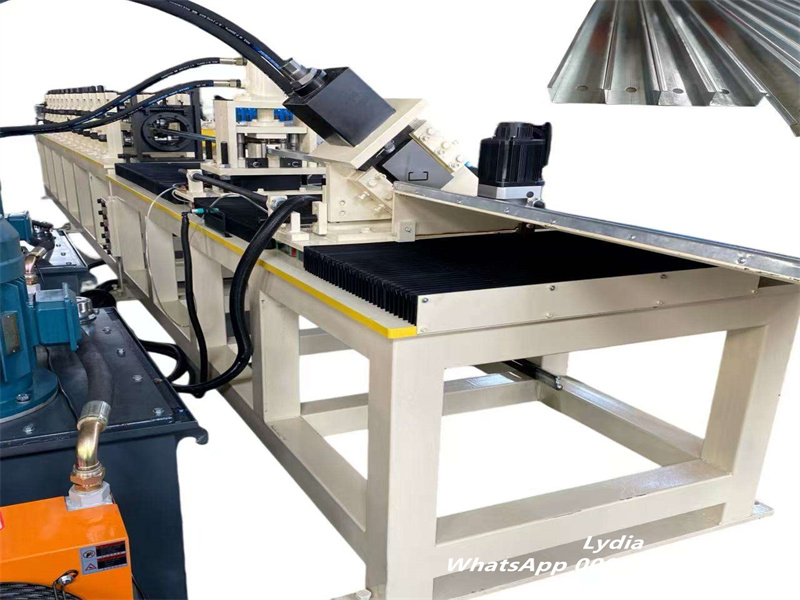

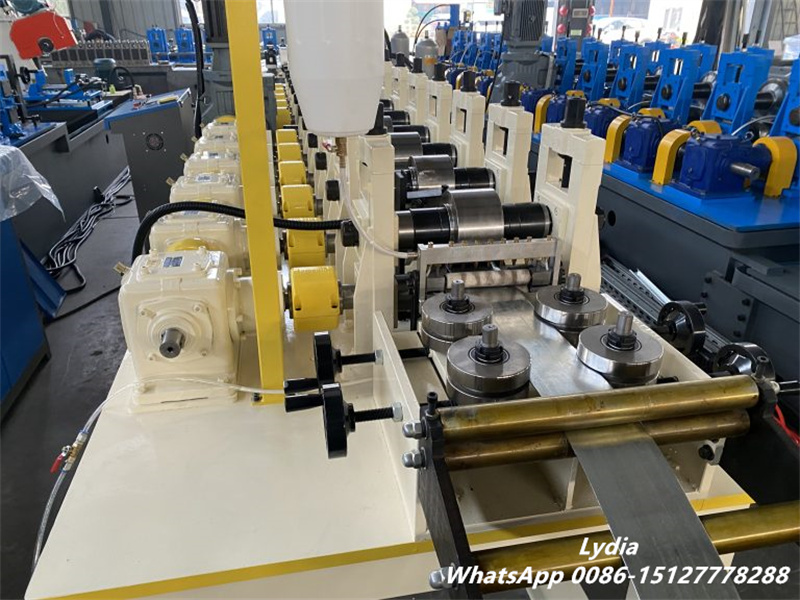

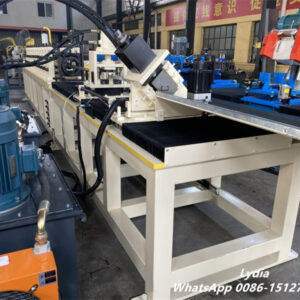

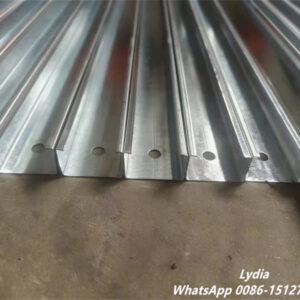

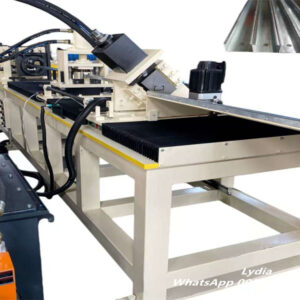

Our C Stud Shelf Diagonal Brace Roll Forming Machine is engineered specifically for storage rack production. It processes cold-rolled steel coils into high-strength C-profile diagonal braces with consistent dimensions and excellent structural performance.

Key Advantages

High Structural Strength

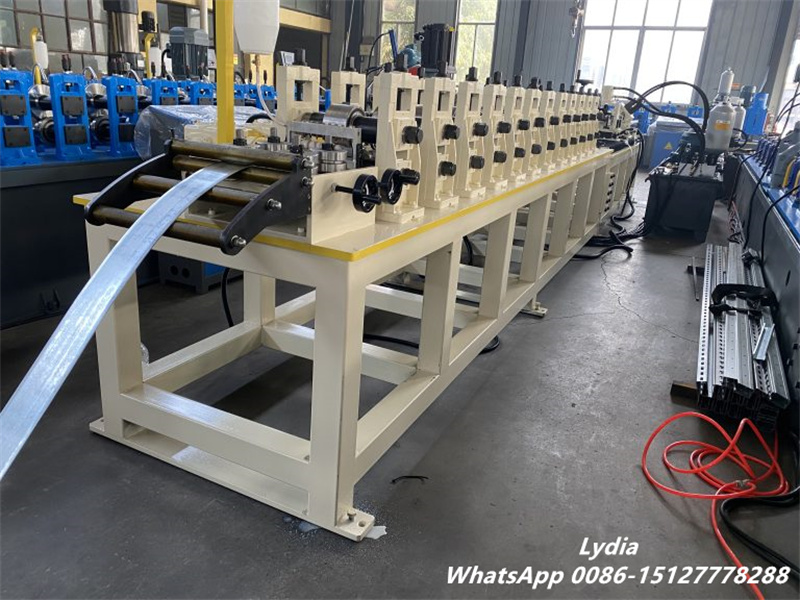

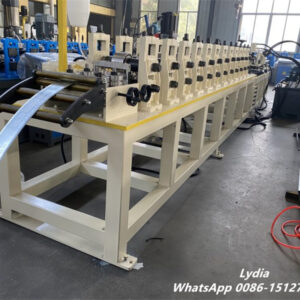

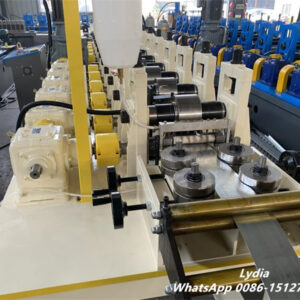

The machine uses precision roll forming technology to shape cold-rolled steel into reinforced C studs. As a result, the finished braces demonstrate strong compression and torsion resistance, even under extreme loads.

Stable and Efficient Production

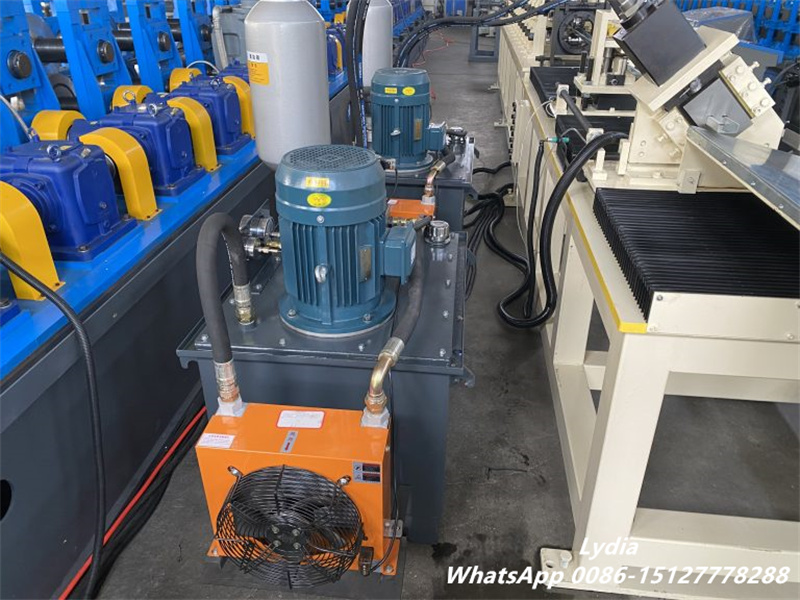

Equipped with PLC control and a powerful motor system, the line ensures smooth operation and stable forming speed. Therefore, manufacturers can achieve continuous mass production with minimal downtime.

Flexible Customization

In addition, feed width, forming speed, punch patterns, and dimensions can be customized according to rack design requirements. This flexibility allows seamless integration into various warehouse rack systems.

Impact Resistance & Durability

Because diagonal braces absorb vibration and dynamic forces, the final rack system becomes more resistant to forklift impact and long-term stress.

Machine Technical Specifications

Below is an overview of the main technical parameters:

Production Process Flow

To ensure precision and efficiency, the machine operates through the following streamlined workflow:

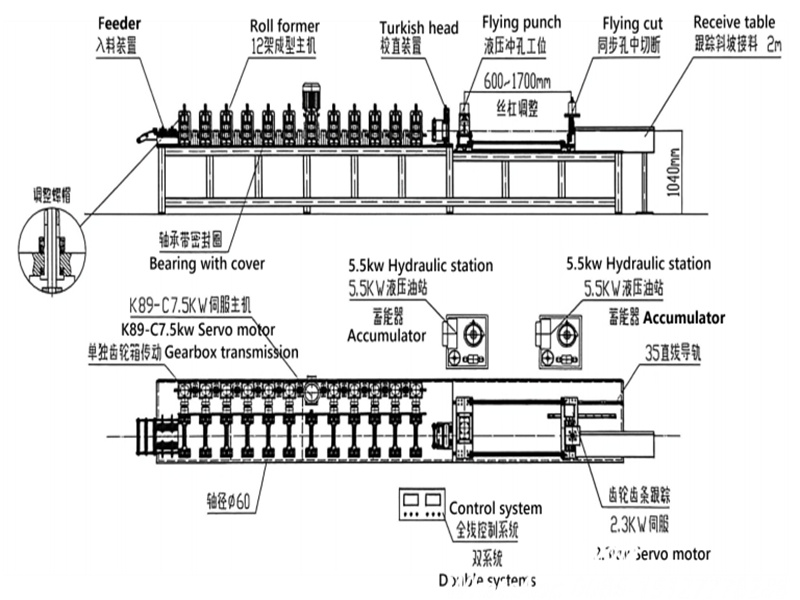

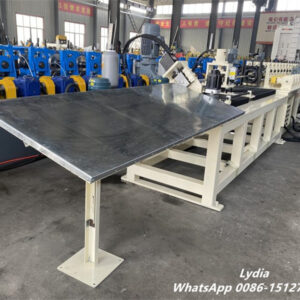

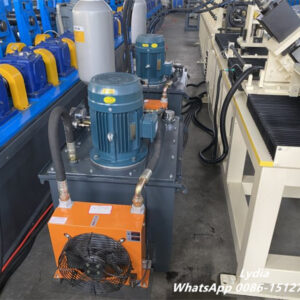

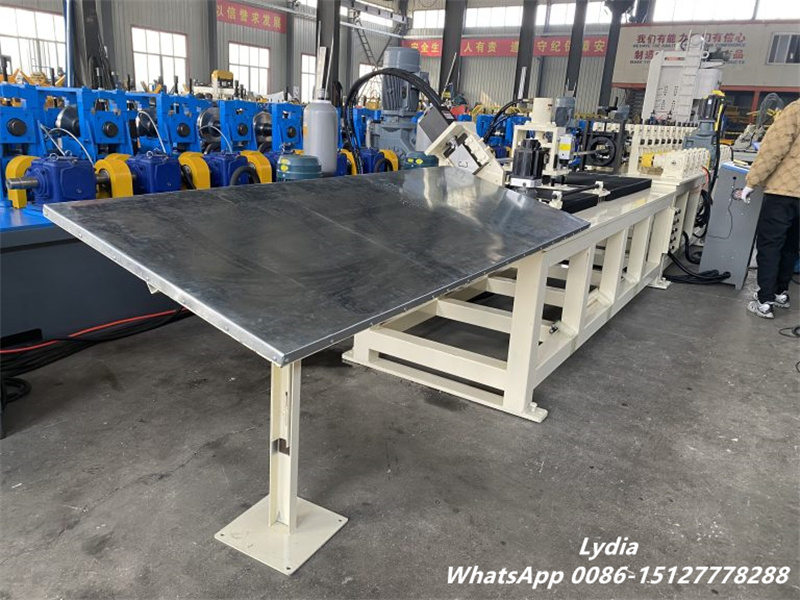

Decoiling → Leveling → Punching (Optional) → Roll Forming → Hydraulic Cutting → Finished Product Output

As a result, the entire process remains automated, reducing manual intervention while improving dimensional consistency.

Applications of C Stud Diagonal Braces

This roll forming machine is widely used in:

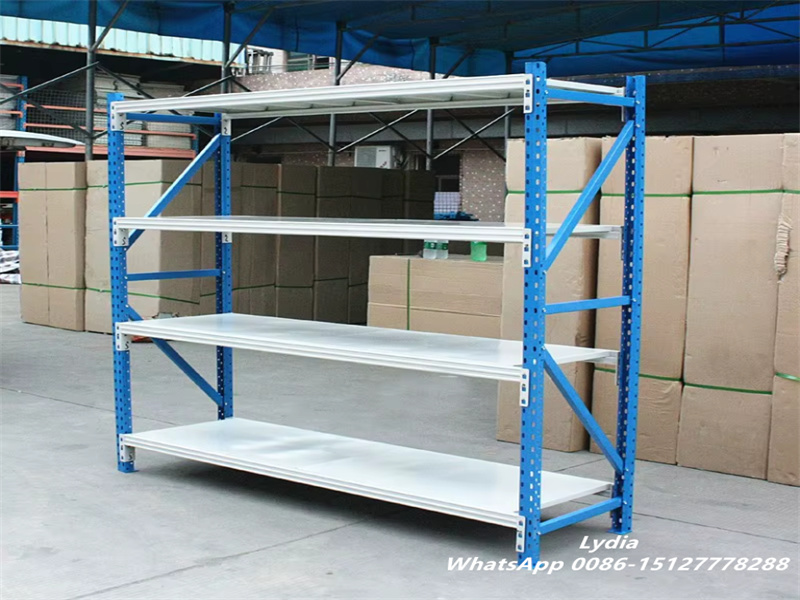

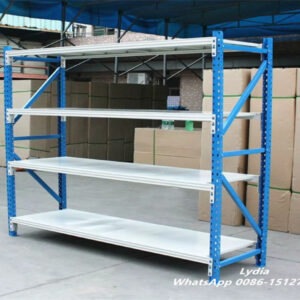

• Supermarket shelf systems
• Heavy-duty warehouse racks
• Industrial pallet racking
• Logistics distribution centers
• Cold storage facilities

Because of its modular adaptability, the produced C stud braces integrate easily into beam-type and drive-in rack systems.

Why Choose the ZTRFM Rack System Machine?

Enhanced Warehouse Safety

A stable triangular brace structure significantly reduces rack tilting risks. Therefore, it protects both employees and stored goods.

Improved Operational Efficiency

A rigid rack system supports smoother forklift operations. Consequently, warehouse turnover speed increases and labor costs decrease.

Lower Long-Term Costs

Thanks to precision forming and structural durability, maintenance frequency is reduced. Over time, this leads to lower total ownership costs.

Global Manufacturing Standards

We provide video inspection reports and machinery test documentation to ensure quality assurance before shipment.

In today’s fast-paced logistics environment, rack system reliability directly affects operational efficiency and safety. Therefore, choosing a high-performance Steel Supermarket Shelves Storage C Stud Diagonal Brace Roll Forming Machine is a strategic investment for rack manufacturers and warehouse solution providers.

With stable forming technology, customizable production capability, and strong structural output, ZTRFM delivers a complete Machine for modern storage rack production.
