A Purlin Z Beam Roll Forming Machine is designed to manufacture high-precision Z-shaped steel profiles for both warehouse storage rack systems and steel building structures. Thanks to continuous roll forming technology, the machine transforms galvanized steel or cold-rolled steel coils into finished Z beams with consistent dimensions, excellent straightness, and smooth edges.
Whether you are producing warehouse shelf Z beams, boltless shelving beams, pallet rack picking beams, or structural purlins, this equipment delivers stable production, low material waste, and high efficiency. Compared with conventional fabrication methods such as welding or manual bending, the automated production line significantly reduces labor costs while improving product quality and production speed.
Why Choose Our Z Beam Roll Forming Machine?
Modern warehouse storage systems and steel buildings require components that are lightweight, durable, and dimensionally accurate. Our Z Beam Roll Forming Machine is engineered to meet these demands through advanced automation and precision forming technology.

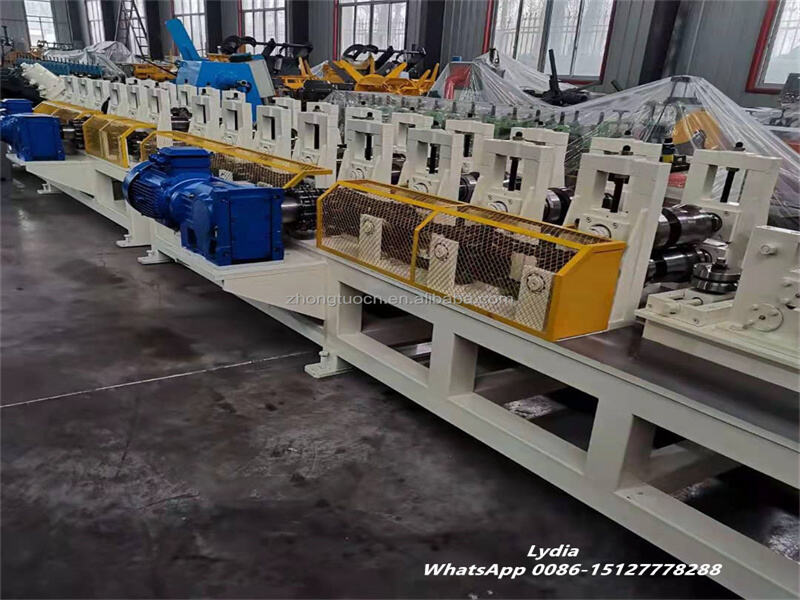

The production line integrates decoiling, feeding, leveling, punching, roll forming, hydraulic cutting, and automatic discharge into one continuous process. As a result, manufacturers can achieve higher productivity while maintaining excellent profile consistency.

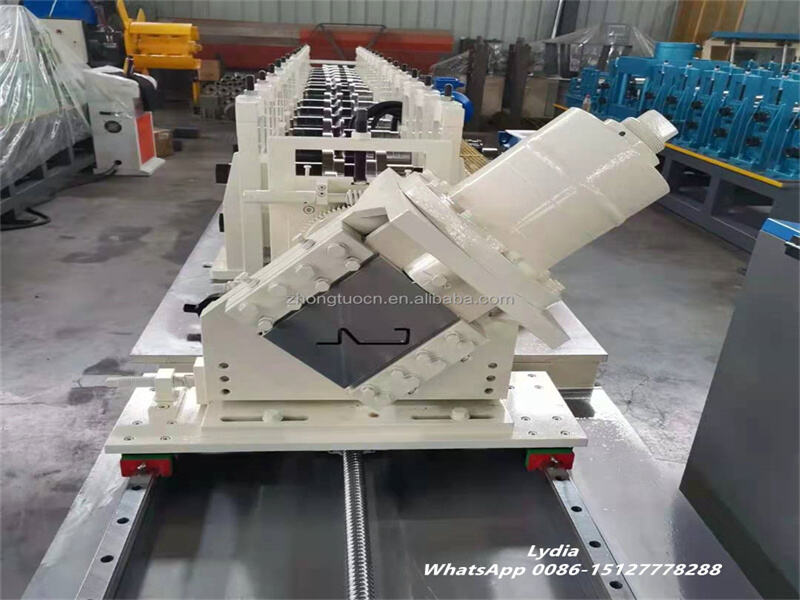

Additionally, the servo-controlled cutting system improves positioning accuracy, while the hydraulic station equipped with a cooling fan ensures stable operation during long production cycles. Because punching is completed before roll forming, the production speed increases and tooling wear is reduced. At the same time, the fully enclosed safety guard provides a safer working environment for operators.
Machine Workflow and Production Process
The complete production line follows a streamlined manufacturing process that minimizes manual intervention and maximizes efficiency.
Production Flow

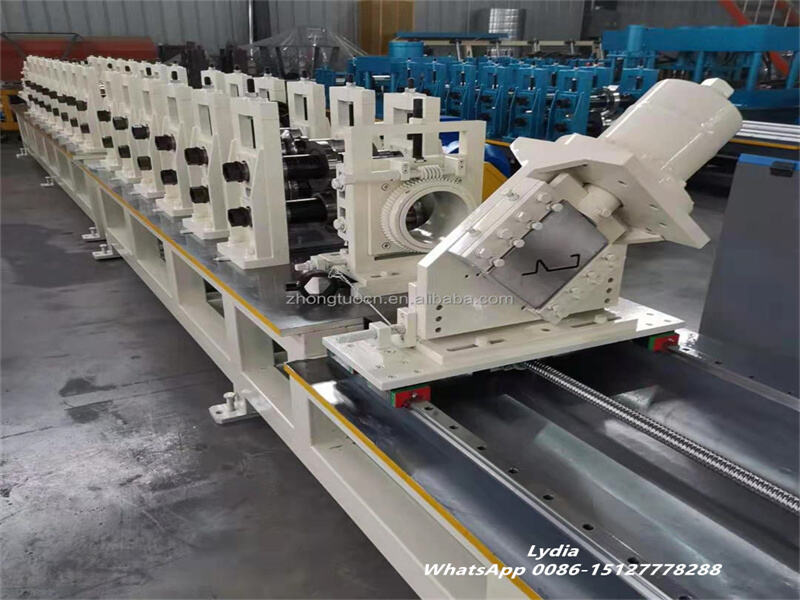

| Production Stage | Function |
|---|---|
| Decoiler | Holds and feeds steel coils automatically or manually |
| Feeding Guide | Guides strip accurately into the production line |
| Leveling Device | Eliminates coil stress and improves flatness |
| Punching Unit | Produces precise holes before forming |
| Roll Forming System | Gradually forms the Z beam profile |
| Hydraulic Cutting | Cuts finished profiles to programmed lengths |
| Exit Rack | Collects finished products automatically |
This continuous production method ensures every finished beam maintains uniform dimensions while reducing production downtime.
Technical Specifications
The machine adopts high-quality components to ensure long service life and reliable performance under continuous industrial production.
| Item | Specification |
|---|---|
| Material Thickness | Customized according to profile |
| Decoiler Capacity | 3–5 Tons (Manual or Hydraulic) |
| Roll Forming Stations | 14–21 Stations (Profile Dependent) |
| Roller Material | Cr12 / D2, Heat Treated |
| Shaft Material | 45# Steel / 40Cr |
| Shaft Diameter | 70–80 mm |
| Main Motor Power | 15–37 kW (Depending on Model) |
| Hydraulic Cutting Power | 11 kW |
| Cutting Blade Material | Cr12MoV |
| Transmission | Chain Drive |
| Cutting Type | Hydraulic Flying Cut, No Material Waste |
| Length Tolerance | ±0.5 mm |
| PLC Control | Panasonic or Delta PLC |
| Hydraulic System | Huade Hydraulic |

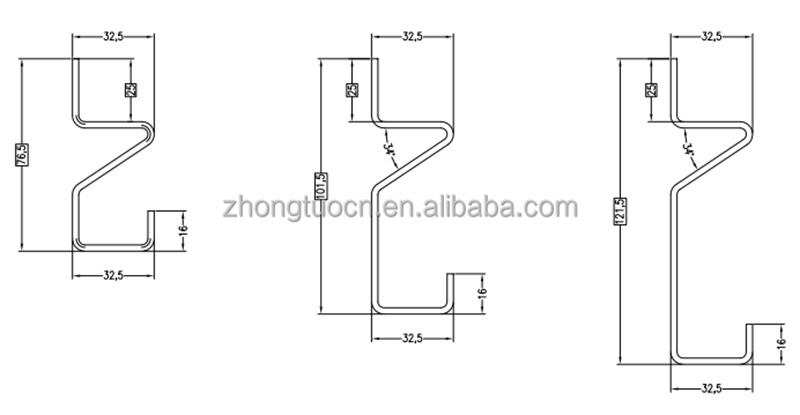

Applications of Z Beam Profiles
The finished Z beam profiles are widely used across industrial storage systems and steel construction projects because they provide excellent load-bearing performance with relatively low material consumption.

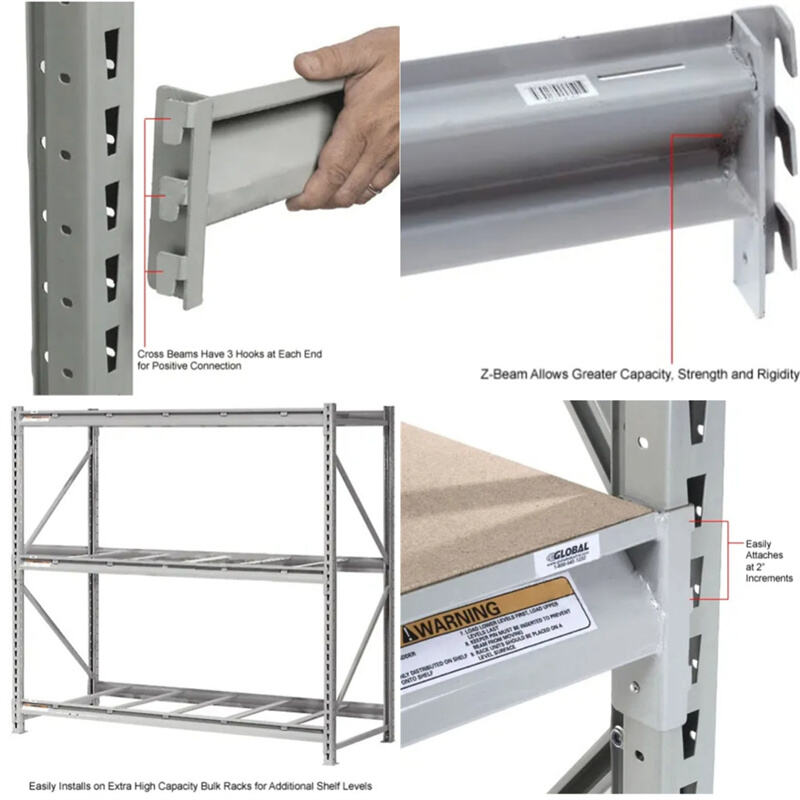

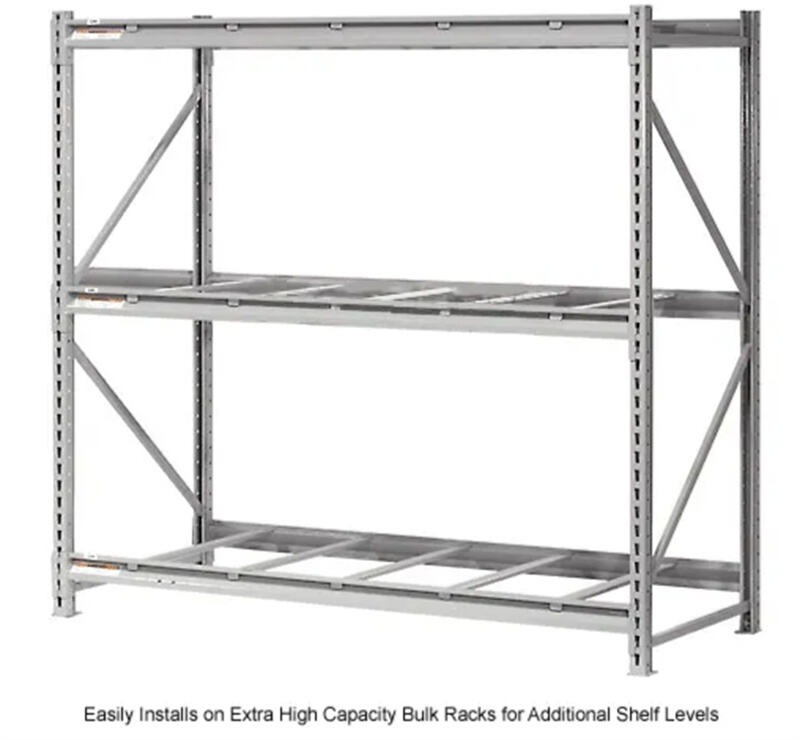

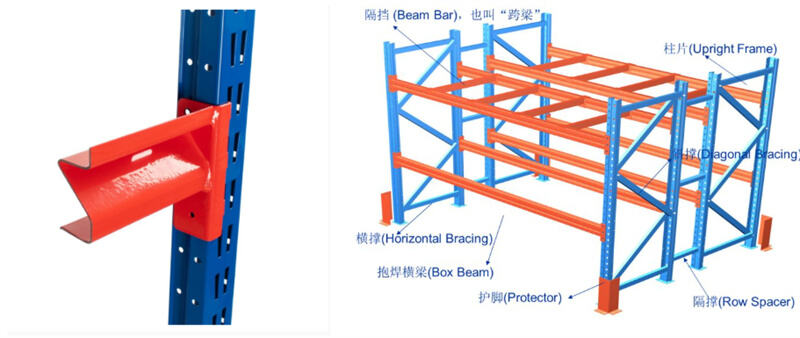

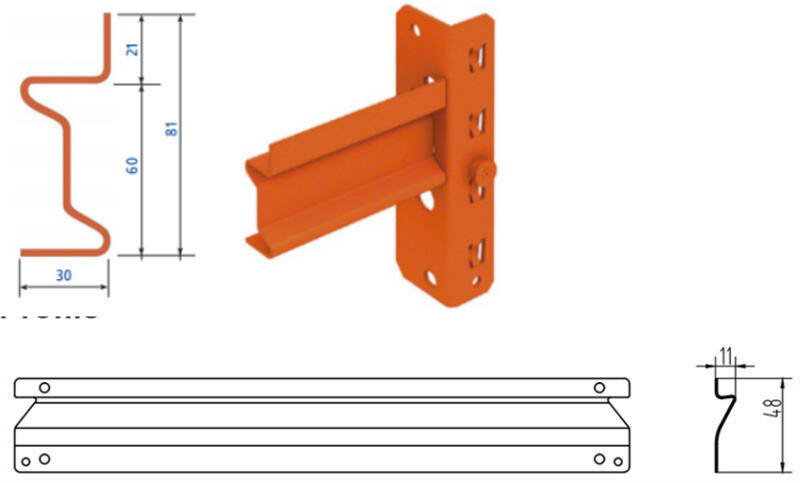

For warehouse applications, the beams are commonly installed as picking beams, boltless shelving beams, warehouse storage rack beams, and particle board support beams. Their raised edges securely support wooden or steel shelving panels while maintaining a clean, low-profile appearance.
In the construction industry, Z beams serve as roof purlins, wall girts, and secondary structural members for factories, agricultural buildings, commercial warehouses, logistics centers, and steel frame buildings. Their lightweight structure allows for faster installation while reducing overall building weight.
Because the machine supports different material grades—including galvanized steel, mild steel, and aluminum—it can easily adapt to changing market demands and customer requirements.
Increase Productivity While Reducing Manufacturing Costs
Investing in a Purlin Z Beam Roll Forming Machine provides long-term value for manufacturers seeking higher production efficiency and consistent product quality.
Continuous roll forming dramatically increases output compared with traditional fabrication methods. Meanwhile, precision rollers ensure every beam maintains the same dimensions, reducing assembly errors during installation. Since material utilization is optimized throughout the production process, manufacturers also benefit from lower raw material consumption and reduced scrap rates.
Furthermore, the automated PLC control system simplifies operation and enables quick product changeovers. This flexibility allows manufacturers to respond rapidly to customer orders while maintaining stable production quality.
If your business manufactures warehouse shelving systems, storage rack components, or steel structural purlins, this machine offers an ideal combination of speed, precision, durability, and cost-effectiveness. It is an excellent solution for expanding production capacity while improving the competitiveness of your manufacturing business.
