In the modern construction industry, U-shaped channels play a vital role in drywall partitions, suspended ceilings, commercial buildings, hospitals, and prefabricated housing systems. As one of the key structural components in light steel framing, the quality of the channel directly affects installation accuracy, structural stability, and project efficiency.

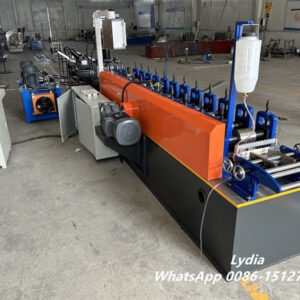

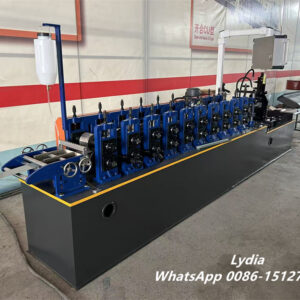

To meet the growing demand from the Central American market, Zhongtuo successfully customized a U-Shaped Channel Roll Forming Machine for a customer from Costa Rica. Designed for high-speed production, dimensional accuracy, and flexible profile adjustment, this machine helps manufacturers improve productivity while maintaining consistent product quality.
Customized Solution for the Costa Rican Market
Costa Rica’s construction industry continues to expand, especially in commercial complexes, residential developments, and tourism-related infrastructure projects. Therefore, local manufacturers require reliable equipment capable of producing high-quality light gauge steel framing products efficiently.
After carefully reviewing the customer’s production requirements, Zhongtuo engineers designed a customized roll forming solution capable of processing galvanized steel coils with excellent precision and stability. The machine integrates feeding, leveling, roll forming, cutting, and automatic collection into one continuous production process.
Perforated U Channel with Round Hanger Plate
The first profile consists of a U-shaped steel channel combined with a specially designed round perforated hanging plate. The channel section features side flanges with embossed anti-slip points on both sides, which improve rigidity and installation stability.

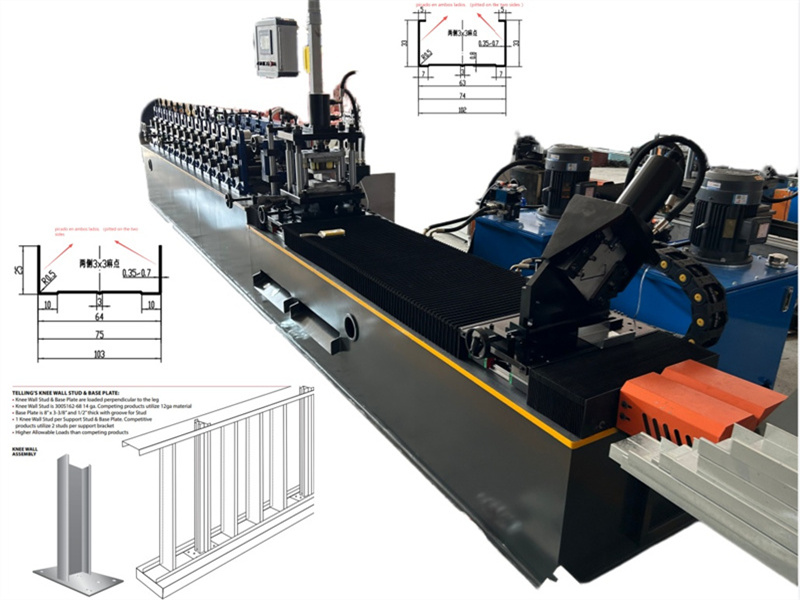

Key profile characteristics include:

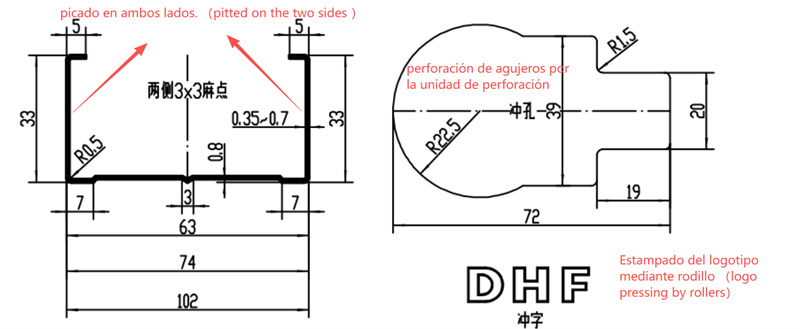

- Overall profile width: 102 mm
- Effective bottom width: 74 mm
- Side wall height: 33 mm
- Material thickness range: 0.35-0.7 mm
- Embossed anti-slip points on both sides for additional strength
- Center stiffening rib to improve load-bearing capacity
- Integrated round suspension plate with precision punched hole
- Roller-pressed customer logo (DHF) available during production
- Smooth bending radius (R0.5 and R15) for improved structural performance
The round hanger section is designed for easy suspension and fixing applications, making it suitable for ceiling support systems, cable management structures, ventilation installations, and light steel framing projects.
Standard C Channel with Embossed Logo
The second profile is a simpler U-shaped channel commonly used in light steel framing and ceiling systems. Although the design is compact, it incorporates several reinforcing features that enhance durability and dimensional stability.
Main specifications include:
- Overall profile width: 103 mm
- Effective bottom width: 75 mm
- Internal flat section: 64 mm
- Side wall height: 25 mm
- Material thickness range: 0.35-0.7 mm
- Double-side embossed anti-slip points
- Center reinforcing bead for additional rigidity
- Roller embossing system for customized logo marking (DHF)
- Tight bending radius (R0.5) ensuring accurate profile formation
Production Requirements
According to the customer’s drawing requirements, the roll forming machine is equipped with the following additional functions:
| Function | Description |
|---|---|
| Logo Embossing Unit | Roller embossing system for permanent DHF logo marking |
| Punching Unit | Automatic hole punching before forming |
| Embossing System | Side anti-slip point embossing on both flanges |
| Servo Feeding | High-precision feeding for accurate hole position |
| Flying Cut-Off | Continuous production without stopping |
| PLC Control | Fully automatic operation with length setting |
These customized features allow the customer to produce finished profiles directly from galvanized steel coils in a single production line, significantly improving production efficiency while ensuring consistent product quality.

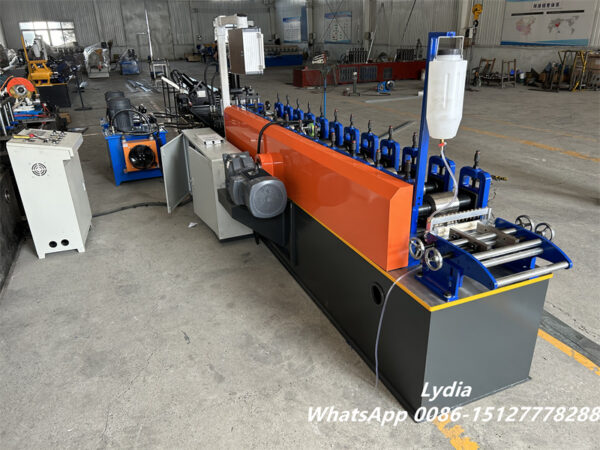

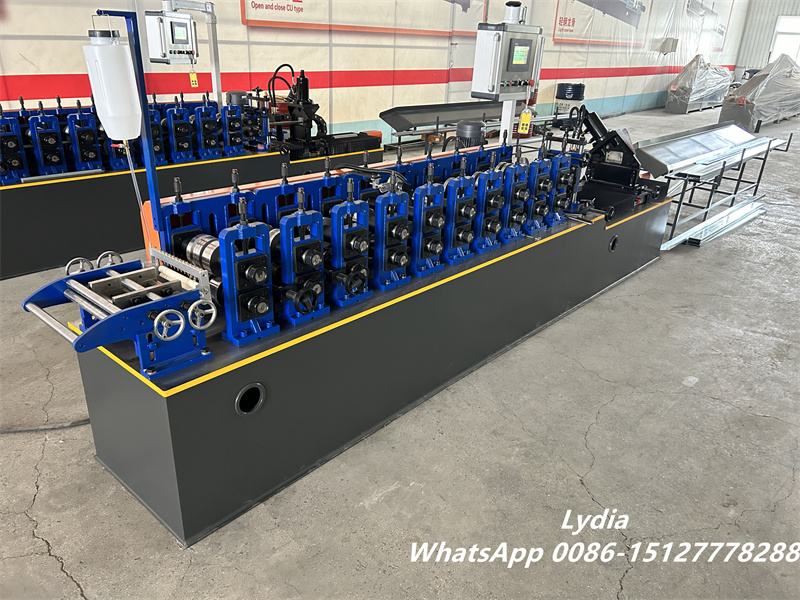

Technical Specifications

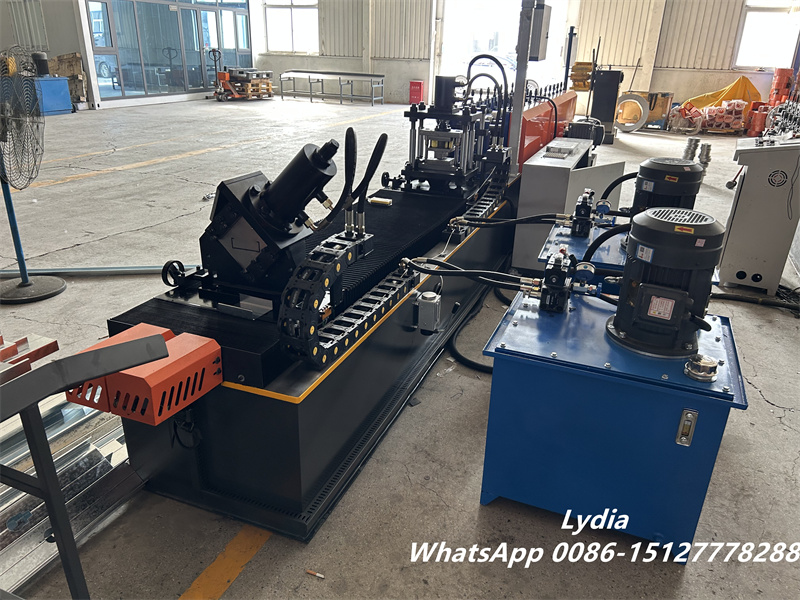

| Item | Specification |
|---|---|
| Product | U-Shaped Channel |
| Material | GI, PPGI, Aluminum Coil |
| Material Thickness | 0.28-0.47 mm |
| Decoiler Type | Hydraulic Automatic Decoiler |
| Free Accessory | Manual Decoiler |
| Shaft Diameter | 50 mm Solid Shaft |
| Roller Material | 45# Steel with Hard Chrome Coating |
| Main Motor Power | 5.5 KW |
| Hydraulic Power | 5.5 KW |
| Forming Speed | 40-100 m/min |
| Cutting System | Hydraulic Flying Cut-Off |
| Control System | PLC Automatic Control |
| Voltage | 380V 50Hz 3 Phase (Customizable) |
| Machine Size | 7800 × 800 × 1200 mm |
| Machine Weight | Approx. 4.5 Tons |

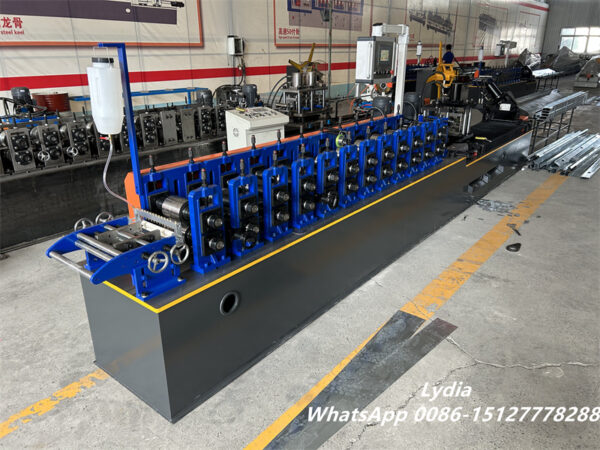

High-Speed Production with Excellent Accuracy
One of the biggest advantages of this machine is its ability to maintain high precision while operating at impressive production speeds.

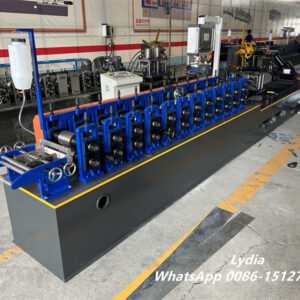

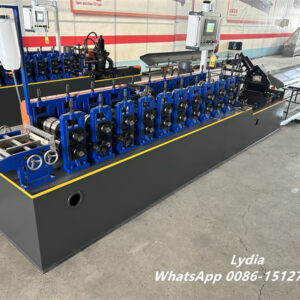

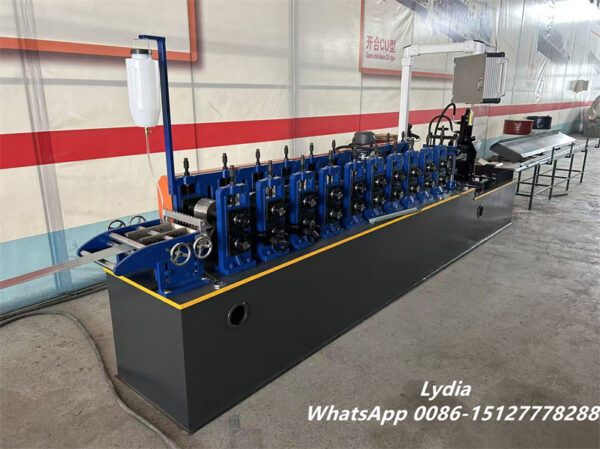

Unlike traditional fabrication methods that rely heavily on manual adjustments, the roll forming process gradually shapes the steel strip through multiple forming stations. Consequently, every finished U-channel maintains consistent dimensions, smooth edges, and excellent straightness.
Moreover, the hardened rollers and precision-machined shafts minimize deformation during production, ensuring stable quality even during long production runs.
This level of accuracy helps contractors achieve faster installation and reduces material waste on construction sites.

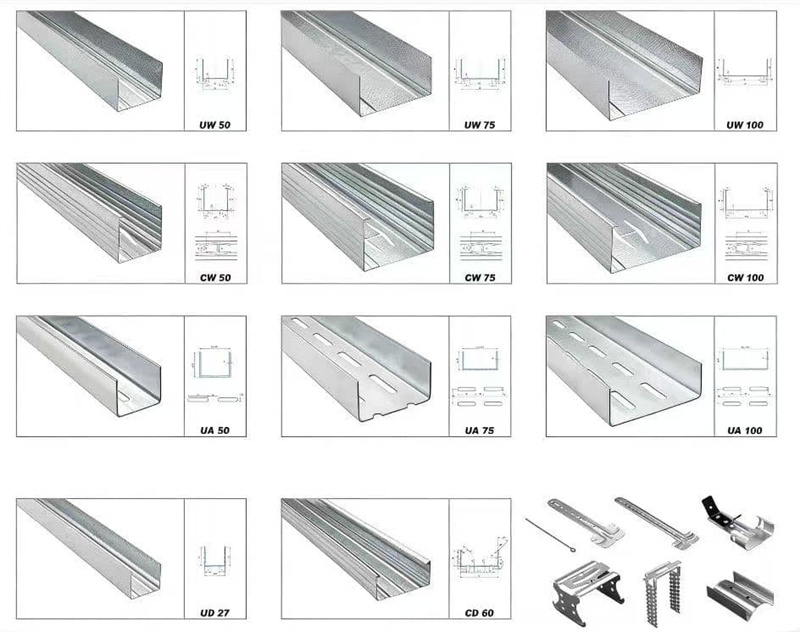

Flexible Manufacturing for Different Channel Sizes
Construction projects often require various channel dimensions. Therefore, flexibility has become a critical factor for modern manufacturers.
To address this challenge, Zhongtuo equipped the machine with a quick-adjust forming system. Operators can easily modify production parameters through the PLC interface and switch between different profile specifications with minimal downtime.
Whether producing channels for drywall framing systems, suspended ceilings, clean rooms, or modular buildings, the machine provides excellent adaptability.
Furthermore, the intelligent control system automatically manages production length, quantity, and batch settings, reducing operator intervention and improving efficiency.
Smart Control and Reliable Performance
In addition to production efficiency, equipment reliability remains essential for long-term profitability.
The machine adopts a fully automated PLC control system with multilingual operation support. During production, operators can monitor speed, length, output quantity, and machine status in real time.

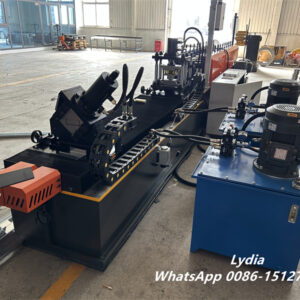

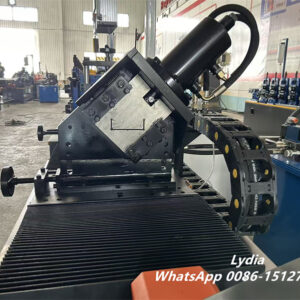

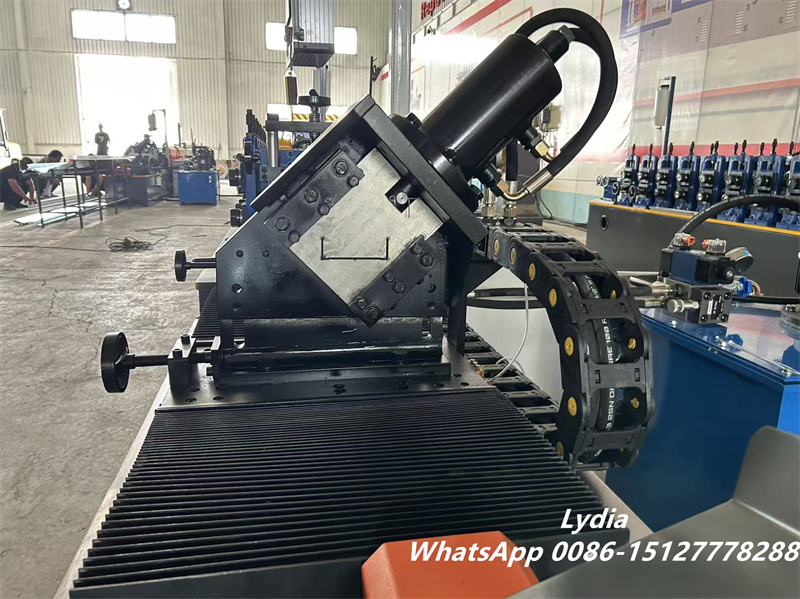

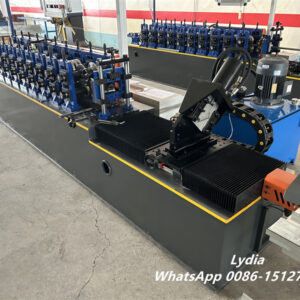

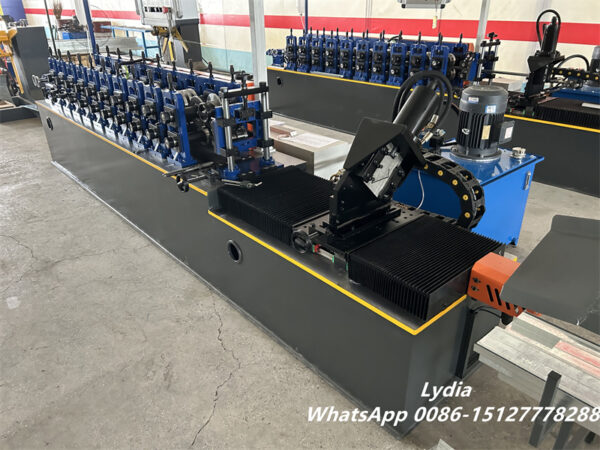

Meanwhile, the hydraulic cutting system uses high-quality Cr12Mov steel blades, delivering clean cuts without scratching or deforming the finished profile.
The machine frame is manufactured from heavy-duty welded steel and undergoes stress-relief treatment, which greatly improves structural stability. As a result, the equipment operates smoothly with reduced vibration and lower maintenance requirements.
Ideal Applications Across Multiple Industries
This U-shaped channel production line serves a wide range of construction sectors.
It is commonly used for manufacturing:

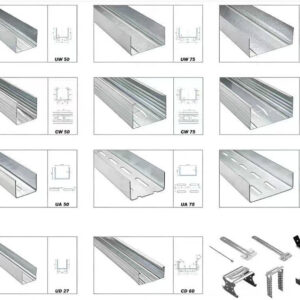

- Drywall partition channels
- Ceiling suspension channels

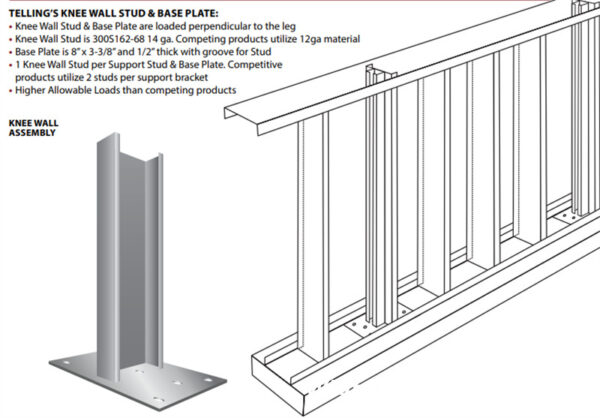

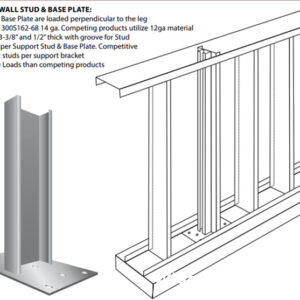

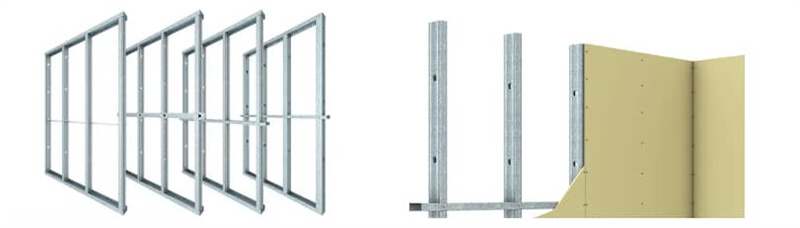

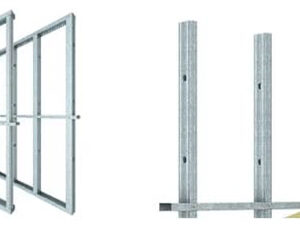

- Light steel framing systems
- Cleanroom support structures
- Hospital and laboratory partition systems
- Prefabricated building components
- Commercial and residential interior framing
As global demand for lightweight steel construction continues to increase, manufacturers need dependable equipment that can deliver both speed and precision. This customized U-Shaped Channel Roll Forming Machine provides exactly that combination.
By choosing Zhongtuo’s advanced cold roll forming technology, the Costa Rican customer gained a highly efficient production solution capable of supporting future business growth while maintaining superior product quality.
If you are planning to start or expand your U-shaped channel manufacturing business, Zhongtuo can provide customized roll forming solutions tailored to your specific market requirements, profile designs, and production targets. Contact our engineering team today to discuss your project and receive a professional proposal.
