The Light Gauge Steel Framing Roll Forming Machine is an automated production solution for manufacturing lightweight steel framing components used in residential, commercial, and modular construction. It processes galvanized steel coils into accurately formed structural profiles for LGS frame and LSF building systems.
Designed for continuous production, the machine can integrate decoiling, leveling, feeding, punching, roll forming, cutting, and automatic profile collection into one production line. For manufacturers producing complete LGS frame machine systems, the equipment can also be connected with automatic stacking, bundling, and packaging equipment.
What Is a Light Gauge Steel Framing Roll Forming Machine?
A light gauge steel framing roll forming machine is designed to continuously form galvanized steel coils into structural profiles used for light gauge steel buildings.
The machine gradually shapes flat steel strips through a series of precision forming rollers. Depending on the required building system, the finished sections can be designed for wall studs, tracks, floor joists, roof components, and other structural framing applications.
This makes the equipment an important part of modern LGSF and LSF construction systems.
For customers developing a complete light steel frame house machine solution, the production line can be customized according to the required profile dimensions, steel thickness, punching patterns, cutting length, and production capacity.
LGS Frame Production for Light Steel Buildings
An LGS frame is made from cold-formed light gauge steel profiles that are assembled to create walls, floors, roofs, and complete building structures.
Compared with conventional construction methods, light steel framing allows manufacturers to prefabricate structural components in a controlled factory environment.
The roll forming machine produces the required steel sections with consistent dimensions, making it suitable for factories producing:
- LGS residential frames
- Light steel frame houses
- Modular buildings
- Prefabricated structures
- Wall framing systems
- Roof framing components
- Floor joists
- Commercial lightweight steel structures
The complete system can be configured around the customer’s LGS building design.
LGS Frame Machine for Different Profile Sizes
Different light steel construction projects require different profile sizes. The machine can therefore be customized for specific framing dimensions.
For example, some LGS construction systems use 89 mm or 140 mm class framing profiles. A suitable production line can be designed around these dimensions according to the customer’s drawings.
For projects searching for light gauge steel framing machine 89 140 solutions, the forming rollers, punching system, cutting unit, and control program can be configured according to the required 89 mm or 140 mm profile specifications.
A C89 light gauge steel frame roll forming machine can also be developed for customers requiring C-shaped 89 mm framing sections.
The actual machine configuration should always be determined from the final profile drawing rather than the nominal profile width alone.
Automatic Production Process
The LGS light gauge steel framing machine uses a continuous production process to transform steel coils into finished framing components.
A typical workflow is:
Decoiling → Leveling → Feeding → Punching → Roll Forming → Cutting → Conveying → Stacking
Depending on the project requirements, additional automatic handling and packaging equipment can be integrated after the cutting section.
This allows manufacturers to reduce repetitive manual operations while maintaining consistent production parameters.
Automatic Punching for LGSF Profiles
Many LSF machine applications require holes or slots at specific positions along the steel framing profiles.
The punching system can be integrated into the production line to create these openings automatically before or during the forming process.
The punching pattern can be customized according to the structural design and connection requirements.
For multi-profile production, different punching and forming parameters can be stored in the PLC control system as production recipes. Operators can select the required profile specification through the HMI when changing products.
This makes the machine suitable for manufacturers producing multiple LGS and LSF components on the same production line.
Light Steel Frame House Machine for Prefabricated Construction
The application of an LSF machine is not limited to producing individual wall studs.
A complete light steel framing factory can use different roll forming machines to manufacture structural components required for a complete building system.
These components may include:
- Wall studs
- Tracks
- Floor joists
- Roof framing members
- Door and window framing
- Structural C profiles
- Connection profiles
- Customized LGS sections
These components can then be assembled into prefabricated wall, floor, and roof panels.
As a result, a light steel frame house machine can become part of a larger automated construction production system.
C89 and 89–140 mm LGS Framing Applications
For manufacturers focusing on standardized LGS profiles, the forming machine can be designed for specific section dimensions.
An 89 mm LGS framing machine can be configured for C-shaped wall studs and matching tracks. For larger framing requirements, a system designed around 140 mm light gauge steel framing can be used according to the customer’s structural design.
The machine can also be engineered for adjustable or interchangeable specifications where the production requirement involves multiple profile sizes.
This is particularly useful for factories supplying different LGS building projects rather than manufacturing only one fixed profile.
Automatic Cutting and Profile Collection
After the steel strip passes through the forming stations, the automatic cutting system separates the finished profile according to the programmed length.
The finished LGS profiles can then be conveyed to the collection area.

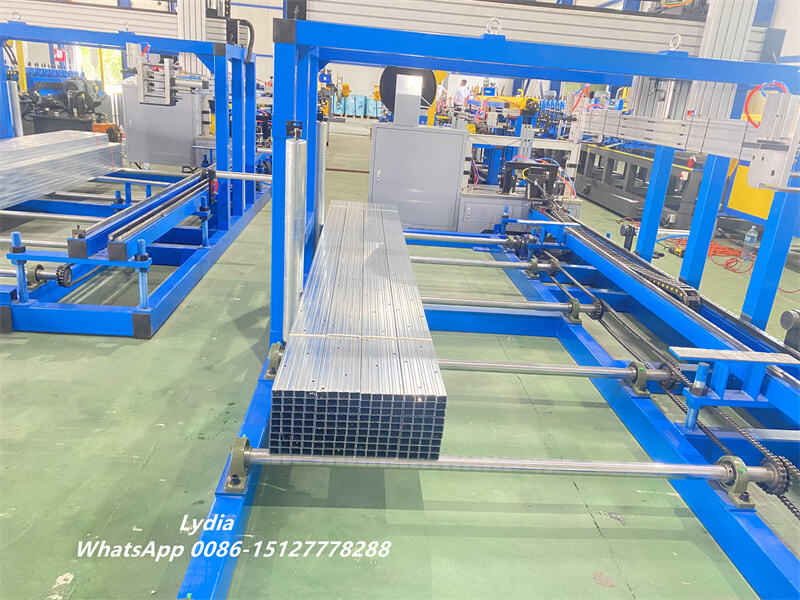

For higher production capacity, the line can be equipped with automatic stacking and packaging equipment. The downstream system can organize, bundle, wrap, and palletize the finished light steel keel or framing profiles.
This reduces manual handling between production and storage.
Technical Configuration
The exact configuration of the LSF machine depends on the customer’s profile drawings and production requirements.
| Production Section | Main Function |
|---|---|
| Decoiler | Unwinds galvanized steel coil |
| Leveling Unit | Straightens incoming material |
| Feeding System | Controls material feeding |
| Punching Unit | Creates holes and slots |
| Roll Forming Mill | Forms the LGS profile |
| Cutting System | Cuts profiles to preset lengths |
| PLC + HMI | Controls production parameters |
| Conveying System | Transfers finished profiles |
| Stacking System | Organizes finished profiles |
| Packaging System | Optional bundling and wrapping |
| Palletizing System | Optional automatic stacking |
The machine can be customized according to material thickness, steel grade, profile dimensions, punching requirements, finished length, production speed, and automation level.
FAQ
1. What is an LGS framing machine used for?
An LGS framing machine is used to manufacture cold-formed light gauge steel profiles for wall, floor, roof, and other structural framing applications.
2. Can the machine produce 89 mm and 140 mm LGS profiles?
Yes. The production line can be customized for different profile sizes, including 89 mm and 140 mm applications, according to the customer’s actual profile drawings.
3. Can you make a C89 light gauge steel frame roll forming machine?
Yes. A C89 light gauge steel frame roll forming machine can be designed for C-shaped 89 mm framing profiles, with punching and cutting systems configured according to the required specifications.
4. Can one machine produce multiple LGS profiles?
This depends on the machine design. Different forming configurations, interchangeable tooling, or automatic size adjustment can be considered according to the required profile range.
5. What information is needed to design an LGSF machine?
Please provide the profile drawings, material thickness, steel grade, profile dimensions, punching pattern, cutting length, production speed, and required voltage. These details allow the machine configuration to be matched to your LGS or LSF production requirements.
The Fully Automatic Light Gauge Steel Framing Roll Forming Machine provides an efficient solution for manufacturers producing LGS, LSF, and LGSF structural profiles. From C89 profiles to 140 mm light gauge steel framing, the machine can be customized around different profile dimensions and production requirements.
With automatic feeding, punching, roll forming, cutting, and optional stacking and packaging systems, the LGS frame machine can be integrated into a complete production line for light steel frame houses, modular buildings, and prefabricated construction.
For a customized light steel frame house machine, manufacturers can provide their profile drawings and production requirements so the forming system can be designed around the actual LGS construction system.
