Zhongtuo High Speed 45m/min PV Mounting Structure Production Line Solar Photovoltaic Bracket C/U Channel Steel Roll Forming Machine

The Solar Photovoltaic Bracket C/U Channel Steel Roll Forming Machine is an advanced automatic production line specially designed for manufacturing solar mounting system profiles, including C-channel steel, U-channel steel, and photovoltaic support components. This production line integrates coil feeding, leveling, roll forming, punching, servo cutting, automatic stacking, and intelligent control, providing an efficient solution for large-scale PV bracket manufacturing.

With a maximum production speed of 45 meters per minute, the machine significantly improves production efficiency compared with traditional forming equipment. Meanwhile, the combination of a horizontal accumulator (loop system) and automatic strip welding machine allows continuous operation during coil replacement, reducing downtime and maximizing production capacity.

The equipment is suitable for processing Q235, Q345, S420GD, galvanized steel, and zinc-aluminum-magnesium coated steel, meeting the requirements of modern photovoltaic mounting structure projects.shiden

Automatic Production Line with Continuous High-Speed Operation

To achieve stable and uninterrupted production, the Solar Photovoltaic Bracket C/U Channel Steel Roll Forming Machine is equipped with an advanced automatic feeding system, including a 5-ton hydraulic decoiler, automatic strip welding machine, and horizontal accumulator.

The automatic strip welding machine connects two steel coils through precision TIG welding. When one coil is nearly finished, the system automatically cuts and welds the new coil with the previous strip. The welding seam is smooth, strong, and free from excessive grinding, ensuring reliable continuous material feeding.

More importantly, the horizontal accumulator (loop storage system) allows the forming machine to continue running during coil replacement. The accumulator can store approximately 500-700 meters of steel strip, while the forming section maintains continuous production at speeds of up to 45 meters per minute.

With the cooperation of the automatic welding unit and accumulator system, operators can replace raw material coils without stopping the main roll forming machine. This greatly reduces downtime, improves production efficiency, and helps manufacturers achieve higher daily output.

Compared with traditional roll forming lines that require frequent shutdowns for coil replacement, this continuous production design effectively increases line utilization and reduces labor costs.

The production speed can reach:

Advantages of Zhongtuo Solar Photovoltaic Bracket Production Line

Compared with conventional PV bracket manufacturing equipment, this automatic roll forming solution provides significant advantages:

• High-speed production up to 45 m/min, improving output capacity.
• Automatic strip welding and accumulator system enable continuous production with less downtime.
• Automatic mold change technology allows quick switching between different C/U channel specifications.
• Servo tracking cutting system provides ±1 mm cutting accuracy.
• Automatic punching and stacking system reduces manual labor requirements.
• Low energy consumption and compact layout save factory space.
• Cloud-based production monitoring supports intelligent factory management.

With its high automation level and stable performance, the Solar Photovoltaic Bracket C/U Channel Steel Roll Forming Machine is an ideal choice for solar mounting structure manufacturers, steel processing companies, and renewable energy construction suppliers.Continuous production with automatic coil welding and accumulator technology minimizes machine downtime and ensures stable high-speed operation at up to 45m/min.

Intelligent Automatic C/U Channel Steel Forming Technology

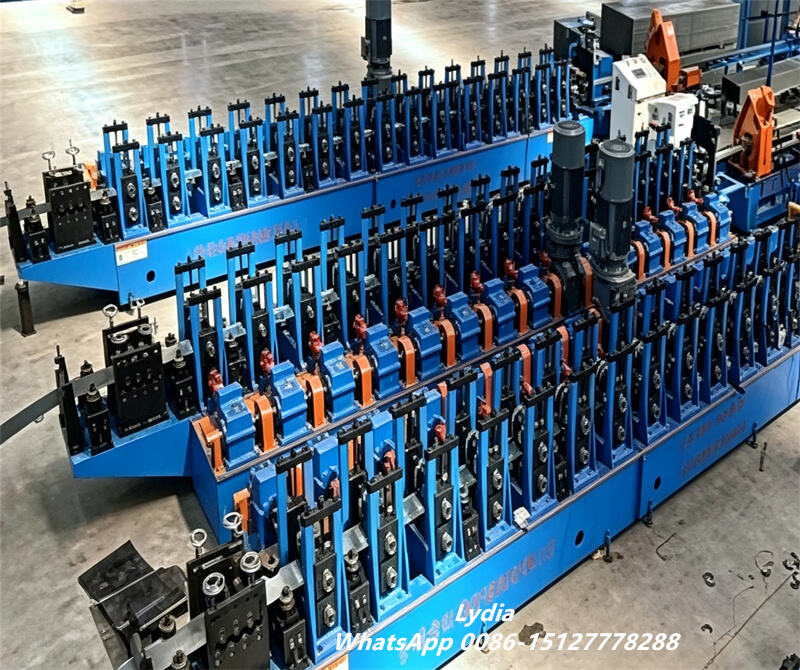

The core forming unit uses precision-designed rollers and an intelligent adjustment system to produce different photovoltaic bracket profiles with high accuracy.

For C-channel steel production, the machine can manufacture profiles with:

• Web height: 30-60 mm
• Base width: 50-160 mm

For U-channel steel production, the automatic forming system supports:

• Profile range: 41×21 mm to 41×82 mm
• Material thickness: 1.5-2.5 mm

The intelligent mold changing system allows operators to switch specifications quickly through a one-button operation. Therefore, manufacturers can produce multiple PV bracket models on the same production line without replacing molds manually, which reduces adjustment time and increases production flexibility.

At the same time, the servo tracking cutting system follows the material movement accurately and achieves ±1 mm cutting precision, ensuring that every finished component meets strict installation requirements.

Integrated Punching, Cutting and Automatic Stacking System

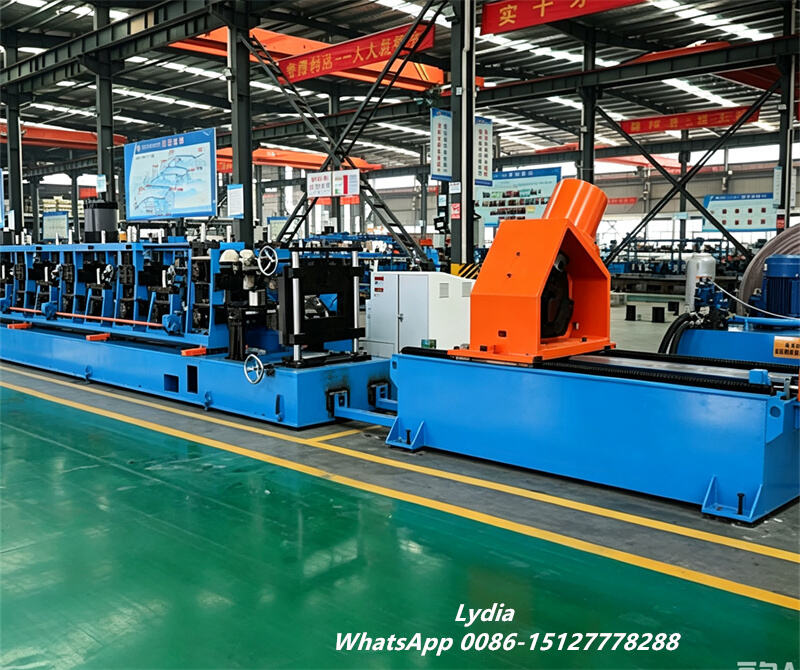

A complete photovoltaic bracket production line requires not only forming but also automatic secondary processing. This system integrates a high-precision punching unit for creating mounting holes according to customer requirements.

The punching unit supports multiple hole patterns and works together with the forming machine to complete continuous production. After forming and cutting, the finished steel profiles automatically enter the unloading section.

The automatic stacking robot and transfer system replace manual handling and complete:

• Automatic unloading
• Automatic turning
• Automatic transportation
• Automatic stacking

As a result, the production line reduces labor dependence, improves workplace safety, and creates a more efficient smart manufacturing process.

Smart Control System and Energy-Efficient Manufacturing

The photovoltaic bracket forming machine applies an intelligent PLC control system with digital production management functions. The system can record and transmit real-time production data, including:

• Production quantity
• Equipment operating status
• Energy consumption
• Fault information
• Production efficiency

In addition, the shutdown memory function saves the previous production parameters. When the machine restarts, operators do not need to repeat complicated adjustments, which helps shorten preparation time.

The entire line adopts high-quality electrical components and precision-machined mechanical parts to ensure long-term stable operation under continuous industrial production conditions.
