In modern electrical installation projects, cable trays play a critical role in organizing and protecting power cables, communication cables, and control wiring. As infrastructure projects continue to grow worldwide, manufacturers are looking for faster, smarter, and more cost-effective production solutions. This is exactly where the Cable Tray Punching Machine becomes essential.
Why Cable Tray Dimensions Matter
Many buyers focus only on tray width when selecting cable trays. However, professional engineers understand that cable tray dimensions directly influence cable safety, airflow, load capacity, and future expansion capability.
In practical applications, the correct dimensions help:
- Improve cable heat dissipation
- Prevent cable overcrowding
- Meet NEC, NEMA, and IEC standards
- Reduce maintenance difficulty
- Extend cable service life
Therefore, selecting the proper tray dimensions is not simply a purchasing decision — it is an engineering decision.
The most common dimensions include tray width, side height, length, and steel thickness. Different industries require different specifications depending on cable quantity and installation environment.
The Cable Tray Punching Machine Price offered by ZTRFM combines affordability with industrial-grade performance. Designed specifically for trough cable tray manufacturing, this production line integrates roll forming, hydraulic punching, and automatic cutting into one continuous process. As a result, manufacturers can achieve stable production, accurate punching, and high output efficiency while reducing labor costs.
Unlike traditional manual production methods, this automated cable tray line uses a PLC control system to simplify operation and improve precision. At the same time, durable rollers, a reinforced machine frame, and a reliable hydraulic station ensure long-term stability even during heavy-duty production.
Standard Cable Tray Dimensions
Below are some commonly used cable tray dimension ranges in industrial and commercial projects:
| Parameter | Common Range | Application |
|---|---|---|
| Tray Width | 100mm – 800mm | Cable capacity adjustment |
| Side Height | 50mm – 200mm | Cable protection and load support |
| Tray Length | 2000mm – 3000mm | Standard installation sections |
| Material Thickness | 0.5mm – 2.5mm | Structural strength |
| Material Type | GI Steel / Q235 / Stainless Steel | Corrosion resistance |
Because different projects have different cable routing requirements, manufacturers often need flexible production equipment capable of handling multiple tray sizes. This is why modern cable tray punching machines are designed with adjustable width systems and automatic punching configurations.
Features of the Trough Cable Tray Punching Machine

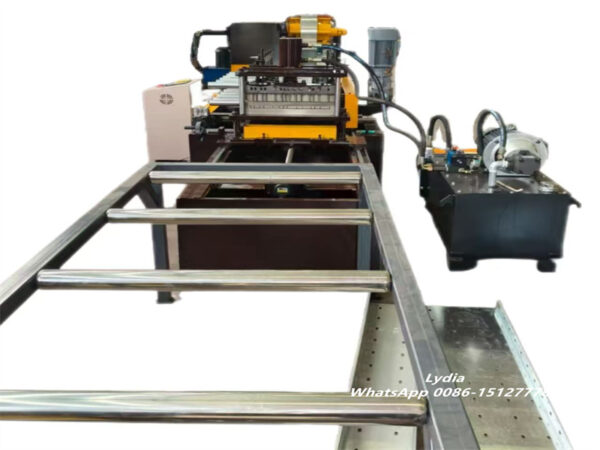

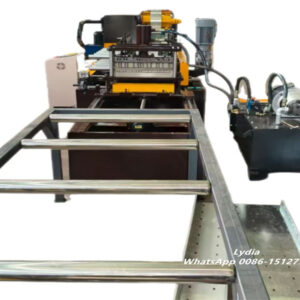

The trough cable tray production line from ZTRFM provides efficient and fully automated manufacturing for various cable tray specifications.

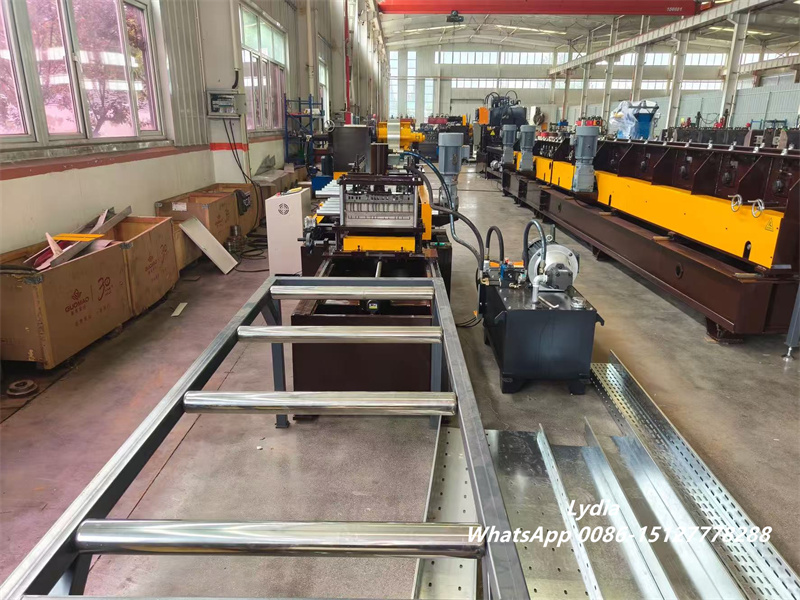

The machine line typically includes:

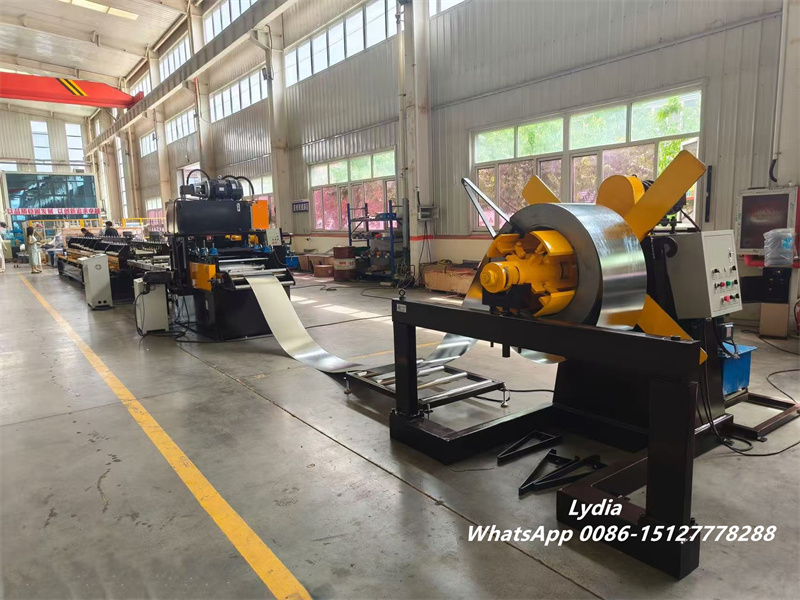

- Decoiler
- Leveling unit
- Hydraulic punching system
- Roll forming machine
- Servo tracking cutting system
- PLC control cabinet
- Product collecting table
Additionally, the hydraulic punching station can process connection holes, slot holes, and customized patterns according to customer drawings. This greatly improves production flexibility while maintaining excellent punching accuracy.

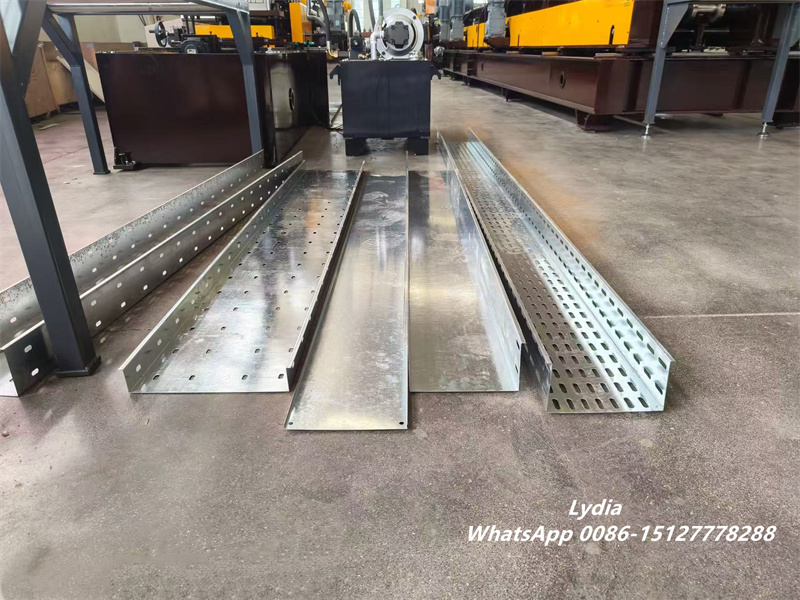

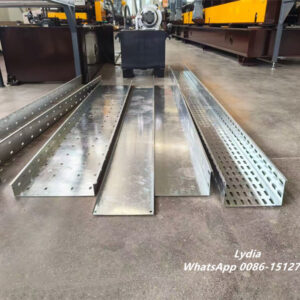

The finished trough cable trays feature:
- Smooth edges without deformation
- Accurate hole positioning
- Strong structural rigidity
- Excellent corrosion resistance
- Uniform appearance
Consequently, the products are widely used in factories, data centers, airports, commercial buildings, power stations, and renewable energy projects.
Technical Parameters of Cable Tray Punching Machine

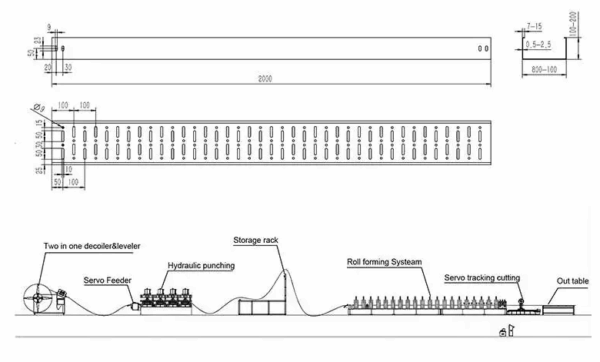

The following technical specifications represent a common trough cable tray production configuration:
| Item | Specification |
|---|---|
| Model | 800/200 |
| Machine Size | 36×2.5×2m |
| Coil Width | 200–1250mm |
| Material Thickness | 0.5–2.5mm |
| Tray Specification | 800/200–100/50 |
| Total Power | About 60KW |
| Material Type | Q235 steel / galvanized sheet |
| Production Speed | 6–10m/min |
| Product Length | 2000mm / 3000mm |
| Motor Protection | IP55 |
| Explosion-proof Grade | ExdIICT4 |
Moreover, the production speed can vary depending on tray length, punching quantity, and hole configuration requirements.
Complete Cable Tray Production Machine
Besides the trough cable tray machine, ZTRFM also provides complete cable tray manufacturing solutions for different project requirements.
Related equipment includes:
- Trough cable tray roll forming machine
- Cable tray cover machine
- Cable ladder forming machine
- Cable tray bending machine
By integrating multiple production systems, manufacturers can establish a complete cable tray production factory with higher efficiency and lower operating costs.
Furthermore, all machines can be customized according to local standards, including NEMA, IEC, CSA, and UL requirements.
Why Choose ZTRFM
Choosing the right supplier is just as important as choosing the right machine. ZTRFM not only provides competitive Cable Tray Punching Machine Price, but also offers complete technical support throughout the entire project lifecycle.
Customers benefit from:
- Professional machine design
- Custom production solutions
- Overseas installation support
- Operator training
- Long-term spare parts supply
- Fast after-sales service
As global demand for cable management systems continues to grow, investing in an efficient and reliable cable tray punching machine can significantly improve productivity and profitability.
If you are planning to start or upgrade your cable tray manufacturing business, contact ZTRFM today for the latest Cable Tray Punching Machine Price and customized production solutions.
