Zhongtuo Cable Ladder Rung Roll Forming MachineAutomatic Cable Tray Ladder Production Line

As modern industries continue to expand their power distribution and cable management networks, the demand for reliable cable ladder systems is growing rapidly. The Cable Ladder Rung Roll Forming Machine is specifically designed to manufacture high-precision ladder rungs that serve as the cross members of cable ladder systems. These rungs provide strong cable support while ensuring excellent ventilation, making them ideal for power plants, industrial facilities, data centers, and large commercial projects.

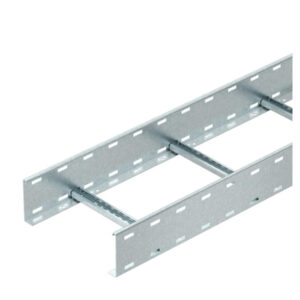

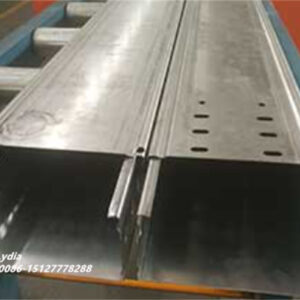

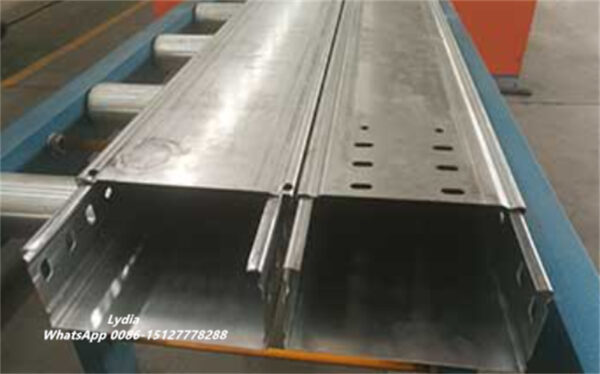

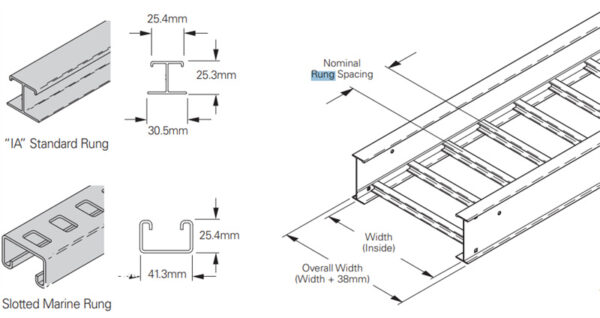

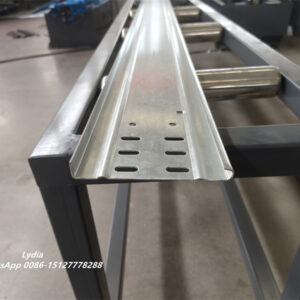

The finished product shown above features a specially formed channel profile with punched mounting slots and fixing holes. This design improves cable fastening flexibility and increases the structural strength of the entire ladder system.

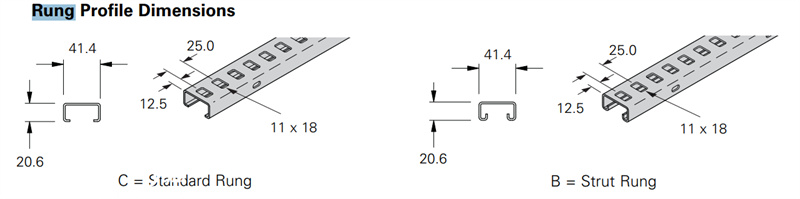

What Is a Cable Ladder Rung?

A cable ladder rung is the horizontal support member welded or connected between two side rails of a cable ladder. It acts as the primary cable-bearing component and provides stable support for heavy electrical cables, communication lines, and control systems.

Unlike solid-bottom cable trays, cable ladders utilize an open structure that allows maximum airflow around the cables. As a result, heat dissipates more efficiently, extending cable life and improving system safety.

Additionally, punched ladder rungs simplify cable tie installation and equipment mounting while reducing overall system weight.

Main Technical Specifications

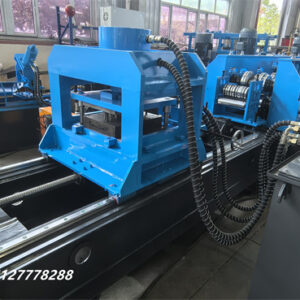

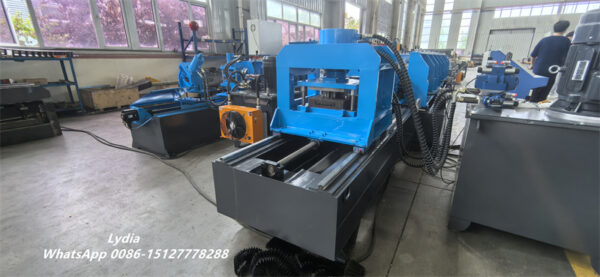

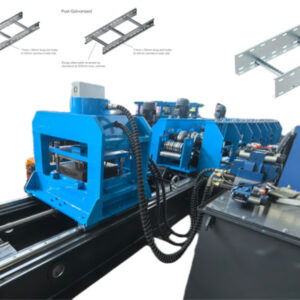

The Cable Ladder Roll Forming Machine combines automatic feeding, punching, roll forming, and cutting into a single production line. Thanks to its PLC-controlled design, operators can quickly switch between different product sizes with minimal downtime.

Advantages of the Finished Ladder Rung Profile

The ladder rung profile is engineered to deliver both strength and installation convenience. First, the formed side bends increase structural rigidity without significantly increasing material consumption. Meanwhile, the punched slots provide multiple cable fastening positions and allow accessories to be mounted directly onto the ladder system.

Furthermore, the profile’s roll-formed construction enhances metal strength during the forming process. This enables the rung to withstand heavy cable loads while maintaining dimensional accuracy over long spans.

Compared with conventional fabrication methods, roll forming offers superior consistency, cleaner edges, and significantly higher production efficiency.

Fully Automatic Production Process

The production line operates through a continuous automated workflow. Initially, the coil material enters the feeding and leveling section to ensure flatness. Next, the punching system creates all required mounting slots and fixing holes according to the programmed design.

After punching, the strip moves through multiple roll forming stations where it is gradually shaped into the final ladder rung profile. Finally, the hydraulic cutting unit cuts each product to the specified length without interrupting production.

Because the entire process is automated, manufacturers can achieve stable output quality while reducing labor costs and material waste.

Applications of Cable Ladder Rung Systems

The finished Cable Ladder Rung products are widely used in modern Cable Management Systems where high cable loads, excellent ventilation, and easy maintenance are required. Thanks to their open-ladder structure, these systems allow heat generated by cables to dissipate efficiently while providing strong mechanical support.

As industrial infrastructure continues to expand, Cable Ladder Systems have become the preferred solution for routing power cables, communication cables, and control wiring in demanding environments.

Typical application areas include:

• Manufacturing factories
• Commercial buildings
• Telecommunication networks
• Transportation infrastructure
• Solar power stations
• Renewable energy projects

In these industries, Cable Ladder Rungs serve as the primary support members between the side rails, ensuring long-term durability, high load-bearing capacity, and safe cable organization.

Why Choose Zhongtuo Cable Ladder Rung Roll Forming Machine?

Zhongtuo develops advanced roll forming solutions that combine precision engineering with flexible production capabilities. The machine can manufacture cable ladder rungs, cable ladder side rails, solid cable trays, and cable tray covers on a single production platform. This versatility allows manufacturers to expand their product range while minimizing equipment investment.

Moreover, the automatic size adjustment system significantly reduces setup time, enabling quick transitions between different specifications. Combined with durable tooling materials, precise forming technology, and intelligent PLC control, the machine delivers reliable performance for long-term industrial production.

For cable tray manufacturers seeking higher productivity, better profile quality, and lower operating costs, the Cable Ladder Rung Roll Forming Machine provides an efficient and profitable manufacturing solution.
