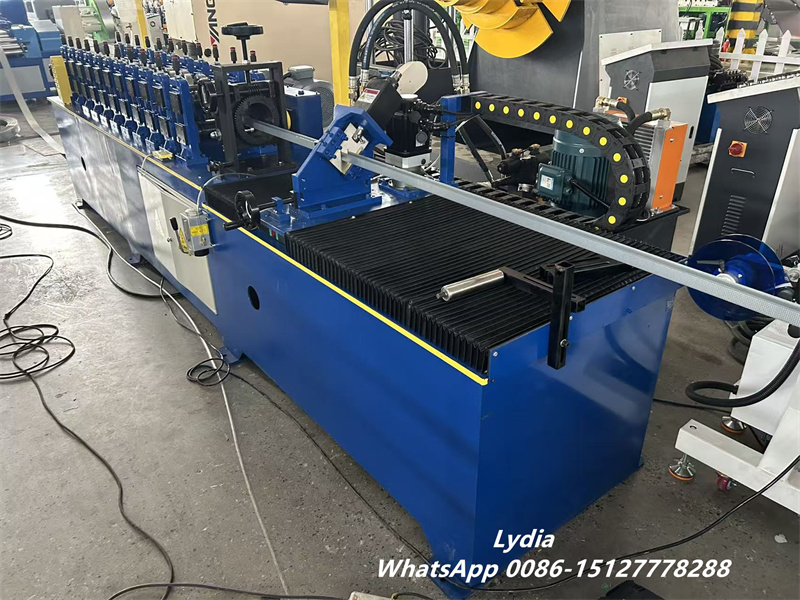

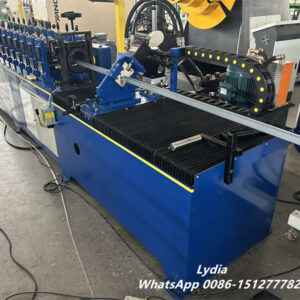

Zhongtuo High Speed Drywall Track Machine with Punching & Logo Embossing Deep Track Roll Forming Machine

The Deep Track Roll Forming Machine is specifically engineered to produce deep leg tracks used in modern drywall and light steel framing systems. This equipment transforms galvanized steel coils into precise structural profiles through a continuous, fully automated forming process.

Manufacturers widely adopt this machine for applications such as partition wall systems, curtain walls, prefabricated buildings, and steel structure frameworks. With its high efficiency and stable performance, it ensures consistent output quality while meeting demanding production requirements.

Key Advantages of Deep Track Roll Forming Machine

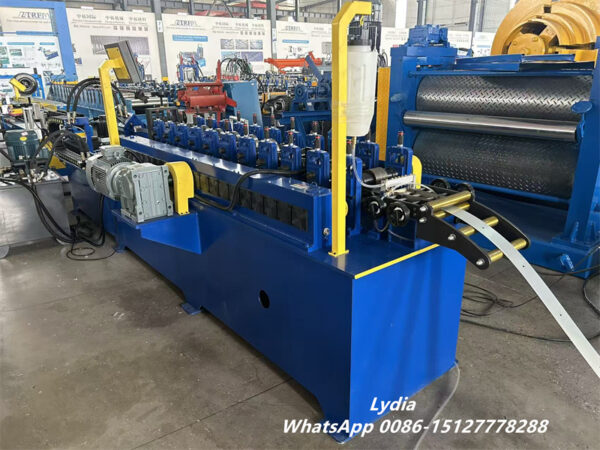

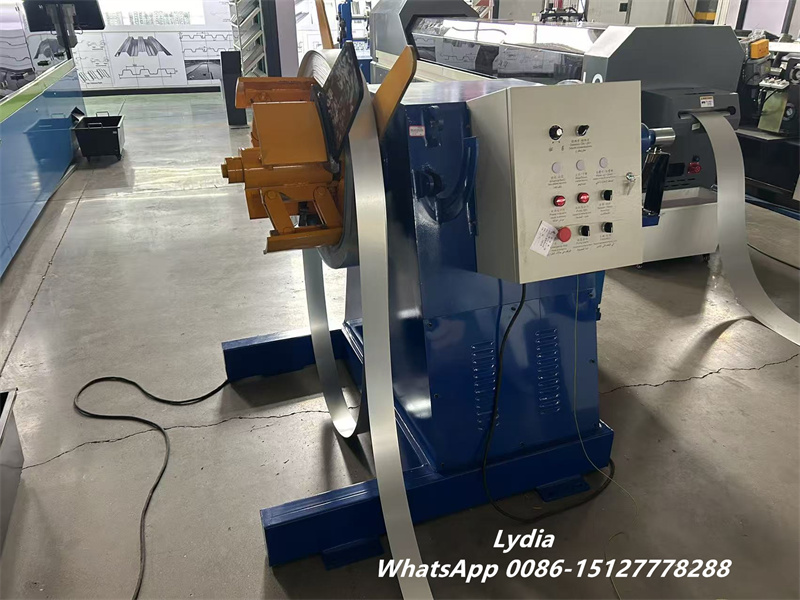

The production line operates through a streamlined and highly efficient workflow. First, the hydraulic decoiler feeds the galvanized coil into the system. Then, the strip passes through multiple roll forming stations where each stage gradually shapes the material into the required deep track profile. Finally, a servo tracking cutting system cuts the finished product to precise lengths.

Moreover, the machine integrates advanced control systems and stable transmission structures, which significantly improve production accuracy and reduce material waste. As a result, operators can achieve high-speed production without compromising quality.

Structural Design and Performance Features

This machine adopts a robust portal frame (stand type) structure to ensure long-term stability. The rollers are manufactured from Cr12 steel and undergo precise heat treatment, which enhances durability and wear resistance.

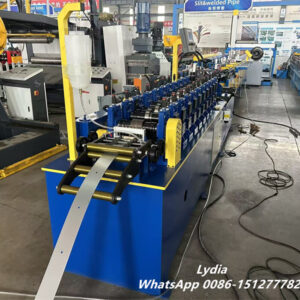

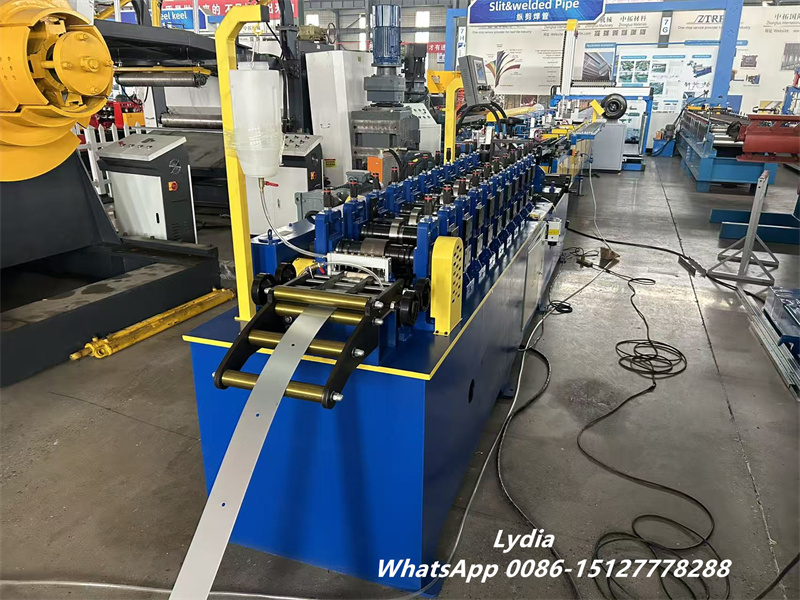

At the same time, the gearbox-driven transmission system guarantees smooth operation even at high speeds. Combined with servo tracking cutting, the machine can maintain synchronization between forming, punching, and cutting processes.

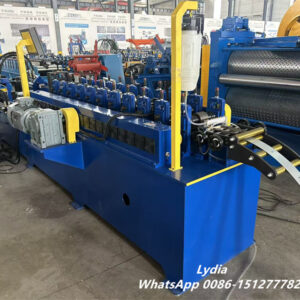

Additionally, the system supports logo embossing and continuous punching, allowing customers to customize their products according to market needs.

Technical Specifications

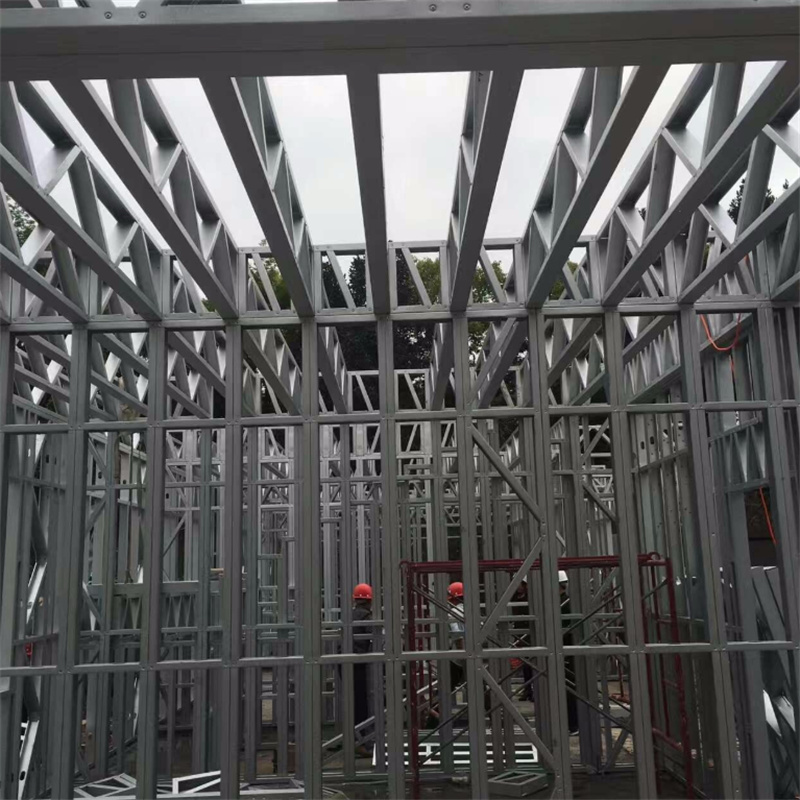

Deep track profiles play a critical role in steel framing systems, especially in non-load-bearing wall structures. Typically, installers position these tracks at the top of wall assemblies to allow vertical movement caused by thermal expansion, structural deflection, or environmental changes.

Because of this flexibility, the system effectively reduces stress on drywall panels and prevents cracking over time. In addition, the open structure of the profile improves accessibility for electrical wiring, plumbing, and HVAC installations, which increases overall construction efficiency.

Furthermore, the machine supports high-speed production of up to 22 pieces per minute (3-meter length), making it ideal for large-scale manufacturing projects.

Automation and Additional Configurations

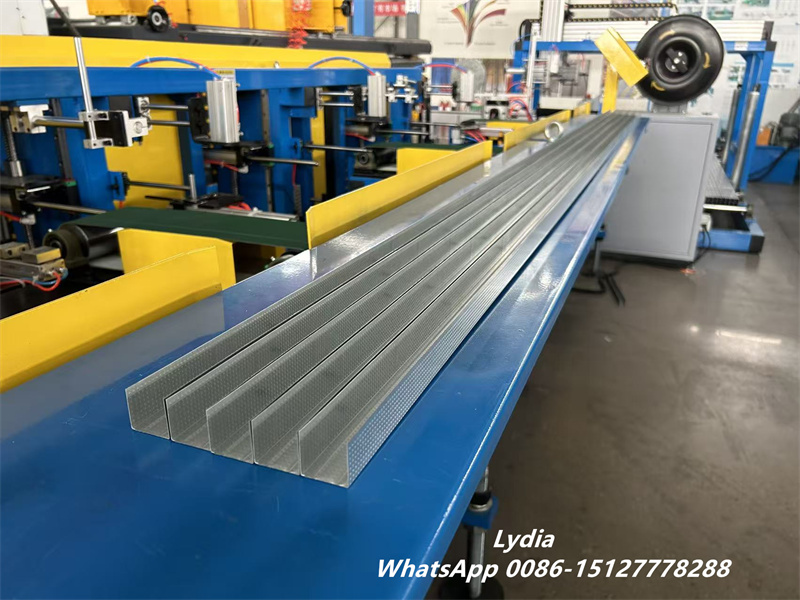

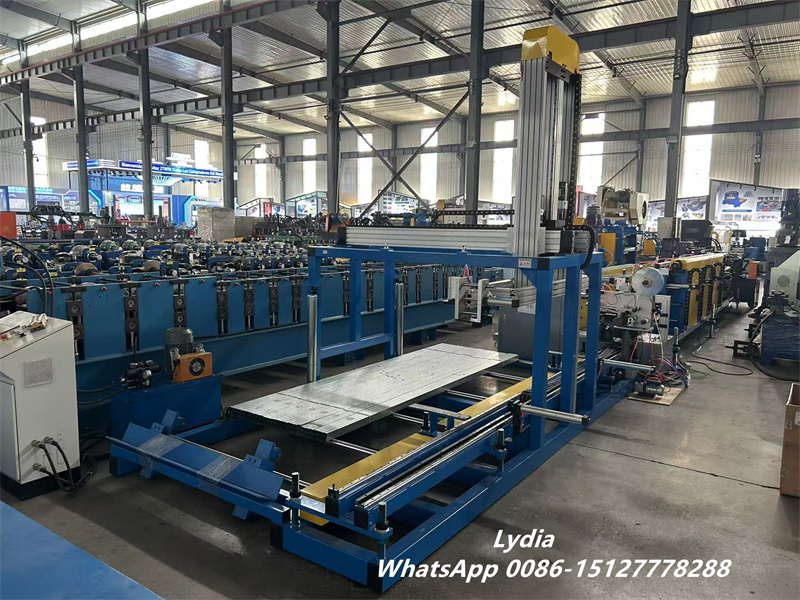

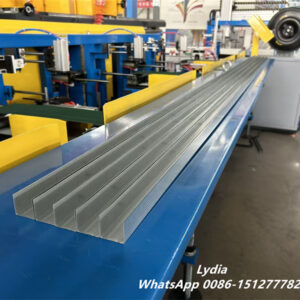

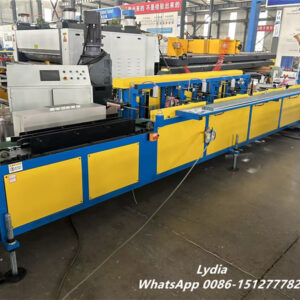

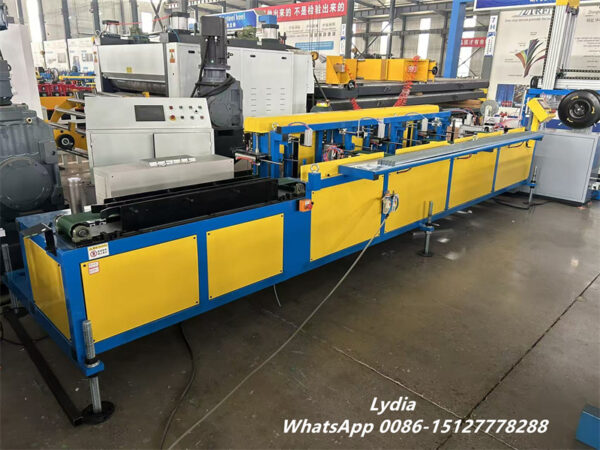

To enhance automation, the production line can integrate several advanced components. These include a servo-driven stacking and packaging system, automatic labeling units for both single products and bundled packages, and intelligent PLC control systems.

Meanwhile, high-quality electrical components from trusted brands ensure reliable operation and easy maintenance. The machine also comes with spare parts and maintenance tools, helping reduce downtime and improve long-term productivity.

This Deep Track Roll Forming Machine offers a perfect balance between speed, precision, and durability. It not only meets strict customer acceptance standards—such as no surface defects, no deformation, and stable high-speed output—but also provides flexible customization options.

Whether you aim to expand production capacity or improve product quality, this machine delivers a reliable and cost-effective solution for modern steel framing manufacturing.
