Zhongtuo Lamp Reflector Roll Forming Machine ZTRFM T5 T8 Reflector Making Machine

Lighting reflectors play a crucial role in modern illumination systems. Instead of allowing light to scatter randomly, a reflector carefully redirects the light beam toward the target surface. As a result, lighting efficiency increases significantly while energy loss is minimized.

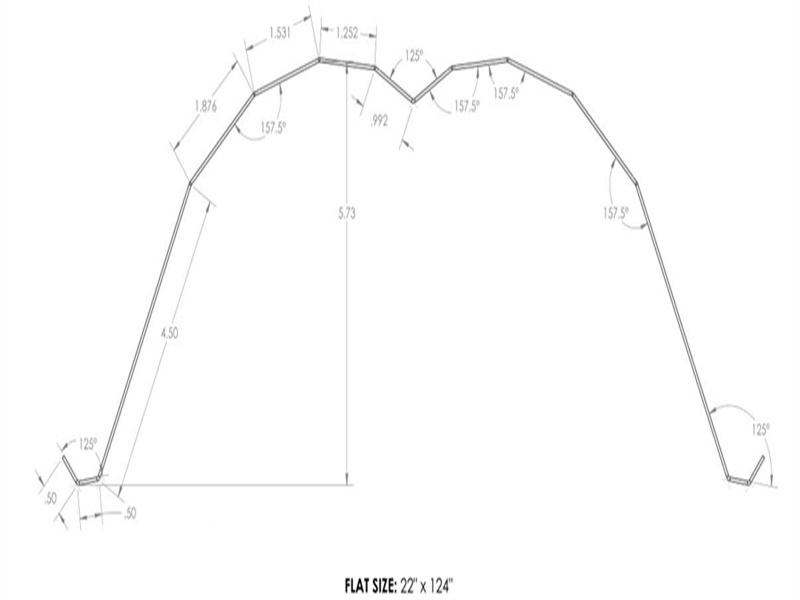

To manufacture this type of high-precision reflector, manufacturers require specialized forming equipment. Our Lamp Reflector Roll Forming Machine is designed specifically to produce aluminum reflectors used with T5 and T8 fluorescent lamps. These reflectors typically feature a multi-angled geometry forming an “M-shaped five-sided parabola”, which helps achieve accurate light distribution.

With automated production, stable forming accuracy, and efficient operation, this roll forming line allows lighting equipment manufacturers to produce reflectors in large quantities with consistent quality.

Reflector Design and Application

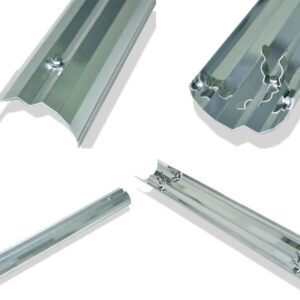

The reflector profile is engineered to maximize light reflection and direction control. Because the reflector is made from high-reflectivity anodized aluminum, the surface can achieve more than 95% reflectivity. Consequently, more light reaches the intended area while reducing energy waste.

The reflector’s geometry consists of multiple angled surfaces forming an “M” shape. This structure positions the lamp at the center of the profile so that light rays reflect downward evenly.

These reflectors are widely used in:

• Industrial lighting fixtures
• Commercial lighting systems
• Greenhouse lighting
• Warehouse illumination
• Workshop lighting installations

Furthermore, manufacturers can adapt the reflector length to different lamp specifications such as 500 mm, 700 mm, 1150 mm, and 1400 mm.

Roll Forming Machine Working Process

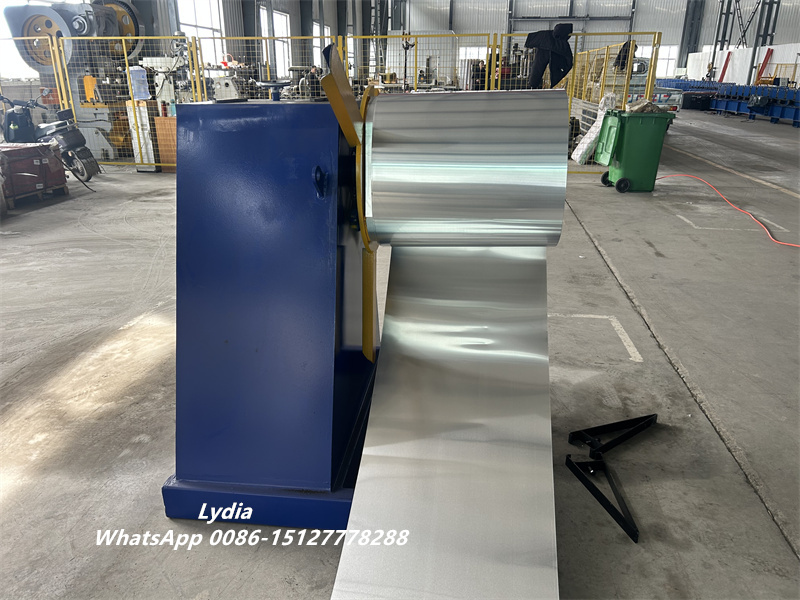

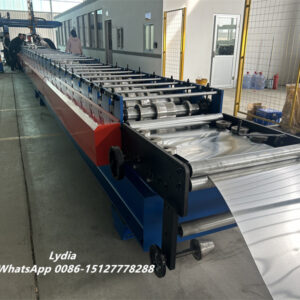

The entire production line operates through a continuous automated process. First, the steel or aluminum coil is loaded onto the decoiler. Then the material passes through the feeding system where guiding rollers ensure accurate alignment.

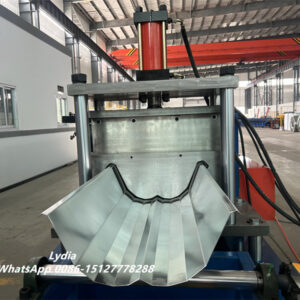

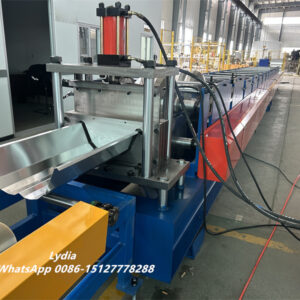

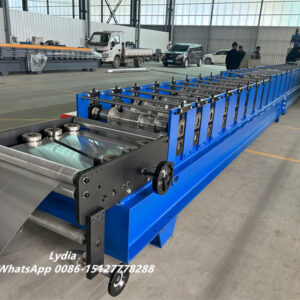

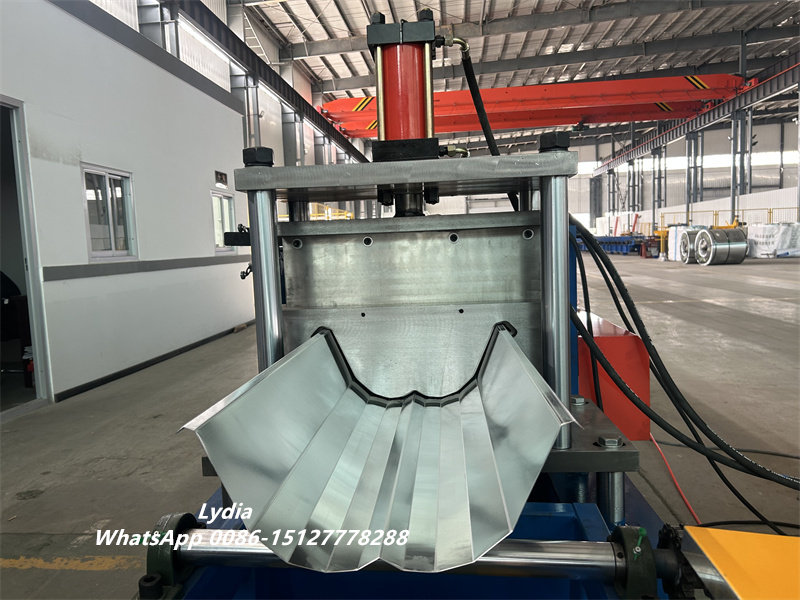

Next, the strip enters the roll forming section. Here, multiple forming stations gradually shape the metal strip into the final reflector profile. Finally, the hydraulic cutting system cuts the finished product to the required length before the stacking unit collects the pieces.

The working flow is as follows:

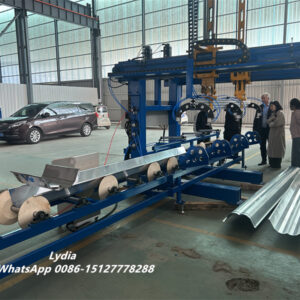

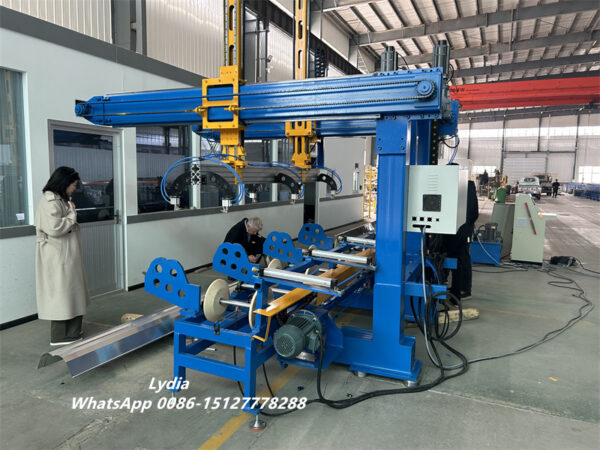

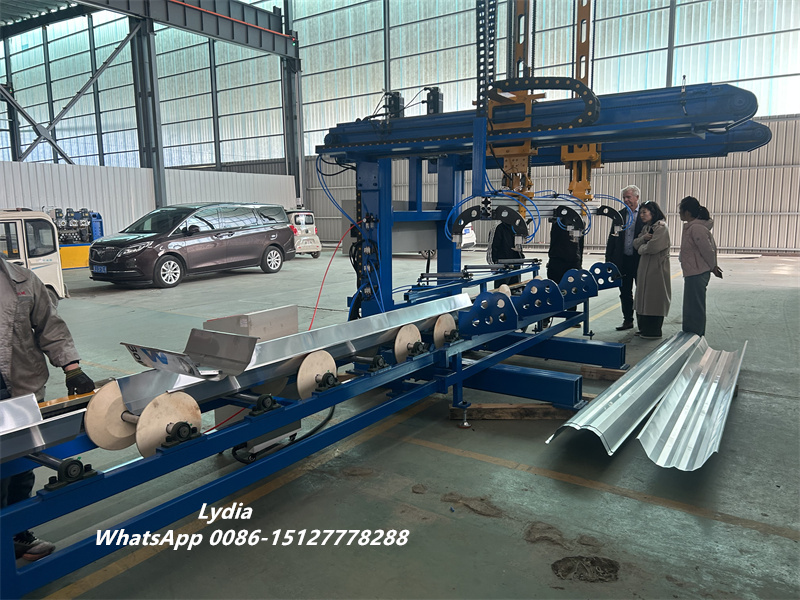

Decoiler → Guiding & Feeding → Roll Forming → Hydraulic Cutting → Product Stacker

Because the process is continuous, the production line can maintain a steady output while ensuring dimensional consistency.

The following table summarizes the key specifications of the lamp reflector roll forming machine.

These parameters ensure that the machine maintains both production stability and forming precision during long-term operation.

Advanced Control System and Automation

To ensure smooth operation, the production line integrates a Delta PLC control system with a user-friendly touch screen interface. Operators can easily set the cutting length, production quantity, and batch programs through the control panel.

In addition, the system supports multiple production orders, allowing the machine to continue running without frequent stops. Electrical components from well-known brands such as Schneider, Omron, and Delta improve reliability and simplify maintenance.

Another advantage is that the system automatically monitors production length through an encoder and photoelectric sensors. This guarantees accurate product dimensions while reducing manual intervention.

Advantages of the Reflector Roll Forming Line

This lamp reflector forming machine offers several key benefits for lighting equipment manufacturers.

First, the machine delivers high forming precision thanks to hardened rollers and stable machine structure. Second, automated production significantly increases output while reducing labor requirements. In addition, the adjustable feeding system allows operators to adapt to different reflector widths when necessary.

Moreover, the robust steel frame and high-quality transmission system ensure long service life even under continuous industrial production conditions.

Because of these advantages, the machine becomes an ideal solution for companies producing T5 and T8 lighting reflectors for industrial and commercial applications.
