Modern warehouses demand strong and reliable storage systems. Therefore, manufacturers must produce upright columns for pallet racks with high precision and consistent quality. A Pallet Racking Upright Roll Forming Machine provides an efficient solution for producing vertical supports used in industrial storage and heavy-duty shelving.

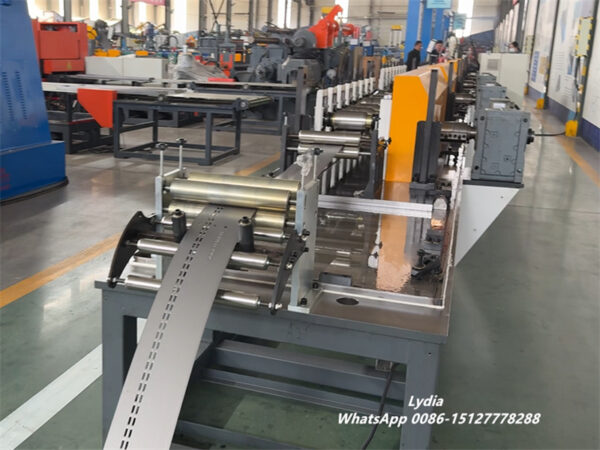

This machine continuously feeds steel coils through a series of forming rollers. Each roller gradually shapes the material until the final upright profile is achieved. As a result, the system ensures stable production, accurate dimensions, and strong structural integrity.
What is a Pallet Racking Upright Roll Forming Machine?
A pallet racking upright roll forming machine is specialized equipment designed to manufacture vertical support columns used in warehouse storage systems. These uprights serve as the backbone of pallet racks, connecting beams and braces to safely hold heavy loads.
Unlike traditional fabrication methods, roll forming shapes the metal gradually through consecutive rollers. Consequently, manufacturers achieve smooth surfaces, consistent dimensions, and reduced material waste. Moreover, automation improves production speed and reduces labor costs significantly.
Key Advantages of the Upright Roll Forming Line
Roll forming technology offers several advantages for manufacturing upright columns for pallet racking systems:
High Precision Manufacturing
The roll forming process ensures consistent column dimensions and tight tolerances, which is essential for safety and stability in warehouse racks.
Continuous High-Speed Production
The automated line can operate at speeds of 10–15 meters per minute, greatly increasing output and reducing lead times.
Cost Efficiency
Roll forming minimizes raw material waste and reduces manual labor. Therefore, manufacturers save both material and operational costs.
Flexible Profile Production
By replacing or adjusting a few forming rollers, the machine can produce various upright sizes and slot patterns. This versatility allows factories to meet different customer requirements efficiently.
Applications of Upright Columns
Upright columns are essential for many industrial storage systems due to their load-bearing strength and stability.
- Warehouse Storage Systems: Form the vertical framework of pallet racks that hold pallets and heavy goods.

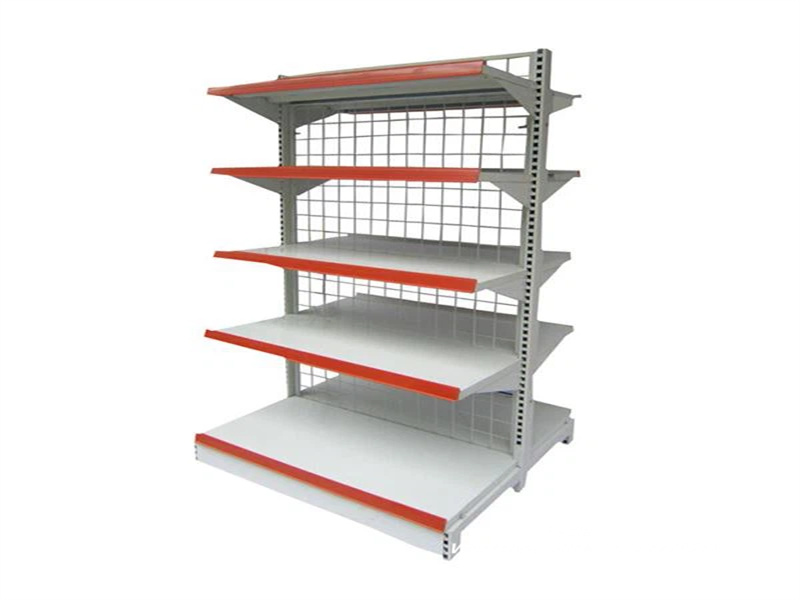

- Industrial Shelving Units: Provide support for multi-level shelving in factories and distribution centers.

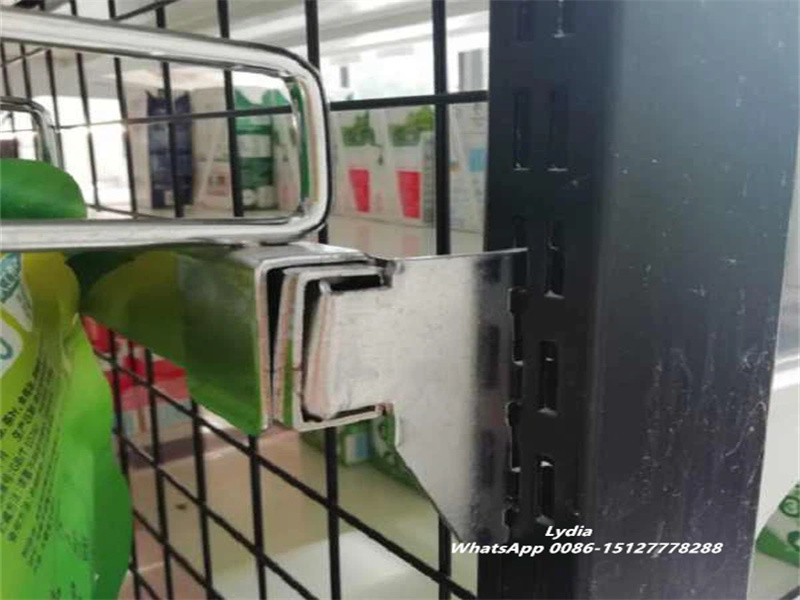

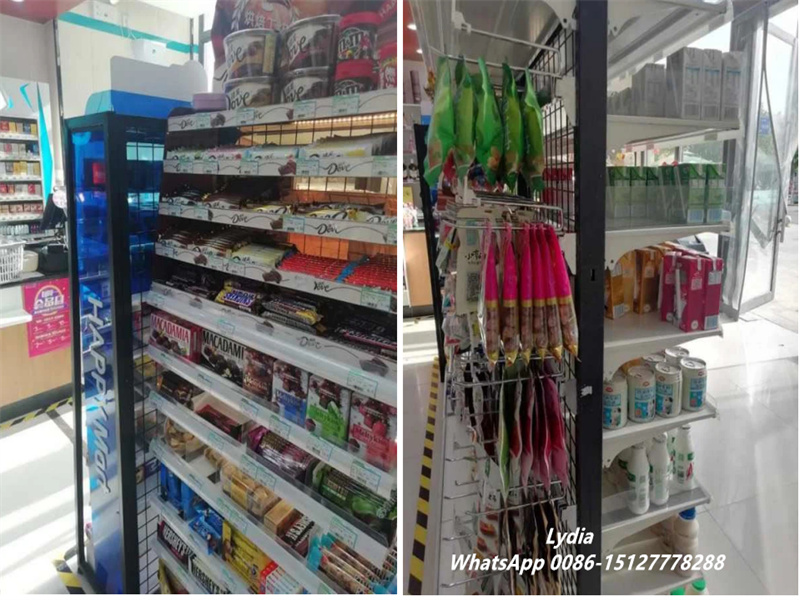

- Retail Storage and Displays: Maintain safe and organized product layouts in supermarkets or retail storage areas.
- Construction and Storage Solutions: Serve as structural reinforcement components in modular storage frameworks.
Technical Specifications of the Upright Roll Forming Machine
| Category | Specification | Details |
|---|---|---|
| Raw Material | Base Material | Galvanized Steel Coil |
| Material Thickness | Range | 0.6 – 1.5 mm |
| Uncoiler Capacity | Maximum Load | 3 Tons |
| Coil Inner Diameter | Range | 450 – 550 mm |
| Forming Stations | Rollers | 18–22 Stations |
| Roller Material | Hardness | Cr12 Alloy (HRC 56–58) |
| Shaft Material | Diameter | Ø60 mm Tempered 45# Steel |
| Machine Speed | Production Speed | 10–15 m/min |
| Drive System | Motor Power | Dual 7.5 kW Motors |

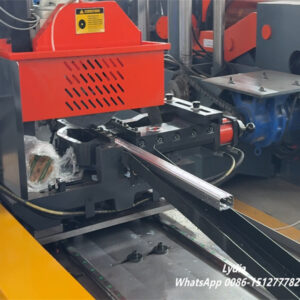

| Machine Frame | Structure | Heavy Duty Welded Steel Frame |
| Safety Features | Covers | Full Protective Covers |
Automated Production Process
The upright roll forming line integrates several automated processes to ensure high efficiency and consistent quality:

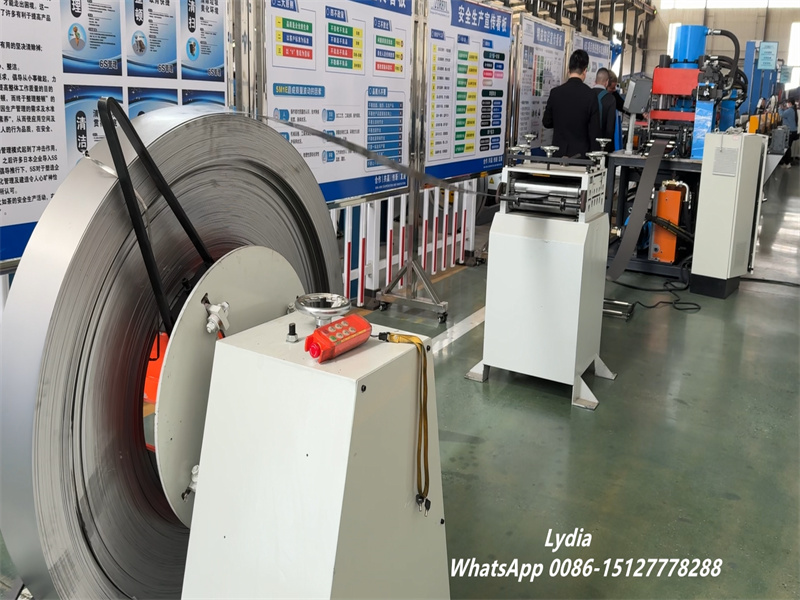

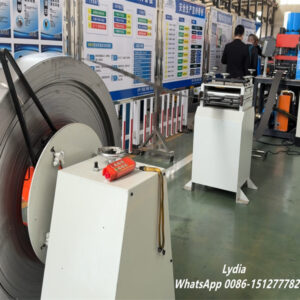

- Material Uncoiling: Steel coil is loaded onto the uncoiler.
- Leveling: Internal stress is removed, and the strip is flattened.

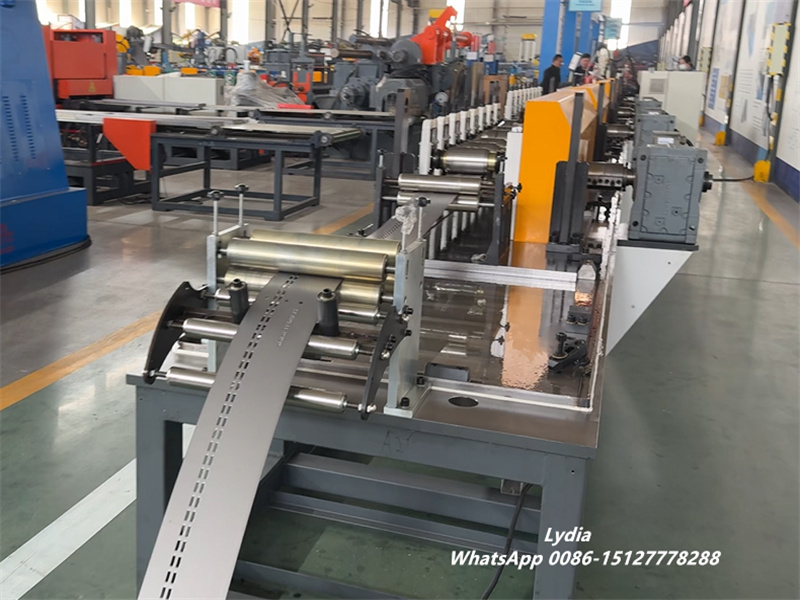

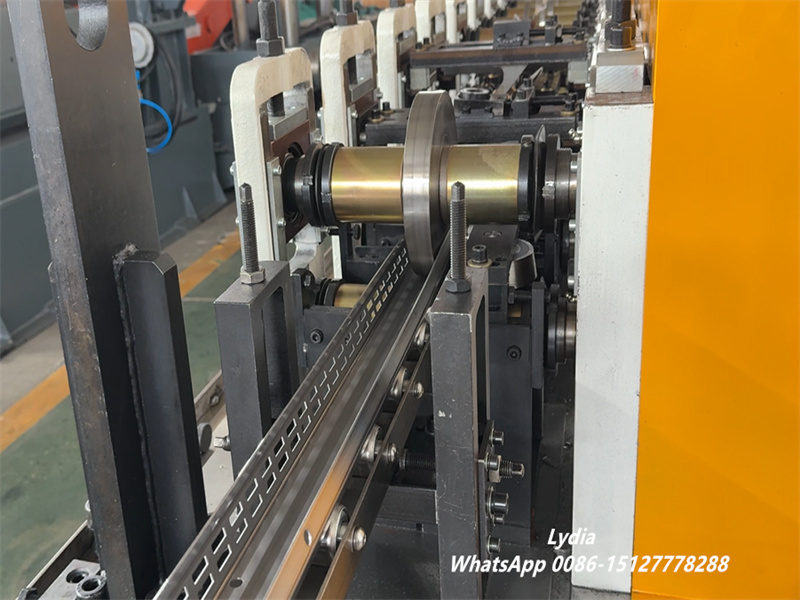

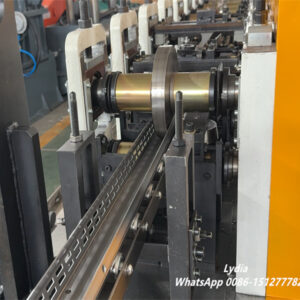

- Roll Forming: Material passes through multiple stations to form the upright profile.

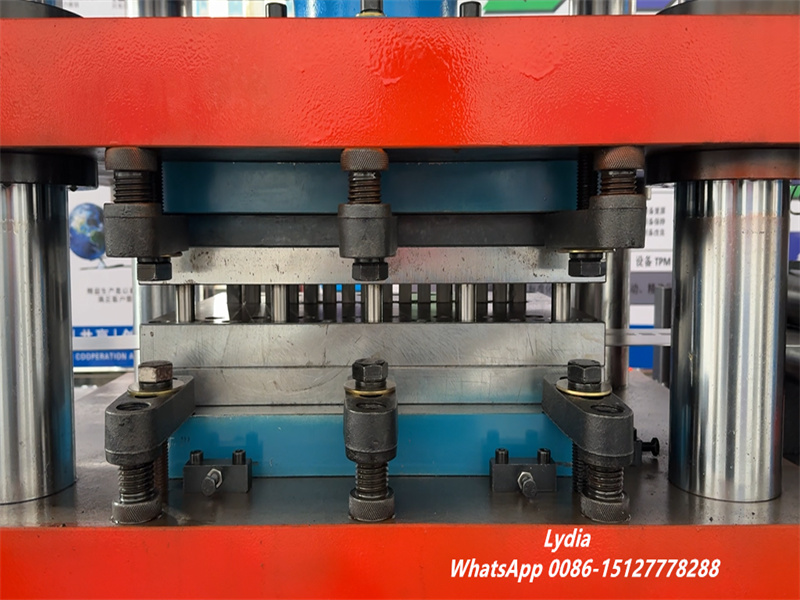

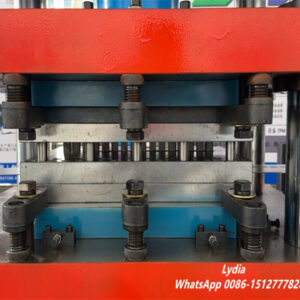

- Servo-Controlled Punching (Optional): Holes or slots are punched according to design requirements.

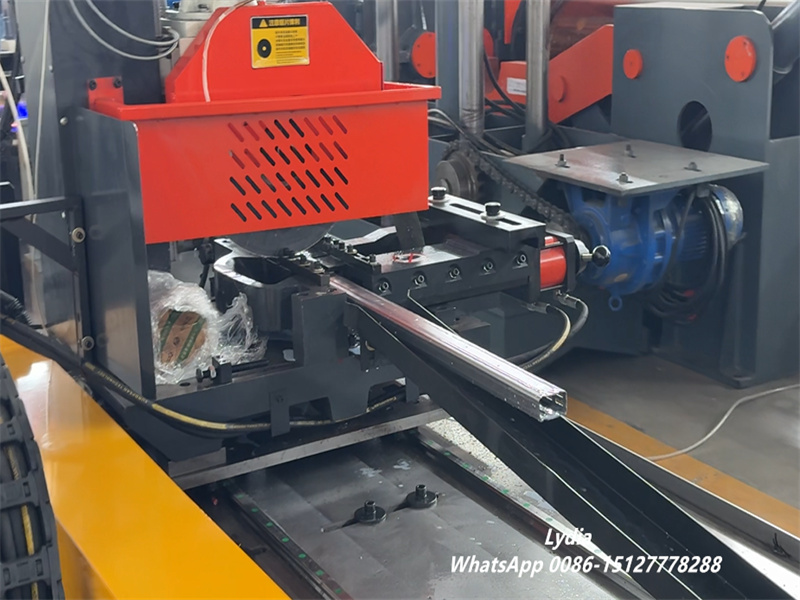

- Precision Cutting: Columns are cut to the required length without burrs.

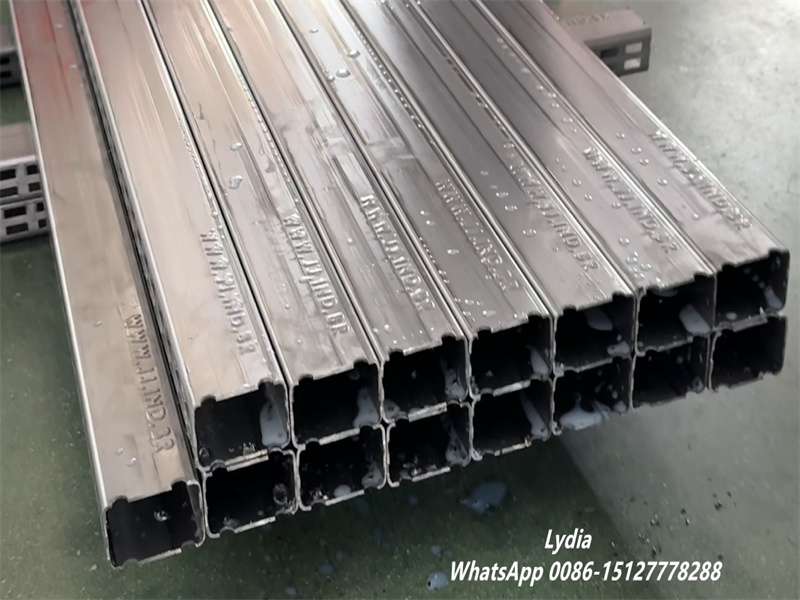

- Finished Product Output: Uprights are collected for stacking or packaging.
This fully automated process ensures that each upright column meets strict tolerance and quality standards, making it ideal for high-volume production.
As logistics and warehouse industries expand, the demand for pallet racking systems grows steadily. Manufacturers need equipment that combines automation, precision, and flexibility.
A Pallet Racking Upright Roll Forming Machine provides a dependable solution. It produces high-quality uprights efficiently, enabling warehouses to build strong, safe, and durable storage systems.
