Zhongtuo Supermarket Shelf System Upright Box Beam Making Machine Pallet Rack Upright Roll Forming Machine

In modern retail environments, supermarket shelves play an essential role in product display, storage management, and customer shopping experiences. A stable and efficient shelf system requires high-quality uprights and beams with excellent load-bearing performance and precise dimensions. Our Supermarket Shelf System Upright Box Beam Making Machine is specially designed to manufacture strong and durable shelf components by using advanced cold roll forming technology. This machine produces upright columns and box beams with consistent quality, high production efficiency, and excellent structural performance, making it an ideal solution for supermarket rack manufacturers, warehouse equipment suppliers, and metal forming companies.

Adjustable pallet rack systems are widely used in supermarkets, warehouses, logistics centers, and retail stores because they provide flexible storage solutions and efficient space utilization. These rack structures mainly consist of vertical uprights, horizontal beams, and supporting braces, which work together to provide stable load-bearing performance.

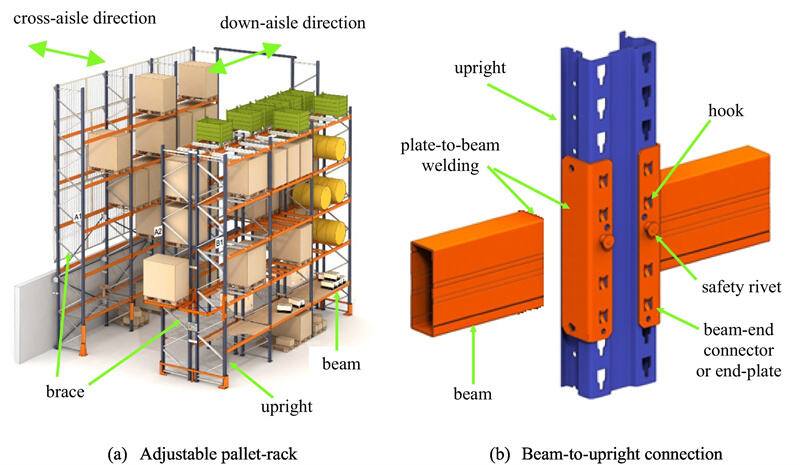

As shown in Figure 1, a typical pallet rack system includes upright columns installed vertically, horizontal beams connected between columns, and diagonal braces that improve overall stability. The longitudinal direction of the rack is usually called the down-aisle direction, while the transverse direction is known as the cross-aisle direction. Most modern rack components are manufactured from thin-gauge cold-formed steel profiles because this material offers excellent strength, lightweight performance, and cost efficiency.

The connection between the upright and beam plays a key role in the stability of the entire rack system. Figure 1(b) illustrates the common upright-to-beam connection structure, where beams connect to continuous upright columns through specially designed hooks or tabs inserted into upright perforations. This plug-in connection method allows fast installation without complicated welding operations, making rack assembly more convenient and efficient.

Precision Manufacturing of Upright and Beam Connection Components

The performance of a rack system depends not only on the steel material but also on the accuracy of each connecting component. During daily loading or seismic conditions, the beam-to-upright connection transfers forces between different rack members. Therefore, manufacturers need highly accurate forming equipment to produce uprights, box beams, and connector components with consistent dimensions.

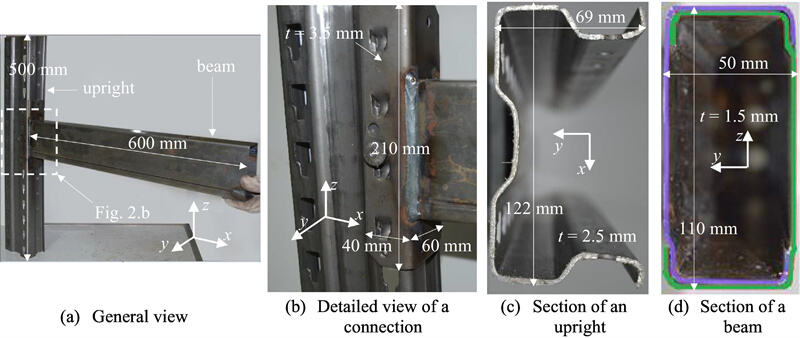

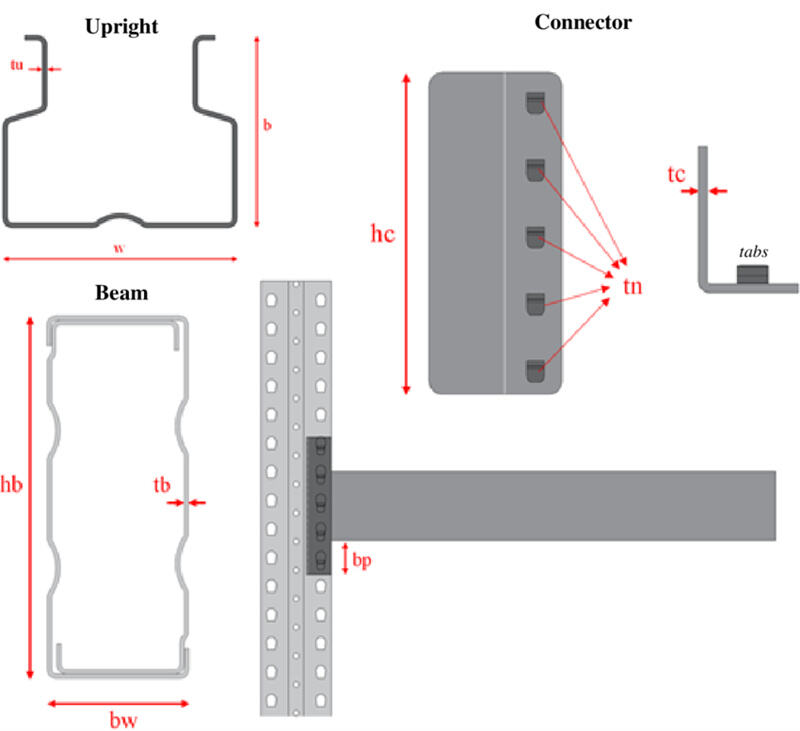

As shown in Figure 2, the test structure of a typical beam-to-upright connection consists of a section of upright column and a cantilever beam segment. The upright and beam are connected through an end plate with multiple hooks or tabs, forming a strong mechanical locking structure.

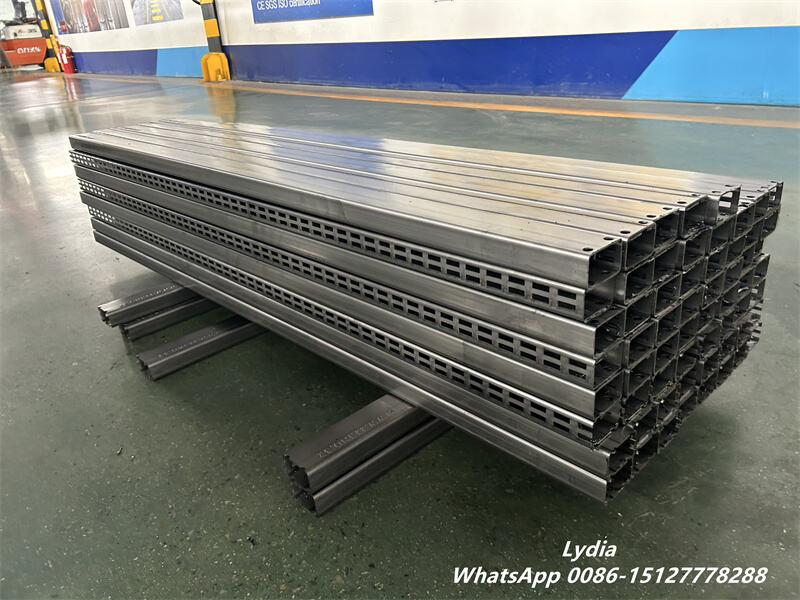

The upright profile usually adopts an Omega-shaped or C-shaped cold-formed section, while the beam is often produced by combining C-lipped channel profiles. This structure improves bending resistance and provides better load distribution. The connection plate works as a transition component between the beam and upright, ensuring stable engagement between the hooks and the upright holes.

Because there is a small clearance between the hooks and perforations, the connection requires accurate profile dimensions to reduce unnecessary movement and improve rack rigidity. Therefore, high-precision roll forming technology becomes essential for producing reliable rack components.

Supermarket Shelf System Upright Box Beam Making Machine Solution

Based on the requirements of modern rack manufacturing, our Supermarket Shelf System Upright Box Beam Making Machine is developed to produce high-quality cold-formed steel profiles with accurate dimensions and excellent mechanical performance.

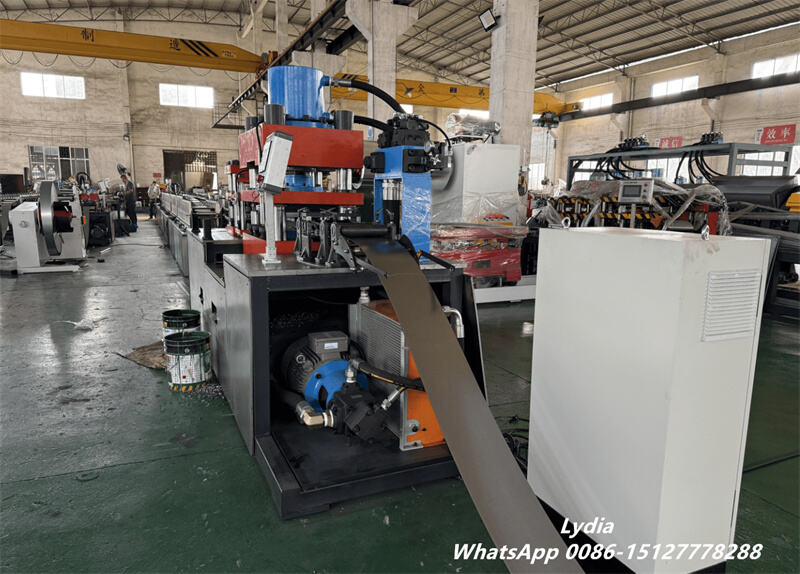

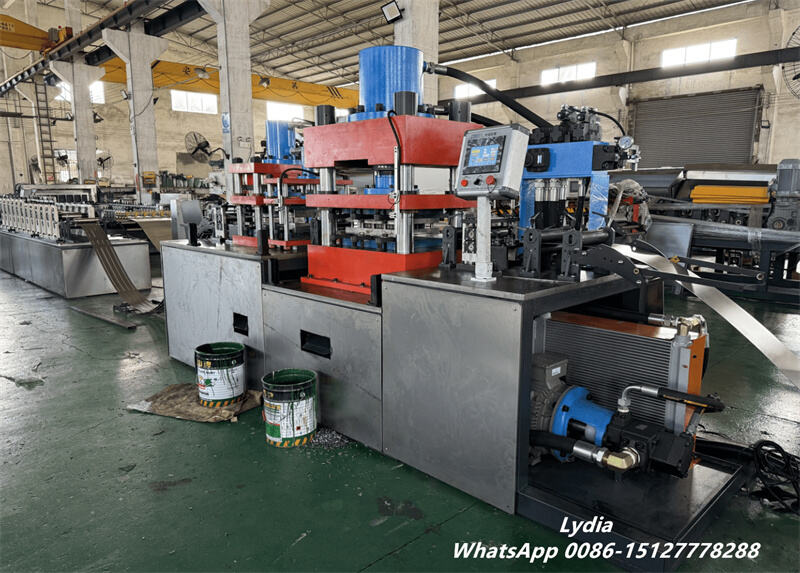

The machine continuously forms steel coils into upright columns, box beams, and related rack components through multiple forming stations. With precise roller design, automatic control, and stable production performance, it helps manufacturers achieve large-scale production while maintaining consistent product quality.

Unlike traditional fabrication methods that require multiple processes such as cutting, welding, and manual adjustment, this roll forming system completes continuous forming and automatic cutting in one production line. As a result, manufacturers can reduce labor requirements, improve production efficiency, and provide more competitive rack solutions.

Advanced Roll Forming Technology for Shelf Uprights and Beams

The pallet rack upright and beam forming process requires high precision because even small dimensional errors can affect assembly stability and load capacity. Our machine adopts a multi-station roll forming structure to gradually shape steel strips into finished rack profiles without damaging the material surface.

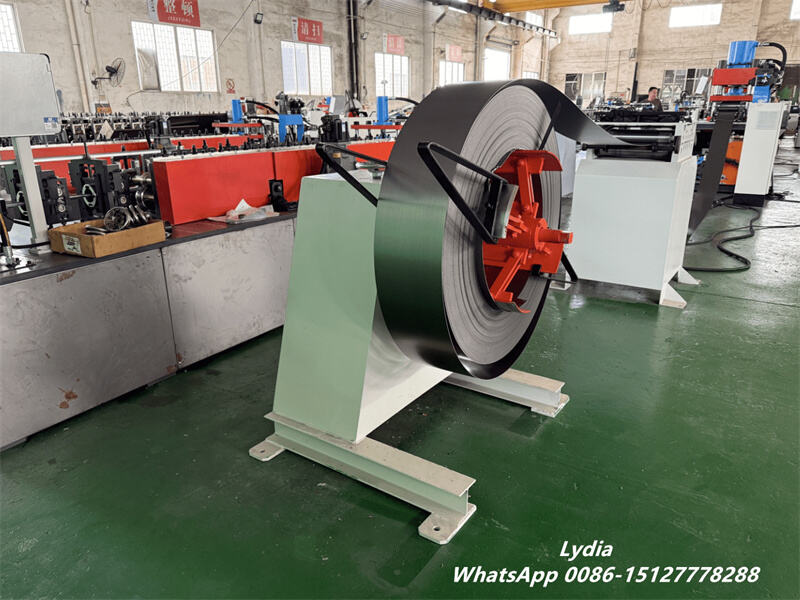

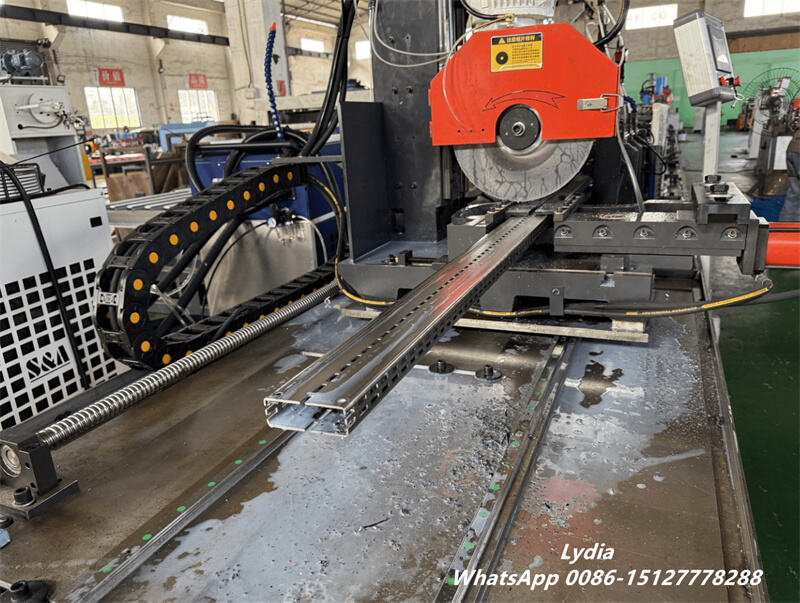

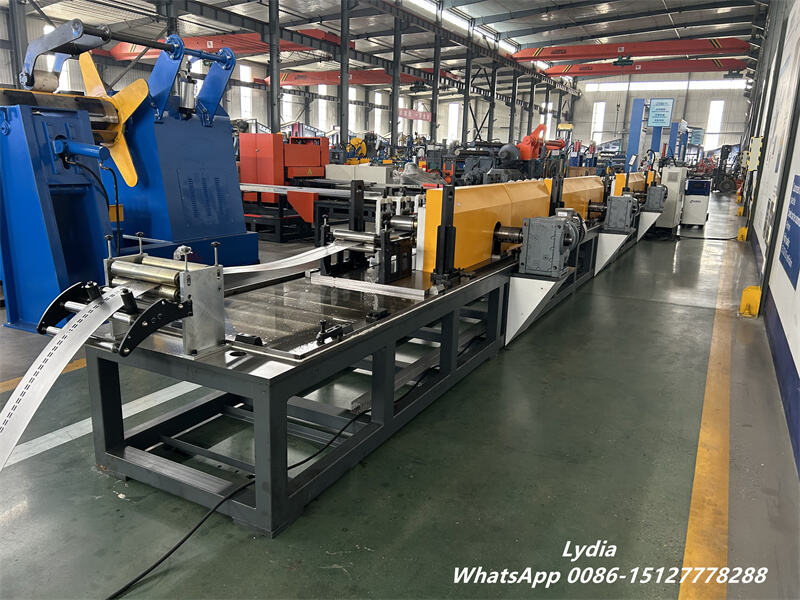

During production, the steel coil enters through the decoiler, passes through leveling and forming stations, and finally reaches the automatic cutting system. The continuous forming process ensures smooth profile edges, accurate dimensions, and reliable mechanical strength.

Compared with traditional welding or manual fabrication methods, cold roll forming provides better consistency and higher production efficiency. Manufacturers can produce large quantities of shelf components while maintaining stable quality.

Product Specifications of Upright Box Beam Roll Forming Machine

The machine configuration can be adjusted according to different rack designs, material thicknesses, and production requirements. We provide customized solutions to help customers manufacture various supermarket shelf components.

Flexible Production for Various Supermarket and Storage Applications

Different industries require different shelf configurations. Therefore, our Supermarket Shelf System Upright Box Beam Making Machine offers flexible production capabilities to meet various market demands.

The produced profiles are widely applied in:

• Supermarket display shelves for beverages, food, household products, and daily necessities.
• Convenience store shelving systems with limited space requirements.

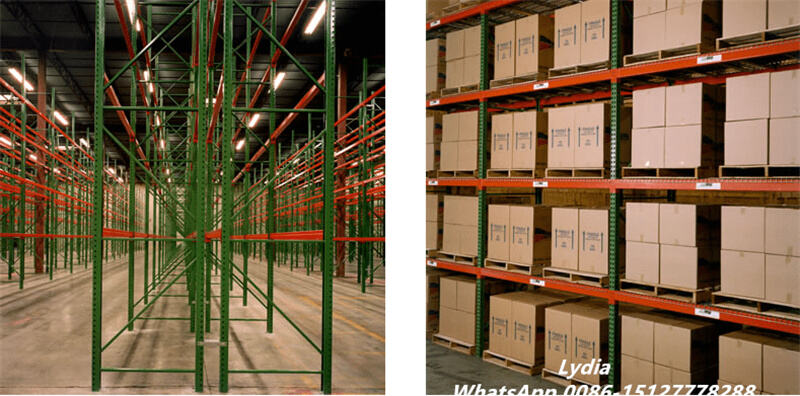

• Warehouse pallet racks for industrial storage.
• Retail display systems with adjustable height designs.
• Fresh food areas requiring durable and corrosion-resistant shelf structures.

By producing different upright and beam profiles on demand, manufacturers can provide customized rack solutions for various customers and projects.

Durable Design and Customized Solutions from Zhongtuo

To ensure long service life, the machine uses high-quality components and a robust welded steel frame. The forming rollers are manufactured from GCr12 material and undergo heat treatment, improving hardness and wear resistance.

We also provide customized solutions based on customers’ requirements, including:

• Different upright and beam profile designs.
• Customized roller stations.
• Adjustable production speeds.
• Various electrical brands and control systems.
• Different voltage standards for global markets.

With professional cold roll forming experience and complete manufacturing capabilities, we help rack manufacturers improve production efficiency and expand their product range.

The Supermarket Shelf System Upright Box Beam Making Machine is an efficient and reliable investment for companies looking to produce high-quality shelving components with stable performance, competitive costs, and long-term production value.
