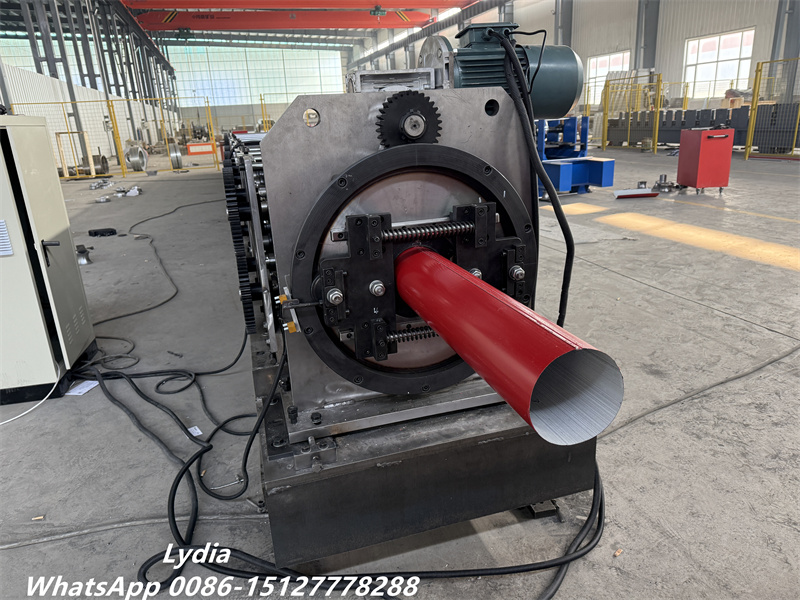

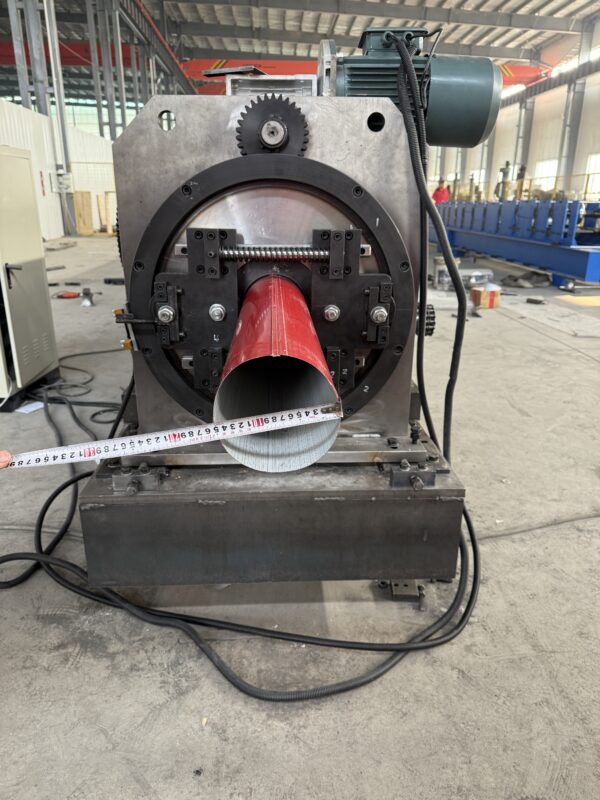

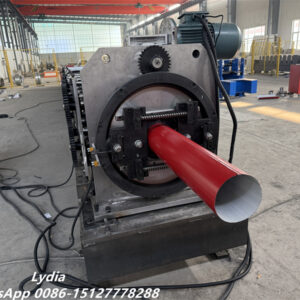

Round Downpipe Roll Forming Machine & Gutter Guard Making Machine
The round downpipe roll forming machine, also known as a downpipe machine or downspout forming machine, is designed to produce high-quality round downspouts efficiently and automatically. These downspouts play a critical role in modern roofing drainage systems by directing rainwater safely from the roof to ground level or drainage pipelines.
Compared to traditional welding processes, this roll forming solution utilizes an interlock design, eliminating the need for welding. As a result, manufacturers can significantly reduce production costs while improving forming consistency and appearance.

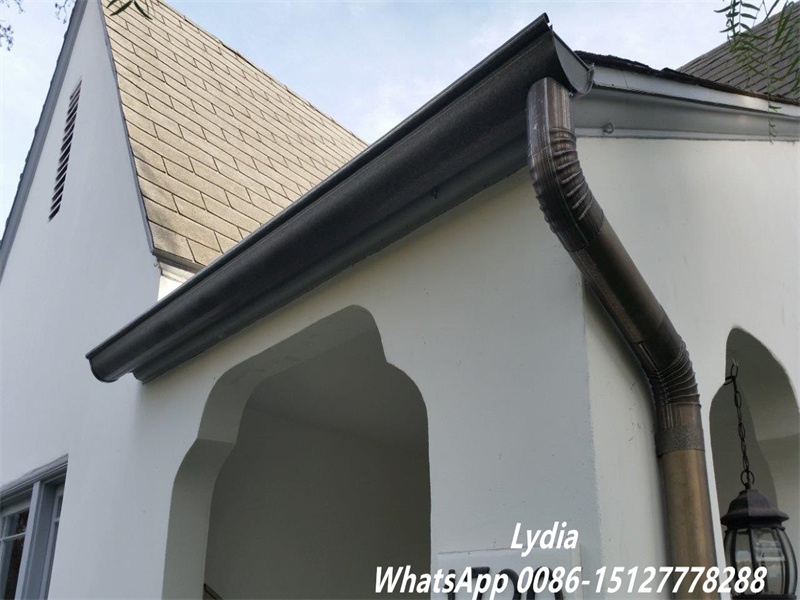

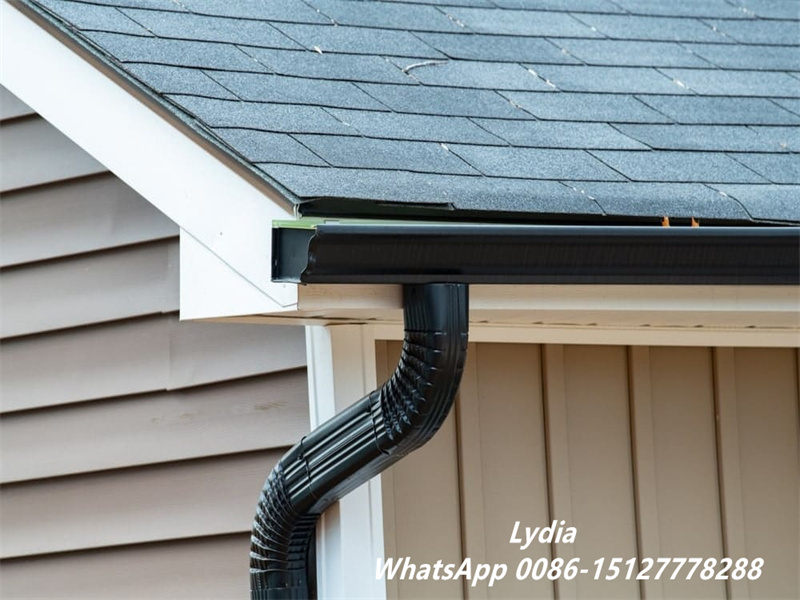

A round downspout is a vertical pipe installed along the side of a building. It connects to the gutter outlet at the roof edge and channels rainwater downward to a drain or the ground. Therefore, downspouts help protect walls, foundations, and landscapes from water damage.
Because of increasing demand for durable and aesthetic rainwater systems, round downpipe roll forming machines have become essential equipment for roofing material manufacturers.

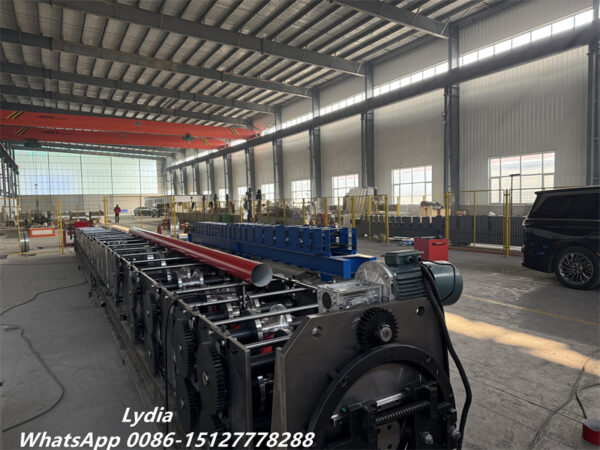

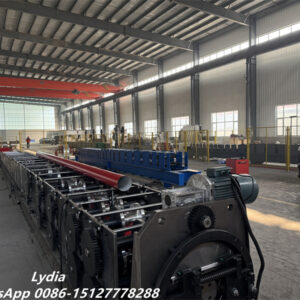

Round Downpipe Roll Forming Machine Profile Design

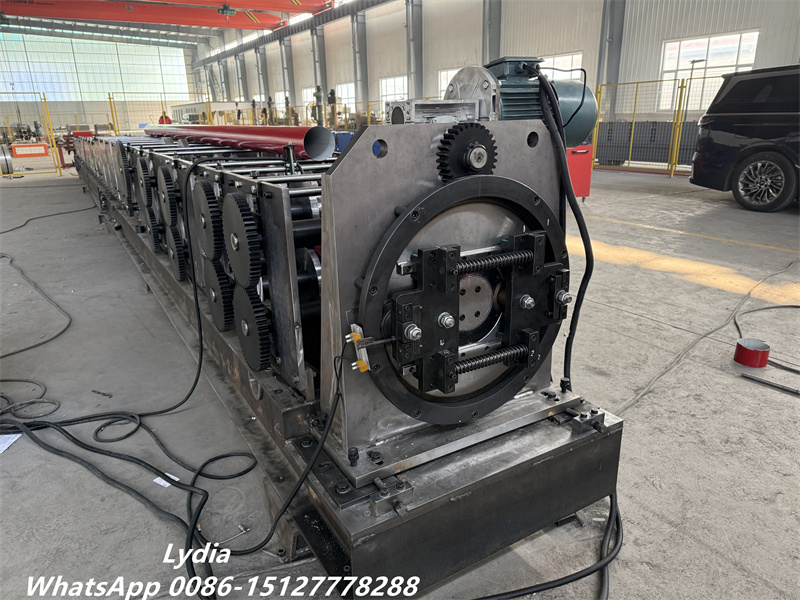

The round downpipe profile adopts a mechanical interlock structure, which tightly locks the edges during forming. Consequently, the finished pipe achieves high strength and a smooth appearance without the need for welding.
Moreover, this design simplifies machine structure and reduces maintenance costs, making it ideal for long-term industrial production.
Technical Specifications of Round Downpipe Roll Forming Machine
| Item | Specification |
|---|---|
| Working Speed | 8–10 m/min |

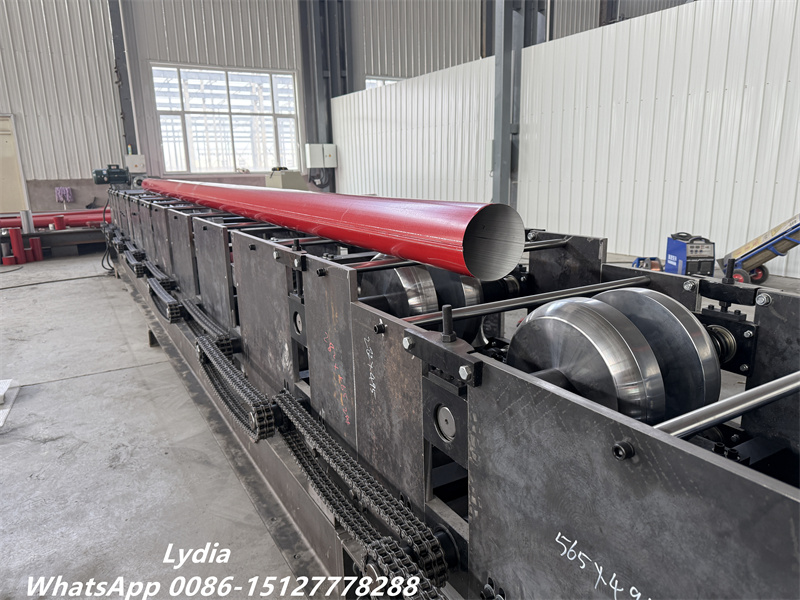

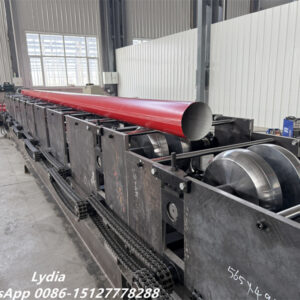

| Roller Stations | 22 stations |
| Roller Material | High-grade 45# forged steel with hard chrome plating |
| Shaft Diameter | 70 mm, tempering treatment |
| Bearings | Harbin (Chinese famous brand) |
| Machine Frame | 20 mm thick steel wall plate |
| Transmission | Chain drive |
| Main Motor Power | 7.5 kW (Siemens) |
| Hydraulic Station Power | 7.5 kW (Lichao, with cooling fan) |
| Hydraulic Pressure | 12 MPa |
| PLC Brand | Delta (original) |
| Encoder | Omron |
| Electrical Components | Schneider |

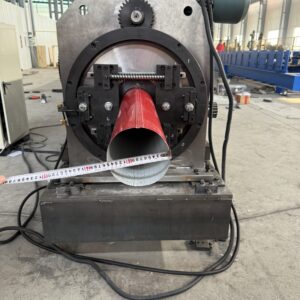

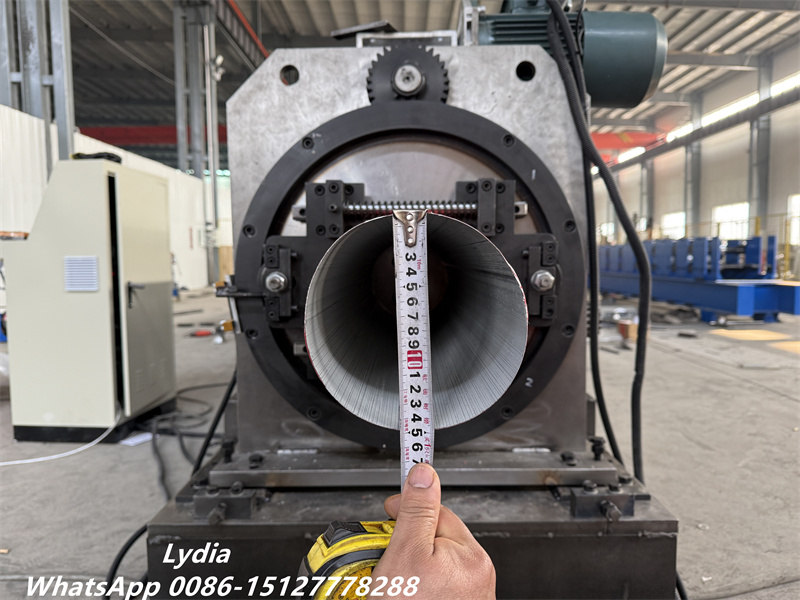

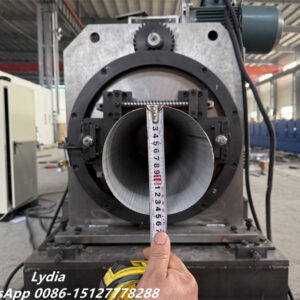

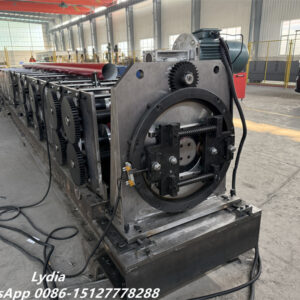

| Cutting System | Hydraulic cutting, Cr12MoV with quenching |
| Cutting Accuracy | ±2 mm |
| Raw Material | PPGI, PPGL, GI, GL steel coils |
| Material Thickness | 0.4–0.6 mm |
| Decoiler Type | Passive type |
| Decoiler Capacity | 3 tons |
| Coil Inner Diameter | 470–530 mm (adjustable) |
Thanks to PLC control, operators can easily adjust cutting length, production quantity, speed, and dimensions, ensuring stable and automated production.
Why Choose Our Round Downpipe Roll Forming Machine?
- Produces smooth and uniform round downspouts
- Eliminates welding through interlock design
- Reduces labor and manufacturing costs
- Ensures precise length cutting and high consistency
- Suitable for various steel coil materials
As a result, manufacturers can achieve higher efficiency and better product quality with lower operating costs.
Gutter Guard Roll Forming Machine – Complete Leaf Protection Machine
In addition to downspouts, modern rainwater systems also require effective gutter protection. A gutter guard (also called a gutter cover) prevents leaves, debris, and residue from clogging gutters.
Without a gutter guard, debris accumulates quickly, causing overflow and water damage. Therefore, installing gutter guards reduces maintenance and extends gutter lifespan.
Aluminum Perforated Gutter Guard Machine Line
Perforated aluminum gutter guards are produced from flat aluminum sheets using a roll forming machine combined with a perforation system. The finished panels allow rainwater to pass through while blocking leaves and debris.
This gutter guard roll forming machine line integrates:
- Yangli 16T crank press
- Precision perforation die
- Continuous roll forming system
Moreover, the machine can produce smooth or wavy surface profiles with holes, slots, or louvers based on customer requirements.
Due to cold climates, snow load, and seasonal rainfall, the Russian roofing market requires durable and reliable rainwater drainage systems. Therefore, round downspouts and aluminum gutter guards are widely used in residential and industrial buildings.
The round downpipe roll forming machine provides stable forming accuracy and strong interlock strength, ensuring long-term performance even in harsh weather conditions.
Applications of Gutter Guard Covers
- Residential roofing systems
- Commercial and industrial buildings
- Areas with heavy leaf fall or debris
As a result, homeowners and contractors can significantly reduce gutter cleaning frequency.
The round downpipe roll forming machine and gutter guard roll forming machine together provide a complete solution for modern rainwater drainage systems. With automated production, high precision, and durable machine construction, manufacturers can meet global roofing market demands efficiently and competitively.
If you need custom profiles, different diameters, or integrated gutter system solutions, this production line can be tailored to your requirements.
