Zhongtuo Shelf Panel Roll Forming Machine Pallet Rack Roll Forming Machine

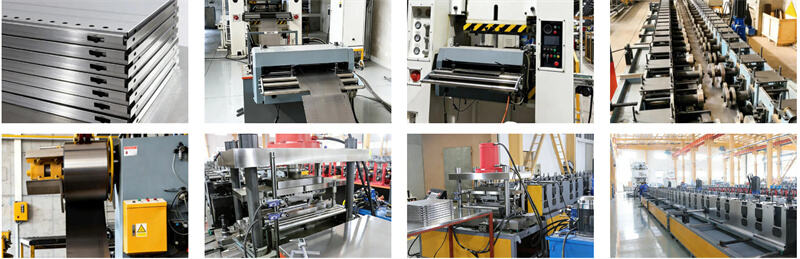

The shelf panel roll forming machine provides an efficient solution for manufacturers producing metal shelf panels for warehouse storage, supermarket shelving, pallet racks, and industrial storage systems. By combining continuous roll forming with automatic feeding, punching, and cutting, the machine transforms steel coils into accurately shaped shelf panels with consistent dimensions and reliable structural strength.

Manufacturers can configure the production line according to panel width, material thickness, hole patterns, and finished profile requirements. As a result, the equipment supports both standard shelving production and customized storage rack applications while maintaining stable production efficiency.

High-Precision Shelf Panel Production

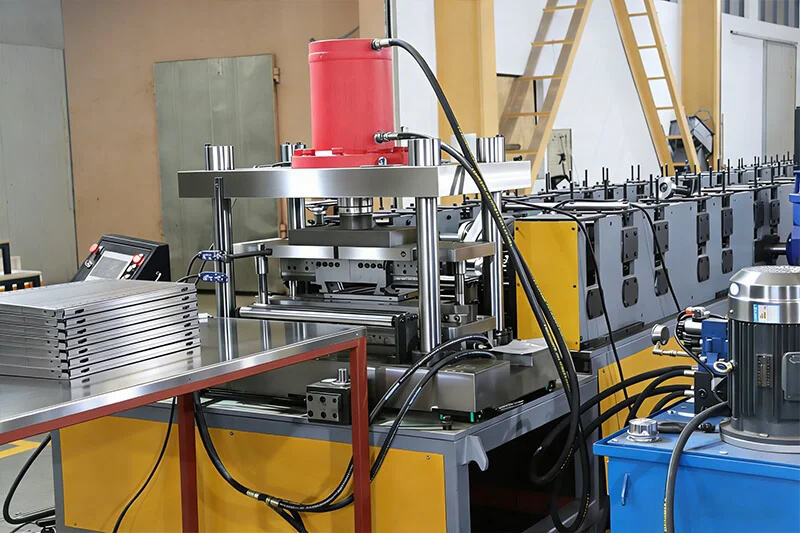

The shelf panels machine uses a series of forming rollers to gradually shape galvanized or cold-rolled steel without damaging the material surface. This progressive forming process helps maintain accurate panel dimensions and produces uniform profiles throughout the entire production run.

In addition, the PLC control system coordinates feeding, forming, punching, cutting, and other operations. Therefore, operators can easily set production parameters and maintain consistent output. Automatic length measurement further reduces manual intervention and helps minimize dimensional errors.

The line can process materials from approximately 0.8 to 1.50 mm thick and accommodate different panel widths. Depending on the required profile, manufacturers can also integrate automatic punching and stacking systems to create a more complete production workflow.

From Steel Coil to Finished Shelf Panel

The production process normally follows a continuous workflow:

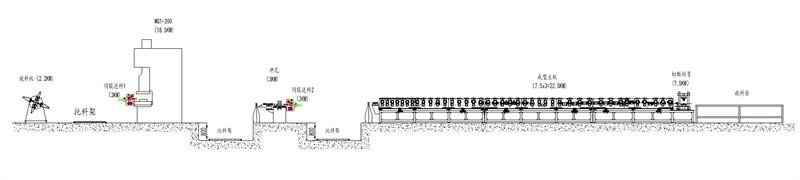

Steel Coil → Decoiling → Leveling → Automatic Feeding → Punching → Roll Forming → Length Measurement → Cutting → Stacking

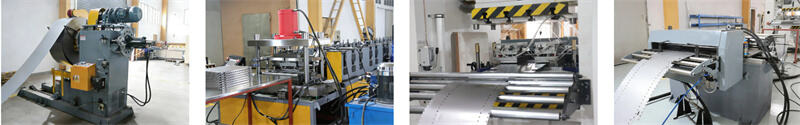

First, the decoiler supplies the steel strip to the production line. The leveling and feeding units then stabilize the material before it enters the forming section. Next, the punching system creates the required holes or slots according to the preset pattern.

Afterward, the forming rollers progressively shape the strip into the required shelf panel profile. The control system monitors the production parameters while the measuring device determines the required cutting length. Finally, the cutting unit separates the finished panels, and an optional stacking system organizes them for packaging and transportation.

Because the entire process operates continuously, manufacturers can improve material utilization and reduce the labor required for repetitive production tasks.

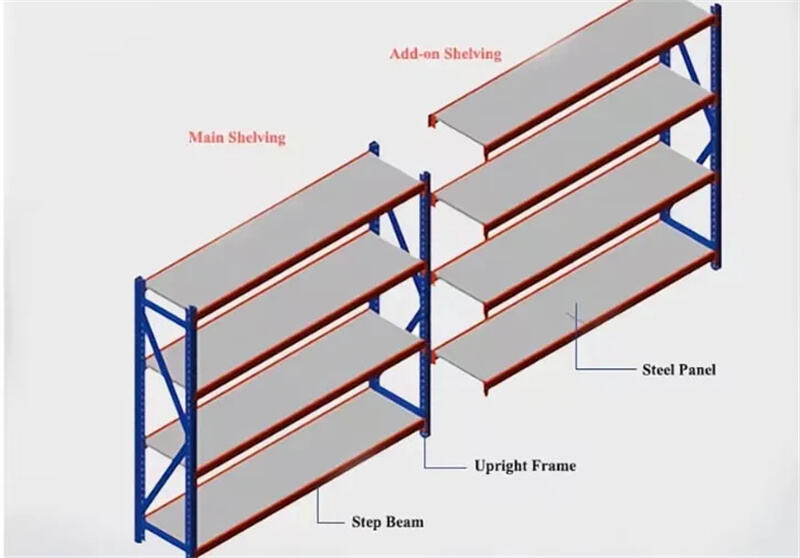

Complete Production Line for Storage Racks

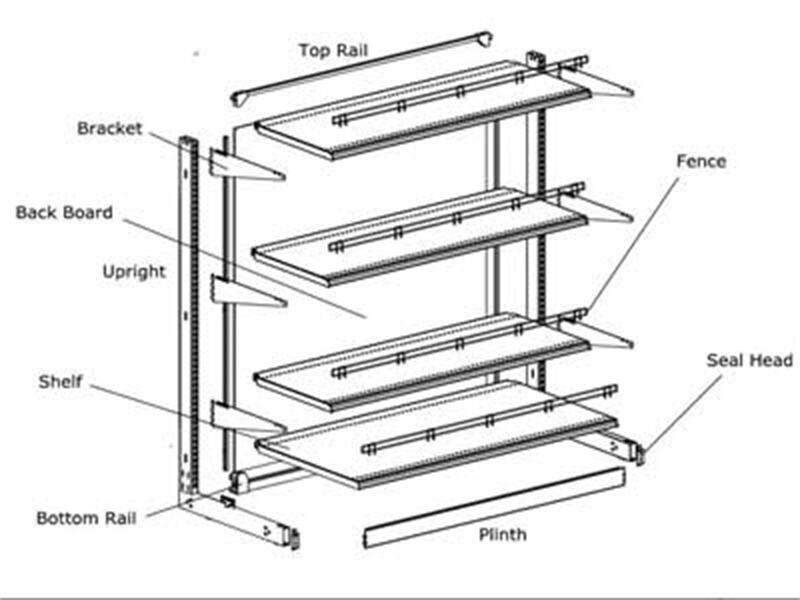

A modern shelf panel production line can do more than form a simple shelf board. Manufacturers can combine different machines to produce components for complete supermarket shelving and warehouse storage systems.

For example, a pallet racking machine can manufacture structural components used in warehouse rack systems, while a pallet rack roll forming machine can produce rack profiles with the required dimensions and reinforcement structures. Meanwhile, dedicated punching equipment can create mounting holes and connection patterns according to the customer’s design.

For applications requiring additional reinforcement, manufacturers can also use a pallet rack bracing channel forming machine to produce bracing channels. Consequently, one production facility can manufacture multiple components and reduce its dependence on separate processing equipment.

Technical Specifications

The following specifications provide a typical configuration. We can adjust the machine according to the required shelf profile, material, and production capacity.

The final configuration depends on the shelf profile and required production speed. In particular, the number of forming stations, roller design, punching unit, and cutting system should match the actual product drawings.

Customized Rack Panel Roll Forming Solution

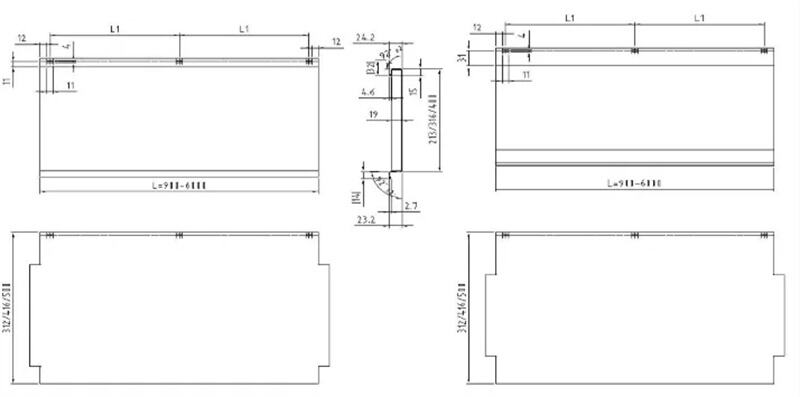

Every storage system has different requirements, so a rack panel roll forming machin can be configured for various panel designs instead of relying on a single standard profile. Manufacturers can specify the panel width, edge structure, reinforcement ribs, hole arrangement, and connection method before production.

The machine gradually forms the steel strip through multiple roller stations. At the same time, the punching system can create mounting holes at predetermined positions. After forming, the cutting unit separates each panel according to the programmed length.

This coordinated process improves production consistency and reduces repetitive manual operations. Furthermore, manufacturers can add an automatic stacker when they need continuous high-volume production.

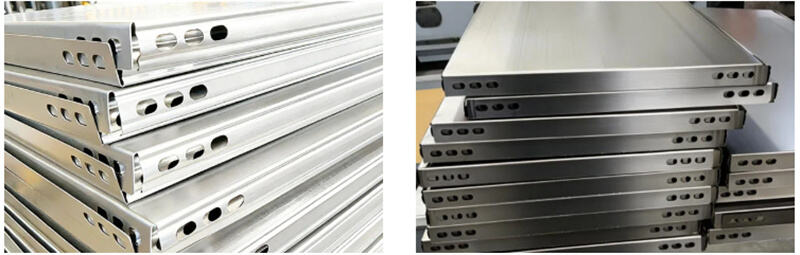

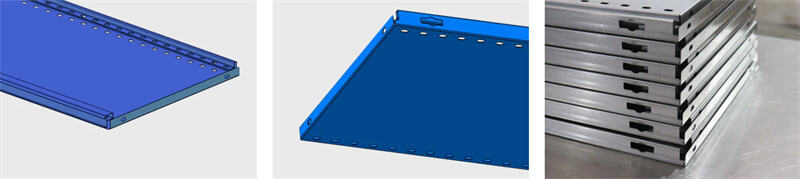

For Dexion-style shelf panels, supermarket shelf boards, warehouse rack panels, and other customized products, the roller tooling can be designed around the customer’s technical drawings. This approach allows the same basic production concept to serve different storage-system markets.

Why Choose a Shelf Panel Roll Forming Machine?

A properly configured shelf panel roll forming machine offers several advantages for storage-system manufacturers. Continuous forming provides stable production, while PLC automation simplifies operation and helps maintain repeatable product dimensions.

Moreover, the machine can support different materials and panel sizes, giving manufacturers greater flexibility when serving supermarket shelving, warehouse storage, pallet racking, and industrial equipment markets. Automatic punching and stacking further improve production efficiency when customers require large quantities of standardized components.

Most importantly, the machine provides a scalable solution. Manufacturers can begin with a basic roll forming line and add punching, cutting, stacking, labeling, or other automation according to future production requirements.

If you are looking for a shelf panel roll forming machine, pallet rack roll forming machine, or complete equipment for storage rack components, the production line can be customized according to your product drawings, material specifications, panel dimensions, and required output.

If you are looking for a reliable storage rack upright roll forming machine for pallet racks, warehouse shelving, or heavy-duty racking production, contact us with your profile drawing and required specifications. We can develop a customized solution for your production line.

Our rack upright roll forming machine can work as part of a complete warehouse storage solution together with storage rack beam roll forming machines, shelf panel roll forming machines, and storage rack system production lines.
