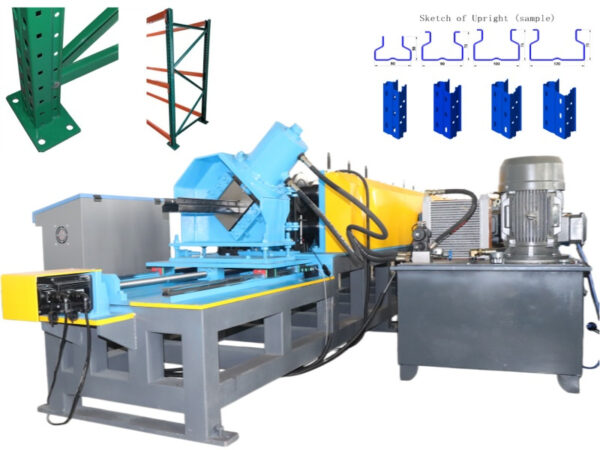

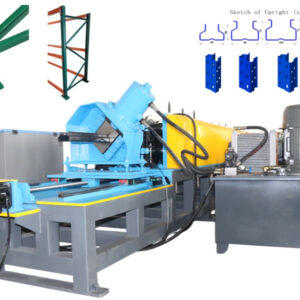

Zhongtuo Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine for Warehouse Pallet Rack Manufacturing

Modern warehouse systems demand stronger, more accurate, and more efficient storage racks than ever before. As logistics centers, supermarkets, and industrial warehouses continue to expand, manufacturers require reliable equipment capable of producing high-quality shelf uprights with consistent precision. The Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine answers this demand by delivering automated, high-speed production for rack columns used in selective pallet racks, heavy-duty storage systems, and supermarket shelving structures.

Unlike traditional manufacturing methods that rely heavily on manual operations, this advanced roll-forming line combines servo-driven technology, precision punching, and automatic cutting into a single continuous process. As a result, manufacturers can improve production efficiency while maintaining stable product quality for every rack upright profile.

Why Shelf Upright Accuracy Matters in Warehouse Storage

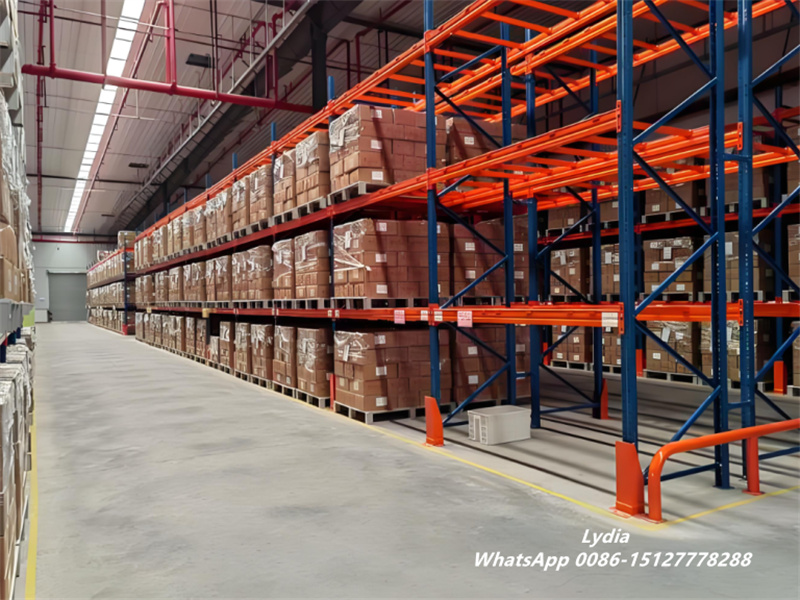

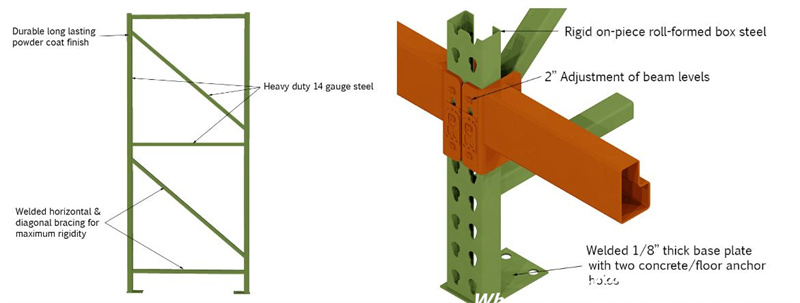

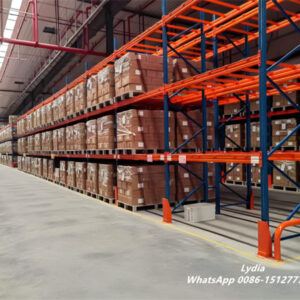

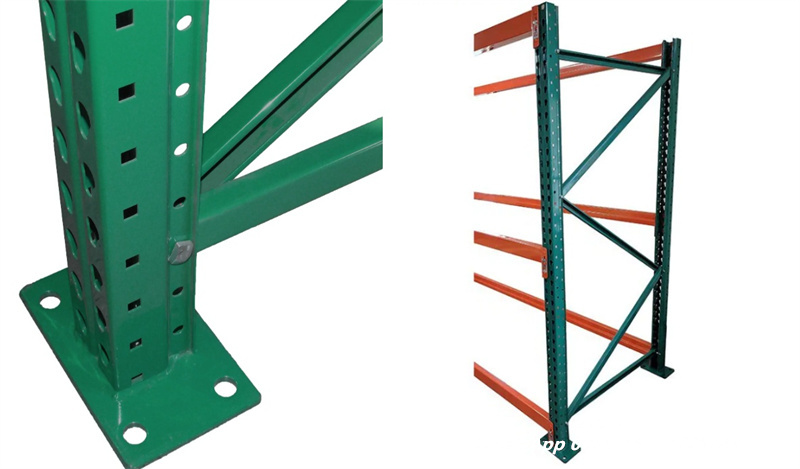

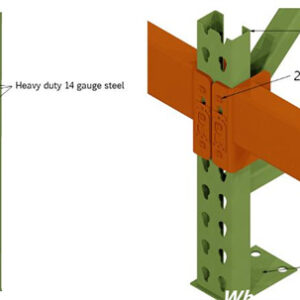

Warehouse shelf uprights act as the structural backbone of pallet racking systems. Their strength and dimensional accuracy directly affect the load-bearing capacity, installation stability, and long-term safety of the entire storage system.

For example, pallet rack systems commonly use upright depths such as 36”, 42”, and 48”, while upright heights can range from 96” to 192”. To ensure safe pallet placement and forklift operation, rack manufacturers must maintain strict dimensional tolerances during production. Even small deviations can create installation problems or reduce storage safety.

This roll forming machine uses multi-pass progressive forming technology to produce upright columns with excellent straightness and uniform hole positioning. Therefore, manufacturers can create storage rack components that meet demanding warehouse engineering standards.

High-Speed Automated Production for Rack Uprights

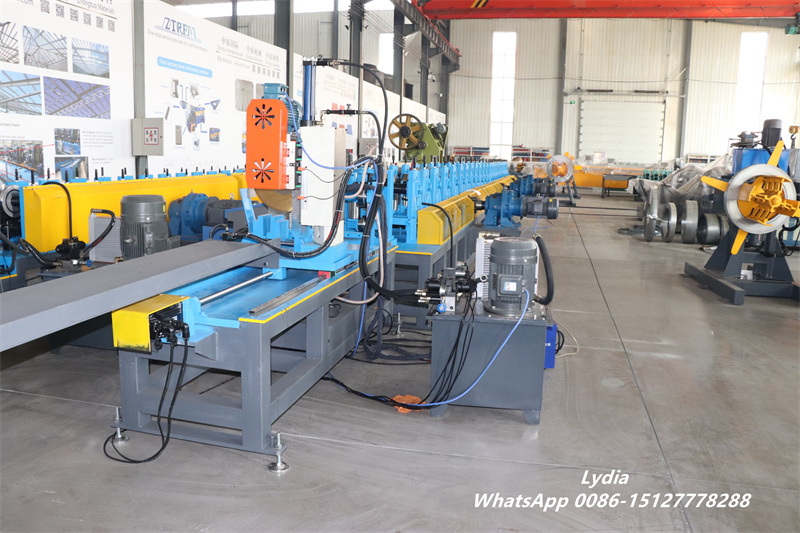

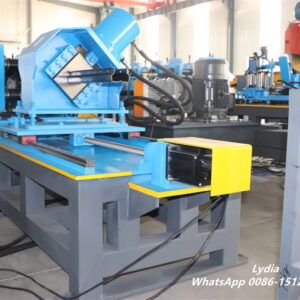

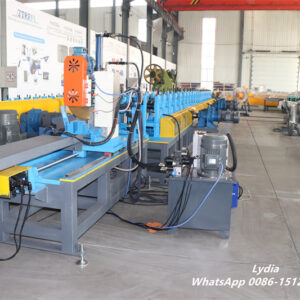

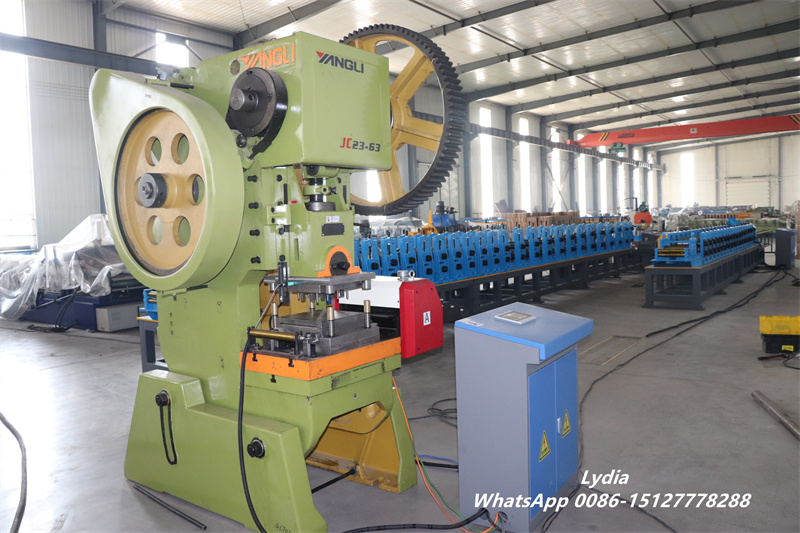

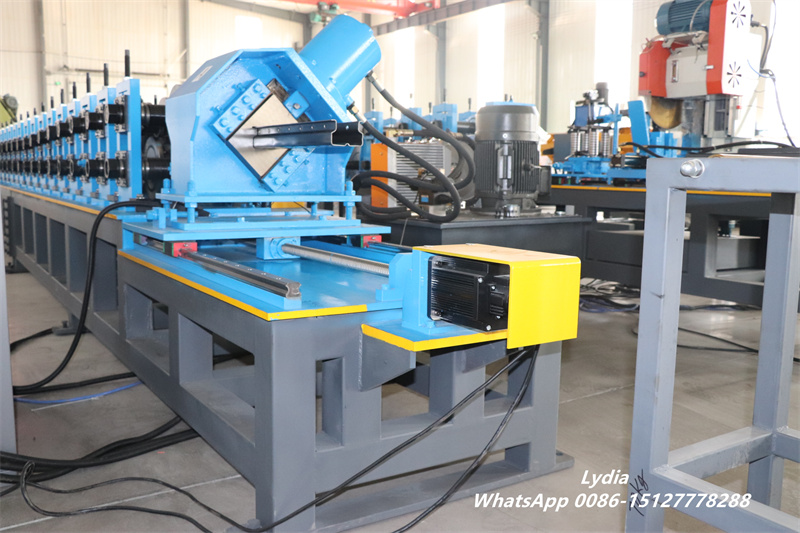

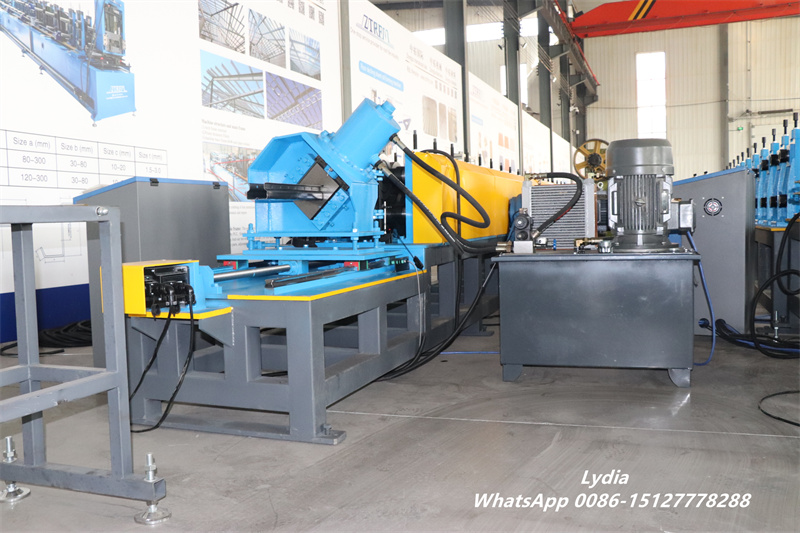

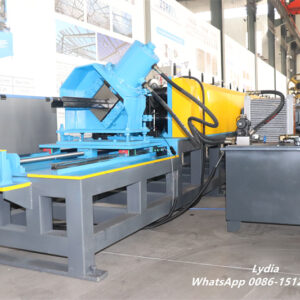

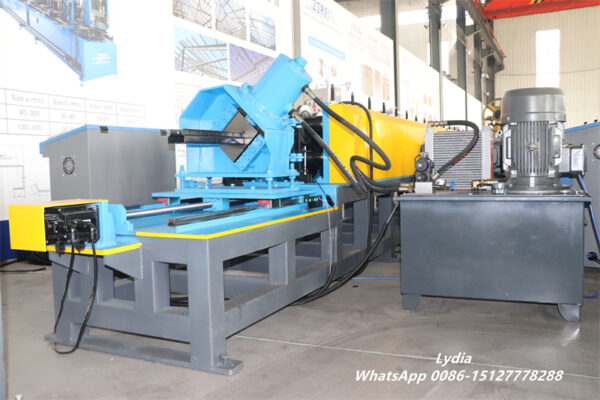

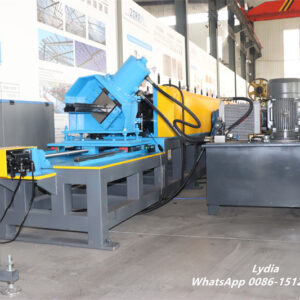

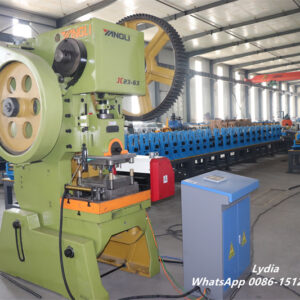

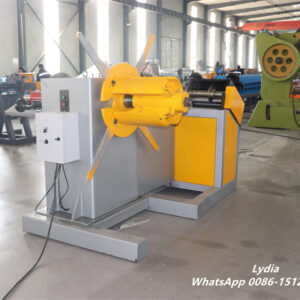

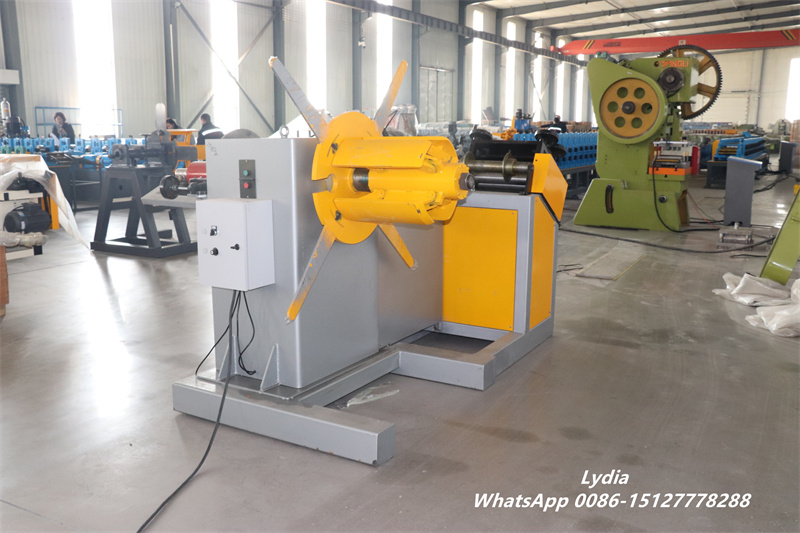

The machine integrates decoiling, feeding, punching, roll forming, hydraulic cutting, and automatic stacking into one fully automated workflow. Consequently, operators reduce labor costs while significantly increasing daily output.

Compared with traditional rack upright production lines, this equipment improves efficiency by up to four times. Furthermore, the PLC control system allows operators to set production length, quantity, and batch parameters directly from the touchscreen interface.

Main Technical Parameters

Because the system supports automatic continuous production, manufacturers can efficiently process large-volume orders for supermarket shelves, industrial racking, and warehouse storage components.

Precision Roll Forming Creates Stronger Rack Columns

High-quality rack systems require excellent structural strength. Therefore, the machine uses precision-engineered forming rollers and hardened molds to ensure stable forming performance throughout long production cycles.

Additionally, the equipment controls section tolerance within ±0.1 mm and maintains straightness accuracy at ≤0.5 mm/m. These precise forming capabilities help improve rack assembly consistency and reduce installation errors on-site.

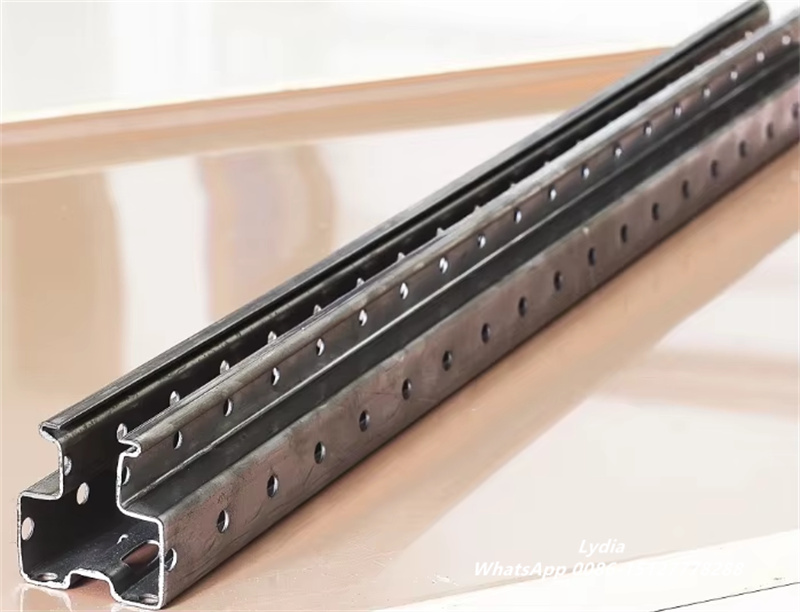

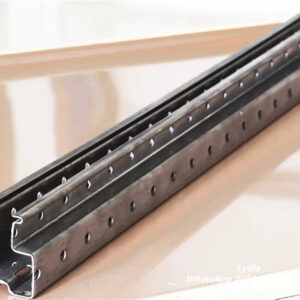

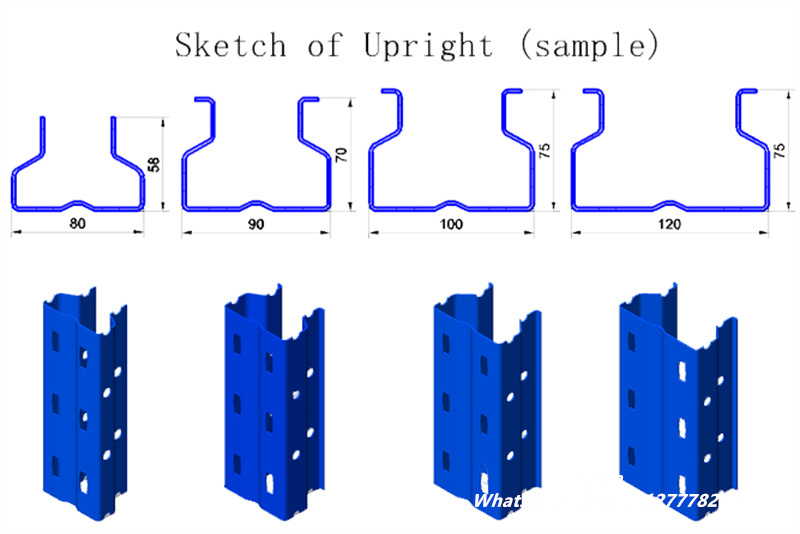

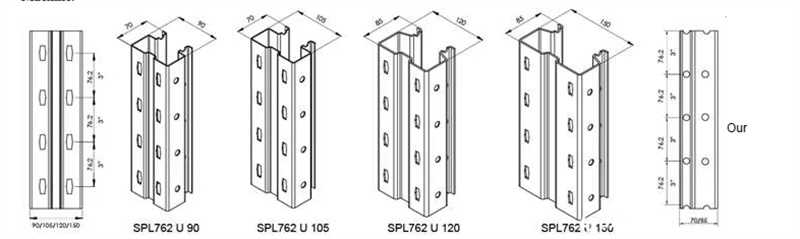

The machine also supports multiple profile configurations. Manufacturers can produce light-duty supermarket shelves, medium-duty warehouse racks, and heavy-duty pallet rack uprights using the same production line with fast size adjustments.

Flexible Design for Multiple Storage Rack Applications

Today’s storage industry requires flexible manufacturing solutions. Fortunately, this rack upright roll forming machine adapts easily to different shelf specifications and material requirements.

The production line supports steel materials such as Q235 and Q345, while handling thickness ranges from 1.5 mm to 5 mm. In addition, manufacturers can customize punching patterns, reinforcement ribs, and special hole designs according to customer requirements.

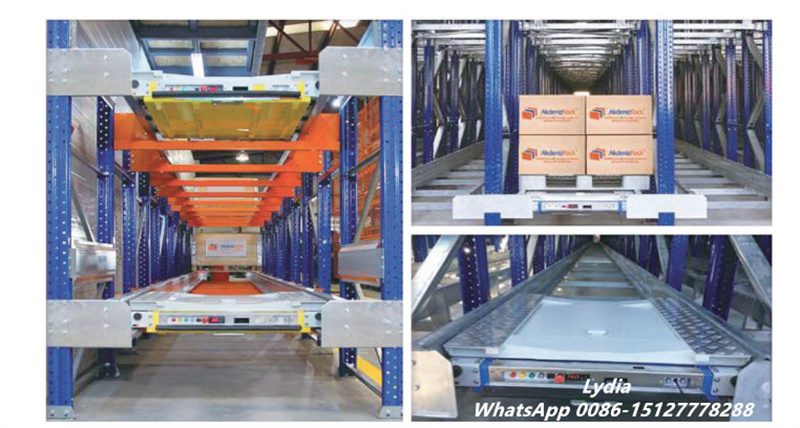

Common applications include:

• Supermarket storage shelves
• Selective pallet rack systems
• Industrial warehouse racks
• Mezzanine shelving systems
• Cold storage racking
• Heavy-duty logistics shelving
• Through-type warehouse racks

Because of its flexible design, the equipment can quickly switch between different upright dimensions, helping factories respond faster to customized orders.

Intelligent Control Reduces Operating Costs

Besides improving production efficiency, the machine also helps reduce long-term operating expenses. The intelligent PLC system continuously monitors machine operation and automatically alerts operators if abnormal conditions occur.

Meanwhile, the modular structure simplifies maintenance and replacement of core components. This design extends equipment service life while minimizing downtime during production.

Moreover, the energy-saving motor control system automatically adjusts power consumption based on production load. As a result, manufacturers can reduce energy usage by approximately 15%–20% during non-full-load operation.

Reliable Roll Forming Solution for Modern Warehouse Manufacturing

As global warehousing and logistics industries continue to develop, the demand for durable and high-capacity storage racks keeps increasing. Therefore, manufacturers need efficient roll forming equipment capable of delivering stable quality, fast production speed, and flexible profile customization.

The Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine provides an ideal solution for producing precision rack columns with high strength and consistent performance. With advanced automation, intelligent control, and wide material compatibility, this equipment helps rack manufacturers improve productivity while meeting modern warehouse storage standards.

Whether producing pallet rack uprights for industrial logistics centers or shelf pillars for supermarket storage systems, this roll forming line offers the reliability and efficiency required for long-term manufacturing success.
