The Suspended Ceiling Wall Angle Roll Forming Machine is designed to manufacture high-precision L-shaped wall angle profiles for suspended ceilings, drywall systems, partition structures, and interior finishing applications. As an essential perimeter component of a metal ceiling system, the wall angle connects the ceiling grid with the surrounding walls and helps maintain the stability, alignment, and appearance of the finished ceiling.
Zhongtuo manufactures this L Angle Profile Roll Forming Machine according to each customer’s profile drawing, material specification, thickness, production speed, and automation requirements. This customized approach allows the machine to accommodate different wall angle dimensions and production standards rather than limiting customers to a single standard profile.
For high-volume manufacturing, Zhongtuo can configure the line with a high-speed flying shearing system, with production speeds reaching up to 120 m/min depending on the profile design and material. The machine can therefore support continuous production while reducing unnecessary stopping and starting during cutting.
Zhongtuo has supplied ceiling profile roll forming equipment to international markets including the UAE, Russia, India, and Qatar, providing production solutions for different customer requirements.
L Angle Profile Roll Forming Machine For Complete Ceiling Systems
A suspended ceiling does not rely on the wall angle alone. Instead, several metal components work together to form the complete ceiling framework. The L wall angle normally runs around the room perimeter, while the main T and cross T profiles create the internal grid. Lay-in metal ceiling panels are then installed into the completed grid.
Zhongtuo can provide machinery for these different ceiling components, allowing customers to establish a complete metal ceiling production solution. The product range can include:
- Steel C Channel Profile Roll Forming Machine
- Steel U Channel Profile Roll Forming Machine
- Steel Furring / Hat Channel Roll Forming Machine
- Flexible Stud and Track Roll Forming Machine
- L Wall Angle Roll Forming Machine
- Gypsum Ceiling Carrier Roll Forming Machine
- Ceiling T-Grid Production Machine
- Lay-In Metal Ceiling Panel Production Line
This integrated equipment approach helps manufacturers produce different components for a complete suspended or lay-in ceiling system. For example, the wall angle machine produces the perimeter L profile, the T-grid machine produces main and cross T profiles, and the ceiling panel line manufactures the metal panels installed within the grid.
Zhongtuo can also develop flexible production configurations for customers who need to manufacture multiple ceiling profiles. Where the profile designs allow it, a combined or changeable tooling configuration can reduce equipment footprint while expanding the range of products that one production system can manufacture.
Working Process Of Suspended Ceiling Wall Angle Machine
The wall angle roll forming machine uses a continuous cold roll forming process. The metal coil first enters the decoiler, which unwinds the material and supplies it to the feeding section. The guiding system then aligns the strip before it reaches the forming rollers.
The forming rollers gradually bend the flat strip into the required L-shaped geometry. Instead of creating the final shape in one operation, the machine distributes the forming work among several roller stations. This approach helps maintain dimensional consistency and protects the surface of the finished profile.
After forming, an encoder measures the running length and sends the information to the PLC. Once the preset length is reached, the hydraulic cutting station performs the required cut. The finished wall angles then move onto the output table for collection, stacking, or automatic packaging.
Production Workflow:
Decoiler → Feeding & Guiding → Roll Forming → Length Measurement → Hydraulic/Flying Cutting → Output Table → Stacking / Packaging
For high-speed production, Zhongtuo can equip the machine with flying cutting technology. The cutting system follows the moving profile during the cutting operation, which allows the line to maintain continuous production at higher speeds.
If the wall angle requires holes or slots, Zhongtuo can also integrate a high-speed punching press according to the required perforation pattern and production speed.
Lay-In Ceiling System Installation
The finished wall angle becomes the perimeter component of the lay-in ceiling framework. During installation, installers first secure the L angle at the specified ceiling height and carefully maintain a level perimeter.
The main T profiles are then installed inside the perimeter framework. A typical configuration uses approximately 1200 mm spacing between the main T profiles, although the actual spacing should follow the specific ceiling system design.
Next, the cross T profiles connect with the main T bars. Long cross T profiles can commonly be installed at 600 mm intervals to create the required modular grid. Once the grid is complete, the lay-in metal ceiling panels can be placed into the openings.
The complete production and installation relationship can therefore be summarized as:
Wall Angle → Main T → Cross T → Lay-In Metal Ceiling Panel
Zhongtuo’s wall angle roll forming machine, ceiling T-grid machine, and lay-in metal ceiling panel production line can work together to support manufacturers producing these major components in-house.
Technical Parameters And Finished Product Range
Because wall angle dimensions differ between ceiling systems, Zhongtuo determines the final tooling and machine configuration according to the customer’s drawings. The following table shows a typical configuration for a suspended ceiling wall angle production line.
| Item | Typical Specification |
|---|---|
| Machine Type | Suspended Ceiling Wall Angle Roll Forming Machine |
| Processing Material | GI Coil |
| Input Width | Customized |
| Formed Width | Customized according to profile |

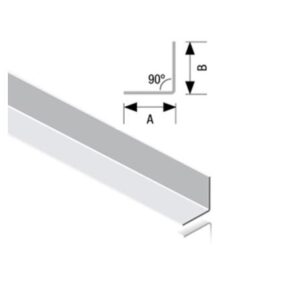

| Typical Wall Angle | 22 × 22 mm |
| Material Thickness | 0.23–0.40 mm |
| Typical Machine Material Range | 0.30–0.40 mm |
| Frame Style | 400 mm H-Beam Welded Frame |
| Rollers | 45# Steel, Heat Treated & Hard Chromed |
| Optional Roller Material | CR12 Die Steel |
| Roller Hardness | Up to approximately HRC55 for CR12 tooling |
| Shaft Diameter | 50 mm |
| Transmission | Chain Drive |
| Roll Forming Stations | Approximately 10–12 stations, depending on profile |
| Production Speed | Up to 120 m/min with flying shear, depending on profile |
| Cutting Method | Hydraulic Profile Cutting / Flying Shearing |
| Length Measurement | Encoder |
| Control System | PLC |
| Operation | Buttons + Touch Screen |
| Typical Total Power | 5.5 + 4 kW |
| High-Speed Configuration | Customized according to production requirements |
| Standard Voltage | 380 V, 50 Hz, 3 Phase |
| Alternative Voltage | Available according to buyer’s requirements |

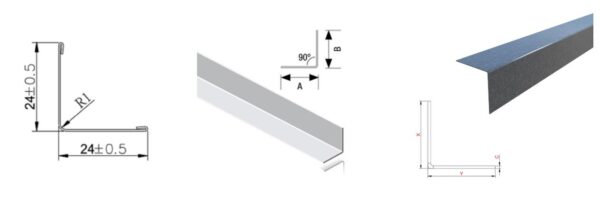

The typical wall angle product can be 22 × 22 mm, with common finished lengths of 3000 mm or 3050 mm. The machine can process different thicknesses according to the customer’s product standard.
For a complete lay-in ceiling system, the related T-grid profiles can include 32 × 24 mm and 38 × 24 mm main T profiles and 26 × 24 mm cross T profiles. Typical main T lengths include 3600/3660 mm, while cross T profiles can be supplied in 1200/1220 mm and 600/610 mm lengths. The corresponding material thickness can range from 0.23 to 0.40 mm.
These dimensions are reference configurations. Zhongtuo adjusts the roller tooling, feeding width, cutting system, and machine parameters according to the actual product drawing.
Main Components, Automation And Safety Protection
The complete L Angle Profile Roll Forming Machine consists of the decoiler, feeding and guiding section, roll forming machine, cutting station, electrical control system, and output table. Each section performs a specific function within the continuous production process.

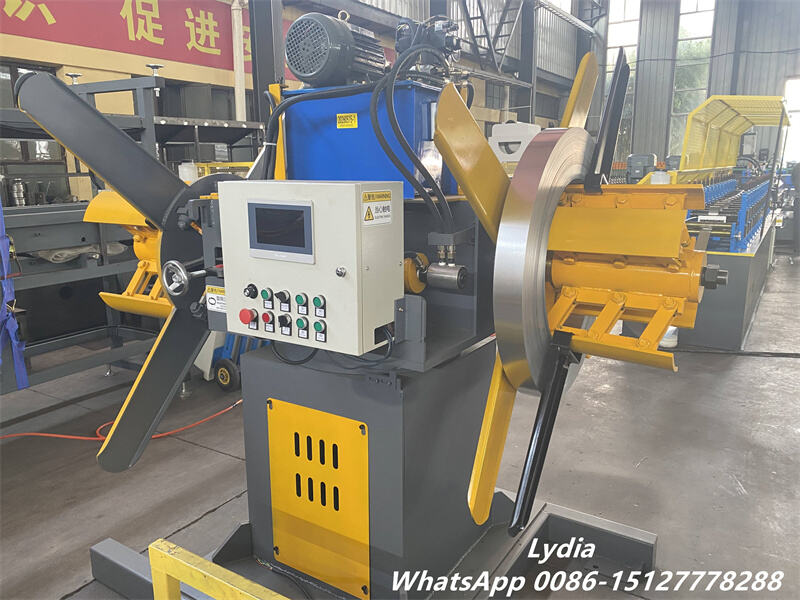

The decoiler supports the raw material coil and provides stable strip feeding. For higher-speed production, Zhongtuo can use a double-head decoiler. While one coil is running, the operator can prepare the next coil on the other head, reducing coil-change downtime and helping the production line maintain a more continuous workflow.
The main roll forming machine uses multiple roller stations to gradually form the L profile. Depending on the project, Zhongtuo can select suitable roller materials such as heat-treated and hard-chromed 45# steel or CR12 die steel. The roller configuration depends on the required profile geometry and material thickness.

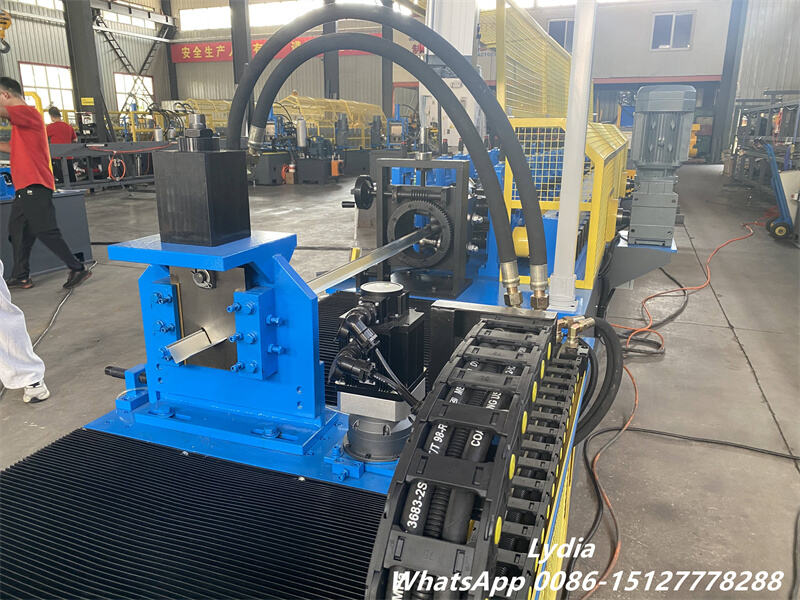

The cutting station uses the encoder and PLC to control finished length. For standard production, hydraulic profile cutting provides accurate cutting performance. For higher-speed applications, Zhongtuo can configure a hydraulic flying shear system.
The machine can also incorporate automatic stacking and packaging equipment. After cutting, the finished wall angles can be transferred, arranged, stacked, and prepared for packaging with less manual handling. This configuration is particularly useful for customers pursuing higher production automation.
Safety protection is another important part of the machine design. Zhongtuo can install aluminum profiles with transparent acrylic protective covers, allowing operators to observe the forming process while keeping moving components enclosed. Alternatively, the production line can use steel safety fences according to the customer’s factory layout and safety requirements. The machine can also include appropriate emergency-stop and electrical protection systems.
Advantages Of Zhongtuo Wall Angle Roll Forming Machine
The Zhongtuo Suspended Ceiling Wall Angle Machine combines customization, continuous roll forming, automated length measurement, and hydraulic cutting to meet different ceiling profile production requirements.
For manufacturers requiring high output, the high-speed configuration can reach up to 120 m/min under suitable profile and material conditions. The flying shear allows the machine to cut the moving profile without requiring conventional stop-and-cut cycles, thereby improving production continuity.
The machine also provides flexible production possibilities. Customers can manufacture standard L wall angles as well as selected L trims, L angle channels, perforated wall trims, and other compatible profiles when the forming and punching configuration supports them.
A combined machine configuration can further help manufacturers save factory space. Depending on the profile designs, Zhongtuo can develop a system capable of handling several related steel ceiling profiles, giving customers more production flexibility without installing a completely independent machine for every profile.
For customers seeking complete ceiling production capabilities, Zhongtuo can coordinate the wall angle machine with T-grid production equipment and lay-in metal ceiling panel production lines. This creates a connected product chain covering the perimeter profile, ceiling grid, and visible ceiling panels.
Zhongtuo also pays attention to long-term machine performance. Suitable steel grades, heat treatment, precision machining, reliable electrical components, and comprehensive testing help the equipment maintain stable operation during continuous production.
Complete Service, Quality Control And Ceiling System Application
Zhongtuo supports the project from initial profile confirmation through machine manufacturing, testing, installation, and after-sales service. At the beginning of a project, the technical team reviews the customer’s drawings and production requirements, explains the machine operation, and develops the corresponding equipment configuration.
During manufacturing, Zhongtuo monitors the production process and can provide customers with progress information. After assembly, the technical team conducts trial runs to verify feeding, forming, cutting, electrical control, and finished-profile accuracy. Customers can also visit the factory for machine inspection and test production before shipment.
For installation, Zhongtuo can provide technical guidance and, when required by the project, arrange professional personnel for on-site installation and commissioning. After the machine enters production, the company can continue to provide maintenance guidance, troubleshooting assistance, and technical support.
Quality control covers multiple stages, including raw material and component procurement, machining, assembly, electrical installation, testing, and final inspection. Zhongtuo also provides machines with relevant international certification requirements, including CE certification where applicable to the supplied configuration.
With a professional technical team experienced in light steel keel and ceiling profile roll forming, Zhongtuo can support projects from profile drawing design and tooling development to manufacturing, installation, commissioning, and after-sales service. The company also develops localized technical support capabilities in markets including Qatar, India, Saudi Arabia, Turkey, and Egypt.
Frequently Asked Questions
1. Are you a wall angle roll forming machine manufacturer?
Yes. Zhongtuo is a professional roll forming machinery manufacturer and provides customized equipment for ceiling profiles, wall angles, light steel keels, T-grids, and other metal profiles.
2. Can the wall angle machine be customized?
Yes. Zhongtuo designs the forming rollers and production line according to the customer’s profile drawing, material thickness, finished width, length, production speed, and automation requirements.
3. What material can the machine process?
The typical machine processes GI steel coils. Stainless steel and other suitable materials can also be considered after confirming their mechanical and forming characteristics.
4. Can the machine produce perforated wall angles?
Yes. Zhongtuo can integrate a punching system for perforated L angles, wall trims, or profiles with specific hole patterns. The punching configuration depends on the hole size, spacing, material thickness, and required production speed.
5. What is the production speed of the wall angle machine?
The high-speed configuration can reach up to 120 m/min with a flying shearing system, subject to the actual profile design, material thickness, punching requirements, and machine configuration.
6. Can Zhongtuo provide other machines for a complete ceiling system?
Yes. Zhongtuo can provide equipment for wall angles, C/U channels, furring channels, studs and tracks, ceiling carriers, T-grid profiles, and lay-in metal ceiling panels, allowing customers to develop a complete ceiling profile production solution.
