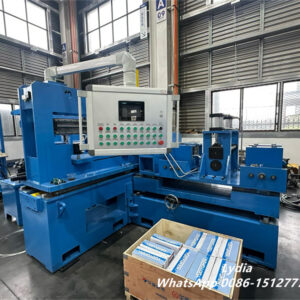

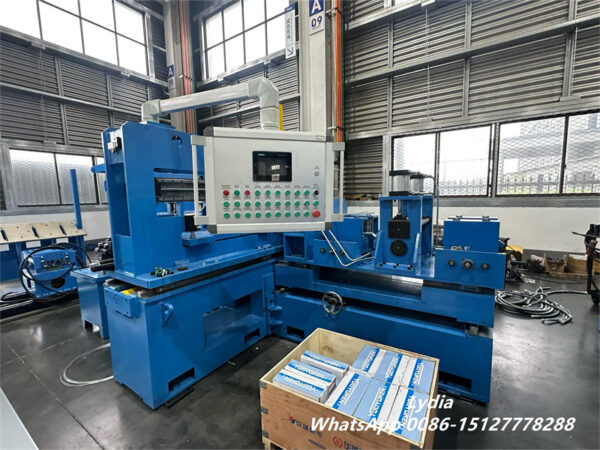

In modern photovoltaic construction, efficiency and precision are no longer optional—they are essential. The 50Hz Solar Bracket Making Machine is engineered to deliver high-strength solar mounting components with stable performance, fast production speed, and long-term reliability. With PLC control, hydraulic cutting, and fully automated forming, this equipment significantly improves production efficiency for solar structure manufacturers.
The solar bracket forming machine is widely used in photovoltaic mounting systems. It plays a critical role in producing structural components that support solar panel installations in various environments.
Typical applications include:
- Ground-mounted solar power stations
- Rooftop photovoltaic systems
- Industrial solar energy farms
- Agricultural solar greenhouse structures
- Carport solar mounting systems
- Commercial building PV support frameworks
In addition, the machine can be customized for different profile designs based on regional standards and engineering requirements, making it highly flexible for global markets.
To ensure smooth and accurate operation, the machine adopts an advanced PLC control system with a touch screen interface. Operators can easily set parameters, monitor production status, and adjust specifications in real time.
Moreover, the system integrates servo feeding and automatic synchronization, which reduces human error and improves consistency. As a result, manufacturers can achieve stable mass production with minimal downtime.
High-Precision Roll Forming Technology
This solar bracket roll forming machine is designed for producing different sizes of solar mounting profiles without frequent roller changes. Thanks to its high-precision engineering, the forming accuracy can reach ≤ ±1 mm, ensuring perfect fitting during installation.
In addition, Cr12MoV (SKD11 equivalent) rollers provide excellent hardness and wear resistance, extending the service life of the machine while maintaining consistent product quality.
Technical Parameters Overview
Below is a clear overview of the key specifications of the machine:
| Item | Specification |
|---|---|
| Control System | PLC with Touch Screen |
| Material Compatibility | Galvanized steel / Carbon steel |
| Thickness Range | 1.0 – 8.0 mm |
| Rolling Width | 100 – 400 mm |
| Production Speed | 10 – 35 m/min |
| Main Motor Power | 55 kW / 75 kW |
| Shaft Diameter | 70 / 90 / 100 / 120 mm |
| Roller Material | Cr12MoV (SKD11 / D2) |
| Cutting System | Hydraulic Cutting |
| Processing Accuracy | ≤ ±1 mm |
| Voltage | 220V / 380V, 50Hz |
This configuration ensures strong adaptability for different project requirements and production environments.
Hydraulic Cutting & Fully Automatic Workflow
One of the key advantages of this machine is its hydraulic cutting system, which ensures clean, burr-free cuts with high efficiency. Unlike mechanical cutting, hydraulic cutting reduces noise and improves durability.
Furthermore, the entire production line is fully automated:
Decoiling → Straightening → Servo Feeding → Punching → Roll Forming → Sizing → Hydraulic Cutting → Output Table
Because of this continuous workflow, production becomes faster, smoother, and more cost-effective.
Why Choose This Solar Bracket Forming Machine?
To summarize, this equipment combines precision engineering, automation, and durability into one complete production solution. It not only reduces labor costs but also improves production consistency and output capacity.
Most importantly, its long service life and low maintenance requirements make it a reliable investment for long-term solar manufacturing projects.
