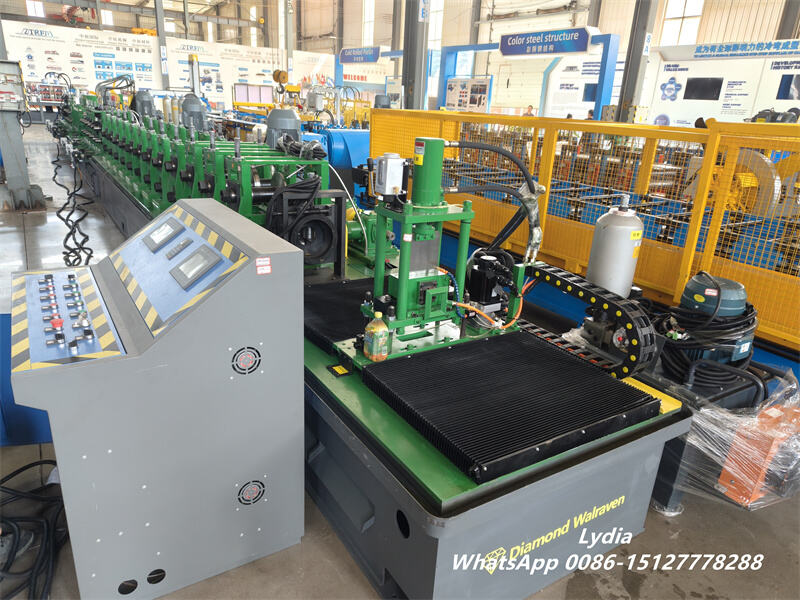

The Solar Mounting Structure Roll Forming Machine is an automated steel profile production line developed for manufacturers of photovoltaic mounting systems. As solar power projects continue to expand across residential, commercial, industrial and utility-scale applications, the demand for strong, accurate and cost-effective mounting structures is also increasing.
Compared with traditional fabrication methods that require separate cutting, punching and forming operations, a roll forming production line combines multiple processes into one continuous workflow. Steel coil is automatically decoiled, leveled, punched, roll formed, cut to the required length and collected after production. This allows manufacturers to produce large quantities of identical solar mounting profiles with stable dimensions and high production efficiency.
Zhongtuo designs and manufactures solar mounting structure roll forming machines for different types of PV profiles, including solar C channels, U channels, strut channels, mounting rails, support purlins and customized photovoltaic structural profiles. The machine configuration can be engineered according to the customer’s profile drawing, material specification, hole pattern, production speed and finished product requirements.
For high-volume production, the line can also be equipped with an automatic strip welding machine and horizontal accumulator. This configuration allows the forming section to continue operating while the raw material coil is being replaced, helping reduce downtime and improve overall production capacity.

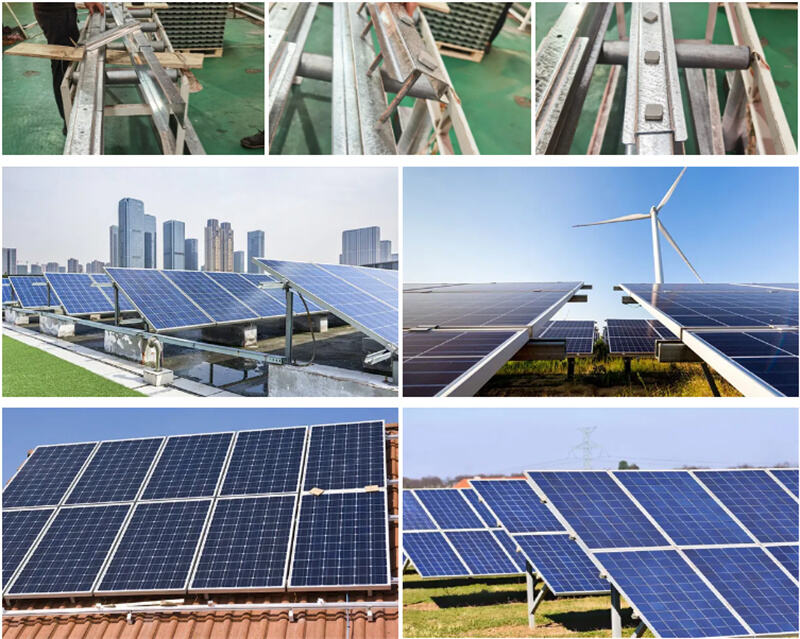

Solar Mounting Structure Applications

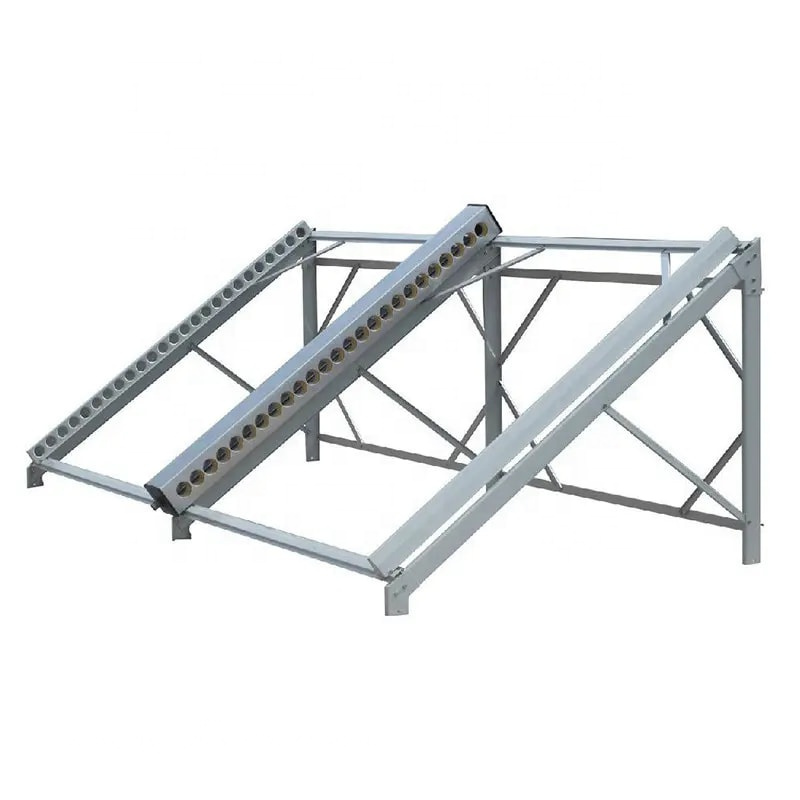

The profiles produced by the machine can be used in a wide range of photovoltaic mounting systems.

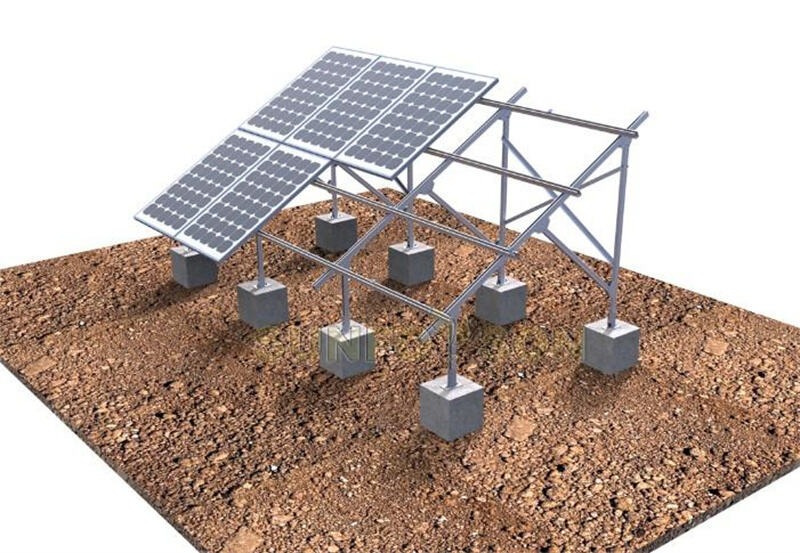

Ground-Mounted Solar Systems

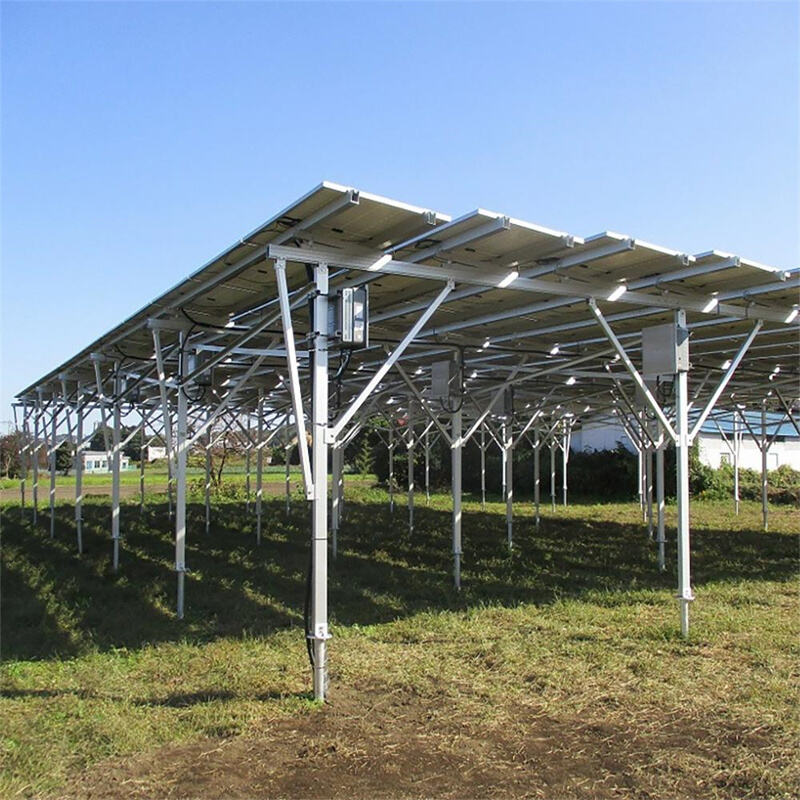

Ground-mounted photovoltaic projects often require large quantities of steel support profiles. C channels, U channels and other structural sections can be used to create the primary and secondary support structures for solar arrays.
For these projects, production capacity and material consistency are particularly important because hundreds or thousands of identical profiles may be required.
Rooftop Solar Mounting Systems
Commercial and industrial rooftops use mounting rails and structural profiles to support solar modules. Accurate hole positioning helps simplify installation and connection between rails, clamps and other mounting components.Solar carport structures require strong steel profiles capable of supporting PV modules while also forming the structural framework of the canopy. Roll formed profiles can provide an efficient solution for repeated structural components.Large photovoltaic farms can require extremely high quantities of mounting profiles. High-speed production and continuous coil feeding can help manufacturers increase output and reduce production downtime.

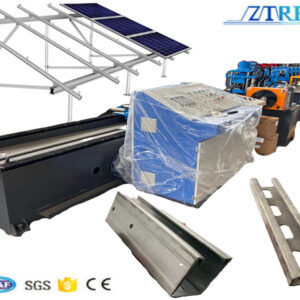

One Complete Solution for Solar Mounting Profile Manufacturing
A solar mounting structure may look like a simple steel profile, but producing thousands of meters of dimensionally consistent profiles requires accurate feeding, reliable punching and stable forming.
The Zhongtuo Solar Bracket Roll Forming Machine Production Line integrates these processes into a coordinated production system. Instead of moving semi-finished products between different machines, the steel strip travels continuously through the production line.
The standard production process is:

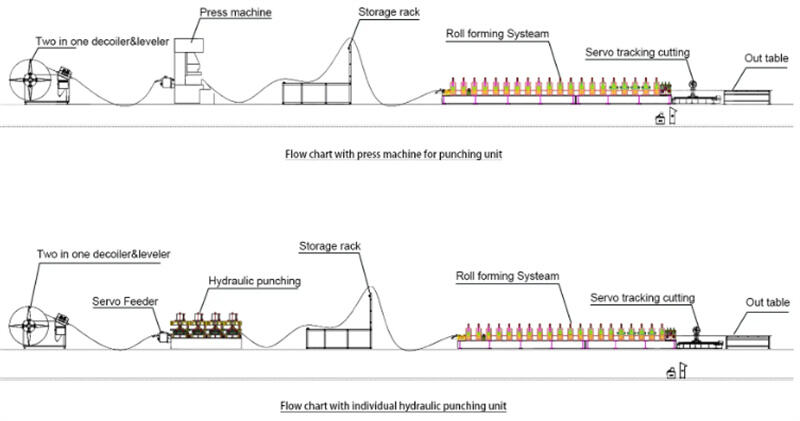

Decoiling → Leveling → Servo Feeding → Punching → Roll Forming → Tracking Cutting → Automatic Stacking
For customers with high production requirements, the line can be upgraded with:
Automatic Coil Welding → Horizontal Accumulator → Continuous Roll Forming
This production concept is especially suitable for solar mounting manufacturers that need to produce long lengths of C/U channels, strut channels and other PV support profiles continuously.

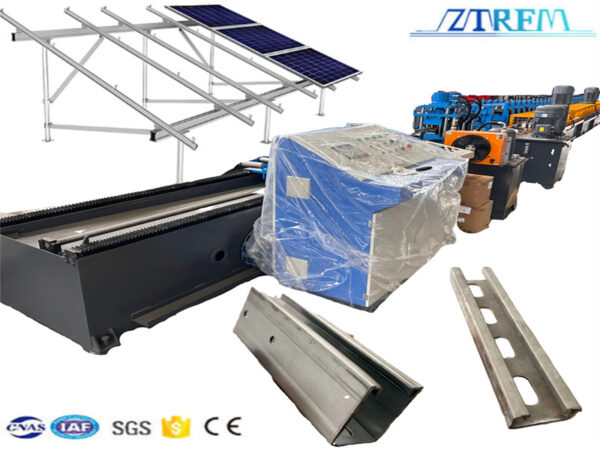

What Can the Solar Mounting Roll Forming Machine Produce?
The solar industry uses a wide range of structural profiles depending on the installation method, module arrangement, load requirements and project design. One solar project may require a lightweight mounting rail, while another may require a heavier C-channel or strut-channel structure.
Zhongtuo can develop different roll forming configurations according to the required cross-section.
Typical products include:

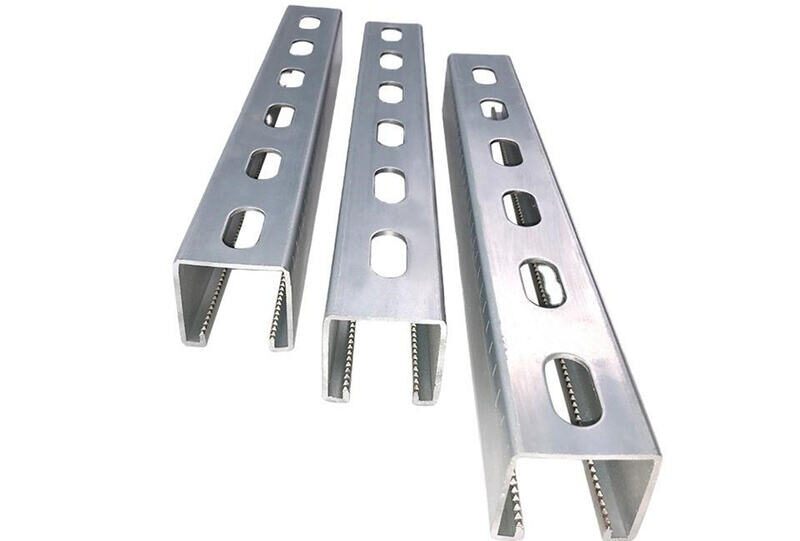

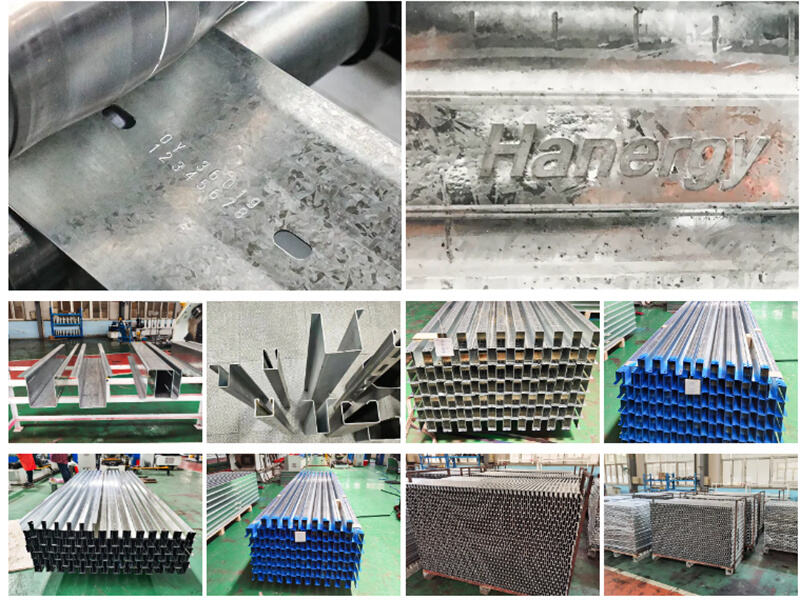

Solar C Channel
C-shaped steel profiles are widely used as structural members in ground-mounted and rooftop photovoltaic mounting systems. The profile dimensions, flange width and thickness can be customized according to the required load-bearing performance.
Modern solar projects often require adjustable Solar C Channel because it allows installers to optimize panel angles based on geographic location and sunlight conditions. As a result, solar systems can achieve higher energy generation efficiency while maintaining structural reliability under wind, rain, and snow loads.
Furthermore, solar mounting brackets simplify installation and maintenance, reducing labor costs and shortening project completion times.
Photovoltaic solar racking profile roll forming equipment

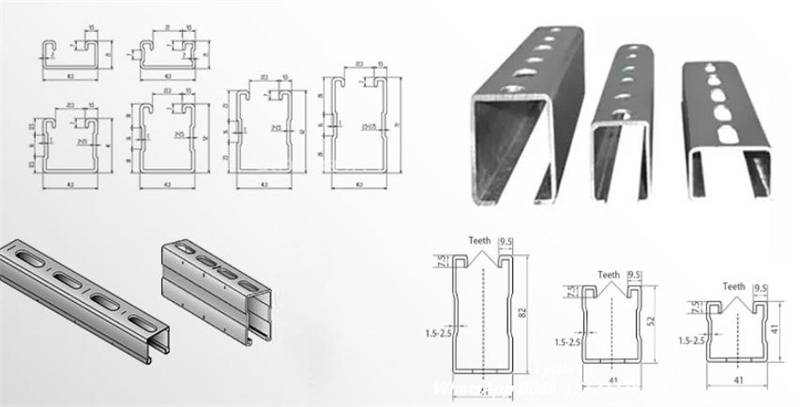

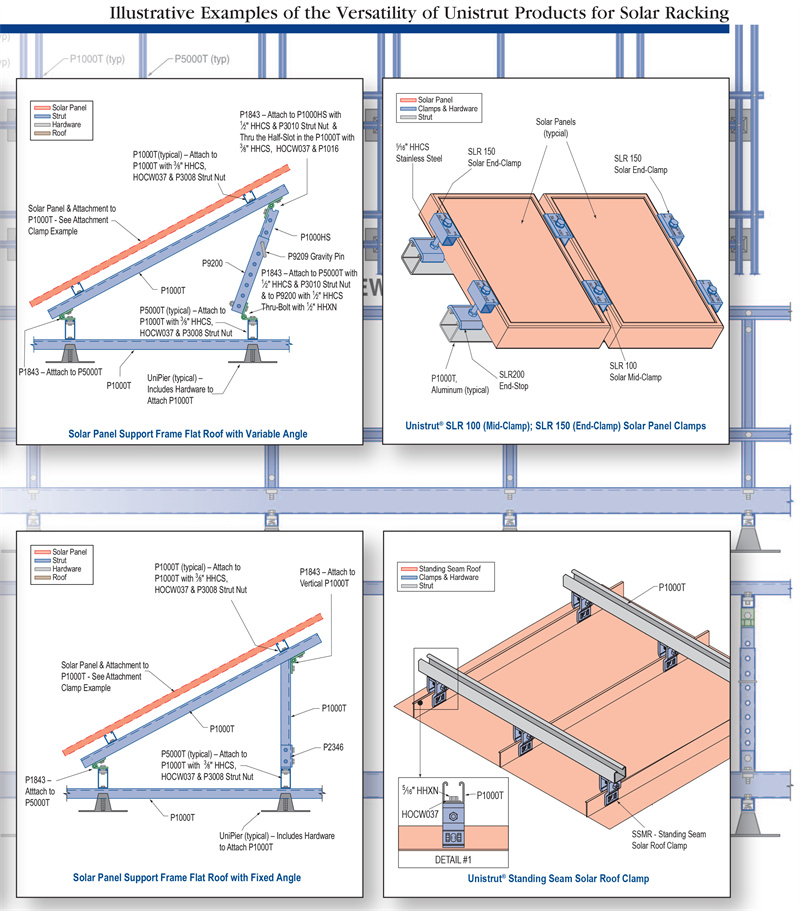

Solar U Channel or Unistrut channel
U-channel profiles can be used as support members and connection components in different PV mounting structures. Automatic punching can be integrated to create the required mounting holes and slots.As the global demand for renewable energy continues to grow, Unistrut channels have become one of the most important structural components in solar mounting systems. These channels provide reliable support for photovoltaic (PV) panels, ensuring long-term stability, safety, and efficient energy generation. A Unistrut Channel Roll Forming Machine is specifically designed to manufacture high-precision solar strut channels with high production efficiency, consistent quality, and low operating costs.
Whether used for rooftop solar systems, ground-mounted solar farms, agricultural PV projects, or industrial installations, accurately formed Unistrut channels play a critical role in the performance and durability of photovoltaic structures.
Unistrut Channel
solar rack forming machine
PV Mounting Bracket (HAT / Omega Profile) Roll Forming Machine
The PV Mounting Bracket Roll Forming Machine, also known as a Solar Rack Roll Forming Machine or Photovoltaic Rack Roll Forming Machine, is specially designed for the continuous production of HAT and Omega-shaped steel profiles used in solar mounting and photovoltaic support systems. These profiles are widely applied for mounting, bracing, supporting, and connecting structural components in rooftop, ground-mounted, carport, and other solar energy projects.

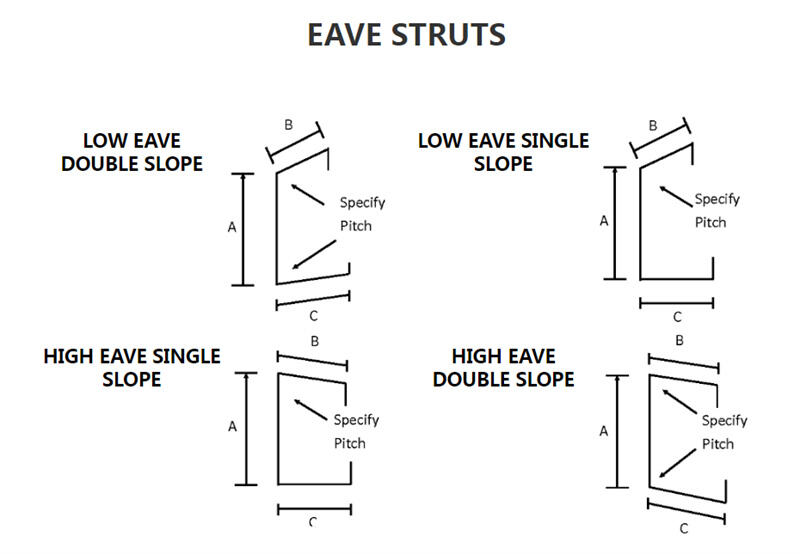

Eave Purlin Roll Forming Machine
The Eave Purlin Roll Forming Machine is developed for manufacturing eave purlins and related structural steel profiles used in steel buildings, roofing systems and solar mounting structures. Eave purlins are commonly installed along the eave area of a building to provide structural support and help connect the roof system with the main structural frame.
The production line continuously forms steel coil into the required Eave Purlin, Eave Profile or Eave Strut section. Depending on the project requirements, the machine can be designed for different profile sizes, material thicknesses and steel grades.

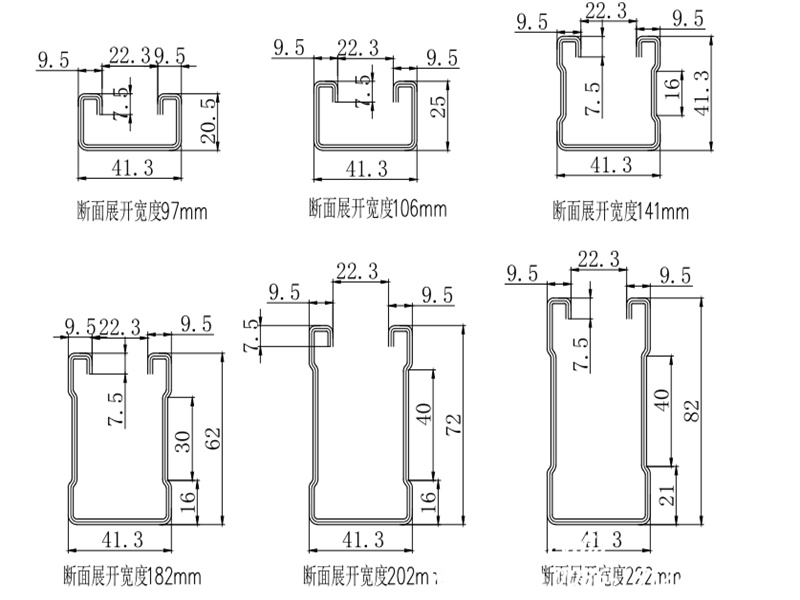

Solar Strut Channel

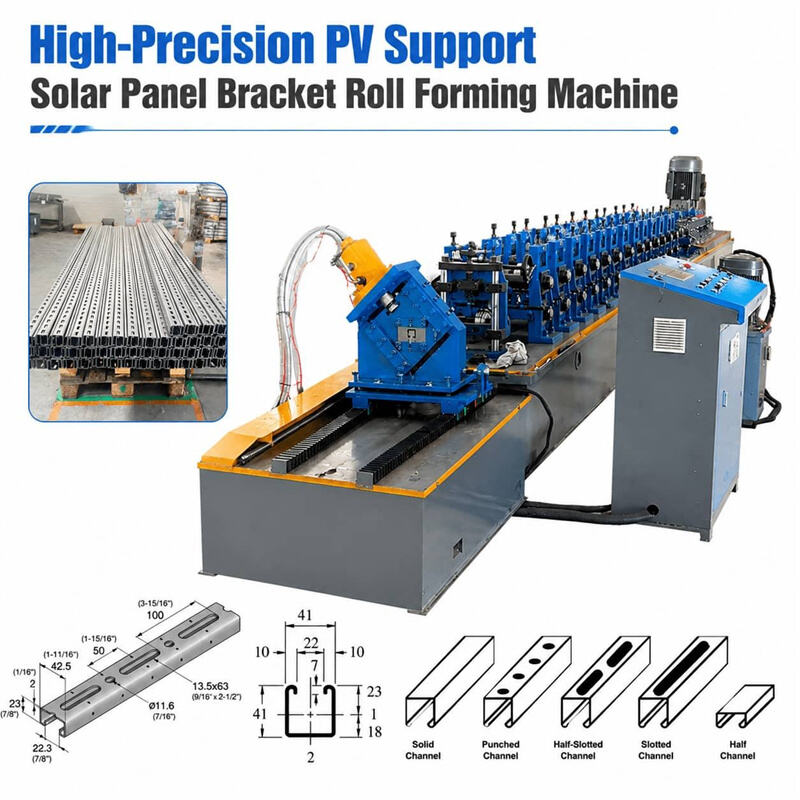

The Solar Strut Channel Roll Forming Machine is designed for manufacturing structural channels used for supporting and connecting solar panels and related components. Both solid and punched or slotted channel configurations can be produced according to the customer’s drawing.

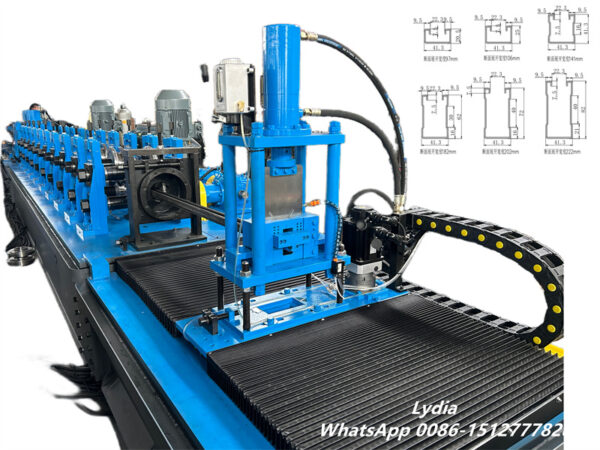

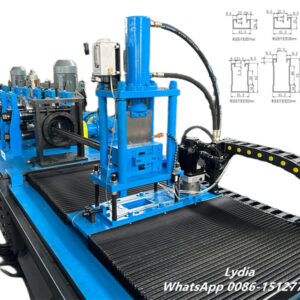

Solar Strut Channel Roll Forming Machine

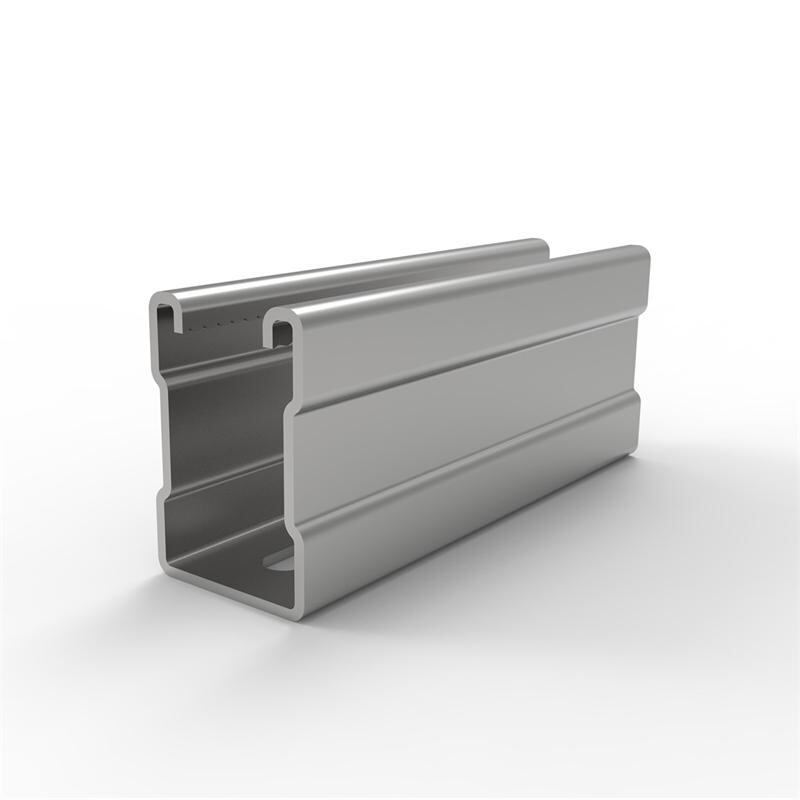

Solar Mounting Rail
Solar rails are used to connect PV modules to the supporting structure. The roll forming machine can continuously produce long rail sections with consistent dimensions and customized cut lengths.
-
OPM pre-approved for seismic applications
-
Dimensions: 1-5/8″ x 1-5/8″, 12 gauge steel
-
Slotted for 1/2″ threaded rods and fasteners
-
Available finishes: PG, DF, HG, PL, GR, ZD, SS/ST, EA
Solar Support Purlin
For larger solar installations, heavier structural purlins may be required. The forming system can be engineered for thicker and higher-strength steel materials according to the structural design.The machine is capable of processing strip steel with thicknesses ranging from 1.5 mm to 3.0 mm and feeding widths between 100 mm and 300 mm, covering most photovoltaic bracket specifications on the market. Common profile sizes such as 41×41 mm, 41×52 mm, 41×62 mm, and 41×72 mm can be produced with high consistency. With a production speed of up to 25 meters per minute, the system ensures both efficiency and precision, while maintaining tight tolerances in length, straightness, and angle, which are critical for subsequent installation.
solar rack forming machine
How Does a Solar Bracket Roll Forming Machine Work?

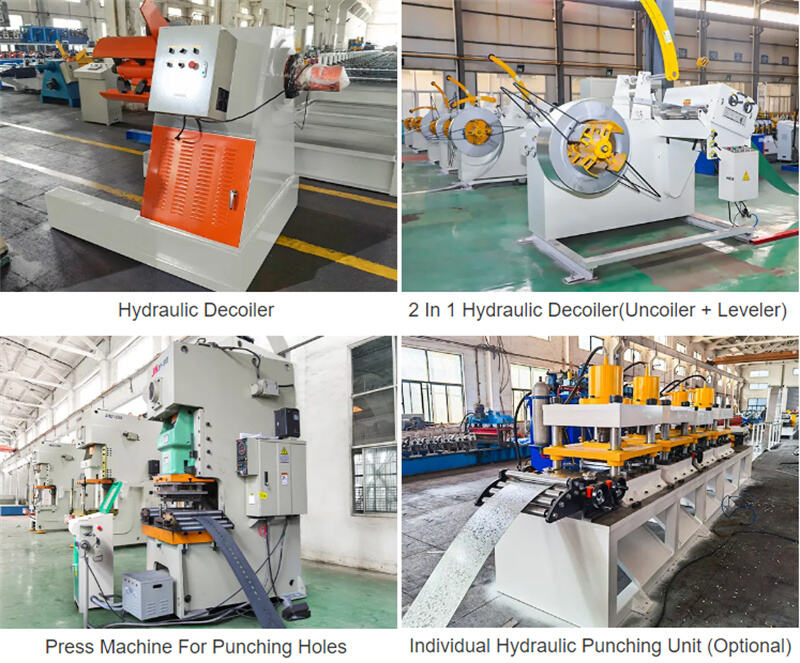

The production process begins with a steel coil loaded onto the hydraulic decoiler. The decoiler gradually releases the material and feeds it into the leveling and feeding section.
The leveling system removes coil set and helps keep the strip flat before it enters the forming section. A servo feeding system then controls the material position, especially when the production line requires accurate punching patterns.
The steel strip enters the punching station where holes and slots are created according to the programmed production requirements. Depending on the profile design, the machine can be configured for different hole shapes, hole diameters and hole spacing.

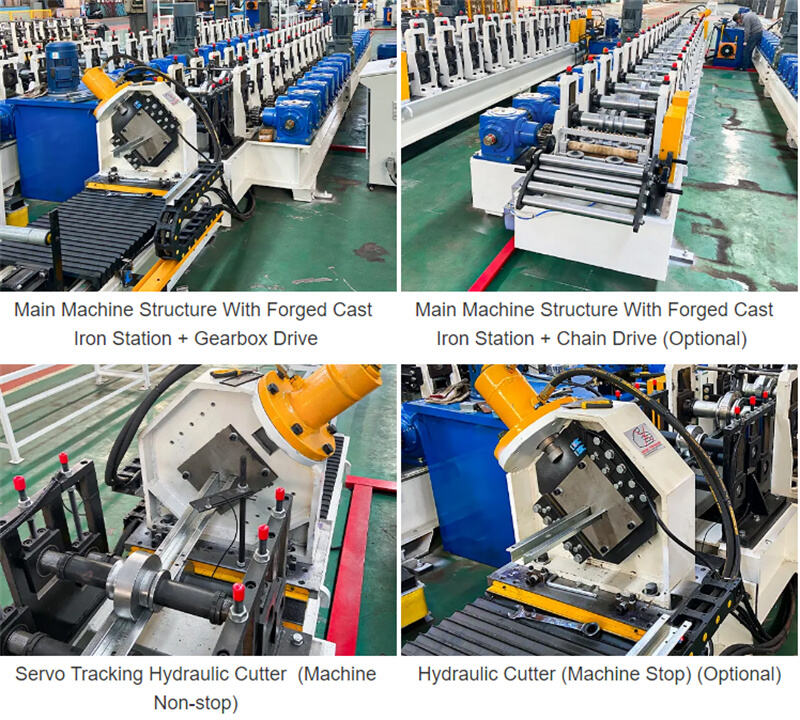

After punching, the material passes through a series of forming rollers. Each roller station performs a small amount of bending, progressively changing the flat strip into the final solar mounting profile.
Once the profile reaches its finished shape, the tracking cutting system cuts it to the specified length. The finished profiles can then be conveyed to an automatic stacking system for collection, bundling and packaging.
The entire process is controlled through the electrical control system and PLC, reducing manual intervention and maintaining consistent production parameters.
Continuous Production with Automatic Coil Welding
One of the challenges in high-volume roll forming production is the downtime caused by coil replacement.
When a steel coil is completely consumed, a conventional roll forming line normally needs to stop so that the operator can load a new coil. For manufacturers producing thousands of meters of solar profiles, these repeated stops can reduce daily production efficiency.
To solve this problem, Zhongtuo can integrate an automatic strip welding machine into the production line.
When the current coil is nearly finished, the new steel coil can be prepared for connection. The automatic welding system connects the new strip with the previous strip, allowing the material to continue moving through the production process.
This reduces the need for frequent manual intervention and creates a more continuous production workflow.
Horizontal Accumulator for Reduced Downtime
The horizontal accumulator works together with the automatic strip welding system to provide temporary material storage.
The accumulator can store approximately 500–700 meters of steel strip, depending on the actual configuration. While the operator replaces the raw material coil, the forming section can continue receiving material from the accumulator.
This creates a production sequence in which the forming machine does not need to stop every time a coil is replaced.
For large-scale solar mounting profile production, this can help:
- Reduce production interruptions
- Improve machine utilization
- Increase daily output
- Reduce operator intervention
- Improve continuous production efficiency
The combination of automatic welding + horizontal accumulator + high-speed roll forming is therefore particularly useful for manufacturers that require high-volume PV profile production.
Designed for Heavy-Duty Solar Mounting Structures
Solar mounting structures are exposed to outdoor environments and must provide reliable structural support for PV modules over long periods.
Depending on the project, manufacturers may use galvanized steel, structural steel or zinc-aluminum-magnesium coated steel to achieve the required strength and corrosion resistance.
The Zhongtuo solar mounting structure machine can be configured to process materials such as:
Q235 / Q345 / S420GD / Galvanized Steel / Zinc-Aluminum-Magnesium Coated Steel
The exact material range depends on the customer’s profile design and machine configuration.
For thicker profiles, the machine can be designed with a heavier structure, stronger drive system and suitable forming stations to handle the required forming load.
Customized Solar Mounting Profile Production
There is no single universal solar mounting profile used for every photovoltaic project.
Different countries, solar developers and structural engineers may use different profile dimensions, hole patterns, material grades and thicknesses. Therefore, the most important part of a solar roll forming machine is not simply the machine itself, but whether the entire forming system matches the customer’s actual profile.
Zhongtuo provides customized engineering based on the customer’s technical requirements.
Before designing the machine, our engineers can review:
- Solar profile drawing
- Cross-section dimensions
- Material thickness
- Steel grade
- Hole diameter
- Hole spacing
- Slot dimensions
- Finished profile length
- Required production speed
- Daily production capacity
Based on this information, we can determine the appropriate roller configuration, punching system, drive system, cutting method and automation level.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Solar Mounting Structure Roll Forming Machine |
| Application | Solar PV Mounting Structure |
| Typical Profiles | C Channel / U Channel / Strut Channel / Solar Rail / Customized Profiles |
| Maximum Forming Speed | Up to 35 m/min |
| Raw Materials | Q235 / Q345 / S420GD / Galvanized Steel / ZAM Steel |
| Decoiler | 5-Ton Hydraulic Decoiler |
| Punching | Automatic Hydraulic / Servo Punching |
| Forming System | Multi-Station Roll Forming |
| Cutting System | Servo Tracking Cutting |
| Stacking | Automatic Stacking |
| Continuous Production | Optional Automatic Strip Welding + Horizontal Accumulator |
| Accumulator Capacity | Approx. 500–700 m |
| Control System | PLC + Touch Screen HMI |
| Power Supply | 380V 50Hz 3 Phase or Customized |
| Final Configuration | According to Customer Profile Drawing |
The final technical configuration is customized according to the profile dimensions, material thickness, punching pattern, production speed and customer requirements.
Why Choose Zhongtuo for Solar Mounting Structure Production?
Choosing a solar roll forming machine is not simply about comparing motor power or the number of forming stations.
A reliable production line needs to maintain stable forming quality while operating continuously under the required production conditions.
Zhongtuo focuses on designing complete cold roll forming solutions for structural steel profiles. For solar mounting applications, our engineering approach combines profile design, punching, forming, cutting and automation into one production system.
For customers requiring high production capacity, the optional automatic strip welding and horizontal accumulator system provides a more continuous production solution.
For customers with customized profiles, our engineers can develop the machine according to the actual profile drawing instead of forcing the project into a standard machine configuration.
Frequently Asked Questions
What is a Solar Mounting Structure Roll Forming Machine?
A Solar Mounting Structure Roll Forming Machine is an automated production line used to continuously manufacture steel profiles for photovoltaic mounting systems. It can integrate decoiling, leveling, feeding, punching, roll forming, cutting and stacking into one production process.
What solar profiles can the machine produce?
Depending on the machine configuration, it can produce solar C channels, U channels, strut channels, solar rails, support purlins, brackets and customized PV structural profiles.
What is the production speed?
The Zhongtuo high-speed PV mounting structure line can reach up to 35 m/min for suitable profiles. The actual production speed depends on the material, thickness, profile shape, punching pattern and cutting requirements.
Can the machine punch holes automatically?
Yes. The production line can integrate automatic punching systems for round holes, slots and customized hole patterns.
Can the line work continuously during coil replacement?
Yes. An automatic strip welding machine and horizontal accumulator can be integrated into the production line. The accumulator can store approximately 500–700 meters of steel strip, allowing the forming section to continue operating during coil replacement.
Can you design the machine according to our profile drawing?
Yes. This is one of the most important parts of our service. Send us your profile drawing and production requirements, and our engineering team can design the roll forming, punching, cutting and automation system accordingly.
Get a Customized Solar Mounting Structure Roll Forming Machine
Looking for a reliable production line for solar mounting structures, PV brackets, solar rails, C/U channels or strut channels?
Zhongtuo can provide a complete roll forming solution based on your actual profile and production requirements.
Whether you are producing mounting structures for ground-mounted solar farms, commercial rooftops, solar carports or utility-scale photovoltaic projects, we can configure the production line around your required profile, material and output.
Send us your solar profile drawing today.
Our engineers will evaluate your profile and recommend a suitable Solar Mounting Structure Roll Forming Machine Production Line.
Get a Free Quote
Send Your Profile Drawing
