Zhongtuo Automatic T Bar Roll Forming Machine Metal Stud Ceiling Keel Production Line

The Automatic T Bar Roll Forming Machine Metal Stud Roofing Production Line is designed for high-efficiency, fully automatic production of suspended ceiling keel systems. It processes galvanized steel strips and color-coated steel strips into precise T-shaped main keels, auxiliary keels, and corner keels through continuous cold roll forming. From coil feeding to final cutting and stacking, the entire workflow runs smoothly with minimal manual intervention, making it an ideal solution for modern building material manufacturers.

This machine adopts a fully automated PLC control system, which manages every step of production in a continuous flow. First, the steel coil is automatically uncoiled and leveled. Then, it passes through precision roll forming stations before being cut to fixed lengths and discharged automatically.

As a result, one operator can manage the entire production line, which significantly reduces labor costs while improving output stability. In addition, the system supports continuous 24-hour operation, making it suitable for large-scale industrial production.

Ceiling Grid Systems and Applications

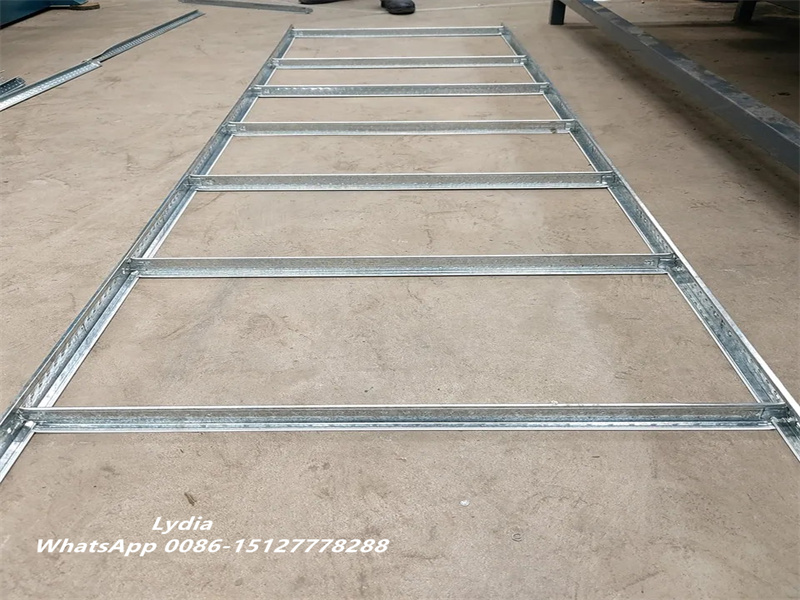

Ceiling grid channels form the supporting structure of modular ceiling systems. They are typically installed together with ceiling tiles to create a suspended ceiling framework. Different grid types are used depending on design requirements and interior aesthetics.

Standard grid systems include Plain Grid Channels, Select Grid Systems, and Silhouette Grid Designs.

Plain grid channels are widely used in standard suspended ceilings because of their simple structure, affordability, and compatibility with most ceiling tiles. They are commonly installed in offices, retail stores, schools, and residential buildings.

Select grid channels provide enhanced strength and durability while maintaining a sleek appearance. These grids are often used in modern commercial interiors such as showrooms, shopping centers, and office spaces where both aesthetics and structural performance are important.

Silhouette grid systems represent a premium ceiling solution designed for high-end environments. Their elegant profile and concealed appearance make them ideal for luxury offices, hotels, restaurants, and corporate buildings.

The roll forming machine can manufacture multiple grid profiles, allowing manufacturers to supply various market segments with a single production line.

Ceiling Tile Types Compatible with Grid Systems

Grid ceiling systems support different types of modular ceiling tiles, each offering specific functional benefits.

Gypsum ceiling tiles are lightweight and provide a clean, smooth finish. With typical thickness around 8 mm, they offer good fire resistance and thermal insulation, making them suitable for homes, offices, and commercial interiors.

Fiber cement tiles are designed for areas exposed to moisture or temperature fluctuations. With a standard size of 595 × 595 mm and thickness of about 4 mm, these tiles perform well in bathrooms, kitchens, balconies, and industrial environments. Their resistance to fire, termites, and humidity ensures long service life.

Mineral fiber tiles are widely used where acoustic performance is required. Their porous structure helps absorb sound and reduce noise levels, which is why they are common in hospitals, educational institutions, and office buildings.

Metal ceiling tiles are known for durability and corrosion resistance. Manufactured from pre-painted or powder-coated galvanized steel, they provide a modern architectural appearance and are frequently installed in commercial complexes, airports, and industrial buildings.

Another high-performance option is calcium silicate acoustic tiles, which combine fire resistance, moisture resistance, and sound insulation. These tiles are commonly used in healthcare facilities and industrial buildings where safety and durability are critical.

Efficient Production with the T Grid Roll Forming Machine

The Ceiling T Grid Roll Forming Machine is specifically engineered to produce high-quality grid channels used in suspended ceiling systems.One of the key advantages of this production line is its multi-size adaptability. By simply adjusting the roller spacing and control settings, the machine can produce different specifications of T-bar profiles.

It supports various designs such as:

• Flat T-shaped keels
• Grooved T-shaped keels
• Painted surface T-bars

Therefore, manufacturers can respond quickly to different market demands without changing the entire production system, which greatly improves production flexibility.

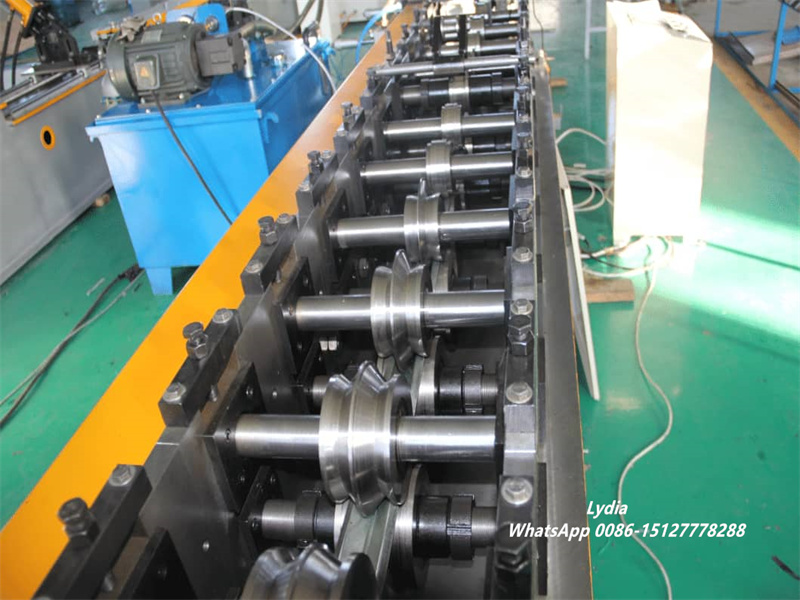

A cast steel arch frame provides strong support for the roll forming section, reducing vibration and ensuring dimensional accuracy. High-quality Cr12 rollers with heat treatment (HRC 58–62) improve wear resistance and extend the service life of the forming tools. The shafts are made from tempered C45 steel, offering excellent mechanical strength.

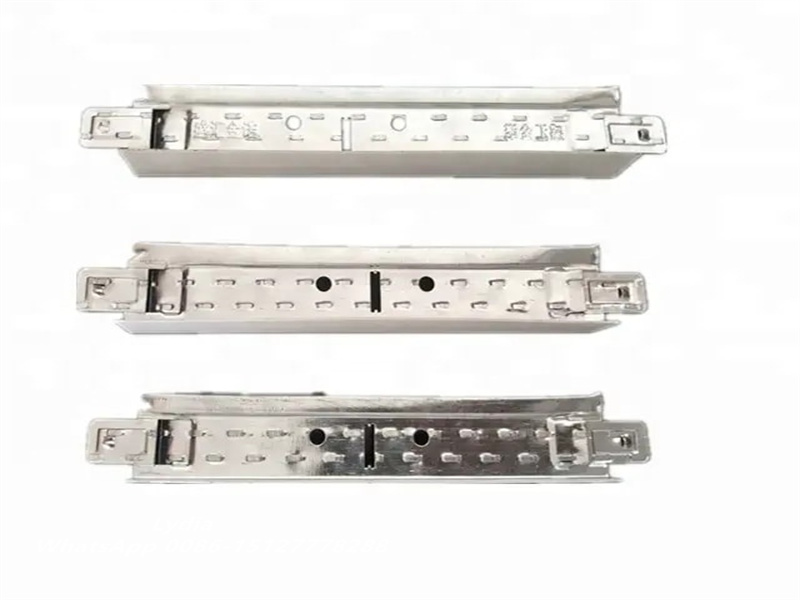

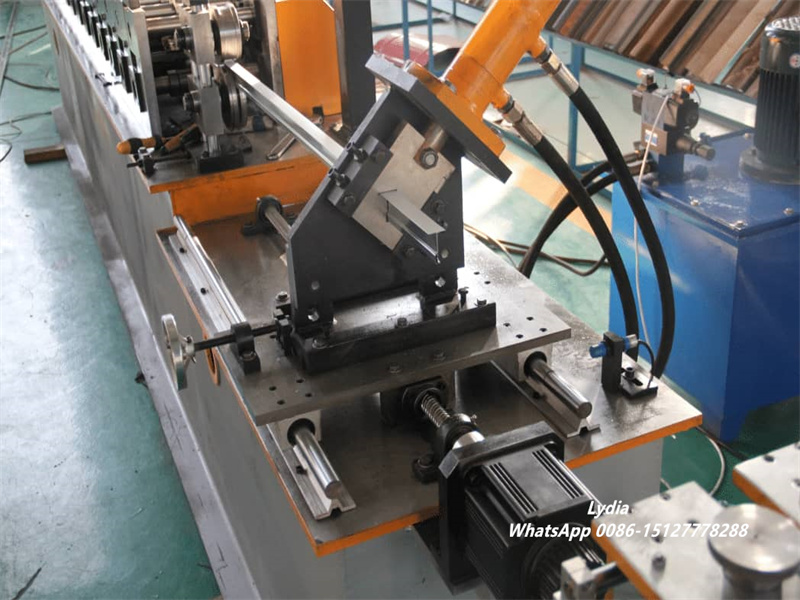

The production line is equipped with servo-driven punching and hydraulic cutting systems, allowing precise punching of head and end shapes while maintaining accurate product length.

One machine can produce both Flat T grids and Black Center Line T grids, making it suitable for different ceiling grid designs required in international markets.

Main Technical Specifications

Advantages for Ceiling Grid Manufacturers

Using an automated T grid roll forming machine provides several important benefits for ceiling system manufacturers:

• High production efficiency suitable for large-scale manufacturing
• Consistent product quality with precise profile dimensions
• Durable tooling materials that extend machine lifespan
• Automated punching and cutting for accurate finished products
• Ability to produce multiple grid profiles on one production line

These advantages help manufacturers reduce labor costs while maintaining stable production output.

As demand for modern suspended ceiling systems continues to grow worldwide, the need for reliable and efficient manufacturing equipment is increasing. The Ceiling T Grid Roll Forming Machine offers an advanced solution for producing high-quality grid channels used in a wide range of ceiling installations.

By combining robust mechanical design, automated control systems, and high-precision forming technology, this machine enables manufacturers to supply durable and aesthetically appealing ceiling grid systems for commercial, residential, and industrial applications.
