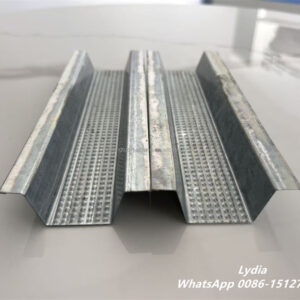

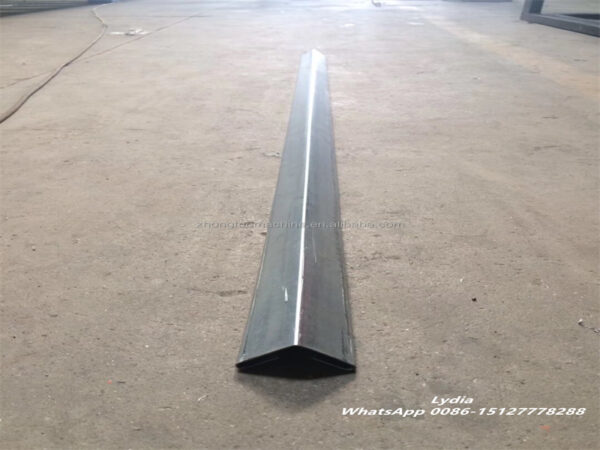

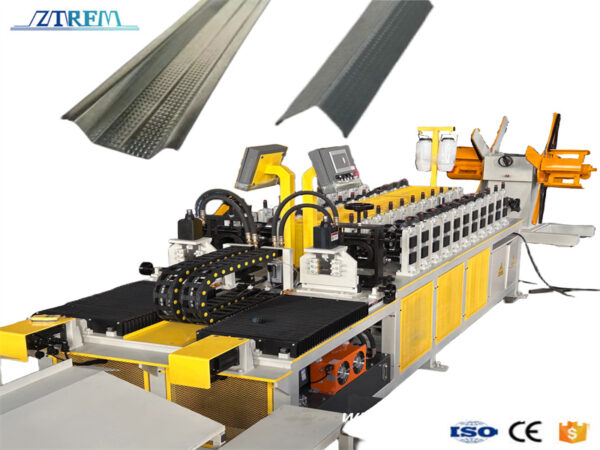

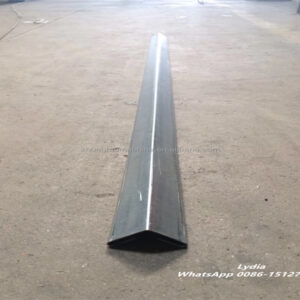

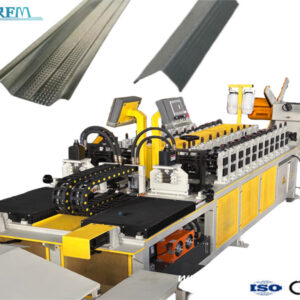

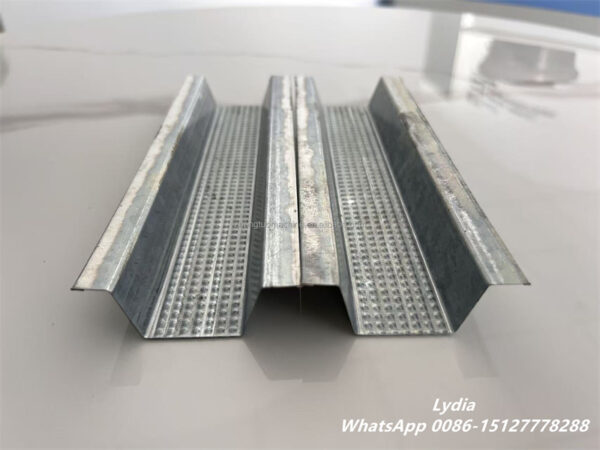

When your production line needs to handle multiple ceiling profiles efficiently, relying on separate machines quickly becomes expensive and space-consuming. That’s why more manufacturers are turning to the Angle & Omega 2-in-1 roll forming machine—a compact yet powerful solution designed to produce two profiles on a single line without compromising speed or precision.The profiles produced by this machine are widely used in ceiling and drywall systems. Omega channels—also known as hat channels or furring channels—are essential for supporting suspended ceilings and providing a stable fixing point for gypsum boards and acoustic panels.Meanwhile, angle steel and corner beads are used to reinforce edges and improve finishing quality in interior construction. Together, these components form the backbone of ceiling framing systems in residential buildings, commercial offices, hospitals, and industrial facilities.
By integrating dual forming sections into one machine, this system allows you to produce omega channels and angle steel profiles simultaneously or independently, making it a practical choice for modern construction supply chains.Because the machine supports thickness ranges commonly used in the US market (0.3–0.6 mm and beyond), it is well-suited for local contractors and building material suppliers.
Dual-Profile Design for Maximum Flexibility

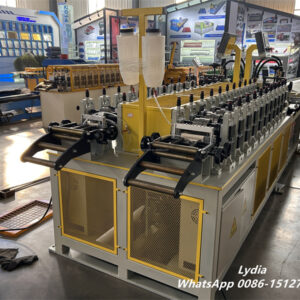

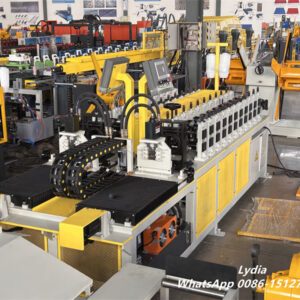

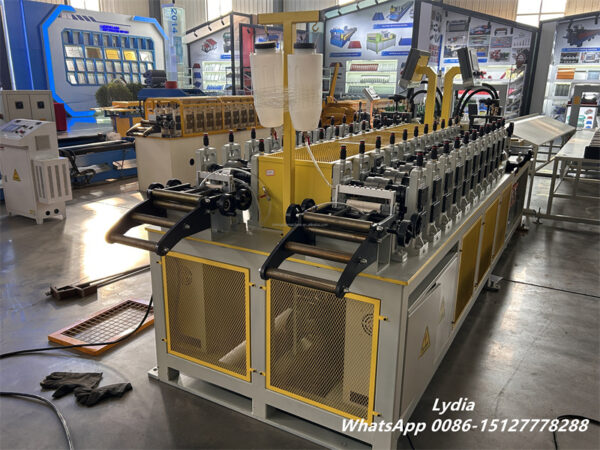

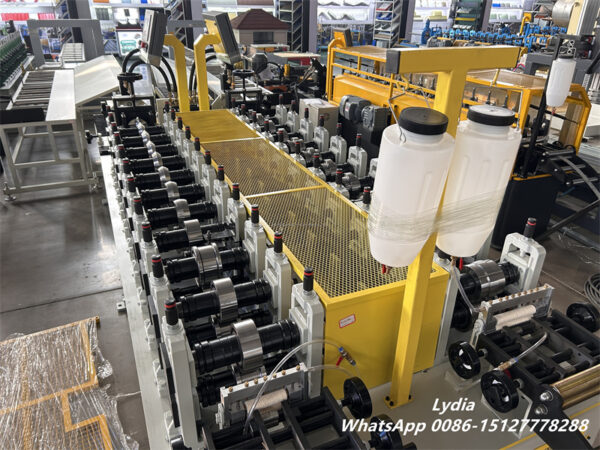

What sets this machine apart is its true 2-in-1 structure. The right forming section is dedicated to omega (hat) channels, while the left side produces angle steel or corner bead profiles. Instead of switching rollers or stopping production, operators can run different profiles with minimal adjustment.
As a result, manufacturers can respond faster to project demands—whether supplying ceiling framing components or wall edge protection materials—without investing in multiple production lines.
This machine is not just a forming unit—it is a complete automated production system. Each component works together to ensure smooth operation and consistent output.

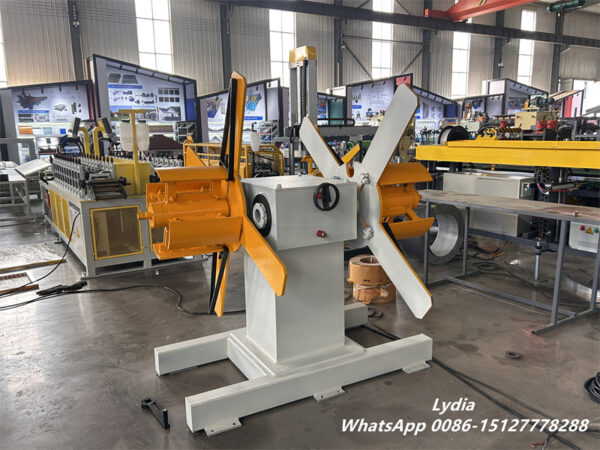

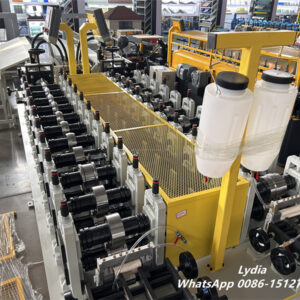

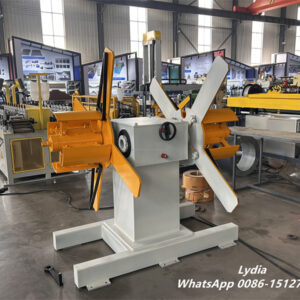

The production line includes a hydraulic decoiler (with a free manual option), a precision feeding device with protective rollers, and a roll forming system equipped with hardened chrome-plated rollers. During operation, an automatic oil injector protects the galvanized coating, reducing surface damage and improving product quality.

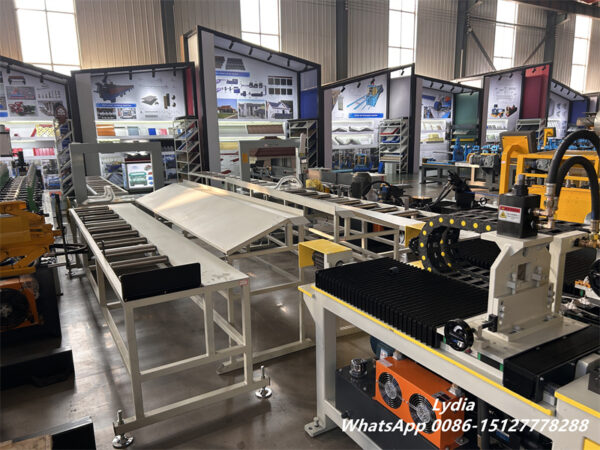

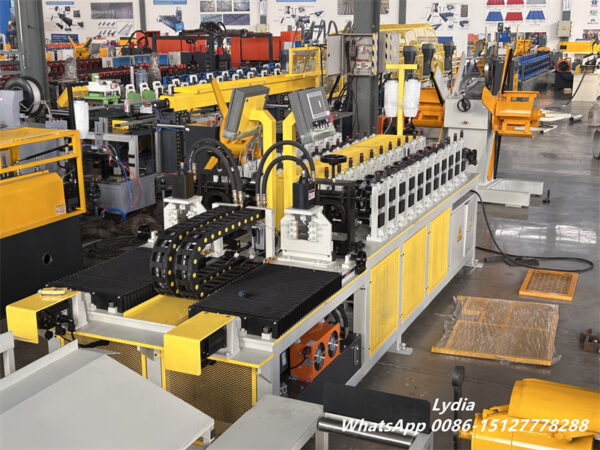

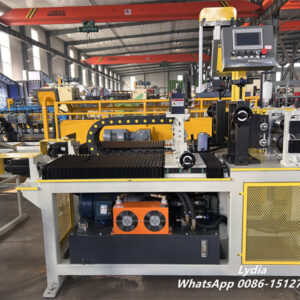

Furthermore, the system integrates fully automatic punching and servo fly cutting, allowing continuous production without stopping the machine. The finished profiles are then transferred to a receiving table, with optional automatic stacking and packing systems available to further reduce labor.
Technical Specifications at a Glance
| Item | Specification |
|---|---|
| Material Type | GI, PPGI, Aluminum |
| Thickness Range | 0.5 – 1.2 mm |
| Forming Speed | 0–40 m/min |
| Roller Stations | 12 rows (customizable) |
| Shaft Diameter | 50 mm solid shaft |
| Roller Material | 45# steel with chrome coating |
| Cutting Blade | Cr12Mov, no deformation |
| Main Motor Power | 7.5 KW |
| Hydraulic Power | 5.5 KW |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Size | 6000 × 1650 × 1650 mm |
| Weight | Approx. 6T |
| Control System | PLC (multi-language, touchscreen) |
Smart Automation for Higher Productivity
Automation plays a central role in this machine. The PLC control system allows operators to set production length, quantity, and batch numbers directly through a touchscreen interface. This not only simplifies operation but also ensures consistent output across long production runs.

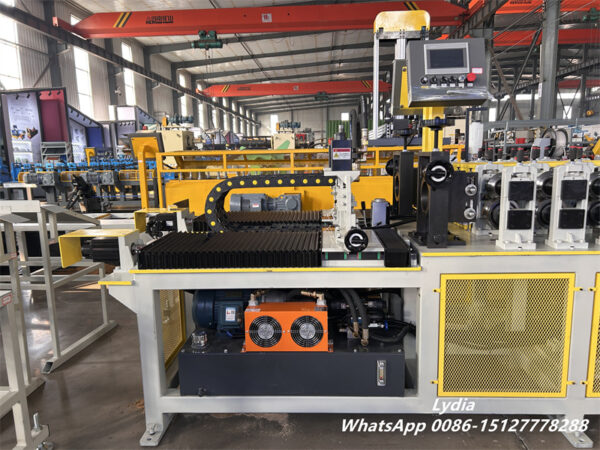

In addition, the servo fly cutting system enables high-speed, non-stop cutting, which significantly improves efficiency compared to traditional stop-cut methods. Combined with automatic lubrication and a temperature-monitored hydraulic station, the machine maintains stable performance even during extended operation.
Key Advantages of our 2 in 1 Omega & Angle Roll Forming Machine
From a business perspective, this machine is designed to reduce cost while increasing output. First, its dual-function design saves both equipment investment and factory space. Instead of purchasing two separate machines, you get a combined solution with equal capability.
At the same time, the system supports customized production. Whether you need omega + U channel, omega + C channel, or angle bead combinations, the machine can be tailored to your specific market requirements.
Additionally, built-in quality control features help detect production deviations in real time, ensuring that finished profiles meet construction standards. This reduces material waste and minimizes rework.
Angle and Omega 2 in 1 roll forming machine popular sell in many countries, we sell lots of such machine to Kyrgyzstan, Uzberkistan, Tajikistan, Ukraine, etc
Product thickness common between 0.3-0.6 mm, it use for Ceiling, work with Angle bead machine, C channel machine, U channel machine, Omega profile machine and T grid machine To save space and price, some customer like to choose 2 in 1 roll forming machine, it means one machine can produce 2 shapes products. We can customize machine as your need, like
1. Omega profile and u channel 2 in 1 roll forming machine
2. Omega profile and Angle bead 2 in 1 roll forming machine
3. Omega profile and C channel 2 in 1 roll forming machine
4. CD and UD 2 in 1 roll forming machine
5. C channel and angel bead 2 in 1 roll forming machine
6. Angle bead and u stud 2 in 1 roll forming machine
Customized is welcome, tell me your need size and thickness, we provide you satisfied machine
