In today’s rapidly developing logistics and warehousing industry, durable pallet racking systems play a vital role in improving storage efficiency and operational management. Our Pallet Rack Upright & Step Beam Roll Forming Machine is specially designed for manufacturing upright frames, box beams, and step beams used in heavy-duty warehouse racking systems. By combining intelligent automation, high forming precision, and flexible size adjustment, this production line helps customers manufacture high-quality rack components with greater efficiency and lower labor costs.
Intellgent Automatic Adjustment System for Multiple Profile Sizes
Unlike traditional roll forming machines that require manual spacer replacement and complicated tooling adjustments, our intelligent pallet rack roll forming machine allows operators to change profile dimensions directly through the PLC touchscreen control system. After entering the required profile data, the machine automatically adjusts the width and height through motor-driven positioning systems within only a few seconds.
As a result, manufacturers can produce different rack specifications on one machine while greatly reducing downtime and improving production flexibility. The cantilever structure design further improves forming stability and makes machine maintenance more convenient.
The machine is suitable for processing a wide range of raw materials, including cold-rolled steel, galvanized coil, carbon steel, stainless steel, aluminum, and PPGI. Material thickness ranges from 1.5mm to 3.0mm depending on customer requirements.
Furthermore, all produced profiles can meet international standards such as ISO, CE, FEM, AISI, and RMI standards, ensuring excellent dimensional accuracy and structural reliability for warehouse storage applications.
Wide Applications in Warehouse Storage and Industrial Shelving Systems
The finished rack profiles produced by this machine are widely used in modern warehousing and logistics industries. Because pallet racking systems provide efficient space utilization and organized inventory management, they are essential for factories, distribution centers, supermarkets, and industrial storage facilities.
Typical application areas include:
- Warehouse pallet racking systems
- Supermarket storage racks
- Logistics and distribution centers
- Industrial shelving systems
- E-commerce warehouses
- Cold storage facilities
- Home and garage storage systems
In addition to upright racks and step beams, we can also supply related roll forming machines for complete pallet racking production solutions, including:

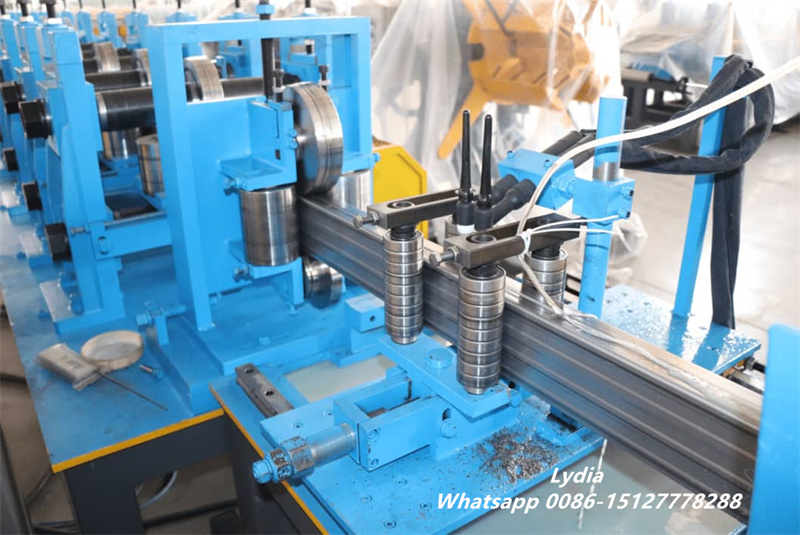

- Box Beam Roll Forming Machine
- Shelf Panel Roll Forming Machine
- Warehouse Shelf Roll Forming Machine
- Upright Rack Roll Forming Machine
- Pallet Rack Box Plate Roll Forming Machine
Therefore, customers can build a fully integrated pallet rack manufacturing line according to their factory requirements.

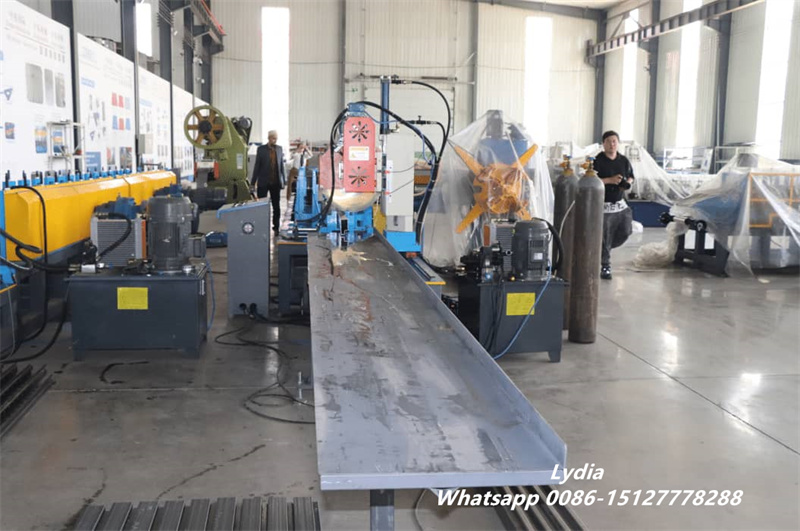

Complete Production Line with Fully Automated Working Process

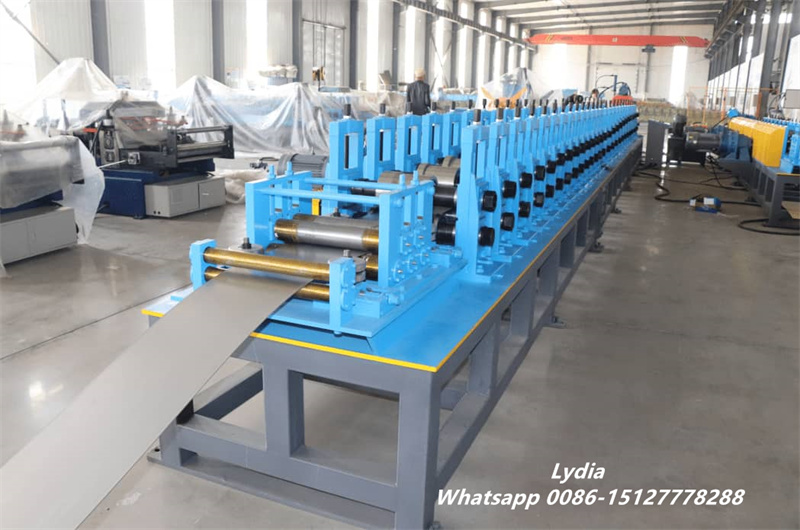

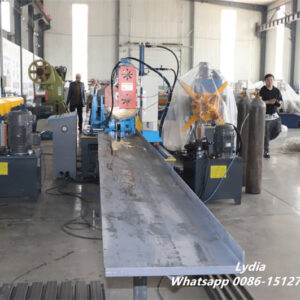

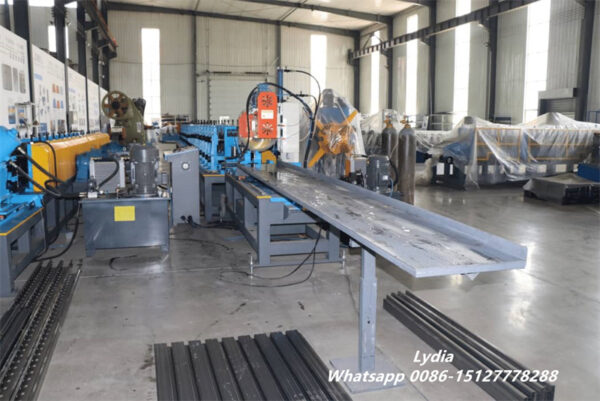

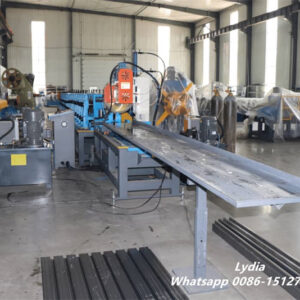

This pallet rack production line integrates multiple manufacturing procedures into one continuous automated system. From uncoiling and feeding to roll forming, welding, and cutting, every process is precisely controlled to ensure stable production quality.
The complete line generally includes:

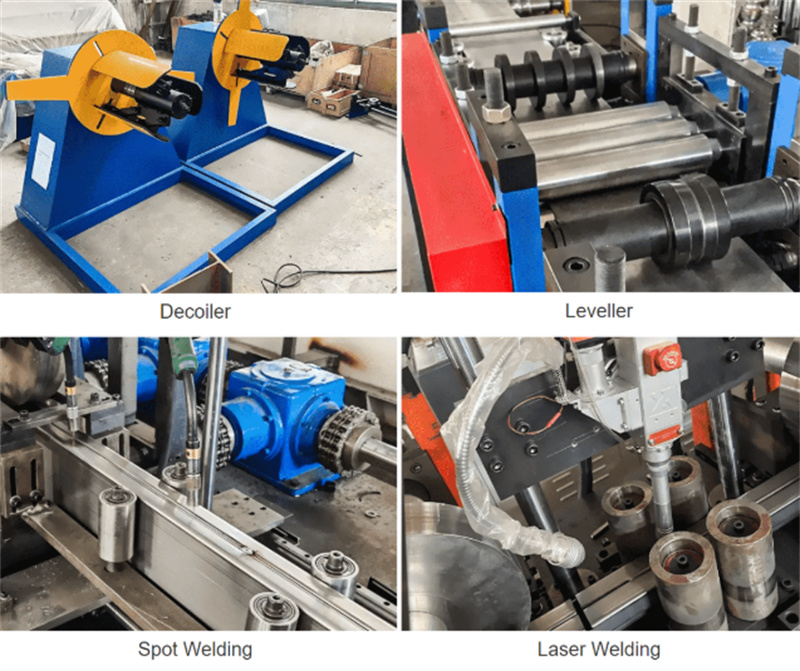

- Manual or hydraulic decoiler

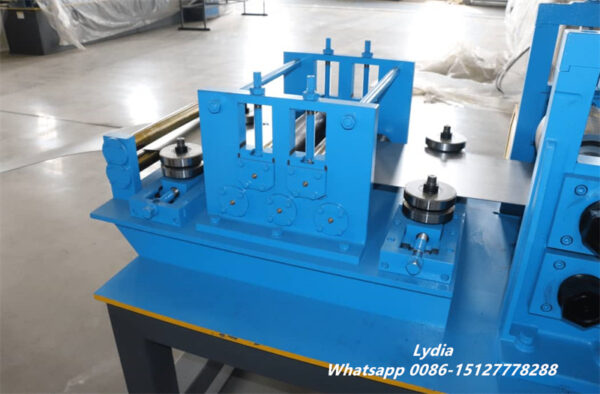

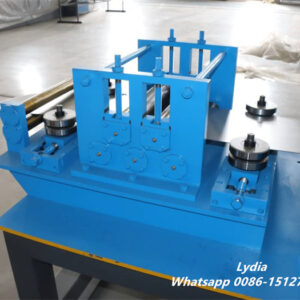

- Leveling and feeding system
- Servo feeding device
- Hydraulic punching system

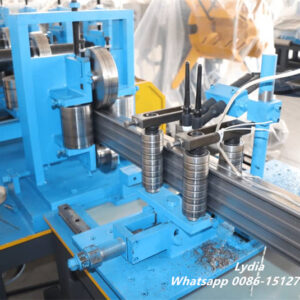

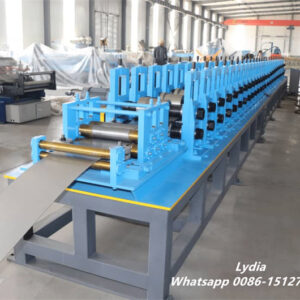

- Roll forming machine section
- Spot welding or laser welding system

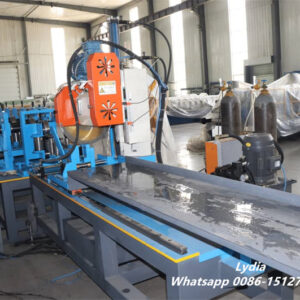

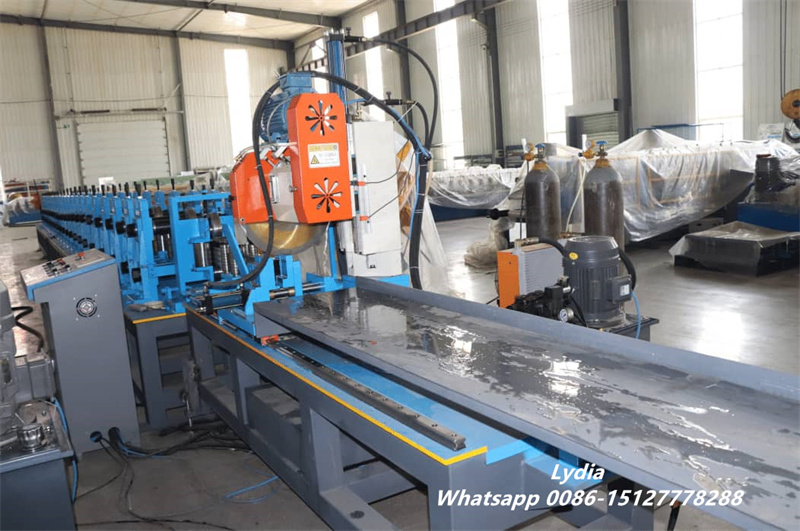

- Saw cutting or flying cutting system
- PLC control cabinet with touchscreen interface
- Automatic receiving and stacking table
Meanwhile, customers can select optional configurations according to their production capacity, profile complexity, and investment budget. Optional solutions include hydraulic decoilers, gearbox transmission systems, cast iron stands, laser welding systems, and automatic stacking systems.

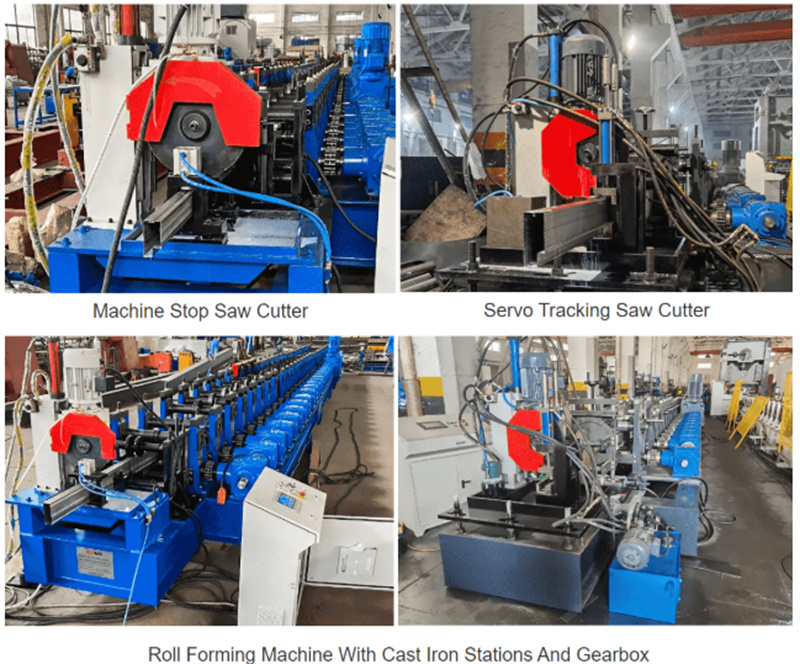

The machine structure uses welded steel plates for excellent rigidity and long-term operation stability. In addition, the forming rollers are manufactured from high-quality GCr15 steel, while Cr12Mov material is available as an optional upgrade for longer service life and improved wear resistance.
Technical Parameters of Pallet Rack Roll Forming Machine
| Item | Specification |
|---|---|
| Machine Name | Pallet Rack Upright & Step Beam Roll Forming Machine |
| Applicable Materials | Galvanized Coil, PPGI, Cold Rolled Steel, Carbon Steel, Stainless Steel, Aluminum |
| Material Thickness | 1.5mm – 3.0mm |
| Yield Strength | 250–350 MPa |
| Tensile Strength | 350–500 MPa |
| Forming Speed | 10–20m/min |
| Forming Stations | About 26 Stations |
| Transmission Type | Chain Drive / Gearbox Drive Optional |
| Machine Structure | Steel Plate Welded Structure |
| Roller Material | GCr15 / Cr12Mov Optional |
| Welding Method | Spot Welding / Laser Welding |
| Cutting Method | Saw Cutting / Flying Cutting |
| Control System | PLC Automatic Control |
| Voltage | 380V 50Hz 3Phase or Customized |
| Machine Color | Industrial Blue or Customized |
High-Strength Rack Components with Excellent Load Capacity

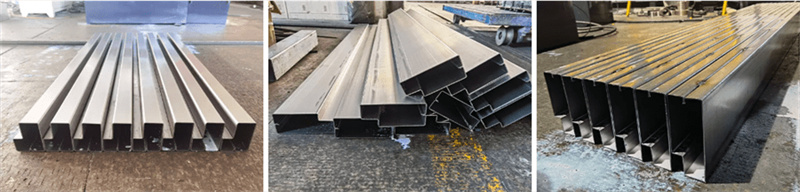

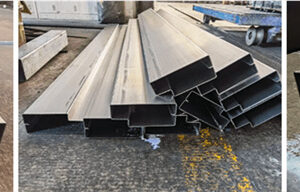

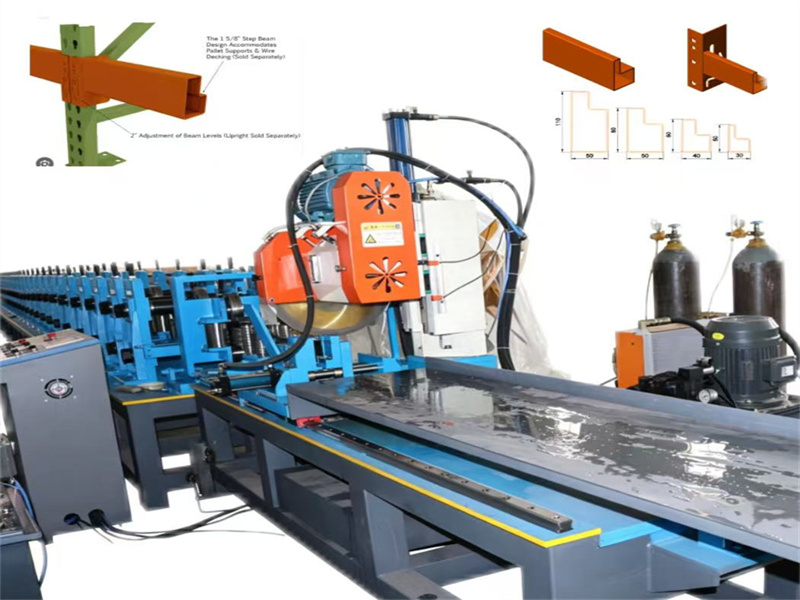

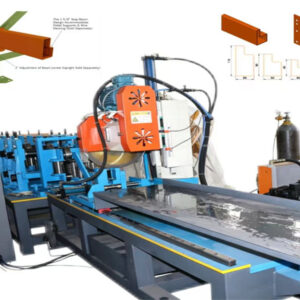

The produced step beams and upright racks are widely used in pallet storage systems because of their strong structural performance and flexible installation advantages. The step beam adopts one-piece tubular construction combined with continuous seam welding technology, which significantly improves beam strength and overall durability.
Additionally, the step beam design allows the installation of cross bars, sheet metal panels, and wire decking systems. Beam safety locks are permanently fixed at both ends to improve safety during warehouse operation.

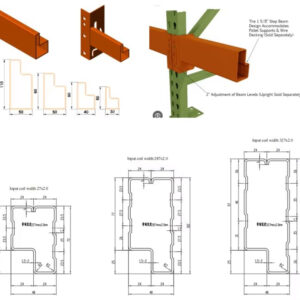

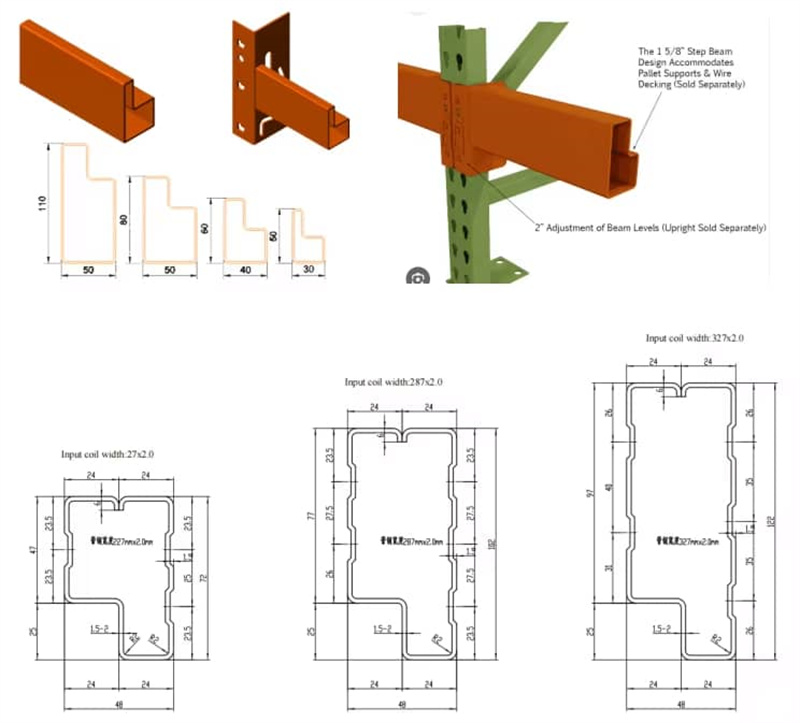

The upright frames feature precision punching holes that allow flexible beam adjustment at 2-inch intervals, making the rack system suitable for different pallet heights and storage requirements. Tolerance accuracy can be controlled within 7/1000ths of an inch, ensuring stable assembly performance and reliable structural alignment.
Load ratings are calculated based on uniformly distributed loads per pair of beams, following AISI 1996 and RMI 1997 standards. Moreover, standard foot plates are included for secure floor installation.
To improve environmental protection and product appearance, the rack surface coating uses high-quality polyurethane paint that is lead-free and environmentally friendly.
Professional Customized Solutions and Global Export Experience
We provide professional customized solutions according to customer drawings, profile dimensions, tolerance requirements, production capacity, and investment plans. Our engineering team offers one-to-one technical support throughout machine design, manufacturing, installation, commissioning, and after-sales service.
With years of experience in the roll forming industry, we have successfully exported pallet racking roll forming machines to many countries, including Pakistan, Mexico, Peru, Egypt, Australia, and the United Kingdom. Our machines are widely recognized for their stable operation, accurate forming performance, and long service life.
No matter whether customers require high-speed automatic production lines or cost-effective customized solutions, we are committed to delivering reliable roll forming equipment that helps improve productivity and reduce manufacturing costs.
What is a Beam Roll Forming Machine?
A beam roll forming machine is a type of industrial equipment used for manufacturing structural beams with consistent dimensions and profile accuracy. These beams are commonly used in construction projects, warehouse storage systems, and industrial shelving applications where strong load-bearing performance is required.
The roll forming process begins by feeding a metal strip through multiple forming stations. Each roller station gradually bends and shapes the material until the required beam profile is achieved. Since the process operates continuously, the machine can efficiently produce beams in large quantities while maintaining stable product quality.
A standard beam roll forming machine usually includes:
- Decoiler for holding metal coils
- Leveling device for material straightening
- Servo feeding system
- Roll forming stations
- Punching system
- Welding system
- Hydraulic or flying cutting device
Additionally, some production lines may include marking systems, automatic stacking systems, and profile punching units for additional processing requirements.
Depending on the final application, beam roll forming machines can manufacture different beam types such as step beams, box beams, C beams, and other customized structural profiles.
Functions of a Pallet Rack Roll Forming Machine
A pallet rack roll forming machine is mainly used to produce the structural components of pallet racking systems used in warehouses and logistics centers. These systems help companies store palletized goods safely while maximizing vertical storage space.
The machine performs several important manufacturing functions during production.
First, the roll forming section gradually shapes flat metal strips into upright frames and horizontal beams with precise profile dimensions.
Second, the cutting system cuts the finished profiles to the required lengths automatically, ensuring consistent product accuracy and production efficiency.
Third, the punching system creates installation holes used for beam connectors, safety locks, or accessory installation.
Moreover, some machines also include shearing and notching functions, allowing manufacturers to produce customized structural details or connection positions according to project requirements.
By automating these manufacturing procedures, the pallet rack roll forming machine greatly improves production speed, reduces manual labor, and ensures stable product quality for large-scale warehouse storage projects.
Main Products Produced by Rack Roll Forming Machines
Rack roll forming machines are widely used for manufacturing various storage rack components used in warehouse and shelving systems. Different roll forming lines can produce different structural parts depending on customer requirements.
The main products include upright frames, which serve as the vertical support structures of the rack system. These frames are manufactured in different heights, widths, and thicknesses according to load capacity requirements.
Horizontal beams are another major product. These beams connect the upright frames and support palletized goods. Different beam sizes and load capacities can be produced for various storage applications.
Diagonal braces are also commonly produced to improve rack stability and reduce lateral movement within the storage structure.
In addition, shelf panels and wire decking systems are widely used in warehouse shelving systems because they provide strong support surfaces while allowing ventilation and light penetration.
Besides the main structural components, rack roll forming machines can also manufacture accessories such as safety pins, beam connectors, labels, end caps, and fastening components required for rack assembly and installation.
Because of this production flexibility, rack roll forming machines have become an essential manufacturing solution for modern warehouse storage equipment industries.
