Have you ever wondered how thousands of meters of perfectly shaped cable trays are produced every day for factories, commercial buildings, data centers, and power projects?The answer lies in a Cable Tray Roll Forming Machine—a highly automated production system designed to transform metal coils into precise and durable cable tray products with exceptional speed and consistency.Instead of relying on multiple standalone machines and labor-intensive operations, modern roll forming technology integrates feeding, leveling, punching, forming, cutting, and collection into one continuous process. As a result, manufacturers can significantly increase production capacity while maintaining outstanding product quality.Whether you produce perforated cable trays, solid-bottom trays, ladder cable trays, or customized cable support systems, a professional cable tray production line can help you meet growing market demand while reducing manufacturing costs.
Why Is the Global Demand for Cable Trays Growing So Rapidly?

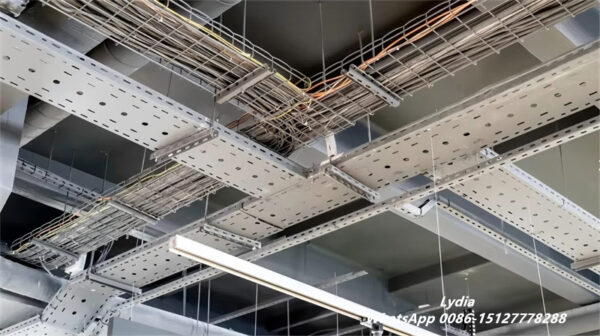

Today, electrical cables are everywhere. From industrial facilities to renewable energy projects, every modern infrastructure requires safe and organized cable management systems.
As investment in power distribution, telecommunications, and smart buildings continues to increase, the demand for high-quality cable trays also rises.
Common Application Industries
- Industrial manufacturing plants
- Commercial buildings and shopping centers
- Hospitals and educational facilities
- Data centers and communication networks
- Solar power stations
- Wind energy projects

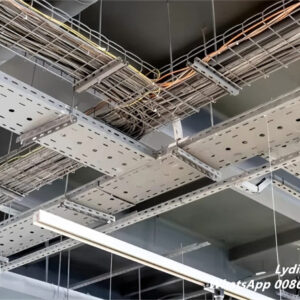

Whenever electrical cables need protection and organization, cable trays become an indispensable solution.
Technical Specifications of the Cable Tray Roll Forming Machine
The production line can be customized according to customer requirements, material specifications, and finished product designs.
| Item | Specification |
|---|---|
| Material Type | GI, PPGI, Stainless Steel, Aluminum |
| Material Thickness | 0.8–2.5 mm |
| Coil Width | Customized |
| Forming Stations | 24–32 Stations |
| Roller Material | Cr12 / 45# Steel with Hard Chrome Coating |
| Shaft Diameter | 80–90 mm |
| Main Motor Power | 7.5–22 KW |
| Hydraulic Power | 5.5–11 KW |
| Cutting Type | Hydraulic Servo Flying Cut |
| Control System | PLC Automatic Control |
| Production Speed | 15–30 m/min |
| Voltage | Customized According to Local Standard |
The exact configuration can be tailored to match specific cable tray profiles and production capacity requirements.

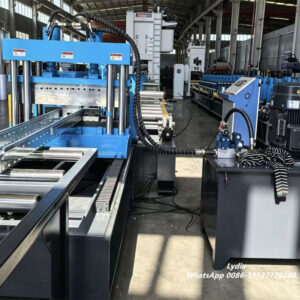

How Does a Fully Automatic Cable Tray Production Line Improve Productivity?
Many manufacturers still use traditional fabrication methods involving separate punching, bending, and cutting processes. However, this approach often creates bottlenecks that limit output and increase labor costs.

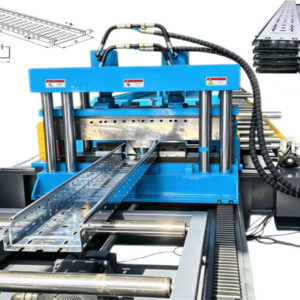

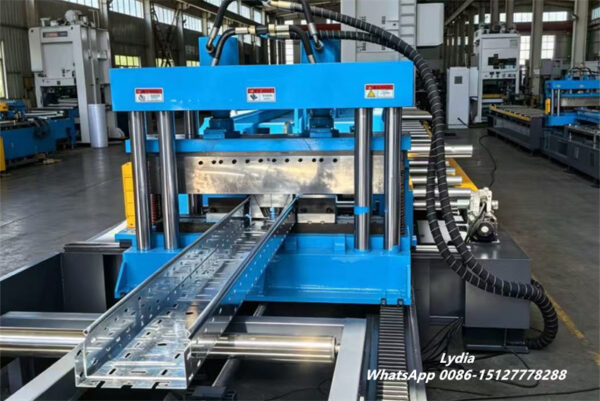

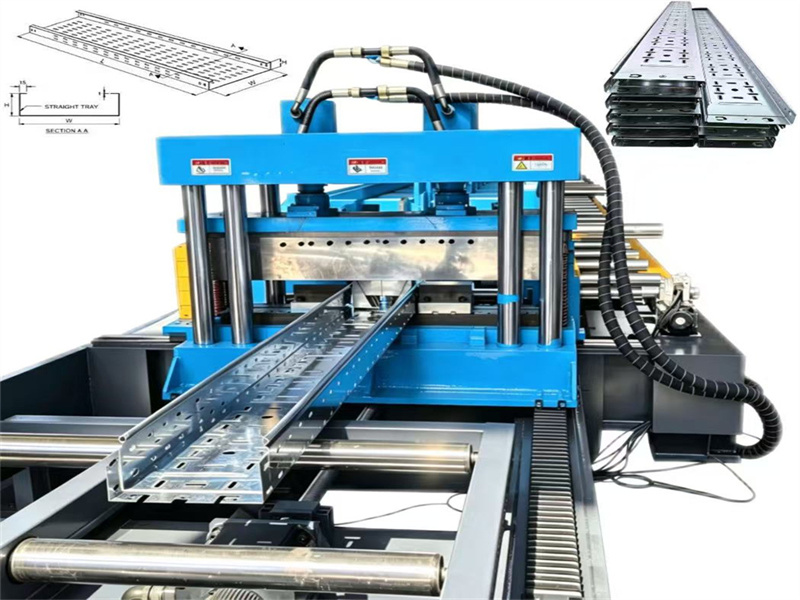

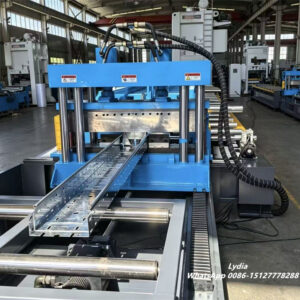

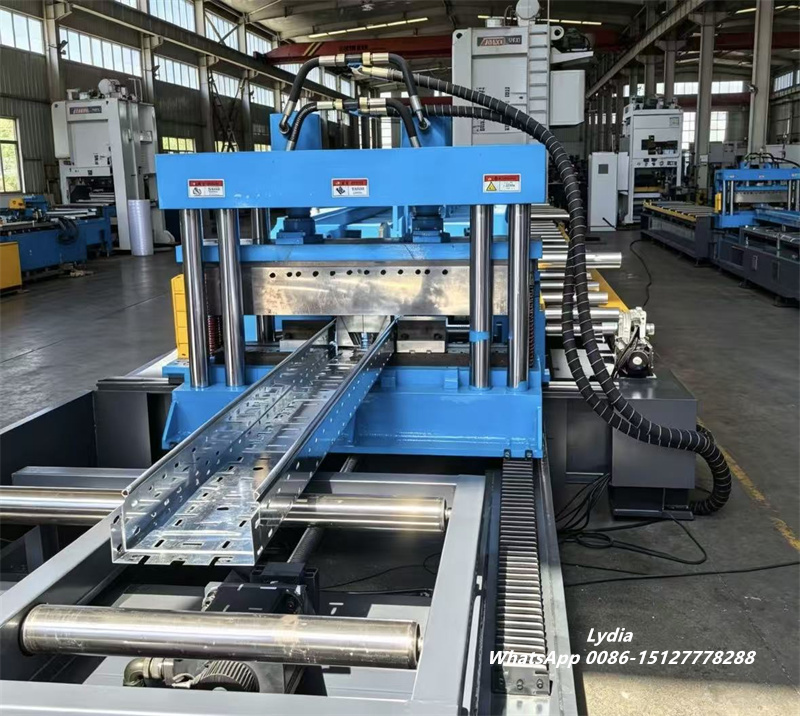

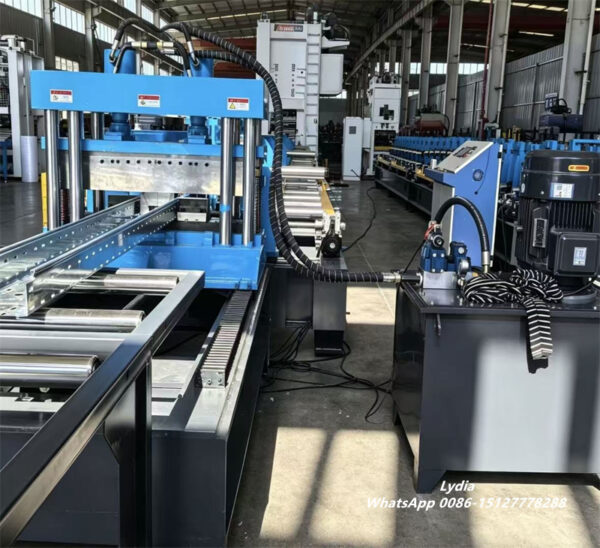

A modern Cable Tray Roll Forming Machine solves these challenges by creating a continuous manufacturing workflow.

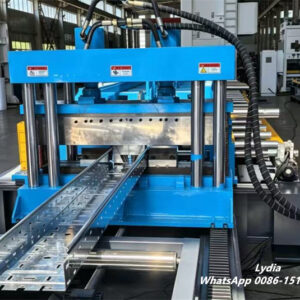

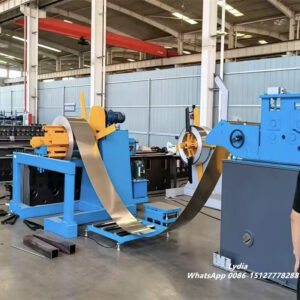

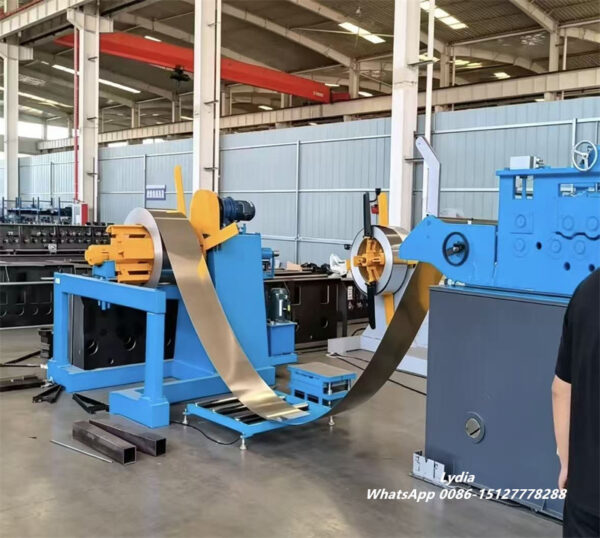

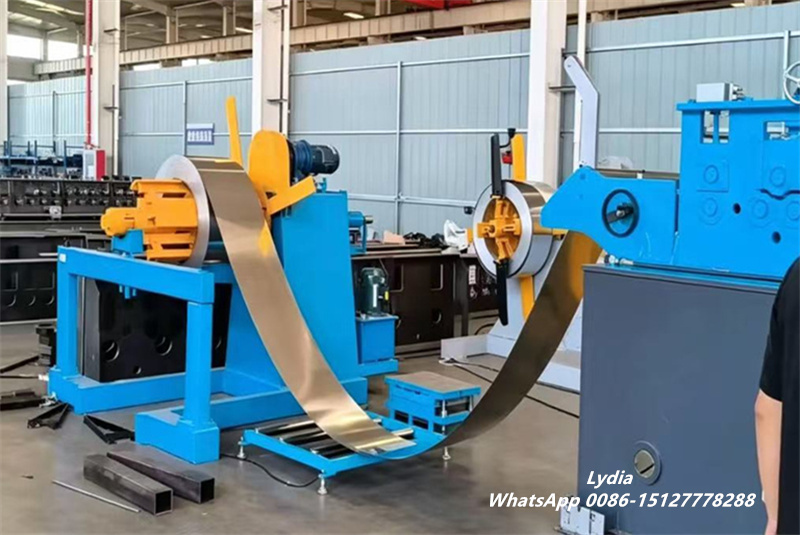

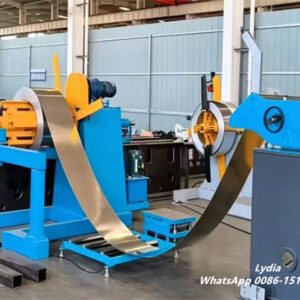

First, the hydraulic decoiler automatically feeds the coil material into the leveling system. Next, the servo punching unit accurately creates mounting holes, ventilation openings, or customized patterns. Then, the roll forming section gradually shapes the material into the required cable tray profile. Finally, the hydraulic cutting system cuts the product to the programmed length before the automatic stacking system collects finished trays.
Because the entire process operates automatically, manufacturers can reduce manual intervention, minimize material waste, and maintain stable production around the clock.
Consequently, production efficiency improves dramatically while operating costs decrease.
Can One Machine Produce Different Types of Cable Trays?
This is one of the most frequently asked questions from customers.
The answer is yes.
Modern cable tray roll-forming equipment is designed with flexibility in mind. Through adjustable tooling and intelligent control systems, manufacturers can quickly switch between multiple cable tray designs without lengthy downtime.

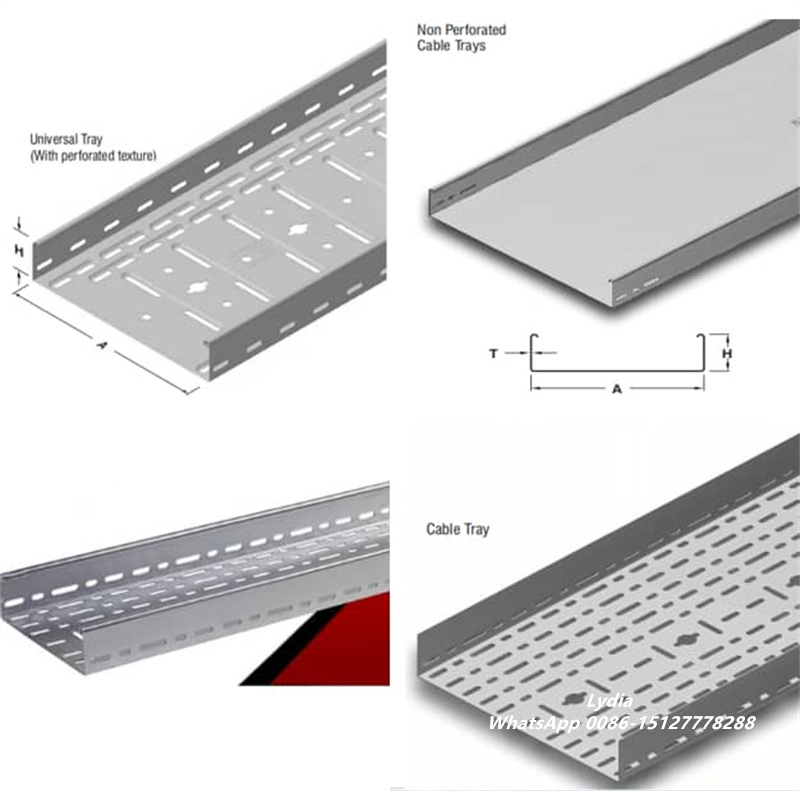

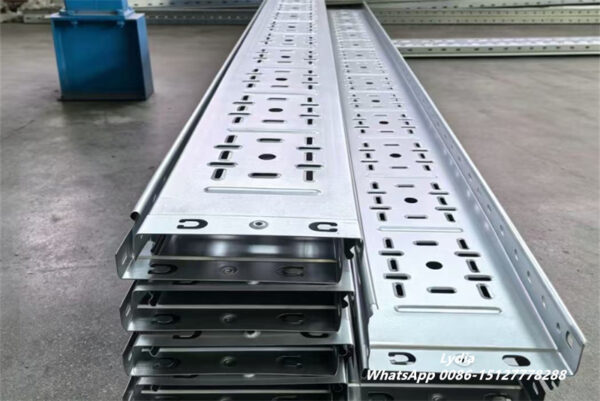

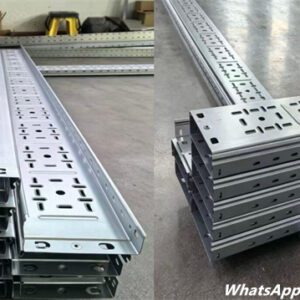

The machine can produce:

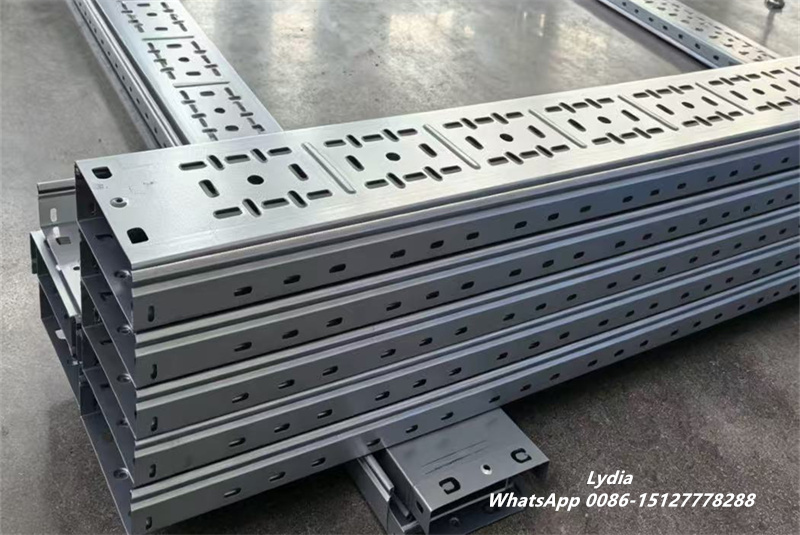

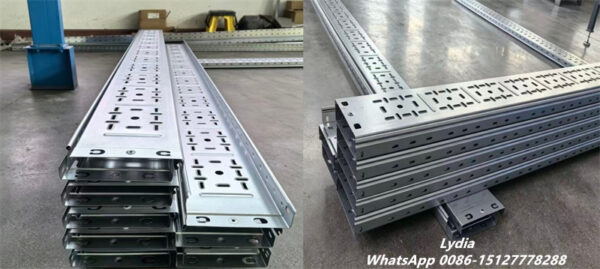

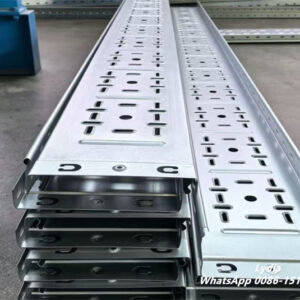

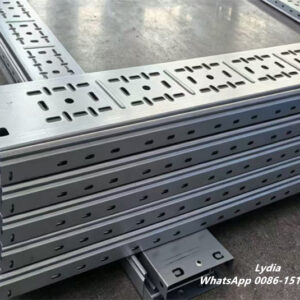

- Perforated Cable Trays
- Solid Bottom Cable Trays
- Ladder Cable Trays
- Trough Cable Trays
- Wire Mesh Support Components
- Customized Cable Management Profiles
Furthermore, PLC-controlled parameter settings simplify size adjustments, allowing operators to change dimensions quickly and accurately.
This flexibility enables manufacturers to serve a wider range of industries while maximizing equipment utilization.
Why Are More Manufacturers Upgrading to Automatic Cable Tray Roll Forming Machines?
The market has become increasingly competitive. Customers demand faster delivery times, higher product quality, and more customized solutions.
To stay ahead, manufacturers need equipment that delivers both precision and efficiency.
A high-performance Cable Tray Roll Forming Machine offers several significant advantages:
Higher production output with continuous operation
Consistent dimensional accuracy throughout large production runs
Reduced labor requirements and operating expenses
Lower material waste and improved material utilization
Stable quality that meets international engineering standards
Long equipment lifespan with minimal maintenance requirements
Most importantly, automated production helps businesses accept larger orders confidently while maintaining reliable delivery schedules.
Ready to Expand Your Cable Tray Manufacturing Business?
If your current production process struggles with low efficiency, inconsistent quality, or rising labor costs, it may be time to upgrade your manufacturing capabilities.
A modern Cable Tray Roll Forming Machine can help you increase output, improve product consistency, and strengthen your competitiveness in the growing cable management industry.
Whether you are launching a new cable tray manufacturing plant or expanding an existing production facility, we can provide a customized solution tailored to your market requirements, product specifications, and production goals.
Contact us today to receive your exclusive production-line proposal and discover how automated cable-tray manufacturing can transform your business.
