Metal roofing systems have become increasingly popular in modern construction due to their durability, weather resistance, and long service life. Compared with traditional roofing materials, metal roofs offer stronger protection against harsh environmental conditions such as heavy rain, snow, and strong winds. However, a complete roofing system requires more than metal panels alone. Properly designed roof accessories are equally important for ensuring structural safety and long-term performance.
Among these accessories, ridge caps play a critical role in protecting the roof ridge where two roof surfaces meet. Therefore, manufacturers need reliable equipment to produce these components efficiently. The Metal Roof Ridge Cap Roll Forming Machine is specifically designed to manufacture ridge caps automatically and with high precision.
This equipment forms metal coils into ridge cap profiles through continuous roll forming technology. As a result, manufacturers can produce large quantities of ridge caps with consistent dimensions and excellent surface quality.
Importance of Ridge Caps in Metal Roofing
The ridge area is one of the most sensitive parts of a roofing system. It is the line where two inclined roof surfaces meet at the highest point of the building. Because this area is constantly exposed to rainwater and wind, it must be properly sealed to prevent water leakage.

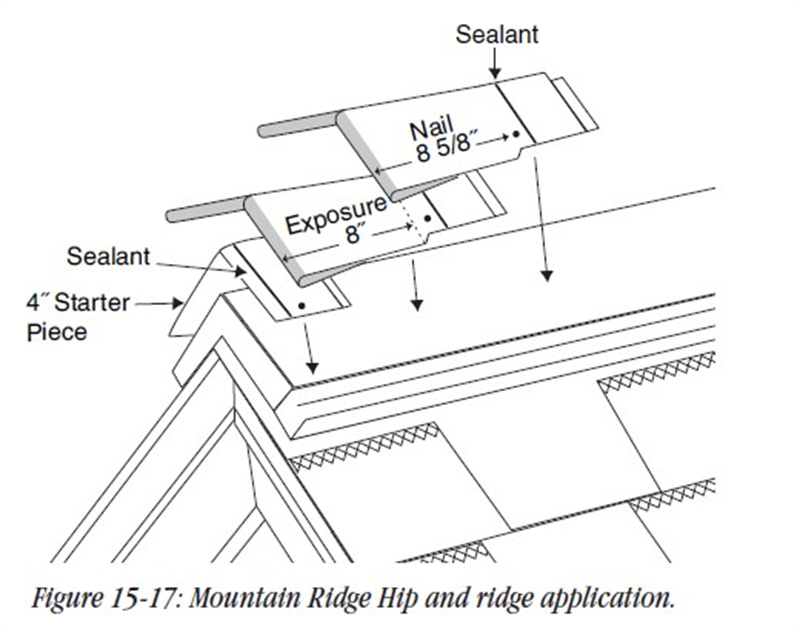

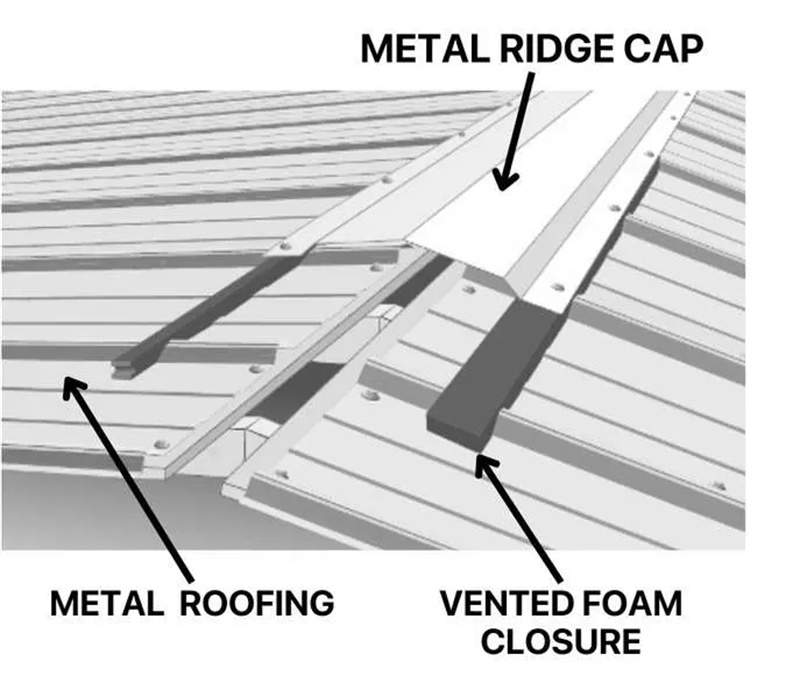

Ridge caps are installed along the roof ridge to cover this joint and overlap the roofing panels on both sides. In addition, ridge caps improve the overall appearance of the roof by creating a clean and uniform finish.
In the past, roof installers sometimes cut regular shingles into smaller pieces and bent them over the ridge to create basic protection. However, this method required more labor and often produced inconsistent results. Today, factory-produced ridge caps provide better sealing performance, stronger wind resistance, and improved durability.
Consequently, many roofing manufacturers prefer to produce ridge caps using automated roll forming machines.
Working Principle of the Ridge Cap Roll Forming Machine
The metal roof ridge cap machine uses advanced roll forming technology to shape metal sheets into ridge cap profiles gradually. First, the decoiler holds the metal coil and releases the sheet material smoothly. Then, the feeding system guides the material into the roll forming section.
Inside the forming section, multiple roller stations progressively bend the metal sheet until it reaches the desired ridge cap shape. Meanwhile, the PLC control system monitors the entire process and allows operators to adjust production parameters easily.
After the profile is fully formed, the hydraulic cutting system automatically cuts the product to the preset length. Finally, the finished ridge caps move to the receiving table for collection.
Because the machine operates automatically, manufacturers can maintain stable production while reducing manual labor.
Main Components of the Ridge Cap Machine
A typical ridge cap roll forming machine includes several important components that work together to ensure efficient production.

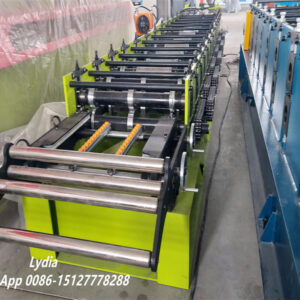

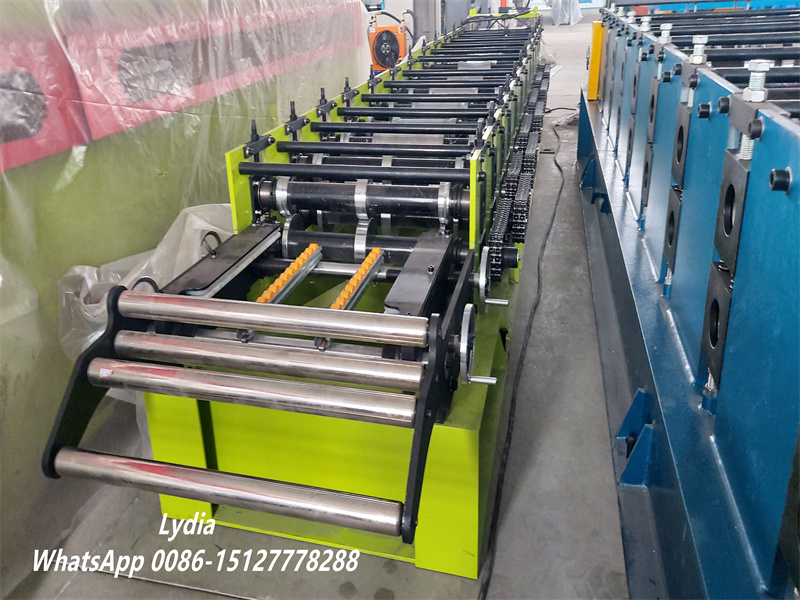

The decoiler supports the metal coil and performs the uncoiling process. The feeding platform ensures that the sheet enters the forming rollers smoothly and accurately.

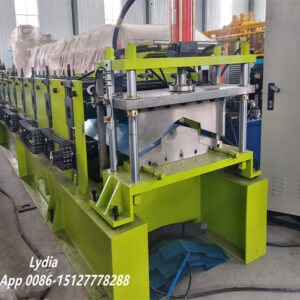

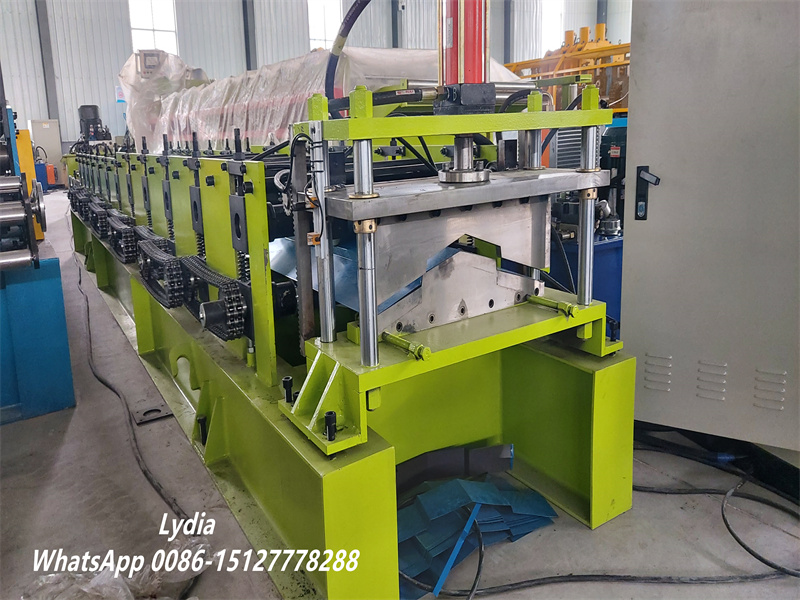

The roll forming system is the core part of the machine. It contains multiple forming stations that gradually shape the metal sheet into ridge cap profiles. Meanwhile, the hydraulic cutting system provides accurate length cutting without damaging the formed product.
The PLC control system controls the entire machine. Operators can easily set production length, quantity, and speed through the touch screen interface. Finally, the product receiving table collects the finished ridge caps for packaging or further processing.
Optional equipment such as hydraulic decoilers or automatic stacking systems can also be added according to customer requirements.
Below is a typical technical specification table for a metal roof ridge cap roll forming machine.
| Item | Specification |
|---|---|
| Raw Material | Galvanized steel / color coated steel |
| Coil Width | 315 mm / 460 mm |
| Material Thickness | 0.35 – 0.8 mm |
| Forming Speed | 0 – 12 m/min |
| Roller Material | 45# high quality steel with hard chrome coating |
| Shaft Material | 45# high strength round steel |
| Control System | Industrial PLC control with touch screen |
| Cutting Method | Hydraulic cutting |
| Customization | Available based on customer profile drawing |
Advantages of Using a Ridge Cap Roll Forming Machine
Manufacturers choose ridge cap roll forming machines because they offer several practical advantages.
First, the machine enables continuous automatic production, which significantly improves manufacturing efficiency. In addition, the PLC control system makes the machine easy to operate and reduces dependence on skilled labor.
Second, the roll forming process ensures high precision and consistent product quality. Each ridge cap produced by the machine maintains uniform dimensions, which simplifies roof installation.
Furthermore, the equipment minimizes material waste and reduces production costs. Because the machine is designed for long-term industrial use, it also provides stable operation and low maintenance requirements.
Finally, manufacturers can customize the machine to produce different ridge cap shapes according to project needs.
The metal roof ridge cap machine is widely used in many construction-related industries.
For example, roofing manufacturers use this machine to produce ridge caps for steel roof panel systems. Steel structure companies also rely on these machines when manufacturing roofing accessories for prefabricated buildings.
Typical applications include:
- Industrial factory buildings
- Residential houses
- Warehouses and storage buildings
- Agricultural buildings
- Steel structure workshops
- Prefabricated metal buildings
Because ridge caps are essential components in roofing structures, the demand for this equipment continues to grow worldwide.
FAQ – Metal Roof Ridge Cap Roll Forming Machine
1. What materials can the ridge cap machine process?
The machine can process galvanized steel, color coated steel, galvalume steel, and aluminum coils commonly used in metal roofing systems.
2. What is the production speed of the machine?
The typical production speed ranges from 0 to 12 meters per minute, depending on the profile design and material thickness.
3. Can the machine produce different ridge cap designs?
Yes. The roll forming machine can be customized according to customer drawings to produce different ridge cap profiles and sizes.
4. Is the machine easy to operate?
Yes. The machine uses a PLC control system with a touch screen interface. Operators can easily set product length, production quantity, and speed.
5. What industries use ridge cap roll forming machines?
This machine is widely used in roofing manufacturing, steel structure production, construction material factories, and prefabricated building industries.
