Our rack upright roll forming machine provides an efficient solution for manufacturing precision storage rack columns from galvanized and high-strength steel coils. The production line combines coil feeding, leveling, punching, roll forming, cutting, and automatic output into one continuous process.
Designed for warehouse pallet racks, industrial shelving, heavy-duty storage systems, and retail racks, the machine helps manufacturers achieve consistent profiles while reducing manual operations and production costs. More importantly, we can customize the forming, punching, and cutting systems according to your rack upright drawings, hole patterns, material thickness, and production requirements.
What Is a Rack Upright Roll Forming Machine?
A rack upright roll forming machine converts flat steel strips into finished rack columns through a series of precisely arranged forming rollers. Unlike conventional fabrication methods that require multiple independent processes, this automated line integrates forming and punching to create a continuous production workflow.
First, the decoiler feeds the steel coil into the line. Then, the leveling and feeding units stabilize the material before the punching system creates the required connection holes. After that, multiple forming stands gradually shape the strip into the required upright profile. Finally, the cutting system separates each finished column according to the programmed length.
As a result, manufacturers can produce large quantities of rack uprights with stable dimensions, repeatable hole positions, and efficient material utilization.
How the Rack Upright Roll Forming Line Works

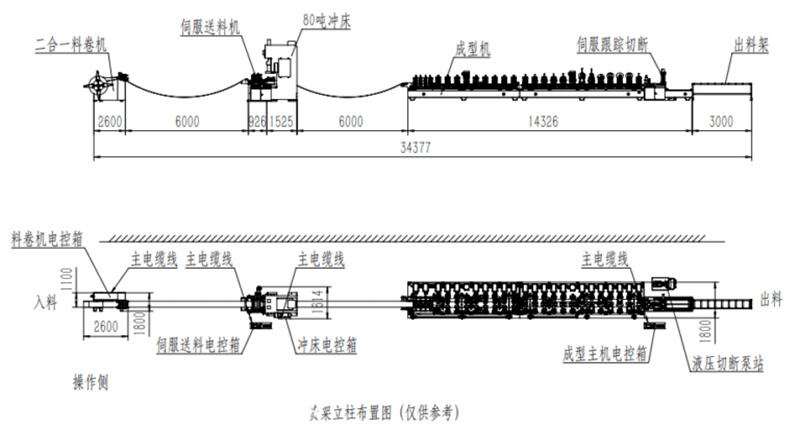

The complete production process follows a coordinated sequence:
Hydraulic Decoiler: Holds and releases the steel coil smoothly while maintaining stable material feeding.
Leveling Unit: Removes coil deformation and prepares the strip for accurate punching and forming.
Servo Feeding System: Controls the feeding distance precisely, which is especially important when the upright requires regularly spaced holes.

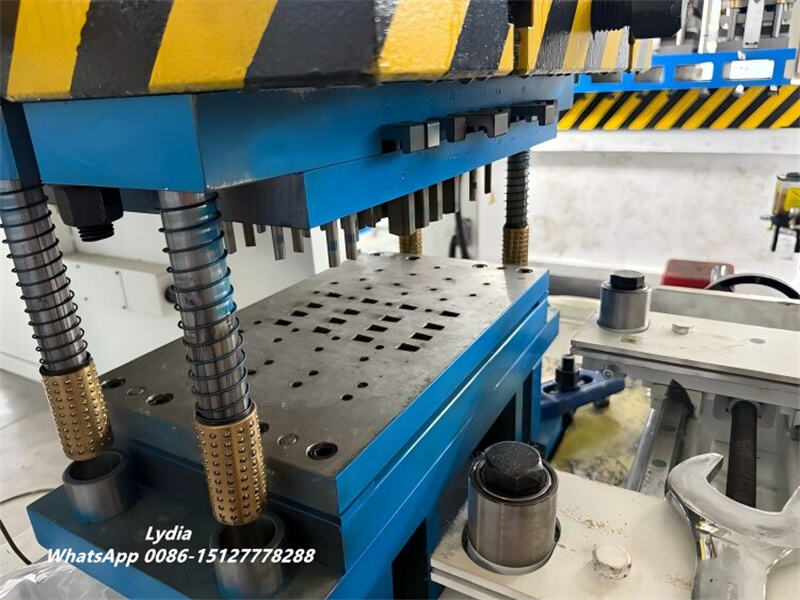

Punching Station: Creates round, diamond, teardrop, or other customized hole patterns for connecting rack beams and accessories.

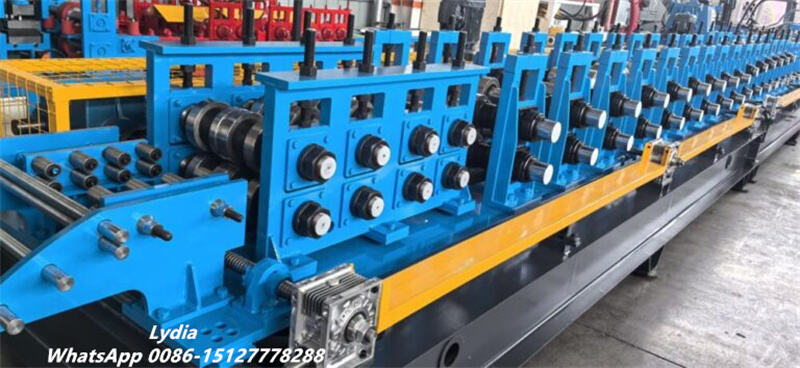

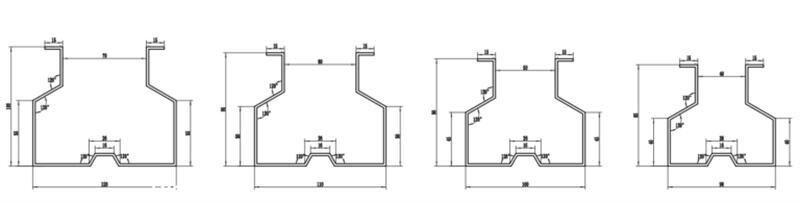

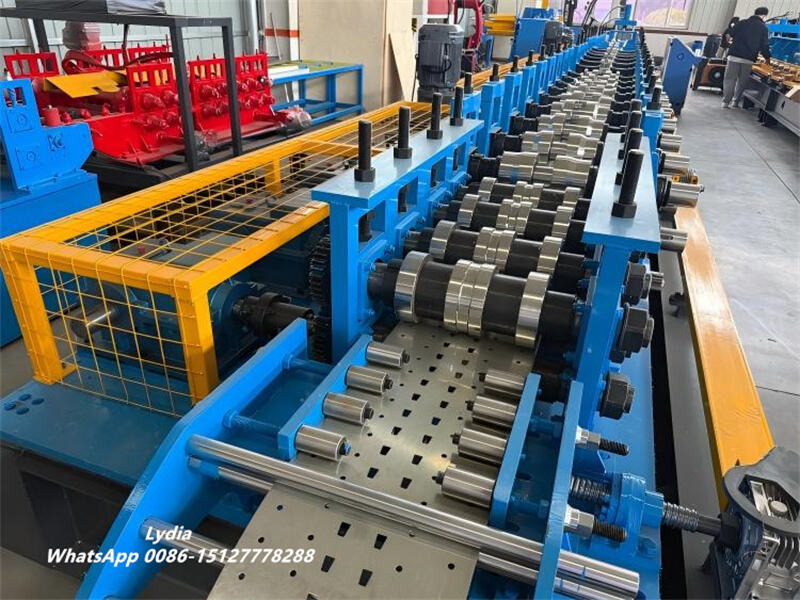

Roll Forming Section: Uses multiple forming stands to gradually bend the steel strip into C-type, Ω-type, or other customized rack upright profiles.

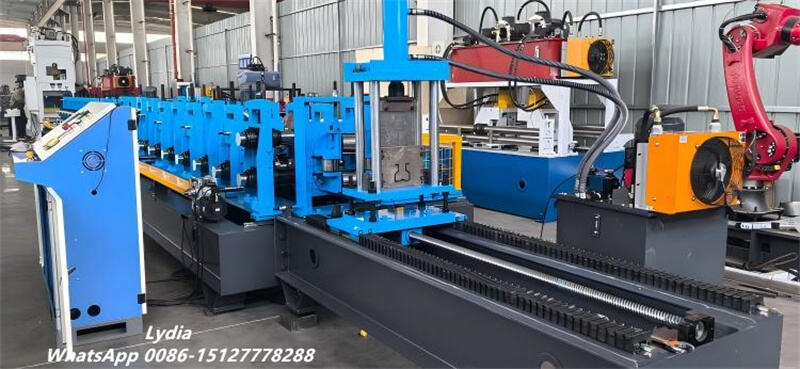

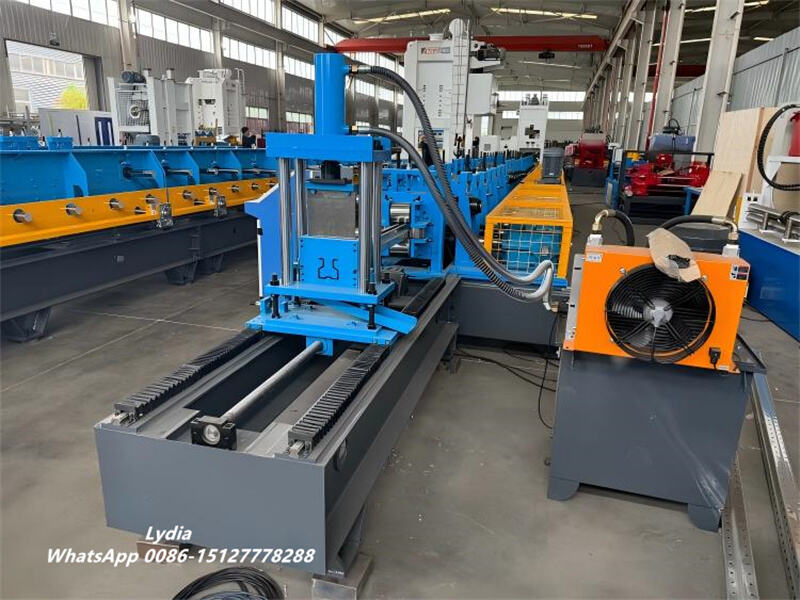

Flying Cutting System: Cuts the formed profile to the programmed length without requiring the entire line to stop.
Run-Out Table: Transfers finished rack columns for collection, inspection, bundling, or further processing.
This continuous workflow improves production efficiency while minimizing unnecessary manual handling.
Key Features and Technical Parameters
The machine uses a heavy-duty welded frame to maintain stability during continuous production. Meanwhile, precision-machined rollers help control the profile dimensions and reduce deformation during forming.

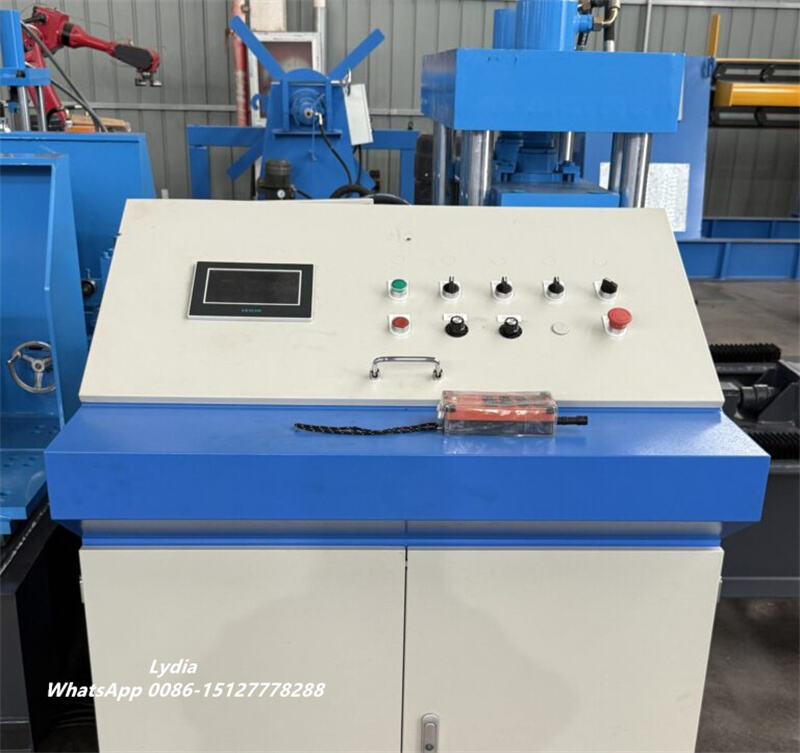

For demanding production environments, manufacturers can select hardened Cr12MoV forming rollers or other suitable materials according to the required steel grade and thickness. The PLC control system also allows operators to enter production parameters through a touchscreen and monitor the machine during operation.
| Item | Reference Specification |
|---|---|
| Applicable Material | Galvanized steel, cold-rolled steel, high-strength steel |
| Material Thickness | 1.5–3.0 mm, customizable up to 4.0 mm |
| Forming Speed | 10–20 m/min |
| Forming Stations | 18–26 stations |
| Punching System | Hydraulic / servo-controlled punching |
| Punching Accuracy | Up to ±0.5 mm |
| Cutting Accuracy | Up to ±1.0 mm |
| Main Motor Power | Approx. 15–30 kW |
| Control System | PLC + Touch Screen |
| Machine Weight | Approx. 10–15 tons |
The actual configuration can vary because we design the storage rack upright roll forming machine around the customer’s profile drawing, steel grade, thickness, hole shape, pitch, and required output.
Wide Applications for Storage Rack Manufacturing
The rack upright is one of the most important structural components in modern storage systems. Therefore, manufacturers can use this machine across a wide range of warehouse and shelving applications.
Heavy-Duty Pallet Racking
For warehouses handling heavy pallets, the machine produces strong upright columns that form the vertical framework of pallet racking systems. Manufacturers can customize the profile thickness and hole configuration according to the required load capacity.
Drive-In and Drive-Through Racks
Drive-in and drive-through storage systems require accurately positioned structural components. The integrated punching system creates consistent mounting holes, helping installers assemble the rack system efficiently.
Push-Back Racking
Push-back racks use inclined rails and multiple storage levels. Precision-made uprights help maintain the structural alignment of the complete racking system.
Cantilever Racking
Cantilever systems store long products such as pipes, profiles, timber, furniture materials, and construction products. Customized upright profiles can provide the required structural strength for these applications.
Industrial Warehouse Shelving
The machine can also produce columns for general industrial shelving used in factories, logistics centers, workshops, and distribution facilities. Depending on the design, manufacturers can select different profile dimensions and hole patterns.
Retail Shelving and Display Racks
Retail stores and supermarkets often require attractive and standardized shelving structures. By adjusting the profile design and punching pattern, manufacturers can produce rack uprights for display shelves, supermarket racks, and commercial storage systems.
Why Invest in Our Rack Upright Roll Forming Machine?
A well-designed production line can significantly improve both manufacturing consistency and overall productivity. Instead of relying on separate punching, forming, and cutting operations, manufacturers can connect these processes into one automated system.
We customize the machine based on your rack upright profile, allowing you to select the required punching pattern, forming structure, cutting length, and control configuration. In addition, the PLC system simplifies daily operation, while the robust frame and treated forming rollers support long-term production.
We can also provide installation guidance, operator training, production testing, and after-sales technical support. Before manufacturing, you can send us your rack upright drawings and production requirements so our engineers can recommend a suitable line configuration.
If you are looking for a reliable storage rack upright roll forming machine for pallet racks, warehouse shelving, or heavy-duty racking production, contact us with your profile drawing and required specifications. We can develop a customized solution for your production line.
Our rack upright roll forming machine can work as part of a complete warehouse storage solution together with storage rack beam roll forming machines, shelf panel roll forming machines, and storage rack system production lines.
