Modern photovoltaic mounting systems require steel channels and brackets with accurate dimensions, reliable strength, and consistent production quality. The solar channel roll forming machine is designed to manufacture a wide range of steel profiles for solar mounting structures, including strut channels, bracket channels, and other structural components.
With PLC control, servo feeding, precision roll forming, punching, sizing, and hydraulic cutting, this automated production line provides a continuous manufacturing process for photovoltaic support components. Depending on the profile design and material requirements, the machine can also be customized for different solar structure applications.
What Is a Solar Channel Roll Forming Machine?
A solar channel roll forming machine is specialized equipment used to continuously transform steel coils into finished channels and structural profiles for photovoltaic mounting systems.
Unlike conventional cutting and welding processes, roll forming gradually shapes the steel strip through a series of precision rollers. This allows manufacturers to achieve consistent profile dimensions while maintaining continuous production.
For solar mounting applications, the equipment can be configured to produce:

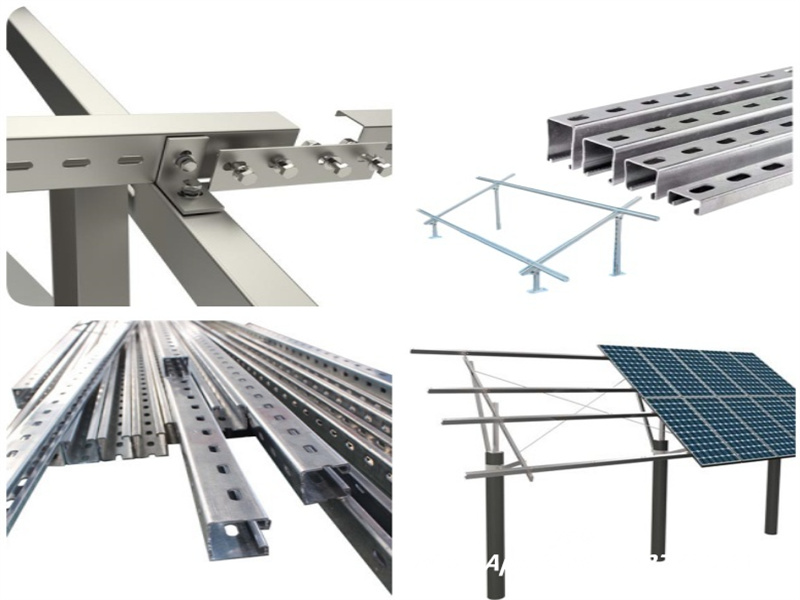

- Solar strut channels
- Solar bracket channels
- U-shaped mounting channels
- Structural support sections
- Solar purlin profiles
- Customized photovoltaic mounting profiles
The production line can be designed around the customer’s profile drawings, material thickness, hole patterns, and required output.
Solar Struct Channel Roll Forming Machine for PV Structures
A solar struct channel roll forming machine is commonly used to manufacture structural channels that connect and support photovoltaic components.
Solar structure profiles need to maintain accurate dimensions because they are assembled with brackets, bolts, clamps, rails, and other mounting components. Consistent forming therefore helps reduce fitting problems during installation.
The machine can process galvanized steel or carbon steel and can be configured for different profile widths and thicknesses. For heavier structural applications, the forming system can also be equipped with larger shafts, stronger machine frames, and higher-power drive systems.
Strut Channel Manufacturing Machine with Automated Production
The strut channel manufacturing machine integrates several processing stages into a continuous production line.
A typical workflow includes:
Decoiling → Leveling → Servo Feeding → Punching → Roll Forming → Sizing → Hydraulic Cutting → Output
The PLC system coordinates these operations and allows operators to set production parameters through the touch-screen interface.
Servo feeding provides controlled material positioning, while the punching system can create mounting holes according to the required channel design. After forming, the hydraulic cutting unit produces finished sections at the programmed length.
This integrated process reduces manual handling and is suitable for continuous production.
Solar Bracket Channel Roll Forming Machine
The solar bracket channel roll forming machine is designed for manufacturers producing steel channels used as supporting or connecting components in photovoltaic systems.
The machine can be customized according to the required bracket channel geometry. Profile width, height, lip configuration, hole arrangement, cutting length, and material thickness can all be considered during machine design.
For projects requiring different solar mounting components, multiple forming configurations can also be developed to match different profile drawings.
Solar Strut Channel Machine with Precision Forming
A solar strut channel machine needs to maintain stable forming quality over long production periods. For this reason, the forming rollers are manufactured from Cr12MoV, equivalent to SKD11/D2, providing high hardness and wear resistance.
The machine is designed to achieve forming accuracy of up to ±1 mm. This helps maintain consistent channel dimensions and improves compatibility between finished profiles and other photovoltaic mounting components.
The roller forming process also gradually shapes the steel rather than applying the entire deformation at one point, helping achieve a stable final profile.
High-Speed Solar Purlin Roll Forming Machine
For manufacturers producing heavier solar support structures, a high speed solar purlin roll forming machine can be configured for continuous production of structural purlins and related profiles.
The listed production speed range for the machine is 10–35 m/min, depending on the profile, material thickness, punching requirements, and machine configuration.
Although solar purlins and strut channels have different profile designs, the same roll forming principle can be applied to both. A customized production line can therefore be developed according to the specific structural section required by the solar project.
Solar Strut Channel Forming Machine Specifications
The following specifications represent the available configuration for this type of solar profile production line:
| Parameter | Specification |
|---|---|
| Machine Type | Solar Strut Channel Forming Machine |
| Control System | PLC + Touch Screen |
| Material | Galvanized Steel / Carbon Steel |
| Material Thickness | 1.0–8.0 mm |
| Rolling Width | 100–400 mm |
| Production Speed | 10–35 m/min |
| Main Motor Power | 55 kW / 75 kW |
| Shaft Diameter | 70 / 90 / 100 / 120 mm |
| Roller Material | Cr12MoV / SKD11 / D2 |
| Cutting System | Hydraulic Cutting |
| Processing Accuracy | ≤ ±1 mm |
| Voltage | 220V / 380V, 50Hz |
The final specifications can be modified according to the customer’s profile drawing and production requirements.
Solar Bracket Forming Machine with Hydraulic Cutting
The solar bracket forming machine combines roll forming with hydraulic cutting to create finished solar structural components automatically.
Hydraulic cutting provides sufficient cutting force for steel profiles and can be synchronized with the production line through the PLC control system. Once the required length is reached, the system automatically completes the cutting operation.
This reduces repetitive manual measuring and cutting while helping maintain consistent product dimensions.
For thicker materials and heavier solar structural profiles, the machine can also be equipped with a stronger drive system and larger shafts according to the production requirements.
PLC Control for Stable Solar Channel Production

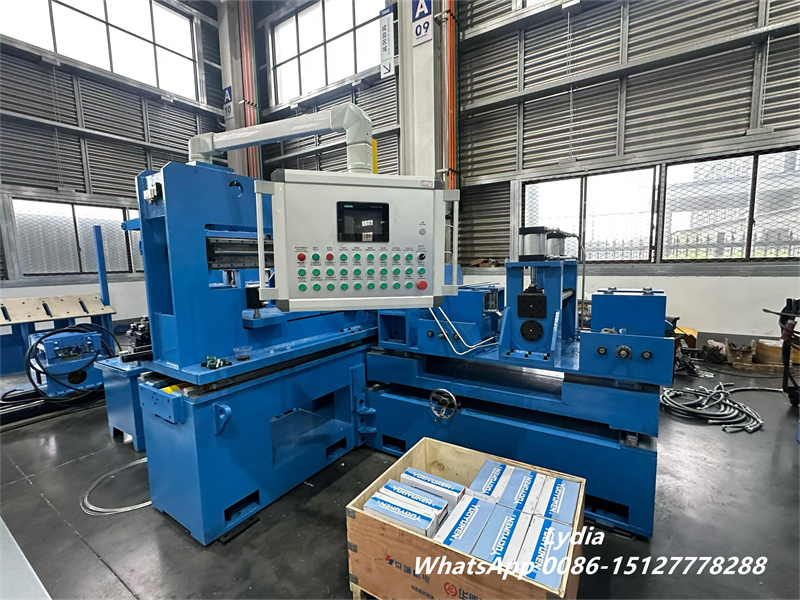

The PLC control system serves as the central control unit of the production line. Through the touch screen, operators can manage important production parameters and monitor the operating status of the equipment.
The automated system can coordinate:
- Material feeding
- Servo positioning
- Punching
- Roll forming
- Profile sizing
- Hydraulic cutting
- Production length control
This configuration makes the machine easier to operate while reducing unnecessary manual intervention.
Applications of Solar Strut and Bracket Channels
Solar channels manufactured by this type of equipment can be used across different photovoltaic installation environments.
Typical applications include:
Ground-Mounted PV Systems
Structural channels and purlins can be used to build supporting frameworks for large solar farms.
Rooftop Solar Systems
Lightweight and customized channels can provide structural support for rooftop photovoltaic installations.
Solar Carports
Formed steel profiles can be used for carport frames and panel support structures.
Agricultural Solar Structures
Customized mounting sections can be produced for agricultural and greenhouse photovoltaic projects.
Commercial PV Systems
Solar strut channels can be integrated into mounting frameworks for commercial and industrial buildings.
Customized Solar Channel Manufacturing Solution
Different solar mounting projects often use different structural profiles. A standard channel machine may therefore not meet every manufacturer’s requirements.
The production line can be customized based on:
- Profile drawing
- Channel width and height
- Material thickness
- Steel grade
- Hole dimensions and spacing
- Required cutting length
- Production speed
- Electrical standards
- Automatic punching requirements
By matching the machine configuration to the actual product design, manufacturers can obtain a more suitable solution for their solar channel production requirements.
Advantages of the Solar Channel Roll Forming System
The complete production line offers several practical advantages for solar structure manufacturers:
Continuous Production
The integrated production workflow allows steel coils to be processed continuously from decoiling to finished profile output.
High Forming Accuracy
The machine is designed to achieve accuracy of up to ±1 mm for consistent profile dimensions.
Heavy Material Capability
With a material thickness range of 1.0–8.0 mm, the equipment can be configured for both standard and heavier solar structural profiles.
Durable Rollers
Cr12MoV/SKD11/D2 rollers provide good hardness and wear resistance for long-term forming operations.
Automated Control
PLC and servo systems coordinate the main production stages and reduce manual intervention.
Flexible Customization
The machine can be designed around different solar channel, strut, bracket, and purlin profiles.
FAQ
1. What products can this solar channel roll forming machine produce?
It can be configured to produce solar strut channels, solar bracket channels, structural channels, solar purlins, and other customized photovoltaic mounting profiles.
2. What materials can be used?
The machine is suitable for galvanized steel and carbon steel. The available material thickness is approximately 1.0–8.0 mm, depending on the machine configuration.
3. What is the production speed?
The listed production speed is 10–35 m/min. Actual output depends on the profile geometry, material thickness, punching process, and cutting requirements.
4. Can the solar strut channel machine make holes automatically?
Yes. A punching system can be integrated into the production line to create holes according to the required solar channel drawing and hole pattern.
5. Can the machine be customized for different solar profiles?
Yes. The solar bracket forming machine can be customized according to profile drawings, material specifications, dimensions, hole patterns, production speed, and other technical requirements.
Conclusion
The solar channel roll forming machine provides an automated solution for producing steel channels and structural components used in photovoltaic mounting systems. By combining PLC control, servo feeding, precision roll forming, punching, sizing, and hydraulic cutting, the equipment supports continuous and consistent production.
Whether the requirement is a solar strut channel manufacturing machine, solar bracket channel roll forming machine, or customized equipment for heavier solar purlins, the production line can be configured around the required profile and manufacturing process.
Its combination of ±1 mm forming accuracy, Cr12MoV forming rollers, 10–35 m/min production speed, and customizable automation makes it suitable for manufacturers producing solar mounting structures for different PV applications.
