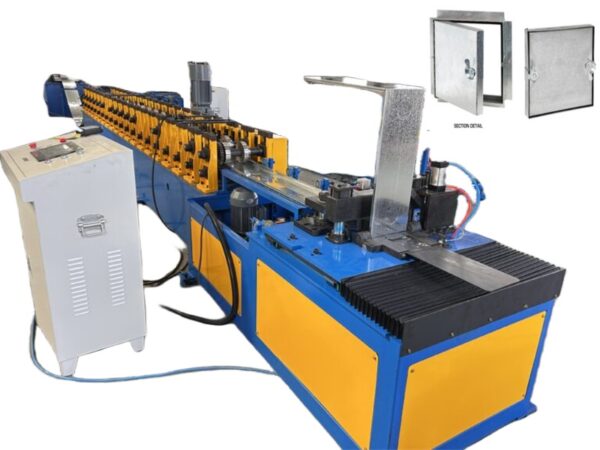

Zhongtuo Electric Box Enclosure Roll Forming Machine For Electrical Cabinet Distribution Box Production

As Global Industries Accelerate Toward Automation And Smart Manufacturing, The Demand For Durable, Precise, And Efficient Electrical Enclosures Continues To Rise. Modern Factories, Power Distribution Systems, Data Centers, Renewable Energy Projects, And Communication Infrastructure All Require High-Quality Electrical Cabinets And Distribution Boxes To Protect Critical Components.

Our Electric Box Enclosure Roll Forming Machine Is Specially Designed To Produce Various Types Of Metal Electrical Enclosures With High Speed, High Precision, And Stable Performance. By Integrating Servo Feeding, Hydraulic Punching, Cold Roll Forming, Automatic Cutting, And Intelligent PLC Control, The Entire Production Process Becomes Faster, More Accurate, And More Cost-Effective.

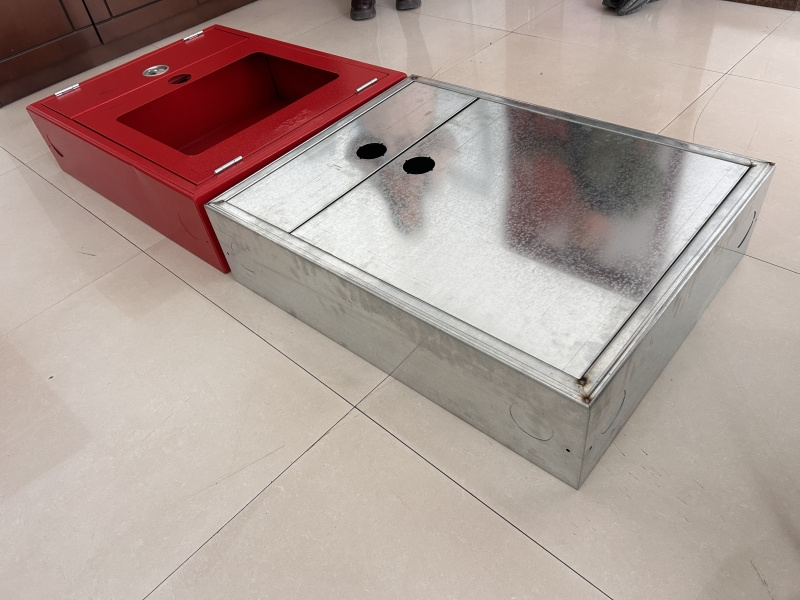

Compared With Traditional Manual Fabrication Methods, This Fully Automatic Production Line Significantly Improves Production Efficiency While Reducing Labor Costs And Material Waste. Manufacturers Can Easily Produce Distribution Boxes, Electrical Cabinets, Junction Boxes, Control Panels, Communication Cabinets, And Photovoltaic Inverter Enclosures With Consistent Quality.

High-Efficiency Automatic Production System Of Electrical Box Roll Forming Machine

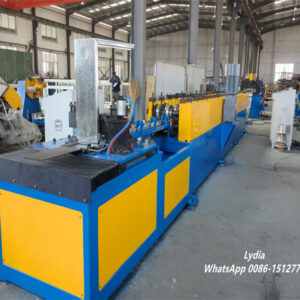

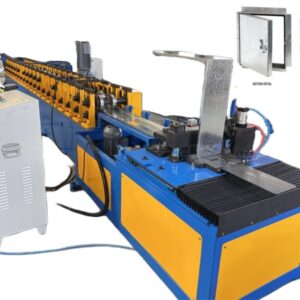

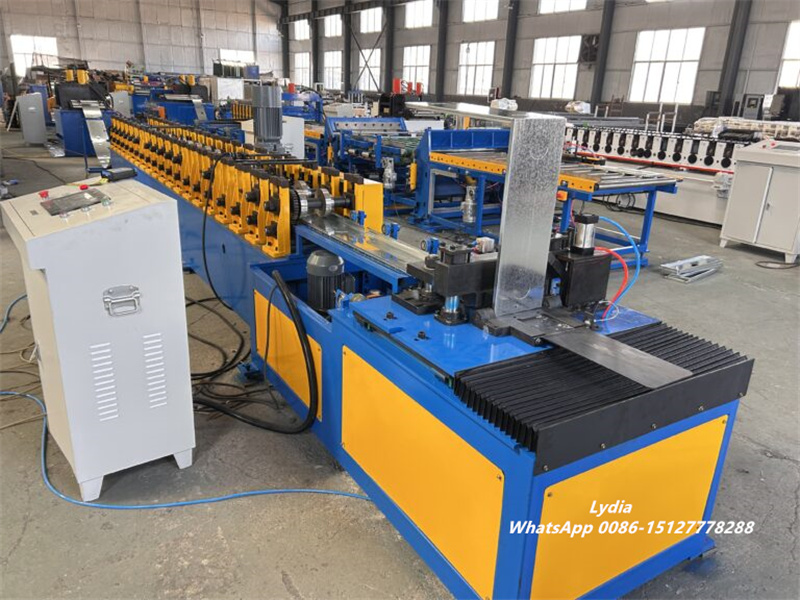

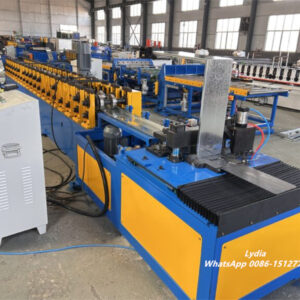

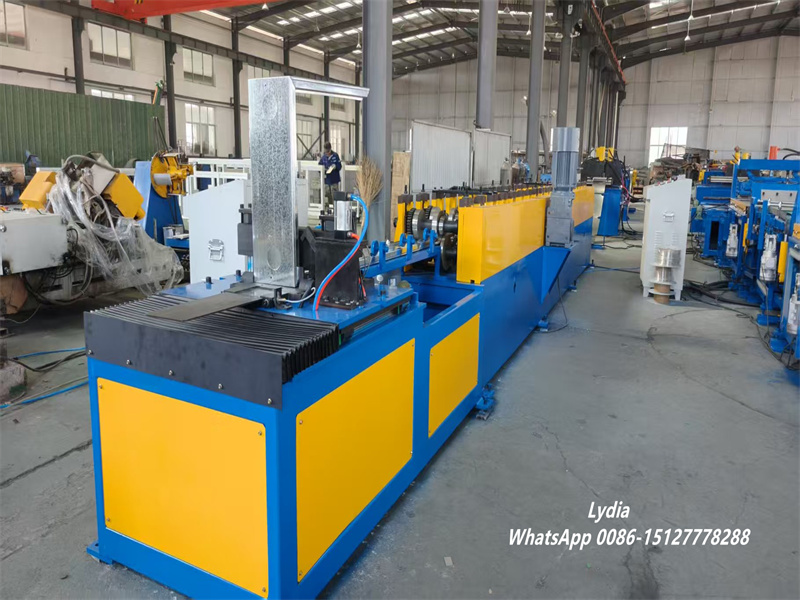

The Electrical Box Roll Forming Machine Combines Multiple Manufacturing Processes Into One Intelligent Production Line. From Coil Feeding To Finished Product Output, The Entire Workflow Runs Automatically And Smoothly.

The Production Process Includes:

Uncoiling → Leveling → Servo Feeding → Hydraulic Punching → Roll Forming → Hydraulic Cutting → Automatic Bending → Finished Product Collection

This Fully Integrated Design Eliminates Repeated Manual Operations And Improves Overall Production Efficiency By 3-5 Times Compared With Conventional Processing Methods. Depending On Product Specifications, The Production Speed Can Reach 2-13m/Min, While Output Capacity Can Achieve Up To 120 Electrical Enclosures Per Hour.

Precision Forming Ensures Stable Quality Of Electrical Cabinet Forming Machine

Product Accuracy Plays A Critical Role In Electrical Cabinet Manufacturing. Therefore, Our Electrical Box Forming Machine Uses High-Quality Rollers Manufactured From Cr12 Or GCR15 Mold Steel With Overall Heat Treatment. The Roller Hardness Reaches HRC58-62, Which Ensures Long Service Life And Prevents Surface Scratches During Forming.

Meanwhile, The Servo Feeding System And Precision Hydraulic Punching Unit Guarantee Accurate Hole Positioning And Stable Product Dimensions. The Forming Accuracy Reaches ±0.3-0.5mm, While Cutting Accuracy Remains Within ±0.5mm.

As A Result, The Finished Electrical Enclosures Maintain Excellent Flatness, Tight Assembly Tolerances, And Strong Interchangeability. This Stable Production Quality Helps Manufacturers Meet International Standards And Build Long-Term Customer Trust.

Main Technical Parameters Of Electric Box Making Machine

Flexible Customization For Different Electrical Box Applications

Different Industries Require Different Electrical Enclosure Designs. Therefore, Our Electrical Box Forming Machine Supports Flexible Customization According To Customer Drawings And Production Requirements.

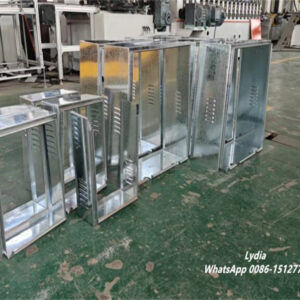

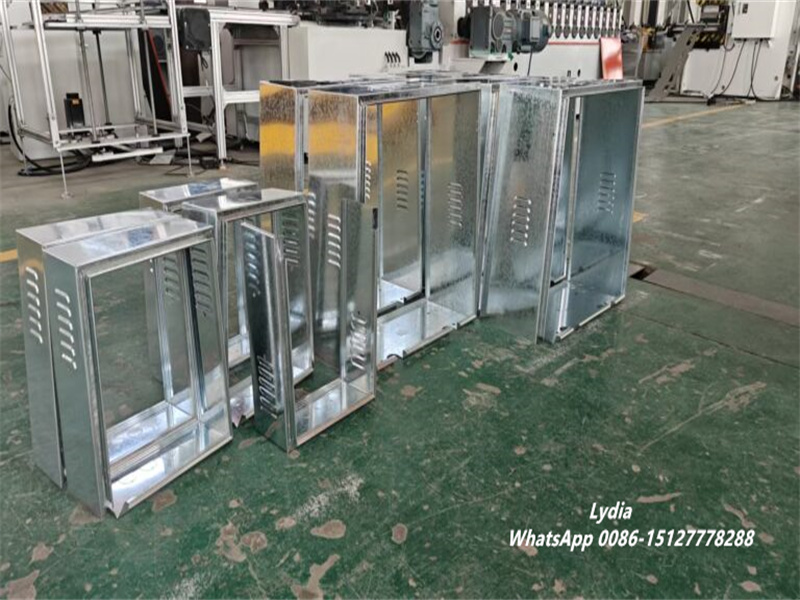

The Machine Can Produce Various Types Of Products, Including:

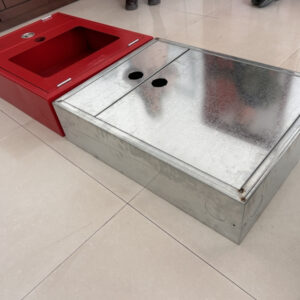

• Distribution Boxes
• Control Cabinets
• Junction Boxes
• Switch Cabinets
• Outdoor Communication Cabinets
• Photovoltaic Inverter Enclosures
• Electrical Panel Frames

In Addition, Customers Can Customize Product Dimensions Such As Width, Height, And Depth. The Machine Supports Fast Size Adjustment And Quick Mold Replacement, Which Helps Manufacturers Switch Between Different Product Specifications More Efficiently.

Furthermore, The Equipment Is Compatible With Multiple Metal Materials Including Cold-Rolled Steel, Galvanized Steel, Stainless Steel, And Aluminum Sheets. This Wide Material Compatibility Allows Manufacturers To Serve Different Markets And Industry Requirements More Flexibly.

Scientific Workflow Of Electrical Metal Box Manufacturing Machine

The Electrical Metal Box Manufacturing Machine Adopts A Highly Efficient And Scientifically Designed Manufacturing Process To Ensure Smooth Operation And Consistent Finished Product Quality.

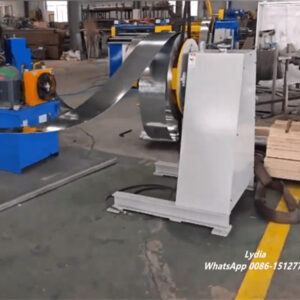

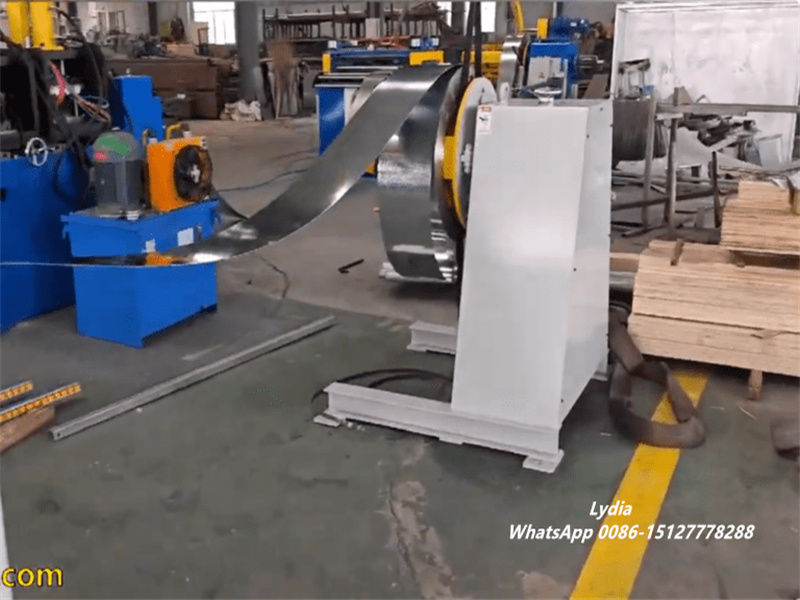

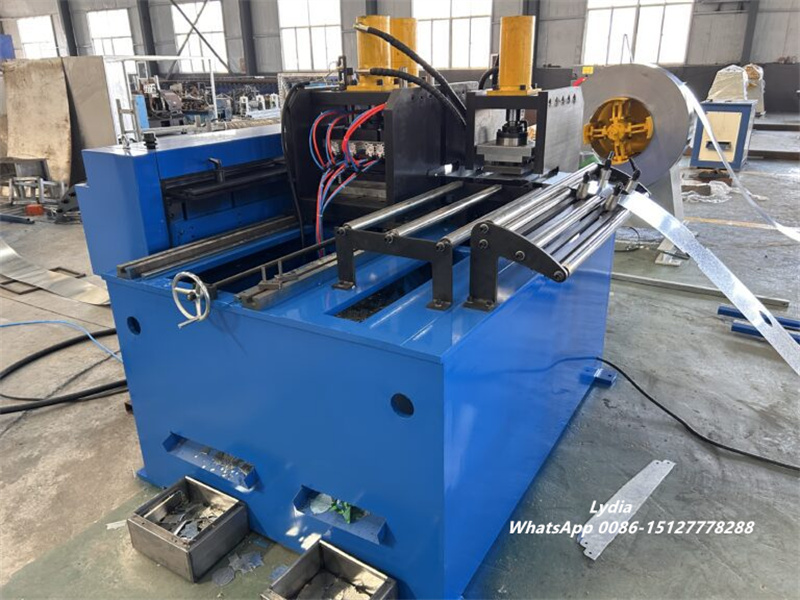

First, The Metal Coil Is Loaded Onto The Combined Uncoiler And Leveling Unit. The Material Is Straightened Carefully To Remove Internal Stress And Ensure Surface Flatness.

Next, The Servo Feeder Accurately Transfers The Material Into The Hydraulic Punching System, Which Completes Hole Punching, Corner Cutting, And Slot Processing According To The Programmed Design.

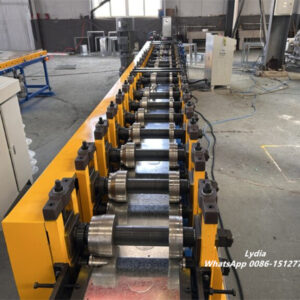

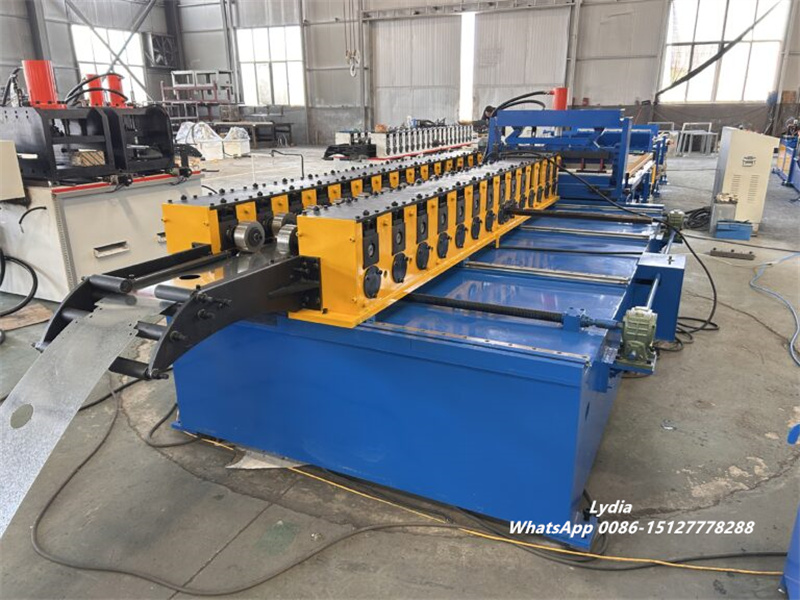

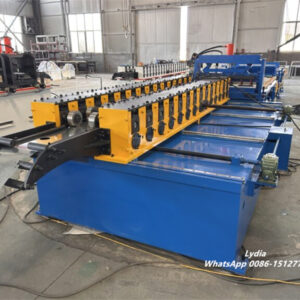

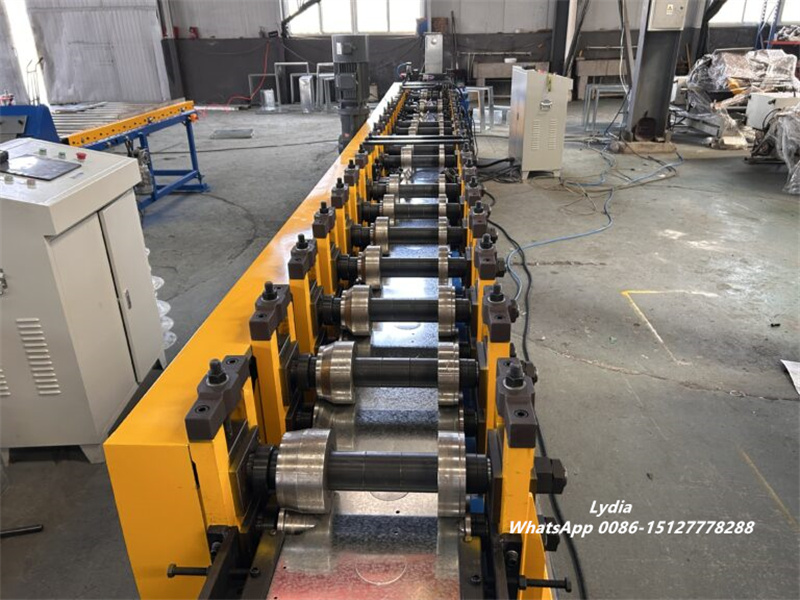

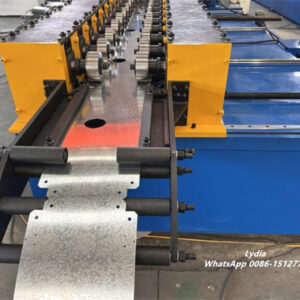

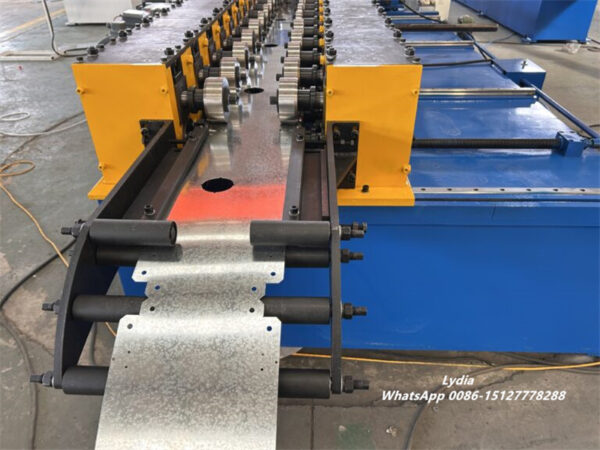

After Punching, The Material Enters The Roll Forming Section. Multiple Roller Stations Gradually Shape The Metal Into The Required Profile Without Damaging The Surface.

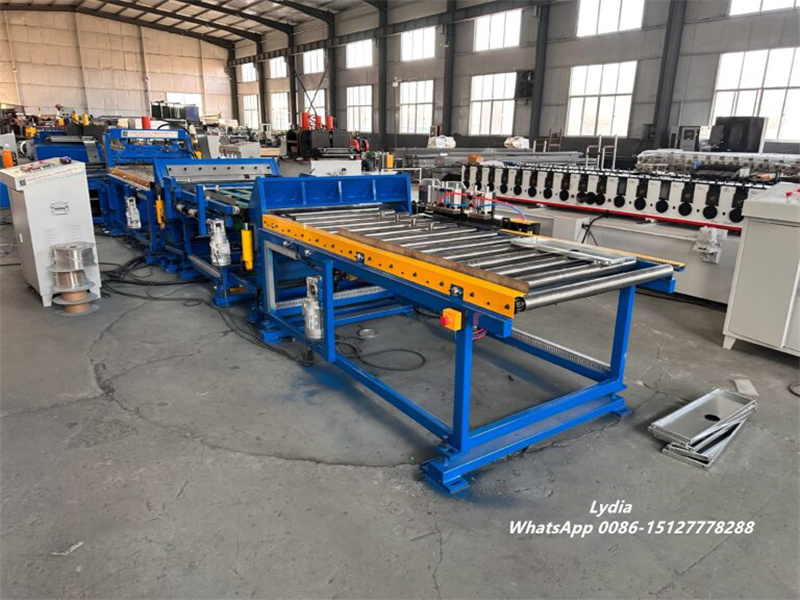

Then, The Hydraulic Cutting System Cuts The Profile To The Required Length. Finally, The Automatic Bending System Forms The Final Box Structure, And The Finished Products Are Collected Automatically For Packaging And Storage.

Because Every Step Is Controlled Precisely By The PLC System, The Entire Production Process Remains Stable, Efficient, And Easy To Maintain.

Ideal Solution For Modern Electrical Enclosure Manufacturing

With The Rapid Development Of Industrial Automation, Renewable Energy, Smart Buildings, And Electrical Infrastructure, The Demand For High-Quality Electrical Cabinets Continues To Expand Worldwide.

Our Electric Box Enclosure Roll Forming Machine Provides Manufacturers With A Complete Automatic Production Solution That Combines High Efficiency, Precision Forming, Flexible Customization, And Long-Term Reliability.

Whether You Produce Standard Distribution Boxes Or Customized Electrical Cabinets, This Machine Helps You Improve Production Capacity, Reduce Manufacturing Costs, And Enhance Product Competitiveness In The Global Market.
