Zhongtuo 2.5mm Shelf Panel Roll Forming Machine Storage Rack Shelf Panel Roll Former

Efficient warehouse storage begins with reliable structural components. The Shelf Panel Roll Forming Machine is designed to manufacture metal shelf panels used in industrial shelving, supermarket racks, and warehouse storage systems. By integrating automated feeding, punching, roll forming, and cutting processes, this production line delivers high-precision panels with consistent quality.

As logistics centers and distribution facilities continue to expand, manufacturers require equipment capable of producing durable shelving components quickly and efficiently. The shelf panel roll forming machine meets this demand by combining intelligent automation with robust mechanical design, enabling stable operation and high productivity for long production cycles.

Structure of Shelf Panel Roll Forming Machine

The shelf panel forming line integrates multiple coordinated systems that work together to ensure smooth material processing and accurate profile forming. Each section of the machine plays an important role in maintaining production efficiency and dimensional precision.

The complete production line typically includes:

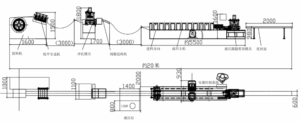

Decoiler → Leveling Unit → Servo Feeding System → Punching Station → Bilateral Roll Forming Section → Hydraulic Cutting & Bending → Receiving Table → Automatic Welding System → PLC Control Cabinet

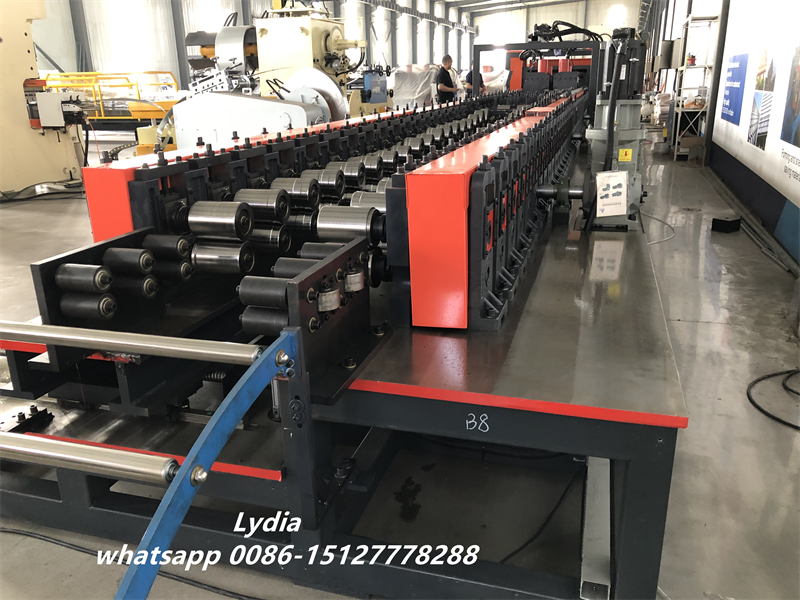

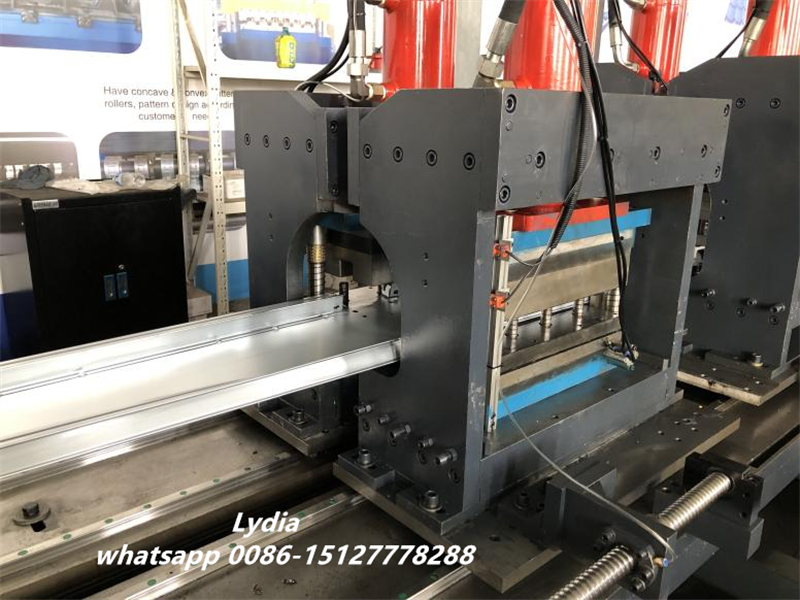

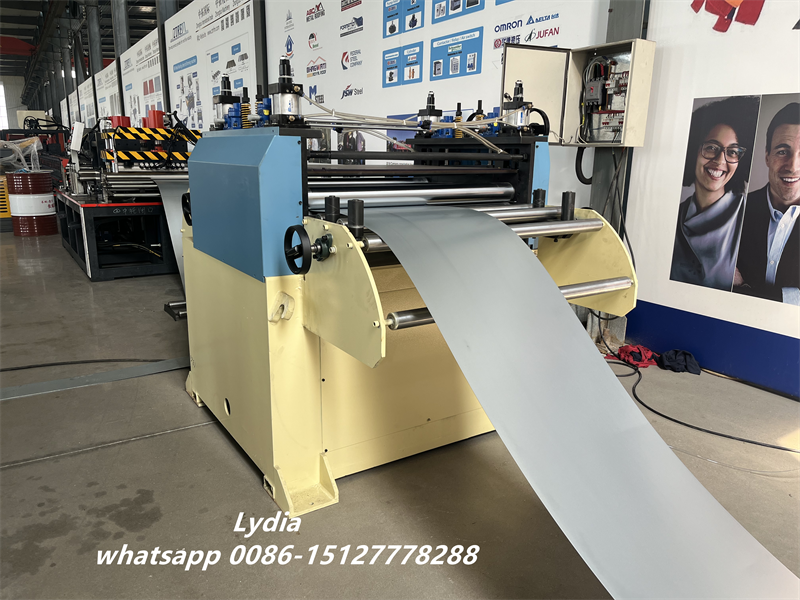

First, the decoiler releases the steel coil smoothly. Next, the leveling system removes internal stress and improves flatness before the material enters the servo feeder. After precise punching operations, the material passes through multiple forming stations where rollers gradually shape it into the required shelf panel profile. Finally, the hydraulic cutting system cuts the product to the preset length, and the finished panels move to the receiving platform.

Because the entire process is controlled by a PLC system, operators can easily manage production parameters and maintain consistent output quality.

Key Features of the Shelf Panel Production Line

Several structural and technical advantages make this roll forming machine suitable for industrial shelving manufacturing.

First, the equipment adopts a PLC intelligent control system, which automates the entire production cycle and improves operational efficiency. Operators only need to input production parameters, and the machine automatically performs feeding, punching, forming, and cutting.

Second, the forming frame uses high-strength channel steel welding, which enhances structural stability and ensures a long service life even under continuous heavy-duty production conditions.

Additionally, the roller shafts are made from heat-treated 40Cr steel, providing excellent strength and wear resistance. After quenching and tempering, the shaft hardness reaches HB280, which significantly improves durability.

Furthermore, the forming rollers are manufactured from GCr15 bearing steel with a hardness of HRC 56–62 after heat treatment. This ensures accurate shaping performance and reduces roller wear during long-term operation.

Finally, the machine supports gearbox or chain transmission systems, allowing manufacturers to choose the most suitable configuration based on their production requirements.

Applications in Industrial Racking and Shelving Systems

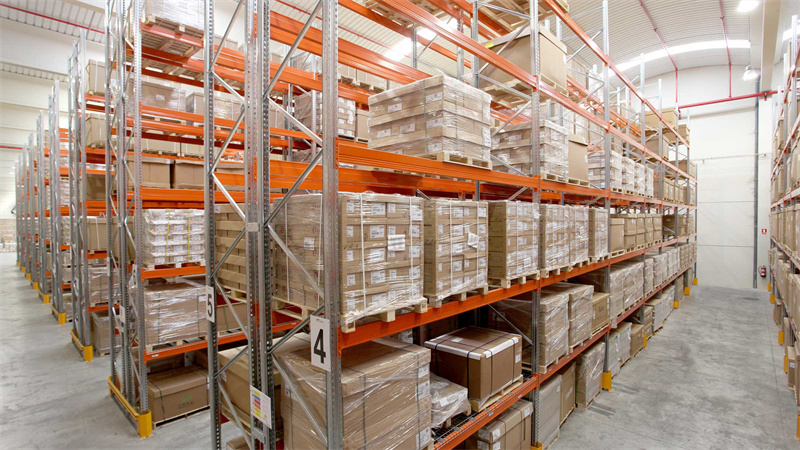

Modern warehouses rely heavily on structured storage systems to maximize available space. Shelf panels produced by this machine are widely used in:

Industrial warehouse shelving
Supermarket display racks
Logistics storage systems
Heavy-duty pallet racking systems
Distribution center storage structures

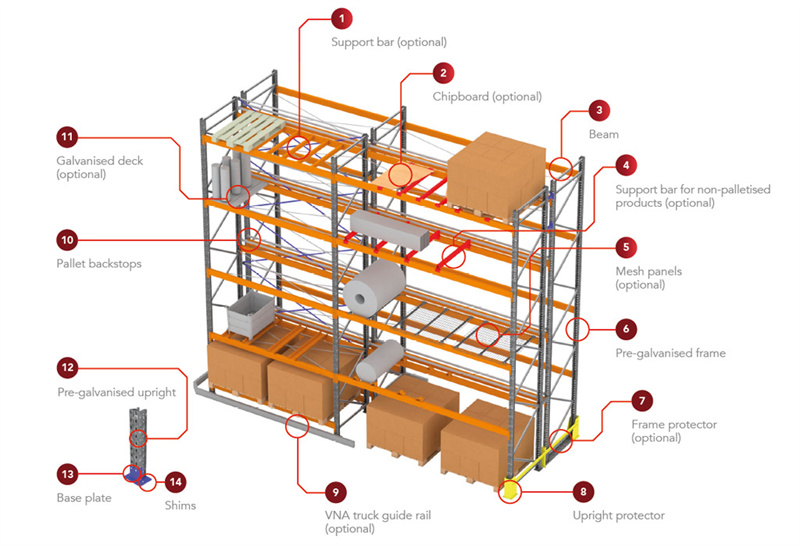

In these environments, strong and precisely manufactured shelf panels ensure both stability and load-bearing capacity. For example, in pallet racking systems, shelf panels work together with uprights, beams, and braces to form a rigid structure that supports heavy goods while maintaining accessibility for forklifts and warehouse staff.

Because storage facilities often require customized shelf sizes, manufacturers must produce panels with different widths, depths, and hole patterns. The flexible design of this roll forming machine allows quick adjustment to meet various production requirements.

Technical Specifications

The following table summarizes the typical technical parameters of the shelf panel roll forming machine.

These parameters can be customized according to the customer’s specific profile design and production requirements.

Every storage project has unique structural requirements. Therefore, ZTRFM provides customized roll forming solutions for shelf panel manufacturing. Customers only need to provide detailed drawings or product samples, and our engineering team will design a tailored machine configuration.

With advanced servo control systems, the machine can adjust shelf panel widths quickly without complicated mold changes. In many cases, operators can switch to another product size within approximately ten minutes, which significantly improves production flexibility.

Moreover, the equipment is designed for convenient maintenance and stable operation. Organized wiring, protective covers, and accessible components allow technicians to perform routine servicing efficiently, helping manufacturers reduce downtime and maintenance costs.

By combining intelligent automation, durable mechanical structures, and flexible customization capabilities, the shelf panel roll forming machine provides an ideal solution for manufacturers producing industrial shelving and warehouse storage systems.
