Modern electrical installations demand efficient and durable cable management systems. Cable trays are widely used to support and protect cables in industrial, commercial, and infrastructure projects.
To meet these demands, our Cable Tray Roll Forming Machine provides a fully automated solution for producing high-quality trays with consistent dimensions, precise punching, and flexible size adjustment.
By integrating feeding, punching, forming, and cutting into one continuous process, this machine significantly improves production efficiency while ensuring stable product quality.
Flexible Design for Multiple Cable Tray Sizes
This machine is designed to handle a wide range of specifications, allowing manufacturers to respond quickly to different project requirements.
It supports raw materials such as galvanized steel, hot rolled steel, and cold rolled steel, with a thickness range of 1–2 mm. At the same time, the tray bottom width can be adjusted from 50 mm to 600 mm, and the side height ranges from 50 mm to 100 mm.

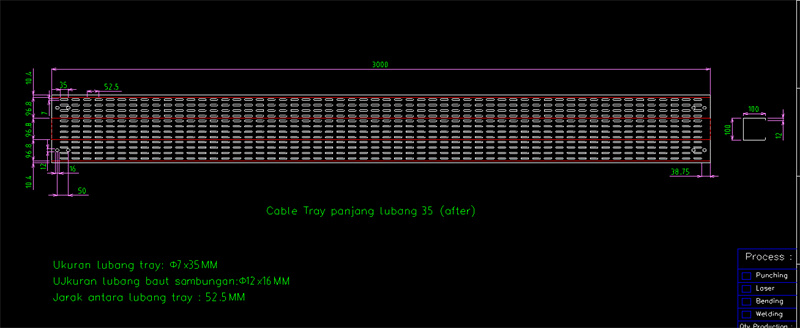

Moreover, the machine maintains consistent punching standards across all sizes. The main holes are 7 × 35 mm, while the side connection holes are 12 × 16 mm, ensuring compatibility with standard installation systems.
Integrated Punching and Logo Embossing System
To improve both functionality and branding, the machine is equipped with an advanced punching unit. This system performs hole punching during the forming process, which reduces secondary operations and saves time.

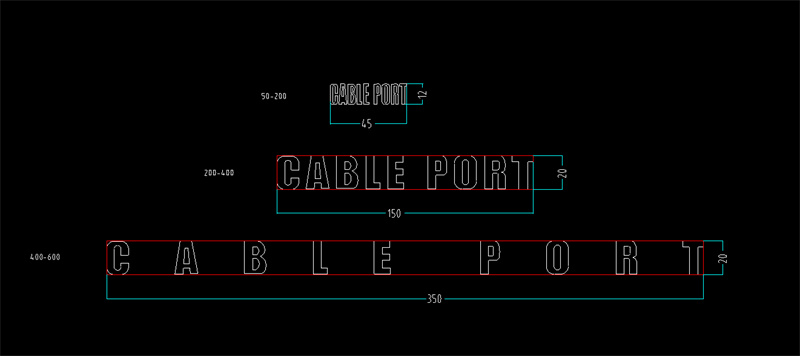

In addition, a separate logo embossing station is included. The machine comes with three sets of interchangeable logo molds, enabling manufacturers to add customized branding directly onto the cable trays.
As a result, finished products not only meet technical requirements but also enhance brand visibility in the market.

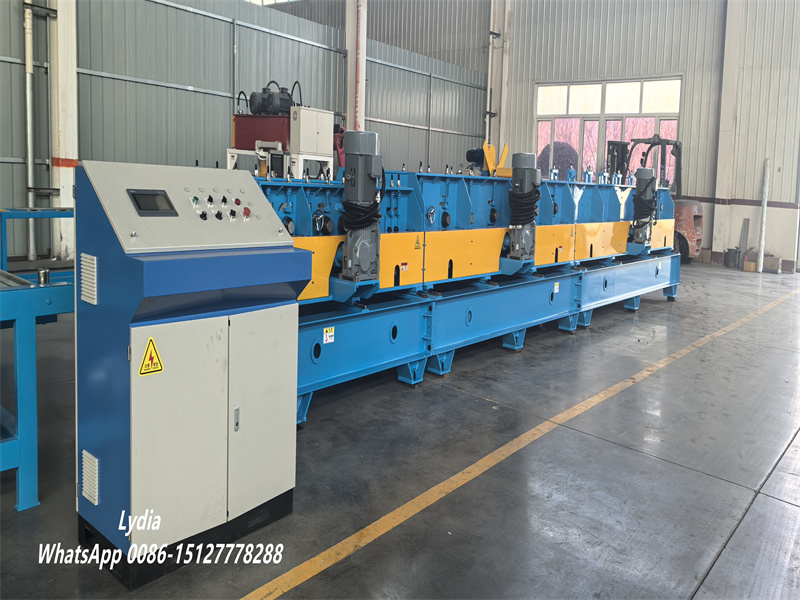

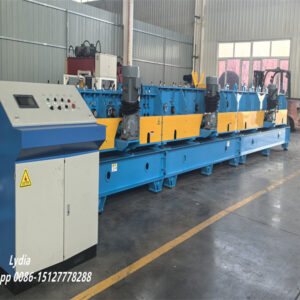

The entire production line is controlled by a reliable PLC system with a touchscreen interface and physical buttons. Operators can easily set production parameters such as length, quantity, and batch size.
The system supports both English and Chinese languages, making it convenient for international use. Furthermore, the control system is designed without password restrictions, allowing quick access for operation and maintenance.
To improve installation and maintenance efficiency, all electrical connections use aviation plugs, and every wire is clearly labeled with numbers or letters for easy identification. Additionally, all cables are protected with conduits to enhance safety and organization.
Technical Specifications
| Item | Specification |
|---|---|
| Material Type | GI, Hot Rolled Steel, Cold Rolled Steel |
| Material Thickness | 1 – 2 mm |
| Tray Width | 50 – 600 mm Adjustable |
| Side Height | 50 – 100 mm |
| Punching Size | Main Hole: 7×35 mm / Side Hole: 12×16 mm |
| Control System | PLC + Touchscreen + Buttons |
| Language | English & Chinese |
| Voltage | 380V / 50Hz / 3 Phase |
| Decoiler | Compatible with Coil Feeding |
| Receiving Table | 3m × 2 Sets |
| Logo System | Independent Embossing Unit with 3 Molds |
| Machine Color | Blue (Customizable) |
Wide Applications of Cable Tray Systems
Cable trays produced by this machine are widely used across multiple industries due to their strength, flexibility, and ease of installation.
In industrial environments, they are commonly used in factories, manufacturing plants, and power stations to organize large volumes of power and control cables.
In commercial buildings such as shopping malls, office buildings, and hotels, cable trays provide clean and efficient cable routing solutions while maintaining safety standards.
They are also essential in data centers and communication facilities, where structured cable management is critical for system reliability and maintenance efficiency.
In addition, infrastructure projects—including airports, railway systems, tunnels, and bridges—rely on cable trays for long-distance cable support under demanding conditions.
With the rapid growth of renewable energy, cable trays are increasingly used in solar power systems and energy projects, ensuring safe and organized cable layouts.
Reliable Quality and Delivery Assurance
Before shipment, we conduct full machine testing using actual materials within the required thickness range to ensure stable operation and product accuracy.
Each machine is delivered with a complete set of accessories, including:
- One set of tools
- Spare chains and sprockets
- Electrical spare parts (relay, limit switch, counter wheel)
- English operation manual and wiring diagrams
In addition, all wiring is clearly marked and protected, ensuring easier installation and long-term reliability.
If you are looking for a high-efficiency and flexible solution for cable tray production, this Cable Tray Roll Forming Machine is an ideal investment for expanding your manufacturing capacity and improving product quality.
