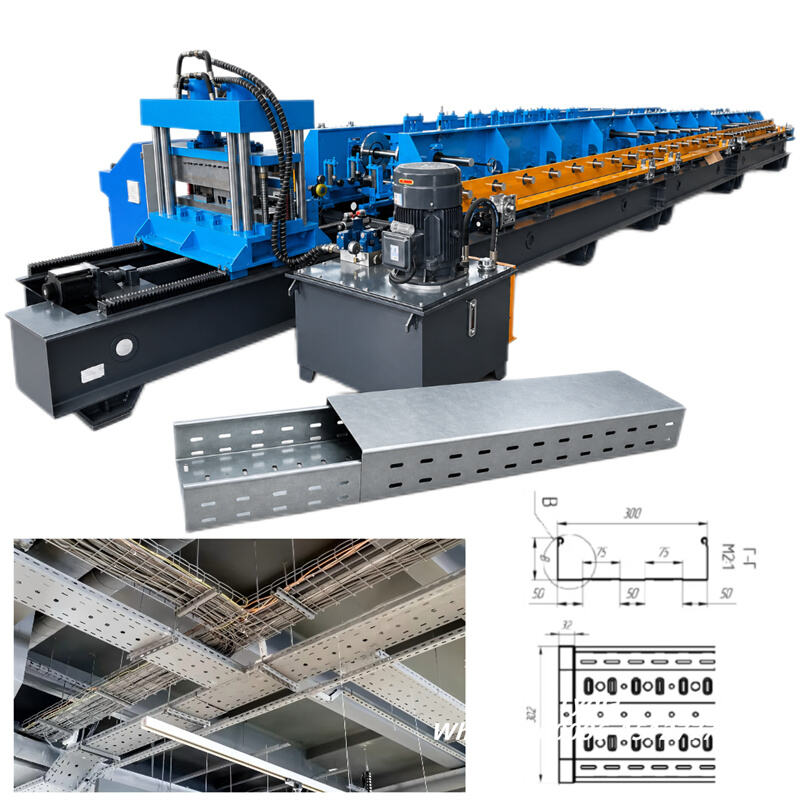

Zhongtuo Automatic Cable Tray Roll Forming Machine High-Speed Production Line

The High-Speed Cable Tray Roll Forming Machine is a fully automated production line for manufacturing galvanized steel, cold-rolled steel, and stainless steel cable trays. It combines coil feeding, leveling, punching, roll forming, cutting, and material handling into one continuous system, allowing manufacturers to turn metal coils into finished cable trays with minimal manual intervention.

Designed for flexible cable management production, this cable tray roll forming machine can manufacture trough-type, ladder-type, and tray-type profiles in different widths and heights. Depending on the production requirements, the line can handle cable tray widths from 100 to 800 mm, heights from 50 to 200 mm, and material thicknesses of approximately 0.8–3.0 mm. The configuration can also be customized according to the required profile, raw material, production speed, and punching pattern.

With a PLC-controlled system and touchscreen interface, operators can set forming length, production quantity, and other parameters directly from the control panel. As a result, the machine provides a practical solution for manufacturers that need both high-volume production and flexible specification changes.

Complete Cable Tray Roll Forming Process

The production line uses a continuous workflow to reduce intermediate handling and improve production consistency. The typical process includes uncoiling → leveling → servo feeding → punching → roll forming → cutting → discharge and palletizing.

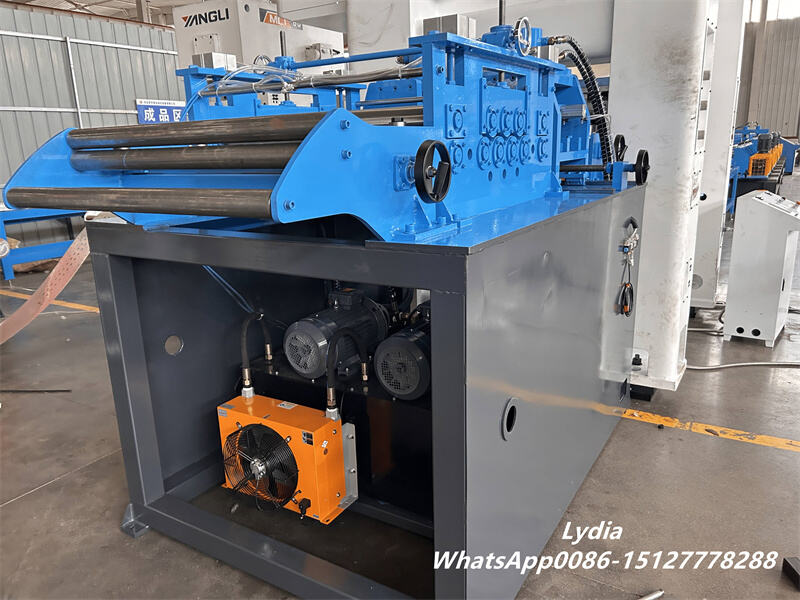

First, the decoiler releases the steel coil and feeds the strip into the line at a controlled speed. A leveling unit then corrects coil deformation, helping remove common problems such as waves and unevenness before the material reaches the forming section. This preparation is important because a stable strip improves both punching accuracy and final profile quality.

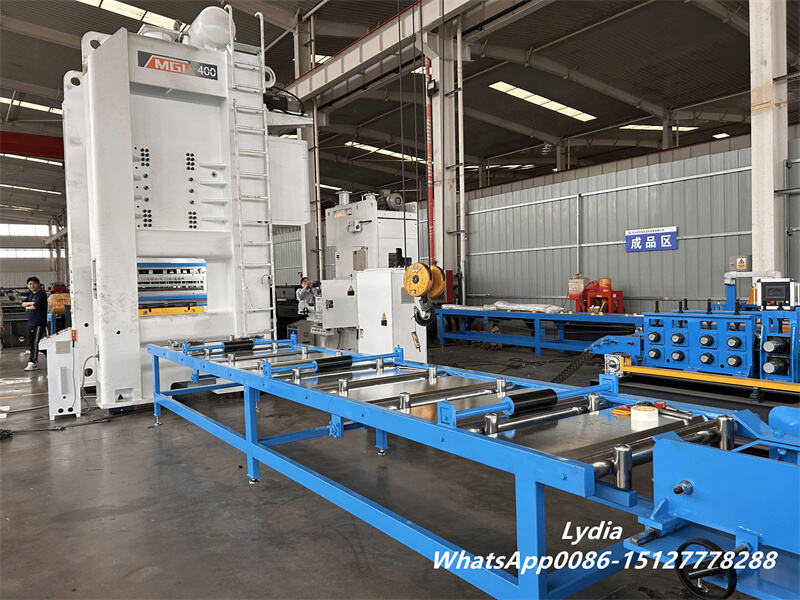

Next, the servo feeder positions the material for punching. The punching system can create connection holes, mounting holes, and other customized openings according to the customer’s cable tray design. After punching, the strip enters the forming section, where multiple roller stations gradually shape the flat metal into the required cable tray profile.

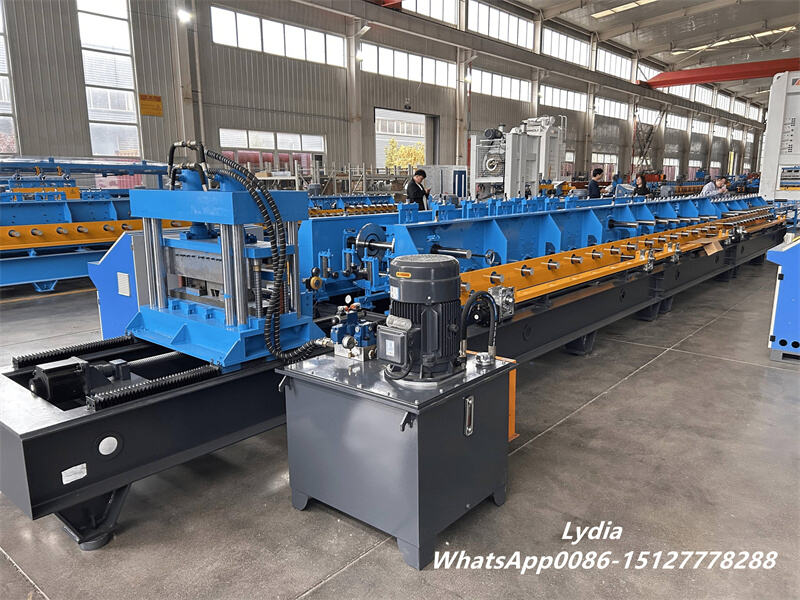

Finally, the automatic cutting system separates the formed tray according to the programmed length. Depending on the machine configuration and profile requirements, the line can use hydraulic or flying cutting technology. The finished products can then move to the discharge or stacking section for convenient collection and transportation.

Custom Cable Tray Profiles and Production Specifications

One of the main advantages of this automatic cable tray roll forming machine is its ability to accommodate different product dimensions. Instead of limiting production to one fixed cable tray specification, Zhongtuo can configure the forming rollers, punching system, cutting method, and feeding components around the customer’s actual profile drawing.

The following specifications represent a typical machine configuration:

The actual configuration can vary because cable trays differ considerably in width, height, thickness, hole pattern, and cross-sectional design. Therefore, we recommend confirming the profile drawing, material specification, thickness, finished length, and required production speed before finalizing the machine design.

Stable Forming, Accurate Punching, and Automatic Cutting

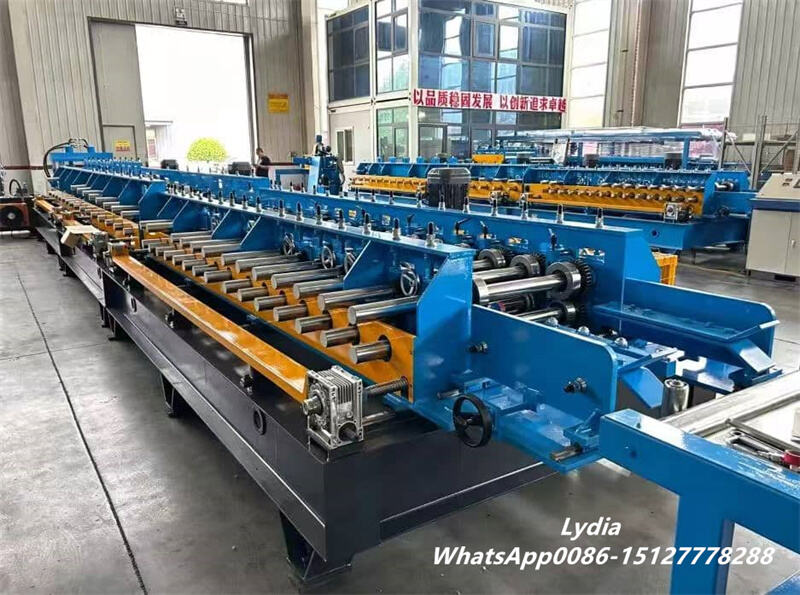

The forming section uses multiple passes to gradually bend the strip instead of forcing the material into its final shape in a single operation. This progressive forming method helps maintain the dimensional stability of the cable tray while reducing unnecessary deformation of the metal surface.

For demanding applications, the forming rollers can use hardened steel with a durable surface treatment to withstand continuous production. Meanwhile, the solid shaft and welded machine frame provide the rigidity required for stable operation.

The punching system works together with the servo feeding system to position each hole accurately. This arrangement allows manufacturers to produce cable trays with different connection and installation hole patterns without manually marking every piece.

In addition, the automatic cutter follows the programmed length and separates each finished tray continuously. This not only saves labor but also helps maintain consistent product dimensions throughout a production batch.

The PLC system provides another important advantage. Operators can enter the required length, quantity, and other production parameters through the touchscreen interface. After setup, the line can execute the production sequence automatically. Consequently, the operator mainly monitors the machine, checks material supply, and handles finished products rather than performing repetitive manual operations.

Applications of Cable Tray Products

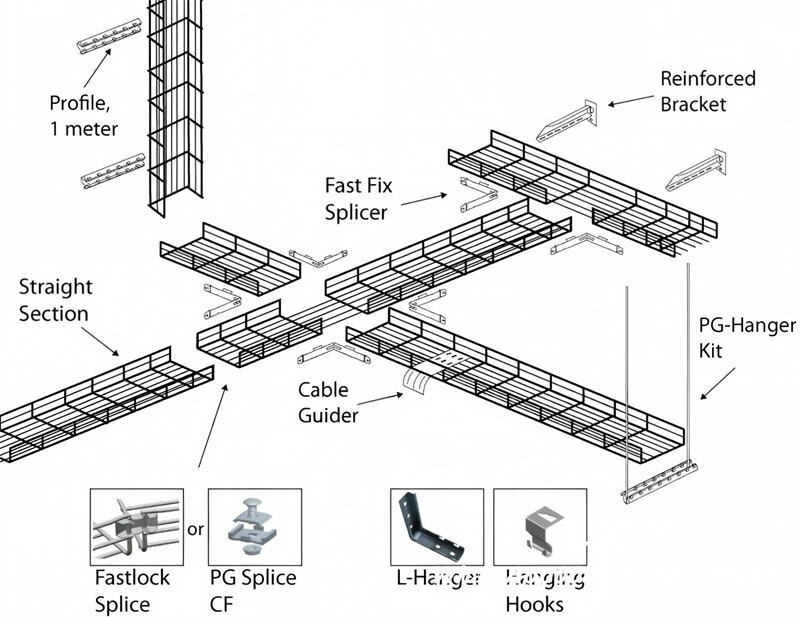

Cable trays produced by this roll forming line can serve a wide range of cable management applications. In commercial and residential construction, manufacturers can produce tray and trough profiles for organizing electrical cables inside buildings. These products help keep wiring orderly while providing mechanical protection.

For industrial facilities, factories, workshops, substations, and power distribution projects, manufacturers can select larger or heavier cable tray designs to support substantial cable loads. Ladder-type trays are particularly useful when projects require ventilation and convenient cable access.

Furthermore, cable trays can support infrastructure projects such as bridges, tunnels, transportation facilities, and municipal installations. By selecting galvanized steel, stainless steel, or other suitable materials, manufacturers can adapt the finished products to different environmental conditions.

The same production concept also suits renewable-energy projects, including photovoltaic plants and wind-power installations, where organized cable routing plays an important role. Data centers represent another demanding application because they require accurate, reliable, and well-organized cable management for high-density wiring systems.

For projects with special requirements, Zhongtuo can customize the machine around the customer’s finished cable tray profile rather than forcing the customer to modify the product to suit a standard machine.

Why Choose an Automatic Cable Tray Roll Forming Line?

Compared with separate punching, bending, and cutting equipment, an integrated cable tray roll forming production line connects the major manufacturing stages into one coordinated workflow. This reduces material handling between processes and allows manufacturers to improve overall production efficiency.

Moreover, automatic operation can reduce the number of workers required for routine production. Once the coil and production parameters are correctly prepared, one or two operators can supervise the line instead of manually transferring material between individual machines.

The production speed can reach approximately 10–30 m/min, although the actual speed depends on the cable tray profile, material grade, thickness, punching pattern, and cutting method. For high-volume orders, continuous roll forming can therefore provide considerably higher productivity than conventional fabrication methods.

At the same time, flexible machine configuration allows manufacturers to target different cable tray specifications with one production system. By adjusting the forming setup and, where applicable, the width or height adjustment mechanism, the manufacturer can reduce downtime when switching between products.

Most importantly, the machine combines automatic feeding, precision punching, progressive roll forming, automatic cutting, and PLC control in a single production line. This makes it suitable for cable tray manufacturers that want to increase capacity while maintaining consistent product quality.

If you are planning a new cable tray manufacturing line or replacing manual fabrication equipment, send us your cable tray profile drawing, material thickness, tray width and height, hole pattern, and required production speed. Zhongtuo can recommend a suitable roll forming configuration and customize the machine according to your production requirements.

FAQ About Cable Tray Roll Forming Machine

1. What is a cable tray roll forming machine?

A cable tray roll forming machine is an automated production system that converts metal coils into finished cable trays through feeding, leveling, punching, roll forming, and cutting. The machine can continuously produce cable trays with consistent dimensions and customized hole patterns.

2. What materials can the cable tray making machine process?

The machine can process materials such as galvanized steel (GI), pre-painted galvanized steel (PPGI), cold-rolled steel, aluminum, and stainless steel. The suitable material thickness depends on the cable tray profile and machine configuration.

3. Can I customize the cable tray width and height?

Yes. The automatic cable tray roll forming machine can be customized according to your required profile. Typical applications cover tray widths of approximately 100–800 mm and heights of 50–200 mm, while the actual range depends on the machine design.

4. Can the machine punch holes automatically?

Yes. The production line can integrate an automatic punching system before the roll forming section. It can produce mounting holes, connection holes, and other customized hole patterns according to your cable tray drawing.

5. What is the production speed of the cable tray roll forming machine?

The forming speed can reach approximately 10–30 m/min, depending on the material thickness, cable tray profile, punching pattern, and required production accuracy. Zhongtuo can select the appropriate configuration according to your production target.
