The Deep Track Roll Forming Machine produces deep leg tracks used in modern light gauge steel framing systems. Manufacturers widely use these tracks in drywall partition walls, steel frame houses, curtain wall systems, and prefabricated wall panels. By forming galvanized steel coils into precise profiles, the machine ensures stable production efficiency and consistent product quality.

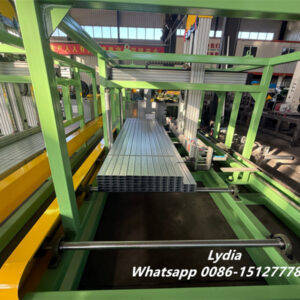

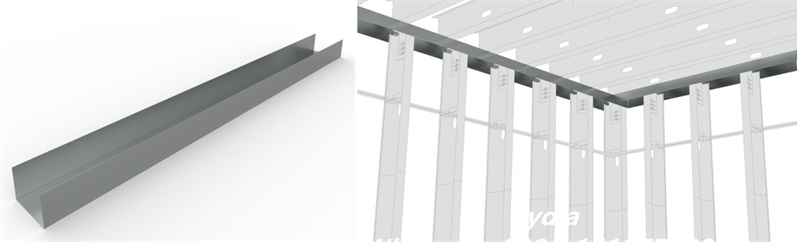

Deep leg tracks play an important role in wall framing structures. They are usually installed at the top of wall assemblies to accommodate structural movement. As buildings expand, contract, or shift slightly over time, the deep track allows vertical deflection while keeping the wall system aligned. As a result, contractors can reduce the risk of drywall cracking and structural stress.

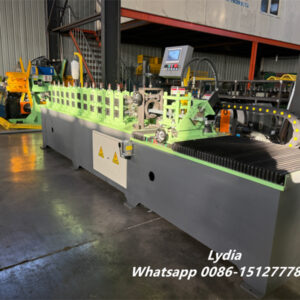

The machine uses advanced roll forming technology to shape the steel strip step by step. First, the decoiler feeds the steel coil into the system. Then, multiple roller stations gradually form the strip into the required deep track profile. Finally, the cutting unit trims the product to the required length. Therefore, the production process remains continuous, efficient, and highly automated.
In addition, the rollers are manufactured from high-strength steel and undergo precise machining and heat treatment. This design greatly improves durability and forming accuracy. Meanwhile, the machine frame provides strong structural support, which helps maintain stable operation even during long production runs.
Deep track profiles also offer excellent structural performance in steel framing systems. Reinforced lips and embossments increase the stiffness of the profile. At the same time, the open web design allows plumbers, electricians, and HVAC installers to work more efficiently inside the wall cavity. Consequently, builders can complete installation faster and reduce labor costs.

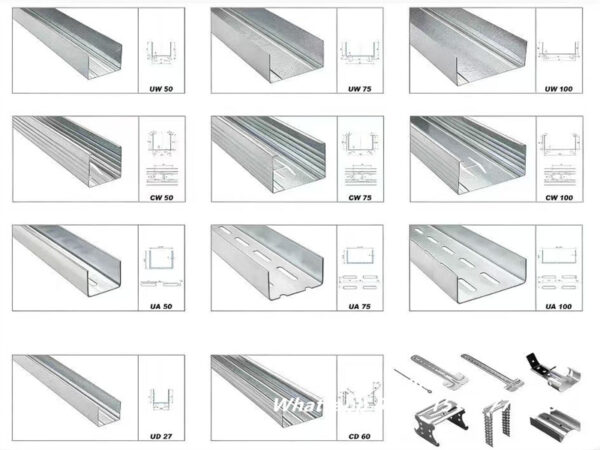

Deep Leg Track Specifications
The deep leg track profiles produced by this machine are available in various configurations to match different building standards.
Available steel gauges
-
20 gauge (33 mils)
-
18 gauge (43 mils)
-
16 gauge (54 mils)
-
14 gauge (68 mils)
-
12 gauge (97 mils)
Flange sizes
-
2 inches
-
2-1/2 inches
-
3 inches
Web depths
-
2-1/2 inches
-
3-5/8 inches
-
4 inches
-
6 inches
-
8 inches
Standard length
-
10 ft (custom lengths available)
In practical construction applications, deep leg tracks are designed to accommodate building deflection at the head of the wall. Structural engineers usually determine the required deflection capacity based on the specific conditions of the building. When installing this system, bridging is normally required at the top of the wall to maintain stud alignment. It is important to note that deflection tracks are generally not used in axial load-bearing wall systems but are widely applied in non-load bearing partitions and curtain wall structures.
With stable performance, flexible profile production, and efficient automation, the Deep Track Roll Forming Machine provides an ideal solution for manufacturers producing metal studs, drywall framing components, and steel structure accessories. It supports modern construction systems by delivering high-quality deep leg track profiles that improve structural reliability and installation efficiency in steel framing projects.
The Technical Specifications Of The Deep Track Roll Forming Machine Rolling Forming Machine：
| Deep Track rolling forming machine | ||
| 1.Formed Material | GI | Thickness: 0.4-0.6 mm |
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
| 3.Main body | Roller station | 12rows(As your requirement) |
| Diameter of shaft | 45mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | Metal steel welded | |
| Drive | Gearbox transmission | |
| Dimension(L*W*H) | 5500*800*1200(customize) | |
| Weight | About 3T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 5.5KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 0-50 m/min(customized) | Speed is adjustable according to customer’s request |

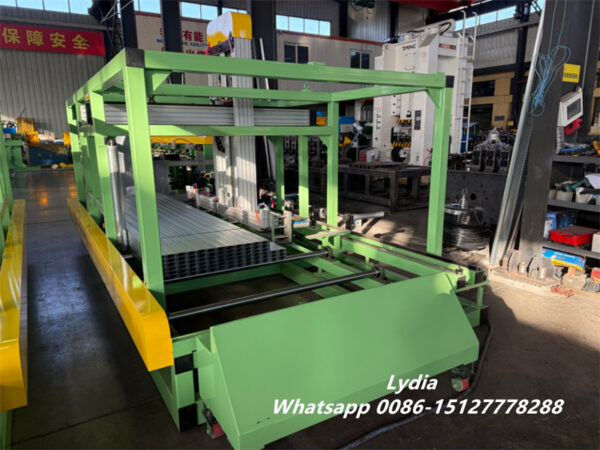

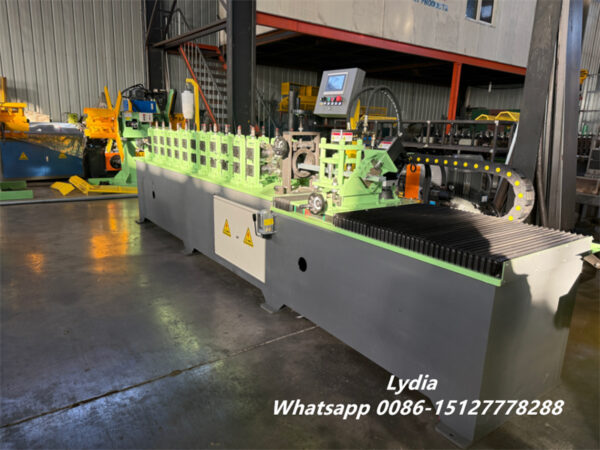

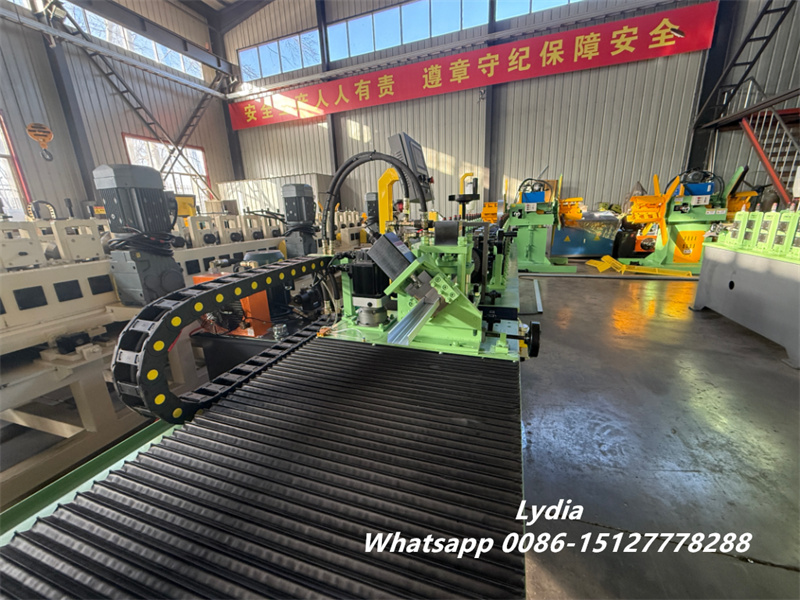

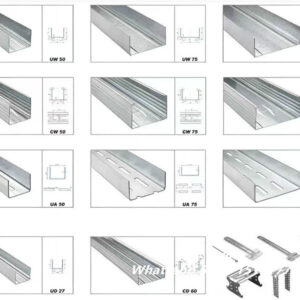

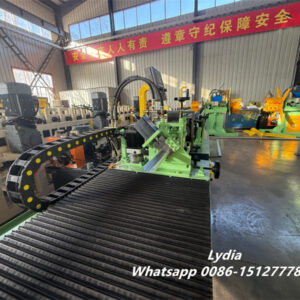

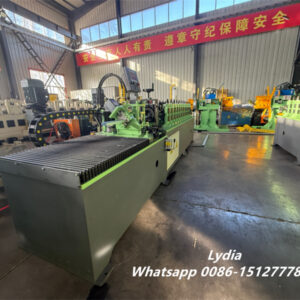

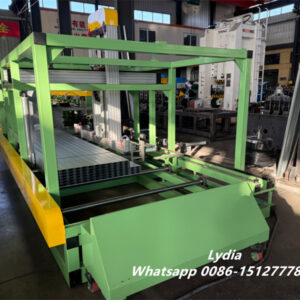

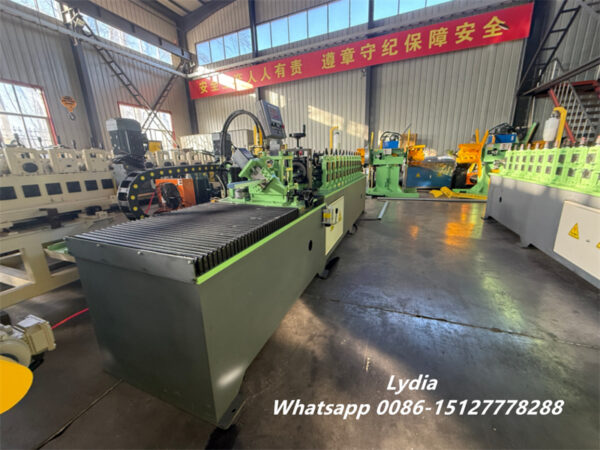

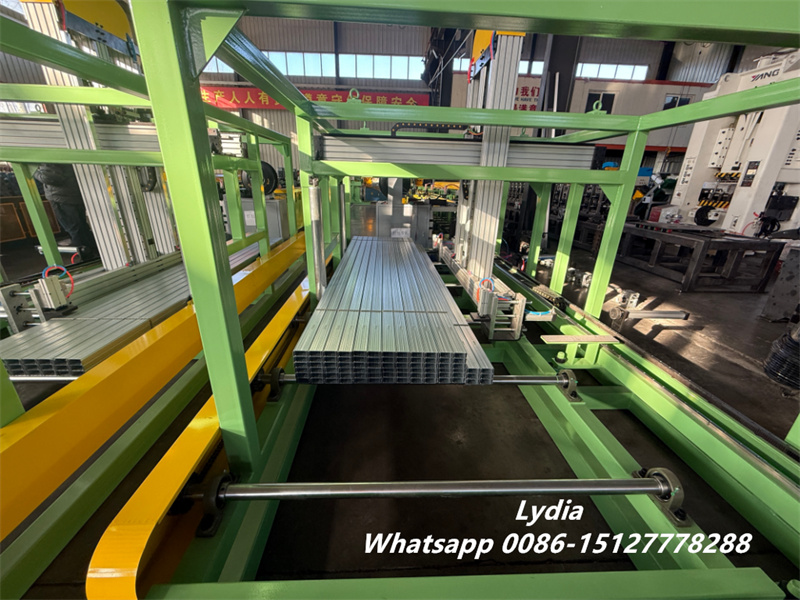

More pictures of Deep Track Roll Forming Machine：
